Residual Current Circuit Breakers (RCCB)
Compare VIOX RCCB series by rated current, pole configuration, rated residual operating current and waveform type for low-voltage earth-leakage protection.
保護機能Residual-current detection
極数オプション2P and 4P by series
感度Confirm IΔn by model
一般的なRCCB波形の種類Match load waveforms
What is a residual current circuit breaker?
An RCCB monitors the balance between current flowing through the outgoing and returning conductors. When the residual current exceeds the device operating characteristics, it disconnects the circuit to support earth-leakage protection.
An RCCB is not selected by rated current alone. Pole configuration, rated residual operating current, RCCB type, circuit voltage and coordination with overload and short-circuit protection must also match the installation.
RCCB Series Overview
製品データで既に入手可能な事実を使用して、公開されているVIOXモデルを比較してください。.
How to choose an RCCB
Use these checkpoints for preliminary comparison, then verify the exact model documentation and installation requirements.
Rated residual current
Match IΔn to the protection objective and applicable installation requirements.
RCCB waveform type
Choose Type AC, A, F, B or another available type according to the connected loads and standards.
ポール構成
Confirm the required 2P or 4P arrangement, circuit voltage and neutral configuration.
Overcurrent coordination
Coordinate the RCCB with the required MCB, fuse or other overcurrent protective device.
RCCB waveform types
Type availability varies by VIOX series. Confirm the product datasheet and applicable installation standard before selection.
Compare published RCCB series
空欄は、現在の製品概要において値が利用できないことを示します。仕様を決定する前に、モデルページを開くか、データシートを請求してください。.
| シリーズ | ポール | 定格電流 | 一般的なRCCB波形の種類 | 感度 |
|---|---|---|---|---|

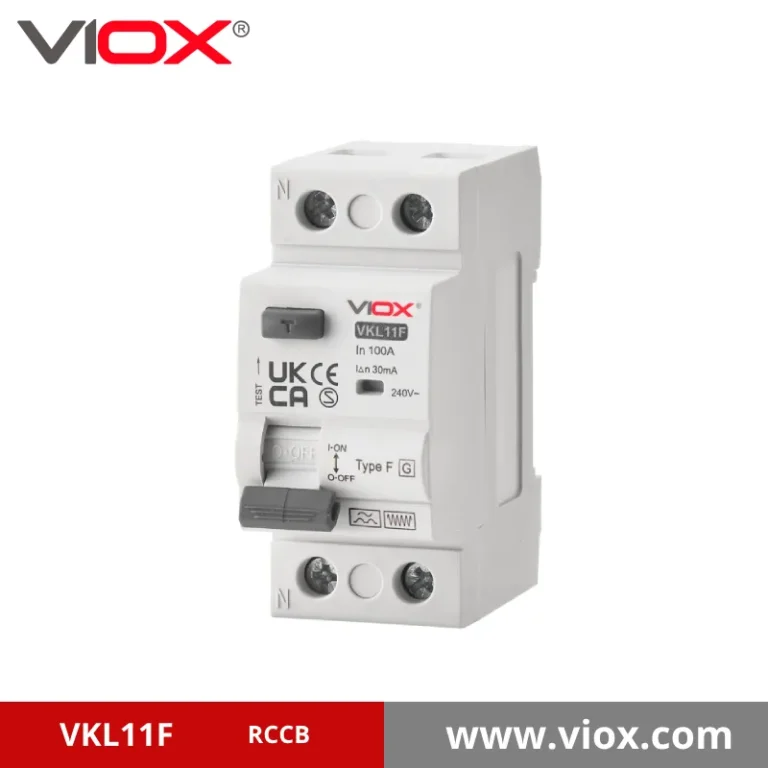

| VIOX VKL11F | 2P | — | — | — |

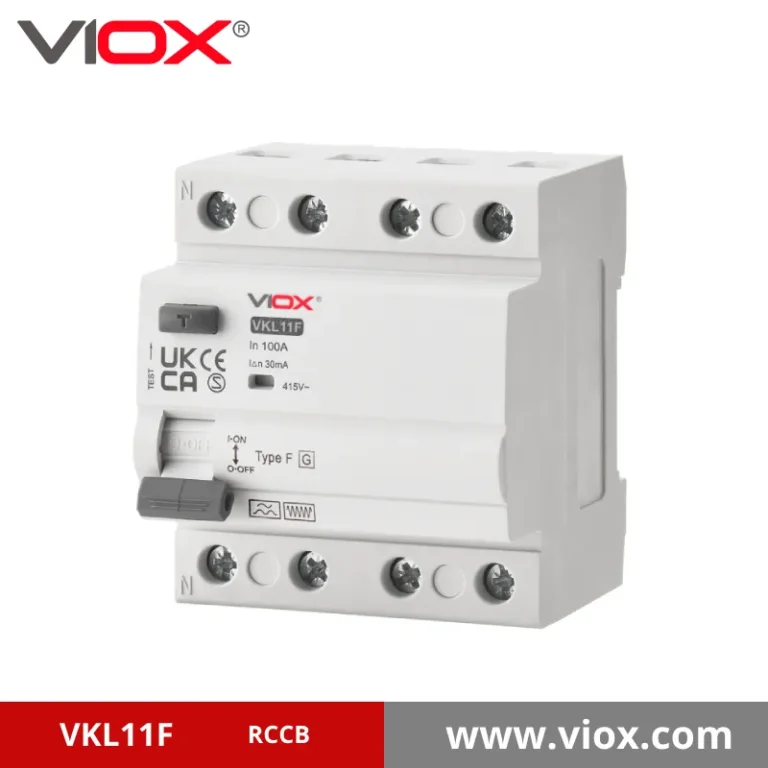

| VIOX VKL11F | 4P | — | — | — |
| VIOX VRC1-125-B | 2P | 100A | — | — |
| VIOX VRC3-63 | 2P | 25A | — | — |

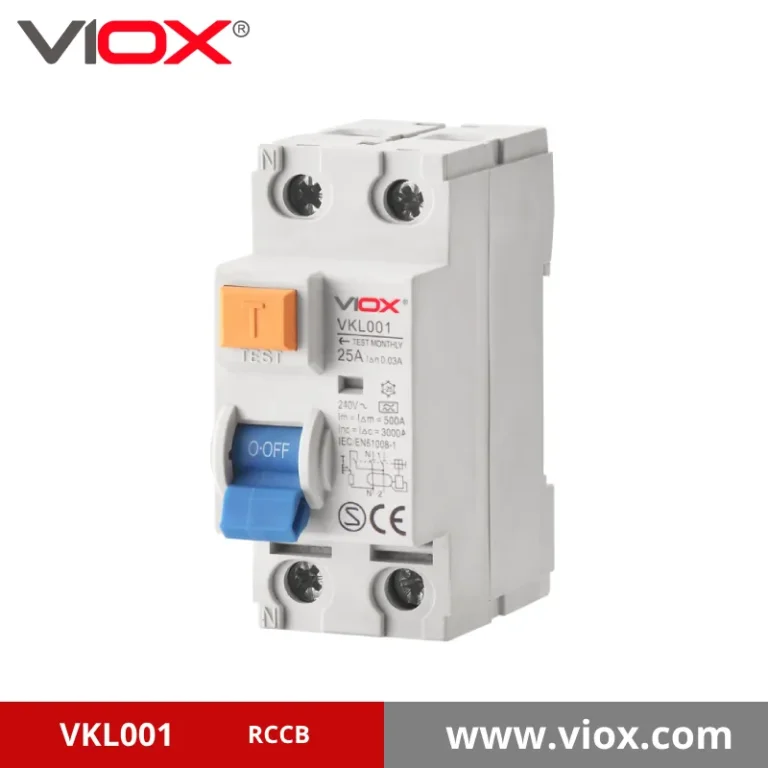

| VIOX VKL11 | 2P | — | — | — |
| VIOX VKL11 | 4P | — | — | — |
| VIOX VKL11 | 2P | — | タイプA | — |

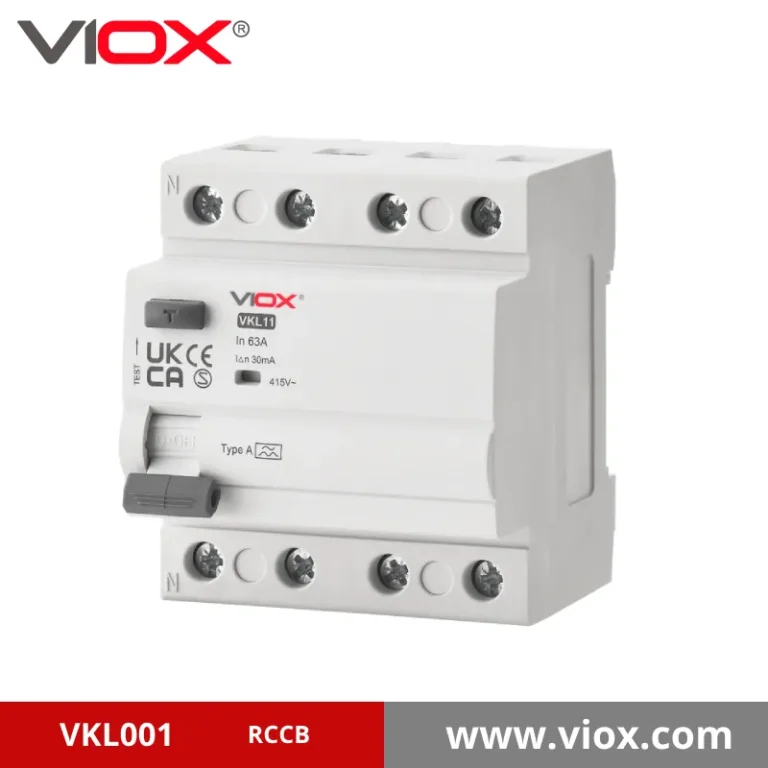

| VIOX VKL11 | 4P | — | タイプA | — |
RCCB applications
Typical environments where the correct residual-current protection characteristics must be verified.
RCCB selection questions
Quick answers for comparing a residual-current protection family before detailed circuit verification.
RCCBは何から保護しますか？
An RCCB detects an imbalance between outgoing and returning current and disconnects the circuit when the residual current exceeds its operating characteristics. It is used for earth-leakage protection in an appropriately designed installation.
Does an RCCB provide overload and short-circuit protection?
An RCCB is selected for residual-current protection and does not normally replace overcurrent protection. The circuit may also require an MCB, fuse or a combined RCBO according to the installation design.
What is the difference between Type AC, A, F and B RCCBs?
The type identifies the residual-current waveforms the device is designed to detect. The correct type depends on the connected equipment, applicable standards and manufacturer documentation; availability varies by VIOX series.
How should RCCB sensitivity be selected?
The rated residual operating current must match the protection objective and the applicable installation rules. Confirm the required sensitivity on the individual model page or datasheet before specification.
Can an RCCB be selected by rated current alone?
No. Rated current, pole configuration, rated residual operating current, RCCB type, circuit voltage and coordination with overcurrent protection must all be checked.
Need the Right RCCB?
一緒に確認しましょう。.
Send the circuit voltage, rated current, pole configuration, required sensitivity, connected loads, quantity and target market. VIOX will help identify the most relevant published series.
Request RCCB Support
