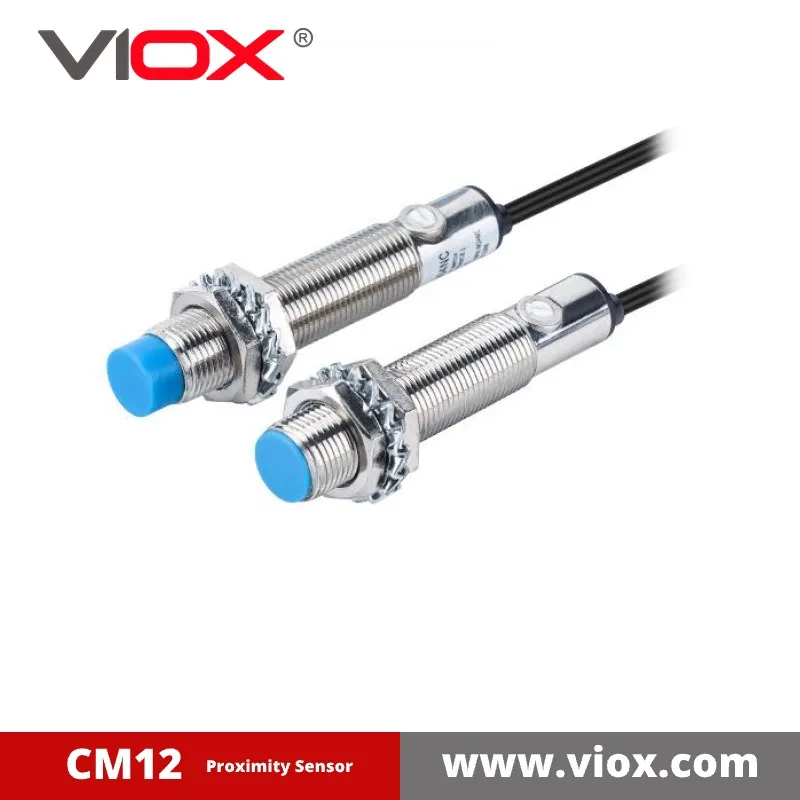

| Model | CM12 | |||
| Dimension |  |
|||
| Sense distance | 0~2mm±10% | |||
| Flush type | DC10~30VDC | NPN | NO | CM12-3002NA |
| NC | CM12-3002NB | |||
| NO+NC | CM12-3002NC | |||
| PNP | NO | CM12-3002PA | ||
| NC | CM12-3002PB | |||
| NO+NC | CM12-3002PC | |||
| Two-wire system | NO | CM12-3002LA | ||
| NC | CM12-3002LB | |||
| AC90~250VAC | NO | CM12-2002A | ||
| NC | CM12-2002B | |||
| NO+NC | CM12-2002C | |||
| Sense distance | 0~4mm±10% | |||
| Non-flush type | DC10~30VDC | NPN | NO | CM12-3004NA |
| NC | CM12-3004NB | |||
| NO+NC | CM12-3004NC | |||
| PNP | NO | CM12-3004PA | ||
| NC | CM12-3004PB | |||
| NO+NC | CM12-3004PC | |||
| Two-wire system | NO | CM12-3004LA | ||
| NC | CM12-3004LB | |||
| AC90~250VAC | NO | CM12-2004A | ||
| NC | CM12-2004B | |||
| NO+NC | CM12-2004C | |||
| Output current | DC | 200mA | ||
| AC | 300mA | |||
| Output voltage peak | Dc type below 3V, Ac type below 7V DC<3V, AC<7V | |||
| Consumption current | DC type 8mA at 12V, 15mA at 24V, AC below 10mA DC<15mA, AC<10mA | |||
| Standard detected object | Conductors and dielectric materials | |||
| Repeatability | 0.01 | |||
| Response frequency | DC50Hz/AC10Hz | |||
| Ambient temperature | -25℃-+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
