DIN Rail Socket Manufacturer & Supplier

Compare VIOX DIN rail socket formats for service power inside control panels, distribution boards and industrial enclosures, with regional outlet standards arranged for 35mm DIN rail installation.

35mm DINレールPanel-ready mounting

Regional formatsMatch the destination market

Service powerInside suitable enclosures

Safe integrationCoordinate circuit protection

Compare DIN Rail Socket series 型式選定のサポートを依頼する

VIOX DIN Rail Socket SERIESSix regional socket formats

VIOX DIN rail socket range for electrical panels

What is a DIN rail socket?

A DIN rail socket is a modular outlet mounted inside a control panel, switchboard or electrical enclosure to provide local service power for commissioning, test equipment and maintenance tools.

Selection must match the destination socket standard, circuit voltage and current, earthing arrangement, protective device, enclosure access, available rail space and the installation rules for the target market.

Selection guide Compare alternatives

Define the marketConfirm the plug and socket standard required at the destination.

Coordinate the circuitMatch supply voltage, earthing and upstream protection to the selected socket.

Integrate the panelVerify 35mm rail space, conductor routing, access and enclosure protection.

DINレールソケット製品ラインナップ

Compare the six VIOX socket formats currently documented for regional panel and service-power requirements.

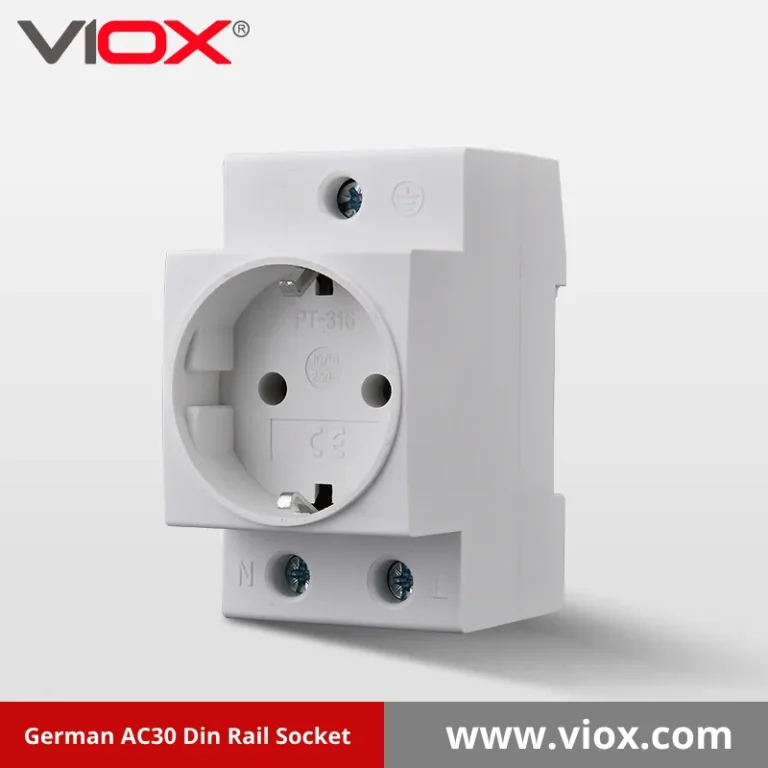

German AC30 DIN Rail Socket

German AC30 Socket

DIN rail mounted socket outlet

Socket standard: ドイツのシュコー
Published voltage: AC250V
Published current: 10A / 16A
取り付け: 35mm DINレール

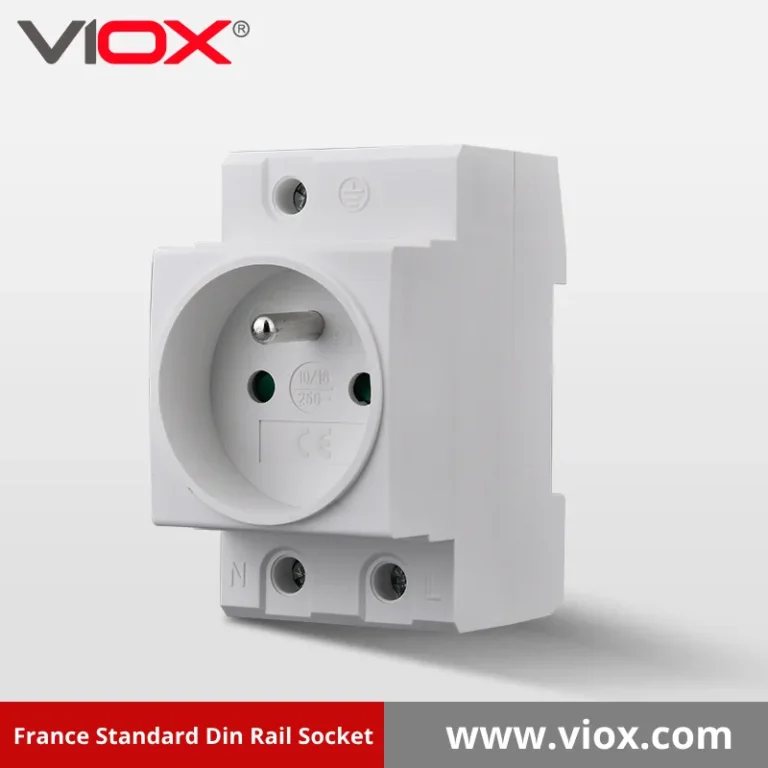

French Standard DIN Rail Socket

French Standard Socket

DIN rail mounted socket outlet

Socket standard: French
Published voltage: AC250V
Published current: 10A / 16A
取り付け: 35mm DINレール

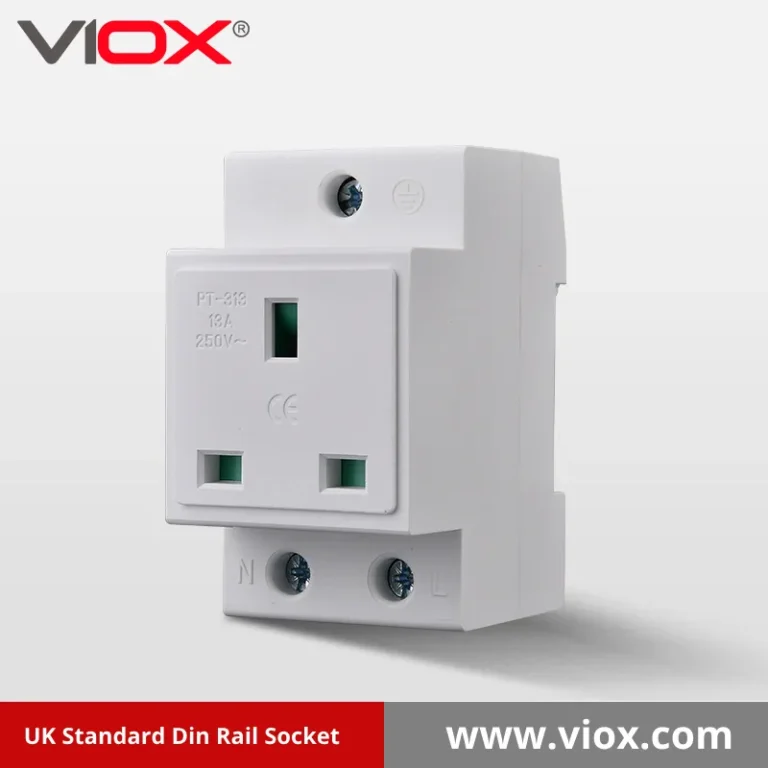

UK Standard DIN Rail Socket

UK Standard Socket

DIN rail mounted socket outlet

Socket standard: BS 1363
Published voltage: AC250V
Published current: 13A
取り付け: 35mm DINレール

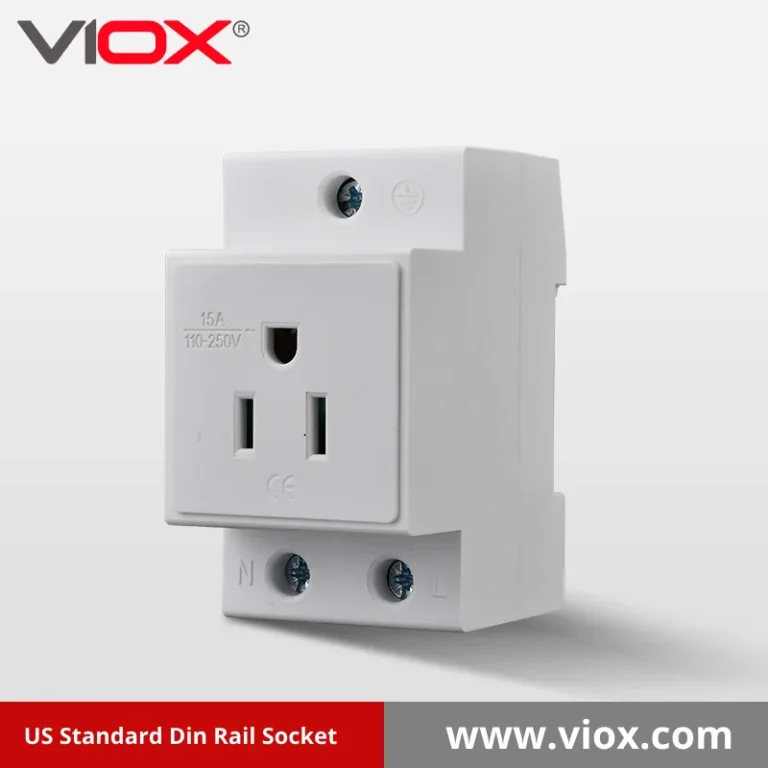

US Standard DIN Rail Socket

US Standard Socket

DIN rail mounted socket outlet

Socket standard: NEMA 5-15
Published voltage: 125V AC
Published current: 15A
取り付け: 35mm DINレール

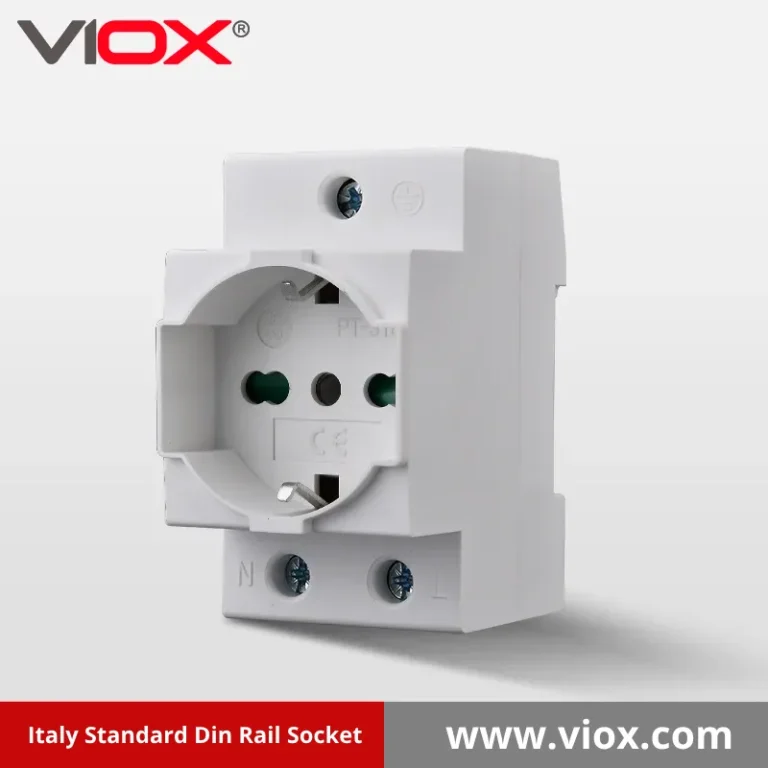

Italian Standard DIN Rail Socket

Italian Standard Socket

DIN rail mounted socket outlet

Socket standard: Italian dual
Published voltage: AC250V
Published current: 10A / 16A
取り付け: 35mm DINレール

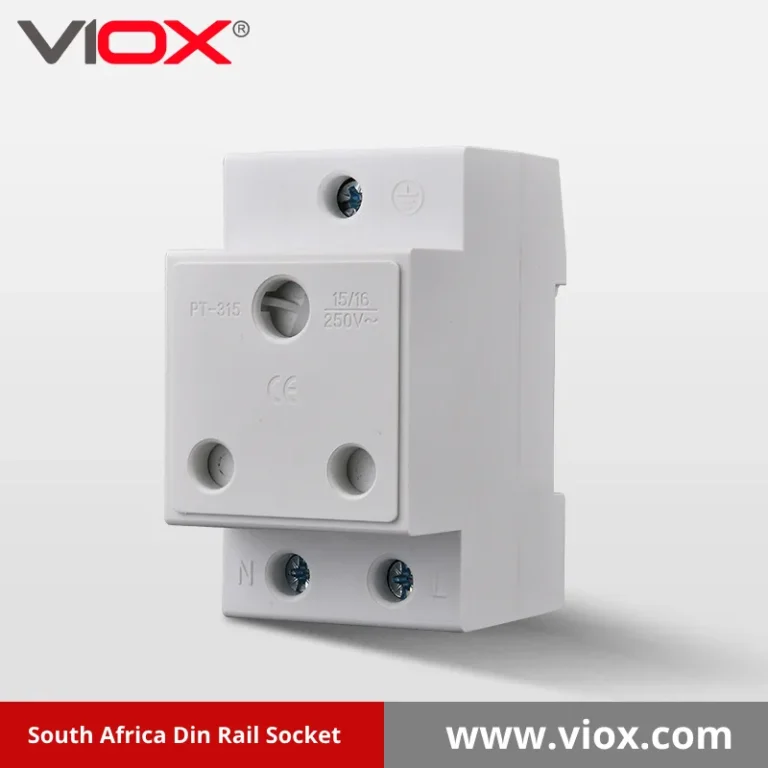

South Africa DIN Rail Socket

South Africa Socket

DIN rail mounted socket outlet

Socket standard: South Africa
取り付け: 35mm DINレール

Discuss your socket requirement

How to choose a DIN rail socket

Start with the destination standard, then verify the panel circuit and mechanical installation.

Destination socket standard

Choose the outlet format required by local plugs, equipment and installation rules.

Voltage and current

Confirm the exact product rating and coordinate upstream circuit protection.

Rail space and wiring

Allow the published module width, terminal access and conductor bend radius.

Panel environment

Check enclosure access, touch protection, humidity and service conditions.

Specify the complete service-power point

The socket, branch protection, conductors, earthing and enclosure access must be designed as one panel circuit.

MMarket socket and plug standard

EElectrical supply and protection

PPanel space, access and environment

Read the DIN Rail Socket selection guide

Compare published DIN Rail Socket series

Published values from the existing VIOX DIN rail socket range. Confirm the exact model datasheet and destination requirements before specification.

シリーズ	Socket standard	Published voltage	Published current	取り付け
German AC30 Socket	ドイツのシュコー	AC250V	10A / 16A	35mm DINレール
French Standard Socket	French	AC250V	10A / 16A	35mm DINレール
UK Standard Socket	BS 1363	AC250V	13A	35mm DINレール
US Standard Socket	NEMA 5-15	125V AC	15A	35mm DINレール
Italian Standard Socket	Italian dual	AC250V	10A / 16A	35mm DINレール
South Africa Socket	South Africa	—	—	35mm DINレール

DIN Rail Socket Applications

Typical environments where the exact product characteristics must be verified.

Smart residential building with rooftop solar and connected electrical systems

住宅

Service outlets inside appropriate building-control and distribution assemblies.

Automated manufacturing facility with industrial robotic systems

産業オートメーション

Service power for commissioning and maintenance equipment inside suitable machine-control panels.

Utility-scale solar farm with battery energy storage system

太陽光発電およびエネルギー貯蔵

Panel service power on the AC side of suitable inverter and storage installations.

データセンターおよび通信Maintenance power within suitable facility and equipment enclosures.盤製造および配電Local outlet access within distribution boards and switchgear assemblies.船舶および屋外用途Enclosed service-power points selected for the complete environmental conditions.

DIN Rail Socket Knowledge & Selection Guides

すべての記事

What is a DIN Rail Socket?

定義と基礎知識

DINレールソケットとは何ですか？

Manufacturer Selection2025年版DINレールソケットメーカートップ10

DIN Rail Socket Selection Questions

Quick answers for preliminary product-family comparison before detailed circuit verification.

Why install a socket on DIN rail?

It provides a defined service-power point inside a suitable panel or enclosure for commissioning, diagnostics and maintenance equipment.

How is the regional format selected?

Match the destination plug standard, local installation rules and the equipment that will use the outlet.

Does a DIN rail socket replace circuit protection?

No. The socket circuit requires correctly coordinated conductors, earthing and overcurrent or residual-current protection where applicable.

How much panel space is required?

Use the published module width and allow additional space for terminals, conductor routing, access and adjacent devices.

Can it be installed outdoors?

Only inside an enclosure and complete assembly suitable for the specified environmental conditions.

Need a DIN Rail Socket?
Let’s Match the Market and Panel.

Send the destination country, plug standard, voltage, current, available rail space, quantity and target application.

Request DIN Rail Socket Support
