Ceramic Terminal Block Manufacturer

Compare the complete VIOX ceramic terminal block range for elevated-temperature wiring, heaters, furnaces, lighting and industrial electrical assemblies.

Ceramic insulationVerify material and temperature data

Conductor matchingSize and terminal construction

Electrical dutyConfirm current and voltage

Mechanical formatPoles, pitch and mounting

Compare Ceramic Terminal Block series Minta dukungan model
VIOX Ceramic Terminal Block SERIESJajaran produk yang dipublikasikan
Complete VIOX ceramic terminal block range on a dark background

What is a ceramic terminal block?

A ceramic terminal block uses a ceramic insulating body to support conductor connections in equipment where thermal conditions or material requirements differ from conventional plastic terminal products.

Selection must be based on the exact ceramic material, conductor range, terminal hardware, rated current and voltage, temperature conditions, pole count, pitch, mounting method and environmental exposure.

Selection guide Compare alternatives
Define the environmentConfirm operating temperature, heat source, enclosure and contamination conditions.
Match the conductorVerify conductor size, terminal hardware and connection method.
Install and inspectUse the specified torque or connection procedure and maintain required clearances.

Complete VIOX Ceramic Terminal Block Range

All 27 published VIOX models are shown below, grouped by construction so buyers can compare the complete range without leaving the page.

Standard TB Ceramic Terminal Blocks

Open terminal strips in 2- to 12-position configurations for heat-exposed equipment wiring.

Enclosed CTB Ceramic Terminal Blocks

Compact enclosed connectors covering 1-, 2-, 3-, 4-, 5-, 6-, 8- and 10-way arrangements.

TBH 100A Ceramic Terminal Blocks

High-current 2-, 4- and 6-position ceramic blocks with published 100A product data.

Browse the ceramic terminal block category

Ceramic Construction Details

Original VIOX product photography shows the connection hardware, ceramic body and internal conductor construction.

Secure conductor connection

Secure conductor connection

Round-ended terminal hardware supports a stable mechanical connection when installed to the product requirements.

Heat-resistant ceramic body

Heat-resistant ceramic body

The ceramic housing is intended for applications where published thermal and insulation characteristics must be verified.

High-conductivity core

High-conductivity core

The internal conductor and terminal hardware carry the circuit current; verify the exact model rating and conductor range.

VIOX Ceramic Terminal Blocks Size Chart

Dimensions and conductor ranges reproduced from the published VIOX model data. Open the corresponding product page before final specification.

Bagan Ukuran Seri CTB

Swipe to compare all columns

SpesifikasiModelPanjangLebarTinggi badanWiring range

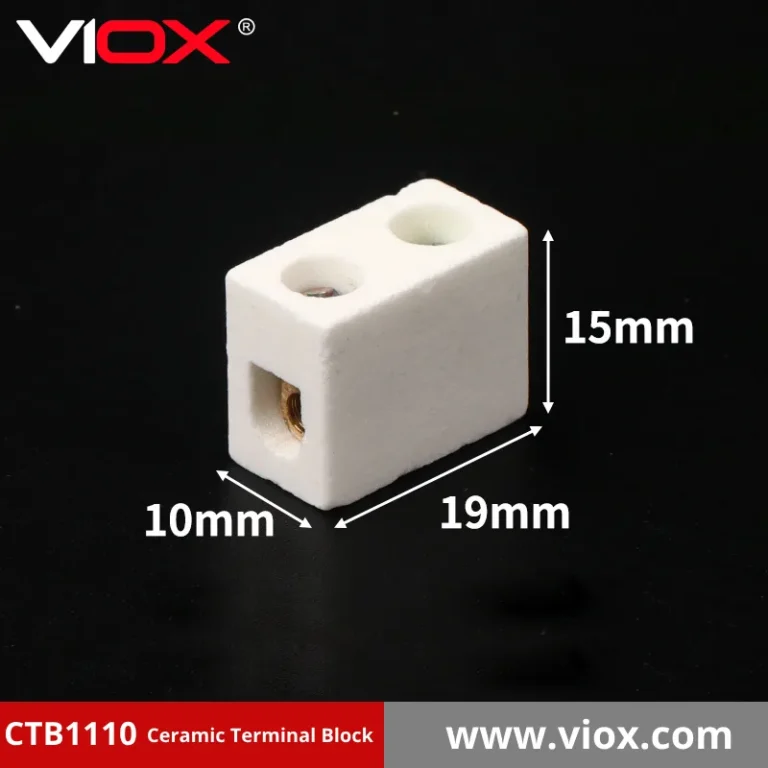

1 Dalam 1 Keluar 10ACTB111019mm10mm15mm0.5–2.5mm²

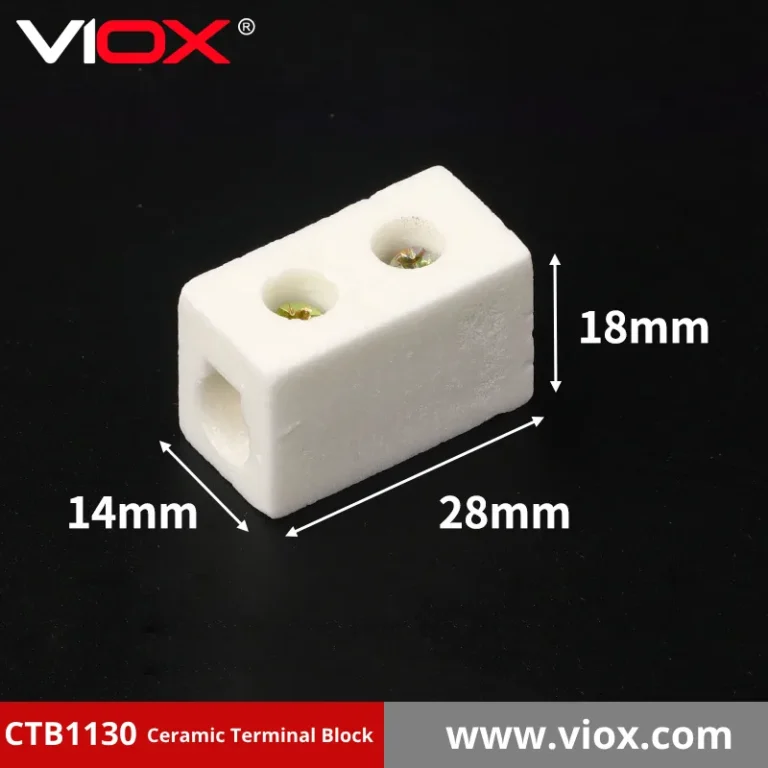

1 Dalam 1 Keluar 30ACTB113018mm14mm18mm0.5–6mm²

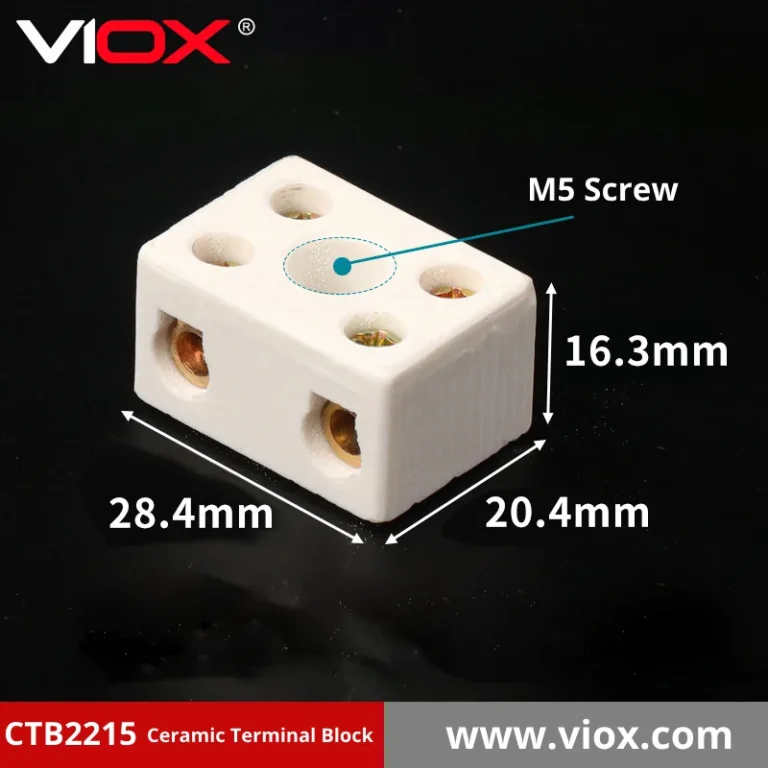

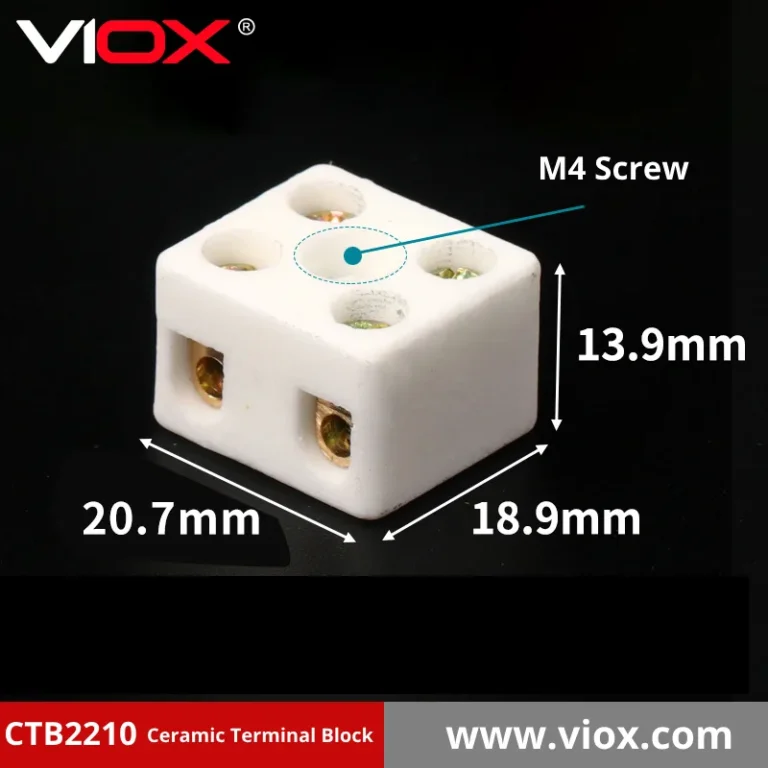

2 Masuk 2 Keluar 10ACTB221020.7mm18.9mm13.9mm0.5–2.5mm²
2 Masuk 2 Keluar 15ACTB221528.4mm20.4mm16.3mm0.5–4mm²

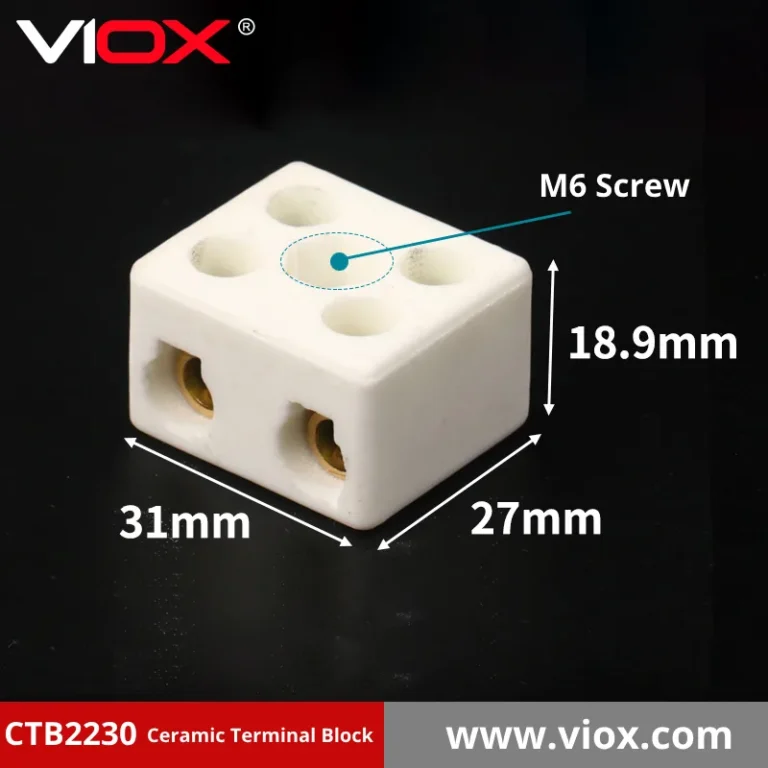

2 Masuk 2 Keluar 30ACTB223031mm27mm18.9mm1.5–6mm²

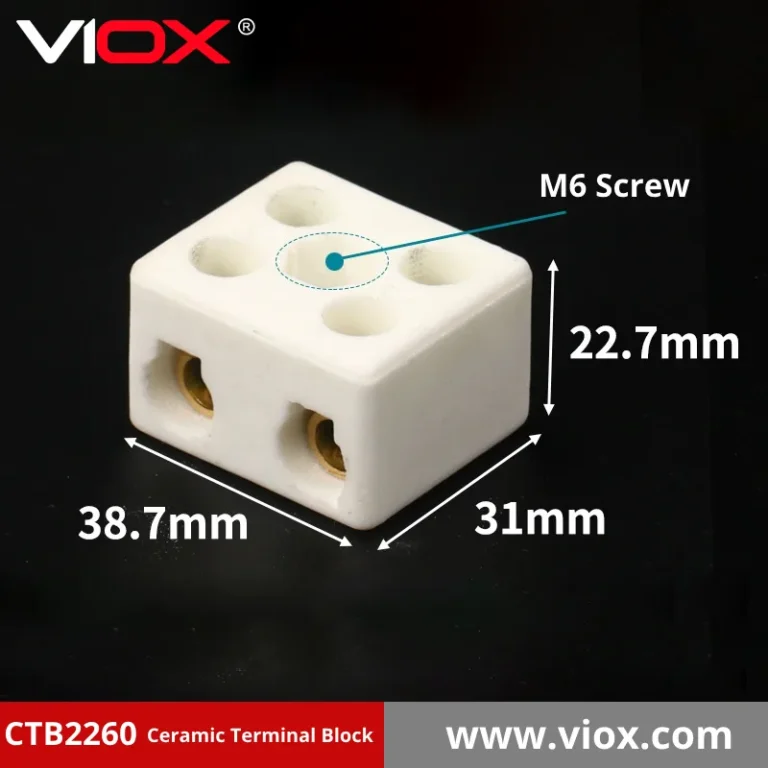

2 Masuk 2 Keluar 60ACTB226038.7mm31mm22.7mm2.5–16mm²

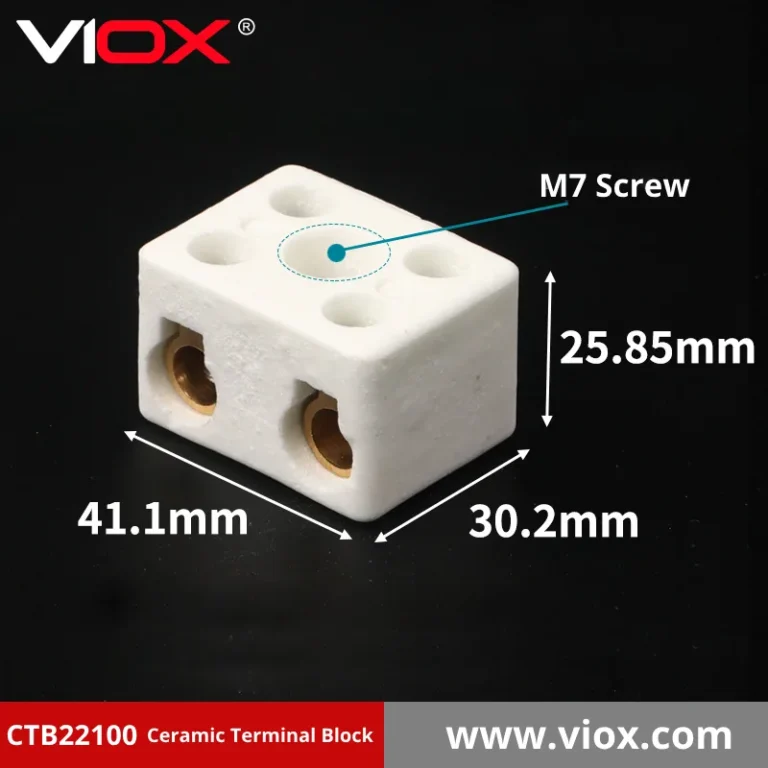

2 Masuk 2 Keluar 100ACTB2210041.1mm30.2mm25.85mm6–25mm²

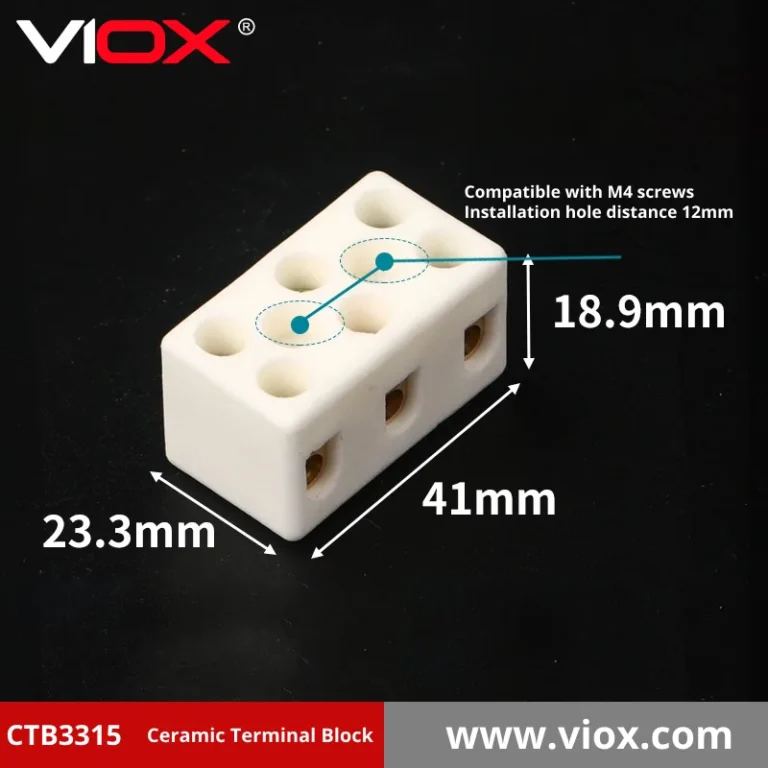

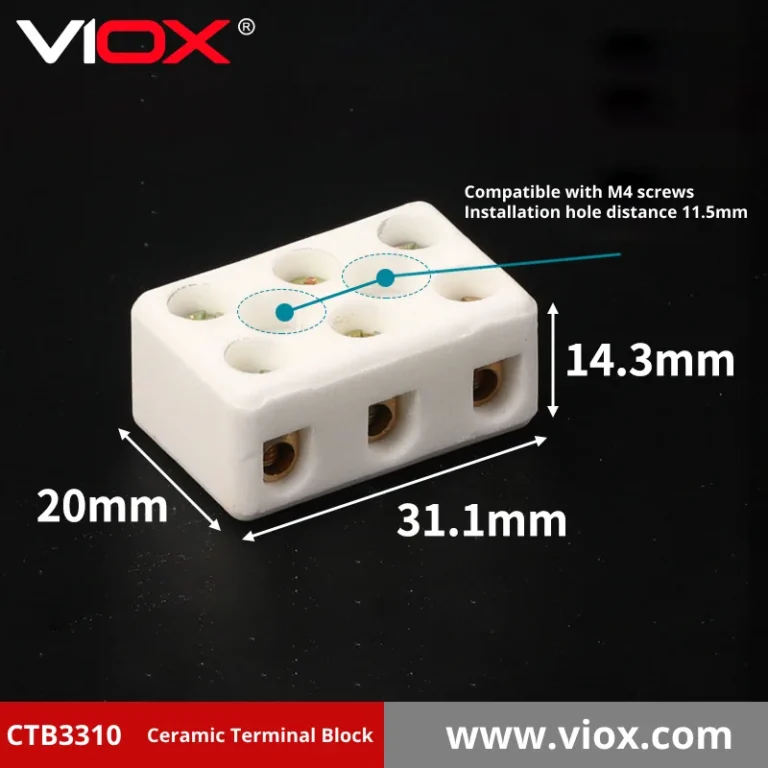

3 Masuk 3 Keluar 10ACTB331031mm20mm14.3mm0.5–2.5mm²
3 Masuk 3 Keluar 15ACTB331535.5mm20.3mm20.2mm0.5–4mm²

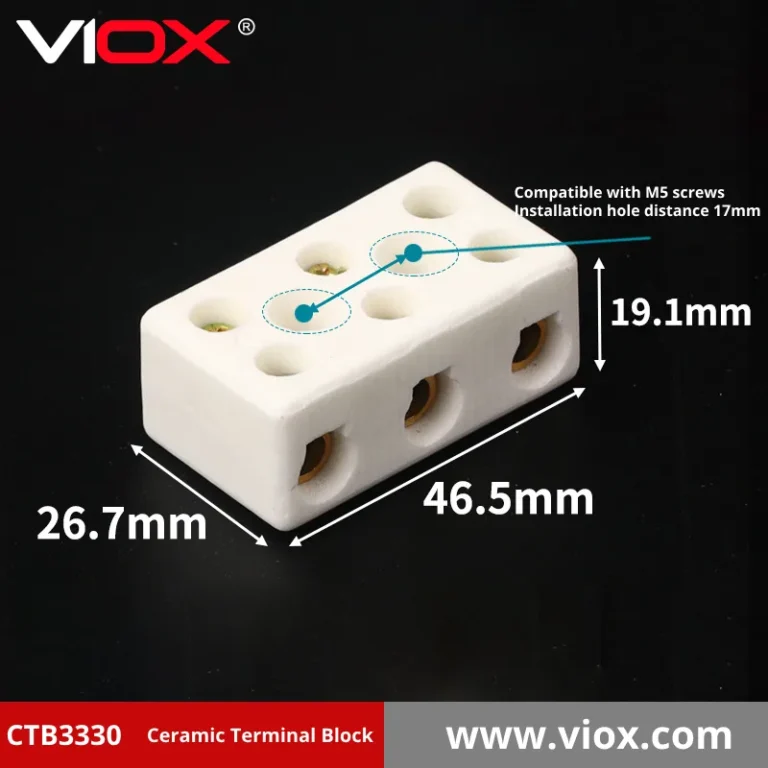

3 Masuk 3 Keluar 30ACTB333046.2mm26.4mm19.2mm1.5–6mm²

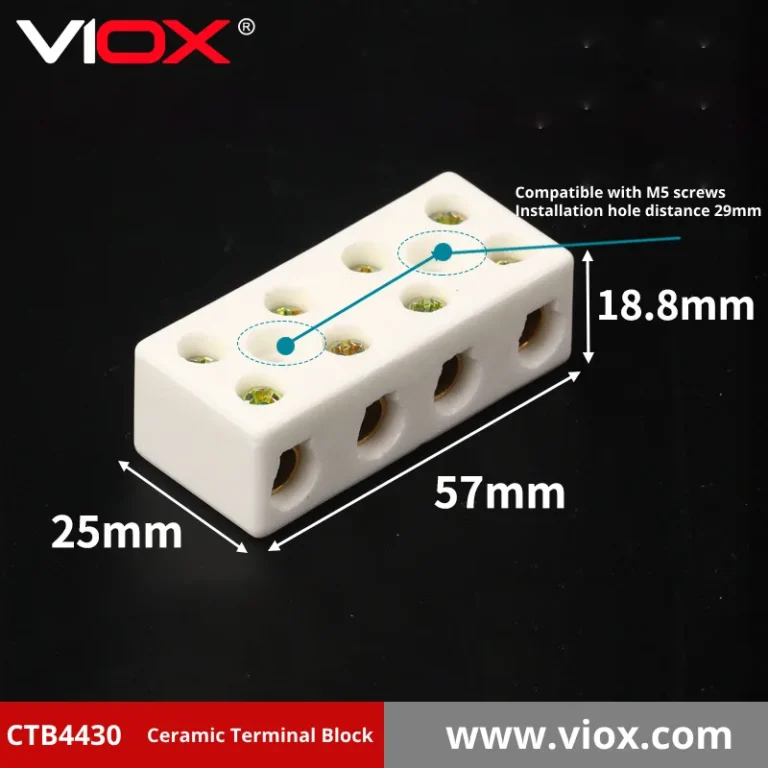

4 Masuk 4 Keluar 30ACTB443057mm25mm18.8mm1.5–6mm²

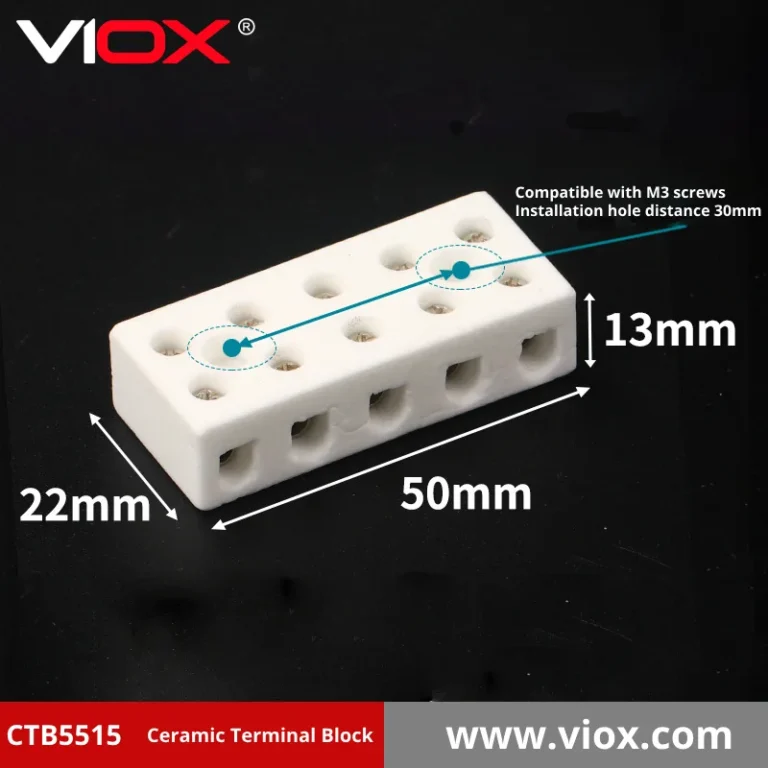

5 Masuk 5 Keluar 15ACTB551550mm22mm13mm0.5–2.5mm²

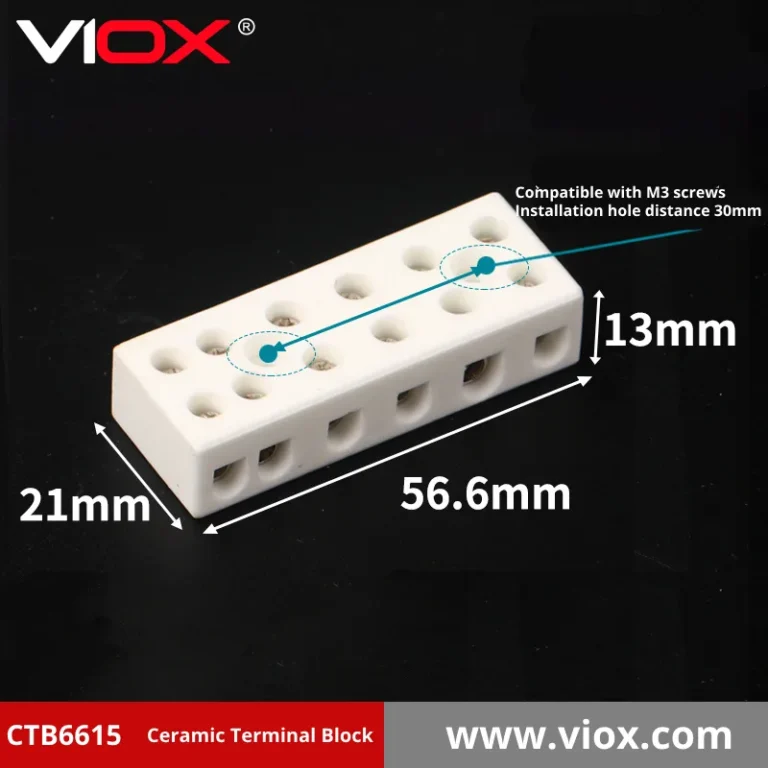

6 Masuk 6 Keluar 15ACTB661556.6mm21mm13mm0.5–2.5mm²

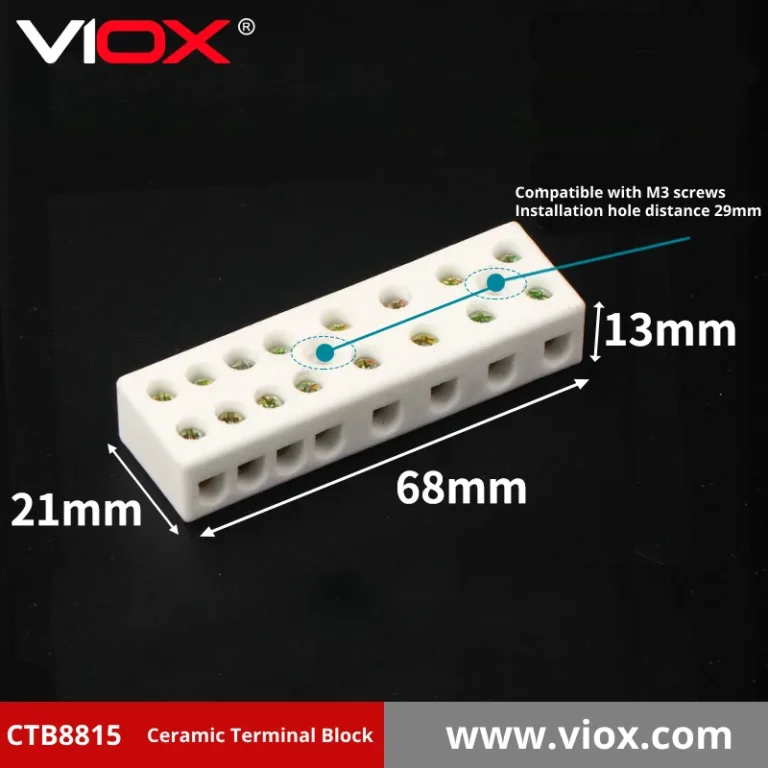

8 Masuk 8 Keluar 15ACTB881568mm21mm13mm0.5–2.5mm²

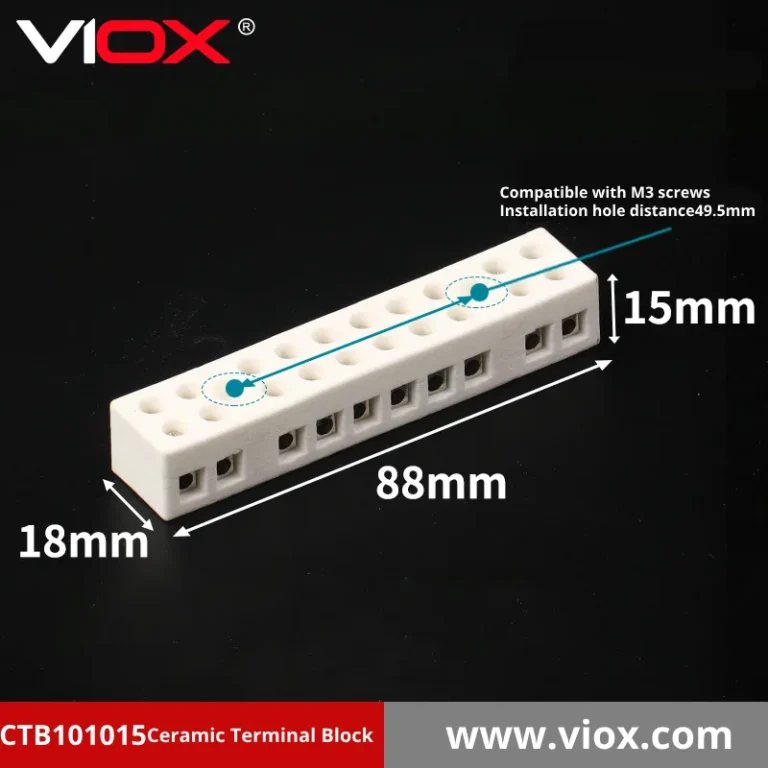

10 Masuk 10 Keluar 15ACTB10101588mm18mm15mm0.5–3.5mm²

Bagan Ukuran Seri TB

Swipe to compare all columns

ModelKonfigurasiPeringkat saat iniPanjangLebarTinggi badanScrew typeMounting distance

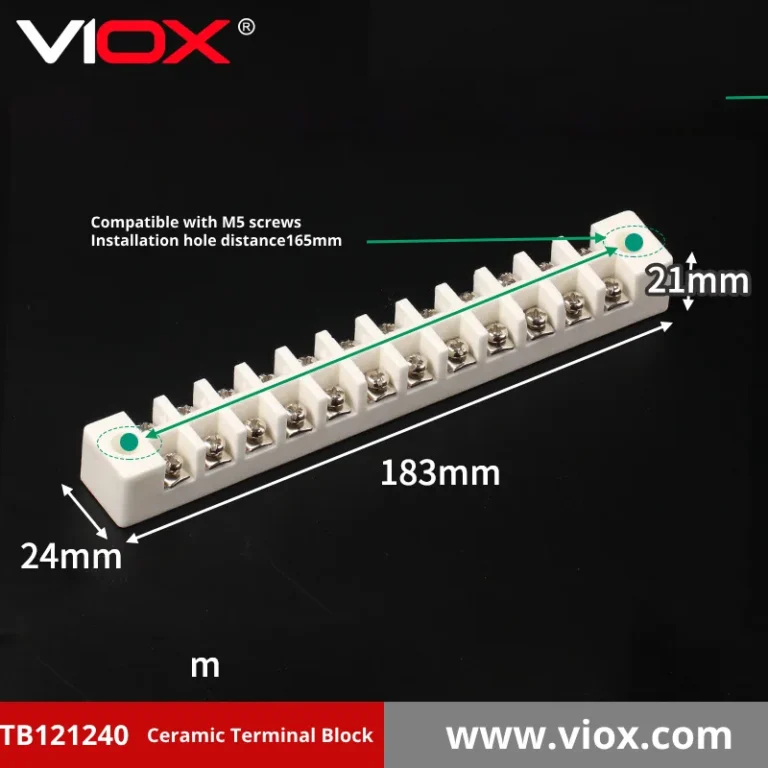

TB12124012 In 12 Out40A183mm24mm21mmM5165mm

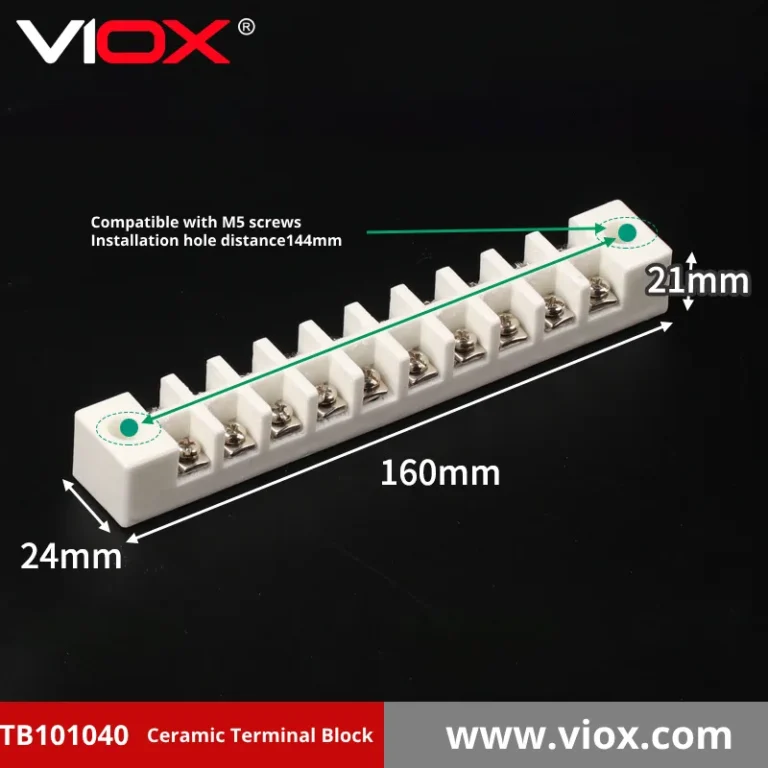

TB10104010 In 10 Out40A160mm24mm21mmM5144mm

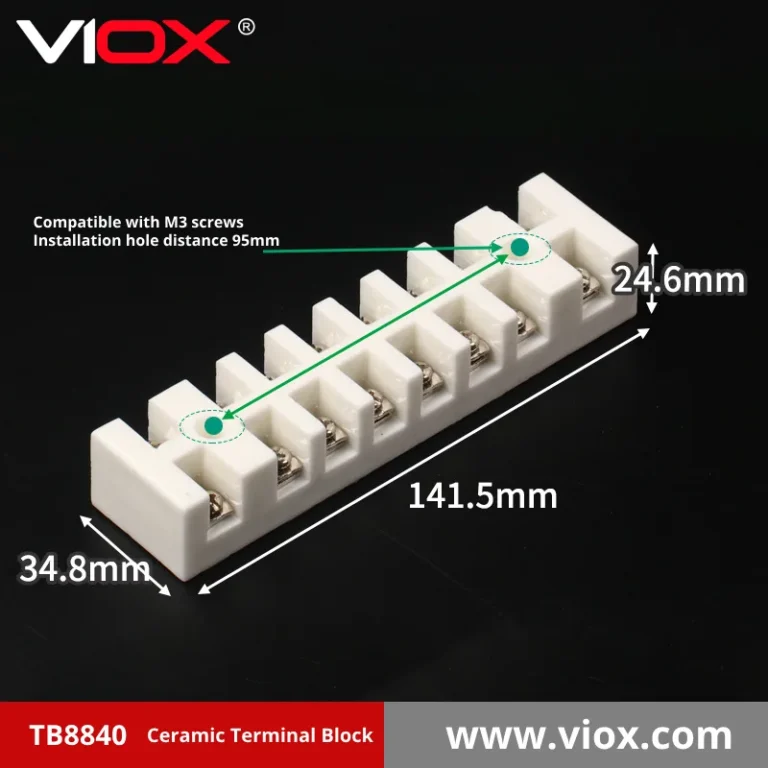

TB88408 In 8 Out40A141.5mm34.8mm24.6mmM395mm

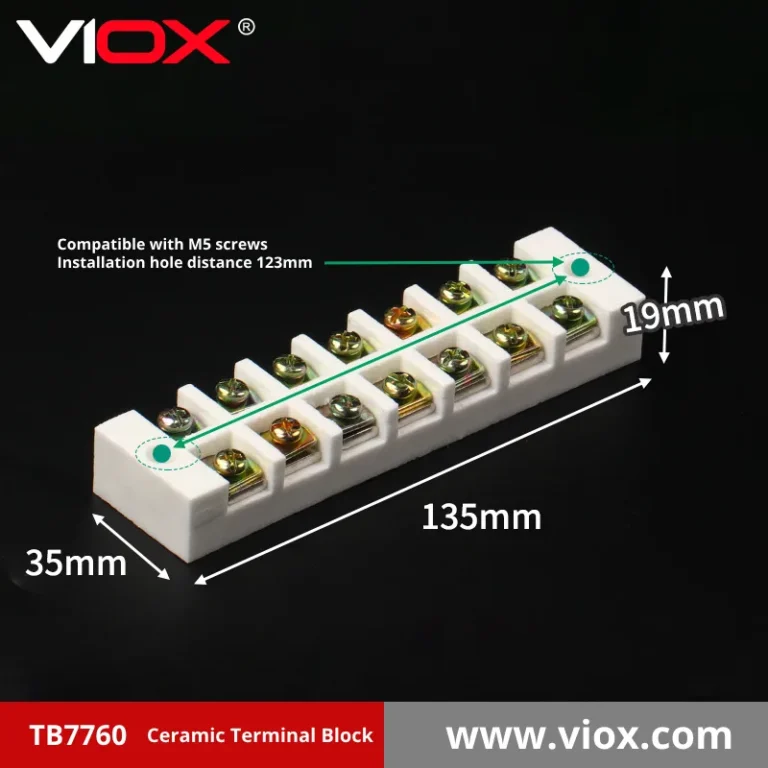

TB77607 In 7 Out60A135mm35mm19mmM5123mm

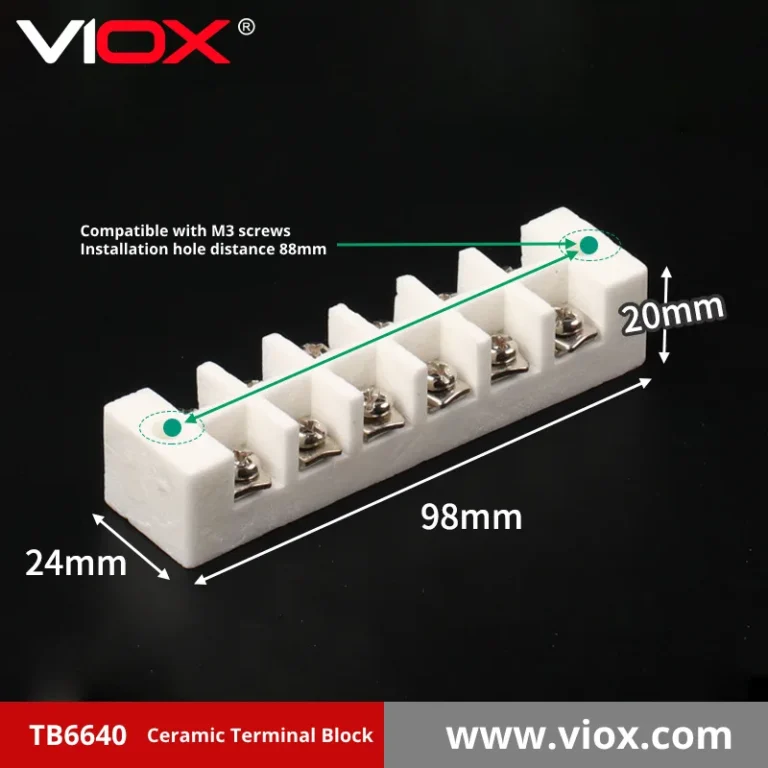

TB66406 In 6 Out40A98mm24mm20mmM388mm

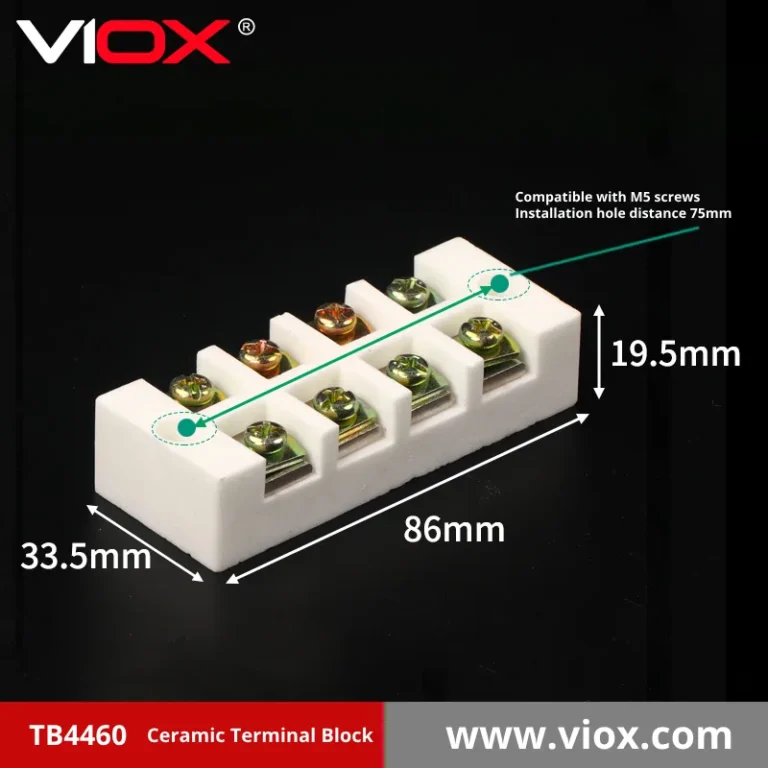

TB44604 In 4 Out60A86mm33.5mm19.5mmM575mm

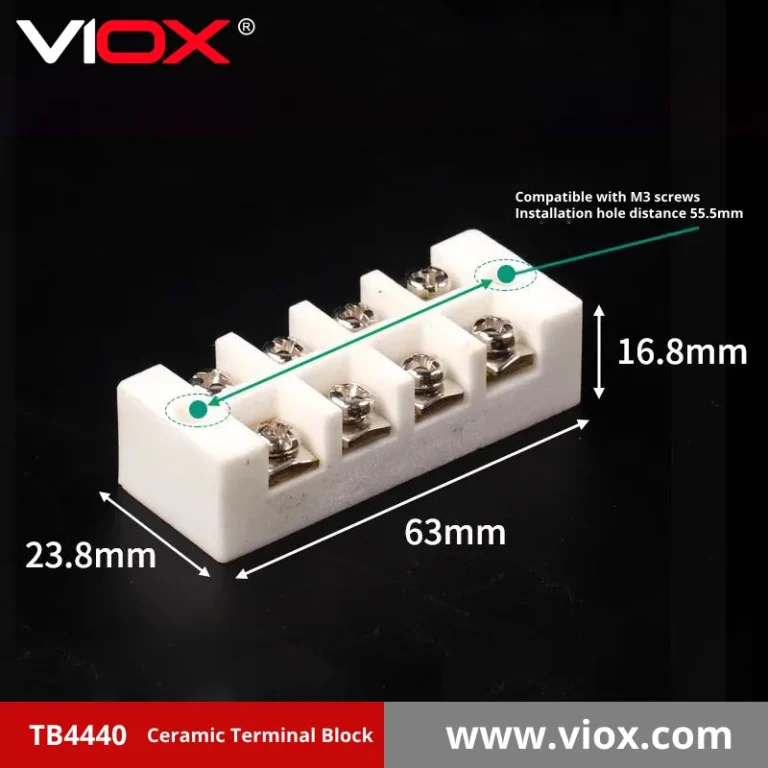

TB44404 In 4 Out40A63mm23.8mm16.8mmM355.5mm

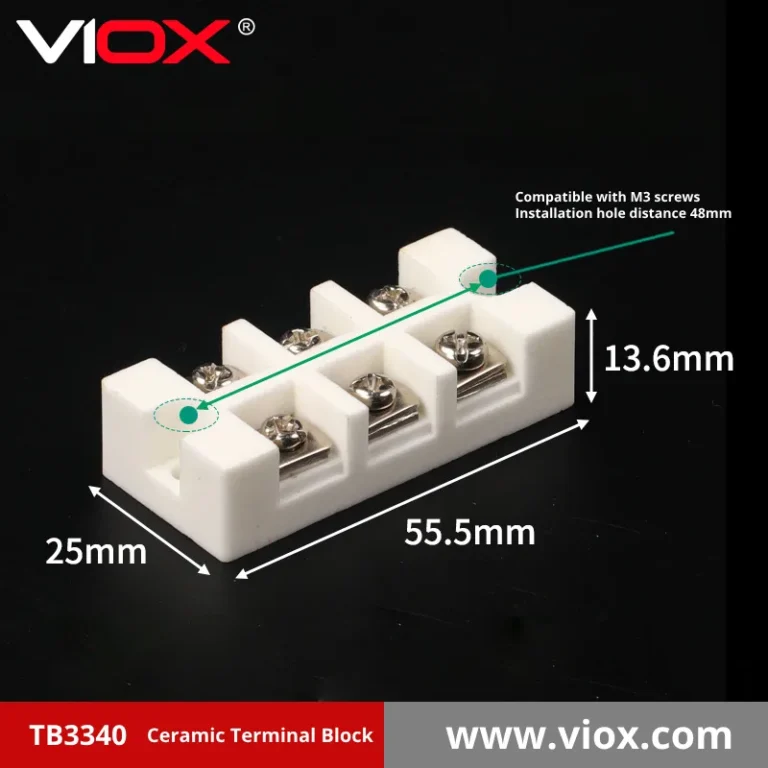

TB33403 In 3 Out40A55.5mm25mm13.6mmM348mm

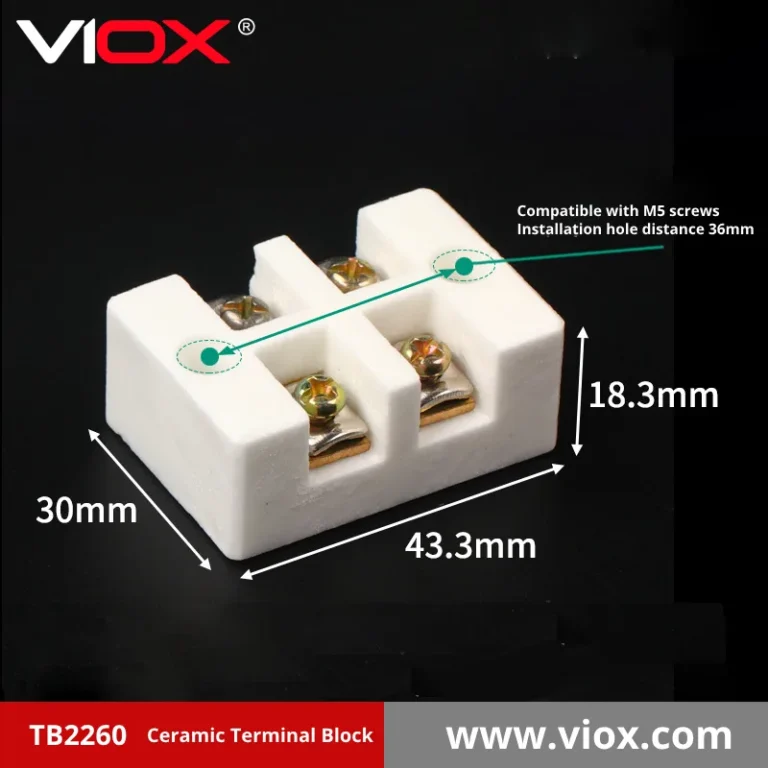

TB22602 In 2 Out60A43.3mm30mm18.3mmM534mm

TBH 100A Series Size Chart

Swipe to compare all columns

ModelKonfigurasiPeringkat saat iniDimensi (L×W×H)Mounting distance

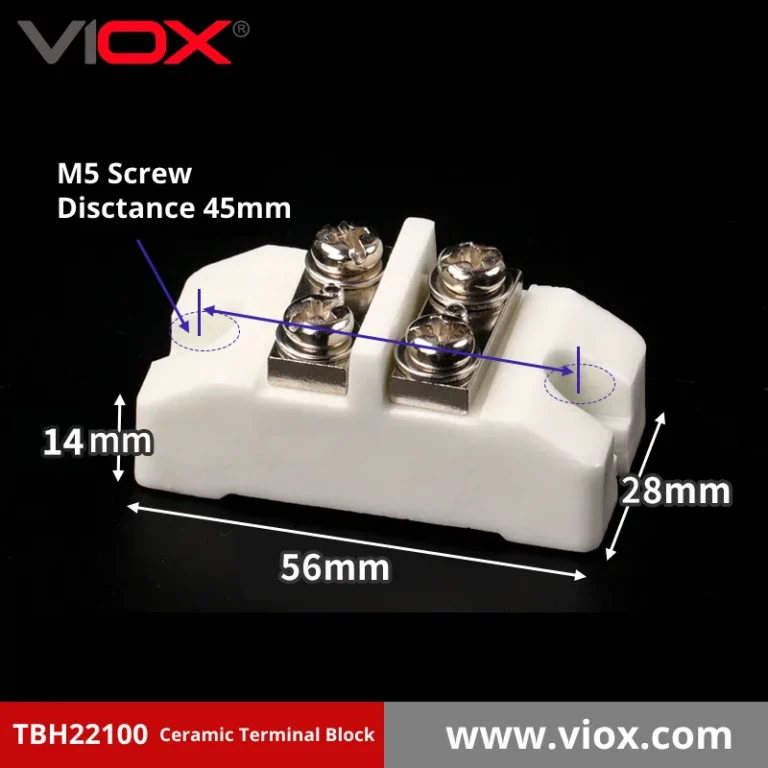

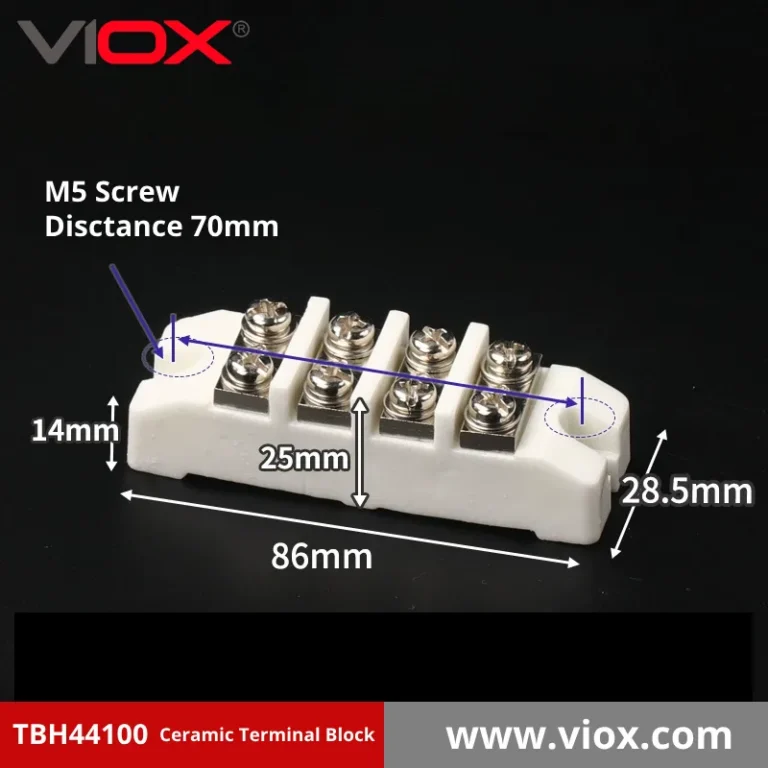

bh221002 In 2 Out100A56 × 28 × 14mm40mm
TBH441004 In 4 Out100A86 × 28.5 × 14mm70mm

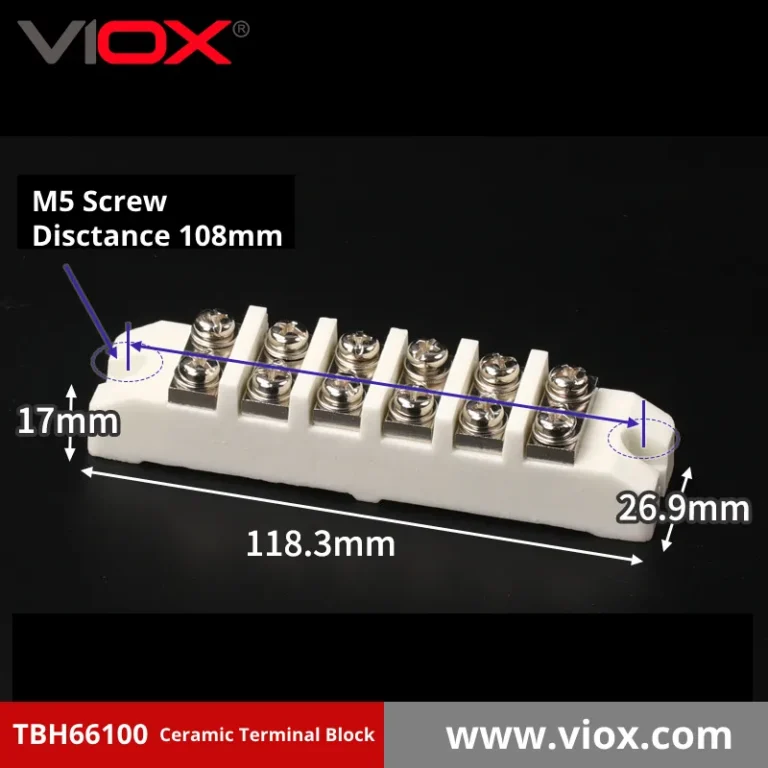

bh661006 In 6 Out100A118.3 × 26.9 × 17mm106mm

How to choose a ceramic terminal block

Begin with temperature and circuit duty, then confirm conductor and mechanical details.

Temperature and material

Verify the published ceramic and terminal-material characteristics for the application.

Conductor range

Match conductor construction and cross-section to the exact terminal.

Peringkat kelistrikan

Confirm current, voltage, insulation and clearance requirements.

Poles, pitch and mounting

Check connection count, spacing, fasteners, cover and panel arrangement.

Treat heat and connection as one system

Ceramic insulation does not remove the need to verify conductor, hardware, clearance and enclosure temperature.

HHeat source and operating environment
EElectrical rating and insulation requirement
MMounting, conductor and terminal hardware
Read the Ceramic Terminal Block selection guide

Compare published Ceramic Terminal Block series

Sel kosong berarti nilai tidak tersedia dalam ringkasan produk saat ini. Buka halaman model atau minta lembar data produk sebelum melakukan spesifikasi.

SeriPolandiaConductor rangeNilai saat iniSuhu
Blok Terminal Keramik TB2260————
Blok Terminal Keramik TB3340————
Blok Terminal Keramik TB4440————
Blok Terminal Keramik TB4460————
Blok Terminal Keramik TB6640————
Blok Terminal Keramik TB7760————
Blok Terminal Keramik TB8840————
Blok Terminal Keramik TB101040————
TB121240 Blok Terminal Keramik————
Blok Terminal Keramik CTB1110————
Blok Terminal Keramik CTB1130————
Blok Terminal Keramik CTB2210————
Blok Terminal Keramik CTB2215————
Blok Terminal Keramik CTB2230————
Blok Terminal Keramik CTB2260————
Blok Terminal Keramik CTB22100————
Blok Terminal Keramik CTB3310————
Blok Terminal Keramik CTB3315————
Blok Terminal Keramik CTB3330————
Blok Terminal Keramik CTB4430————
Blok Terminal Keramik CTB5515————
Blok Terminal Keramik CTB6615————
Blok Terminal Keramik CTB8815————
Blok Terminal Keramik CTB101015————
TBH22100 Blok Terminal Keramik————
TBH44100 blok Terminal keramik————
Blok Terminal Keramik TBH66100————

Aplikasi Blok Terminal Keramik

Typical environments where the exact product characteristics must be verified.

Smart residential building with rooftop solar and connected electrical systems

Bangunan Tempat Tinggal

Suitable high-temperature appliance and building-equipment connections.

Automated manufacturing facility with industrial robotic systems

Otomasi Industri

Heat-exposed machine and process-equipment terminal points.

Utility-scale solar farm with battery energy storage system

Tenaga Surya & Penyimpanan Energi

Specialized equipment terminations where published conditions are suitable.

Pusat Data & TelekomunikasiSelected heater and facility-equipment connections.Pembuatan Panel & DistribusiSpecialized terminal assemblies requiring ceramic insulation.Kelautan & Luar RuanganEnclosed equipment connections selected for the complete environment.
