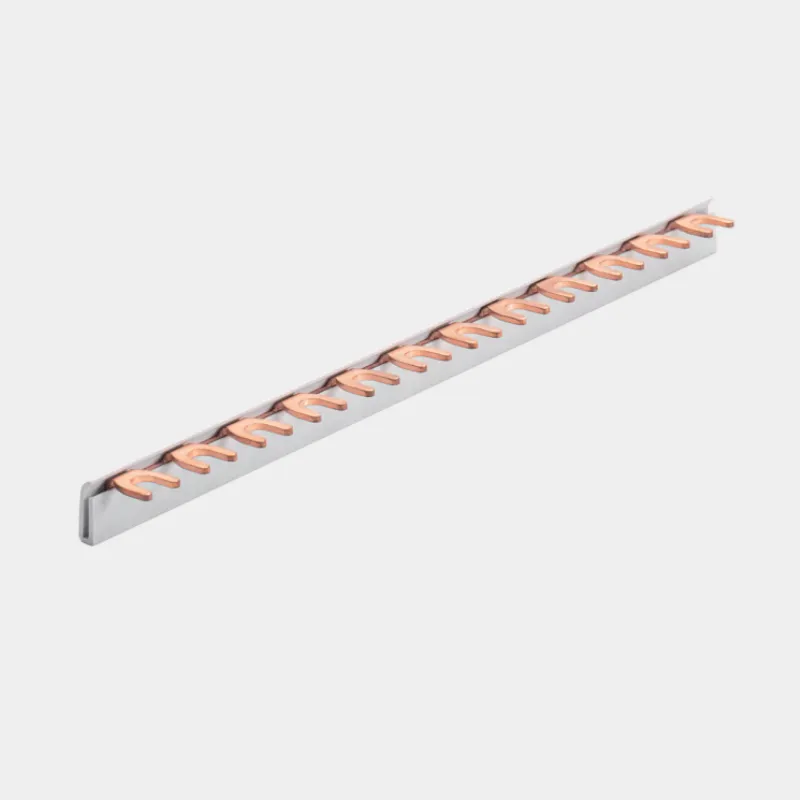

VIOX Fork-Type 1-Phase Busbars (M6)
VIOX Fork-Type 1-Phase Busbars (M6) offer efficient power distribution for single-phase systems. Available in 8-16mm² cross-sections, these pure copper busbars provide 50A to 80A current capacity. With 17.8mm distance and 11×12.5mm fork dimensions, they’re ideal for various installations. Lengths range from 210mm to 1016mm, suiting different setups. CE, ROHS, and SGS certified, these finger-safe busbars ensure easy installation and maintenance. Compatible with MCBs and M6 systems, they feature low contact resistance and robust construction. Perfect for residential, commercial, and light industrial applications, these customizable busbars combine reliability, safety, and versatility for optimal single-phase power distribution solutions.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618968898989
- Whatsapp:+8618968898989
- Email:sales@viox.com
VIOX Fork-Type 1-Phase Busbars (M6)
Overview
VIOX Fork-Type 1-Phase Busbars (M6) are high-quality electrical components engineered for efficient and reliable power distribution in single-phase systems. These busbars offer superior conductivity, low contact resistance, and ease of installation, making them ideal for various residential, commercial, and light industrial applications.
Key Features
- Pure Copper Construction: Ensures excellent conductivity and durability
- Fork-Type Design: Facilitates secure connections and easy installation
- Multiple Cross-Sectional Areas: Available in 8mm², 10mm², 13mm², and 16mm²
- Various Length Options: 210mm, 1000mm, and 1016mm to suit different installation needs
- Universal Compatibility: Suitable for MCBs and other modular devices
- Low Contact Resistance: Improves system efficiency and reduces heat generation
- Safety Certified: Compliant with CE, ROHS, SGS, and ISO 9001 standards
Technical Specifications
| Description | Cross Section | A Distance (mm) |
B Width of Fork (mm) |
C Length of Fork (mm) |
D Modules |
E Length (mm) |
F Reference Current |
|---|---|---|---|---|---|---|---|
| G-1L-210/8 | 8mm² | 17.8 | 11 | 12.5 | 12 | 210 | 50A |
| G-1L-210/10 | 10mm² | 17.8 | 11 | 12.5 | 12 | 210 | 63A |
| G-1L-210/13 | 13mm² | 17.8 | 11 | 12.5 | 12 | 210 | 70A |
| G-1L-210/16 | 16mm² | 17.8 | 11 | 12.5 | 12 | 210 | 80A |
| G-1L-1000/8 | 8mm² | 17.8 | 11 | 12.5 | 54 | 1000 | 50A |
| G-1L-1000/10 | 10mm² | 17.8 | 11 | 12.5 | 54 | 1000 | 63A |
| G-1L-1000/13 | 13mm² | 17.8 | 11 | 12.5 | 54 | 1000 | 70A |
| G-1L-1000/16 | 16mm² | 17.8 | 11 | 12.5 | 54 | 1000 | 80A |
| G-1L-1016/8 | 8mm² | 17.8 | 11 | 12.5 | 57 | 1016 | 50A |
| G-1L-1016/10 | 10mm² | 17.8 | 11 | 12.5 | 57 | 1016 | 63A |
| G-1L-1016/13 | 13mm² | 17.8 | 11 | 12.5 | 57 | 1016 | 70A |
| G-1L-1016/16 | 16mm² | 17.8 | 11 | 12.5 | 57 | 1016 | 80A |
Dimension
Applications
- Residential Electrical Systems
- Commercial Building Installations
- Light Industrial Control Panels
- Distribution Boards
- Single-Phase Power Distribution Systems
Installation and Use
- Easy to install with fork-type design
- Can be cut to desired length for custom installations
- Compatible with various MCBs and modular devices
- Ideal for use in standard M6 distribution systems
Safety and Reliability
- Finger-safe design for enhanced user protection
- Low contact resistance reduces heat generation
- Compliant with international safety standards
- Robust construction ensures long-term reliability
Advantages
- Efficient single-phase power distribution
- Time-saving installation process
- Versatile application in various electrical setups
- High-quality materials ensure long-term performance
- Multiple options for cross-sectional area and length
Customization Options
VIOX offers customization services to meet specific project requirements. Contact our sales team for tailored solutions including custom lengths, special configurations, or specific current ratings for your single-phase power distribution needs.
