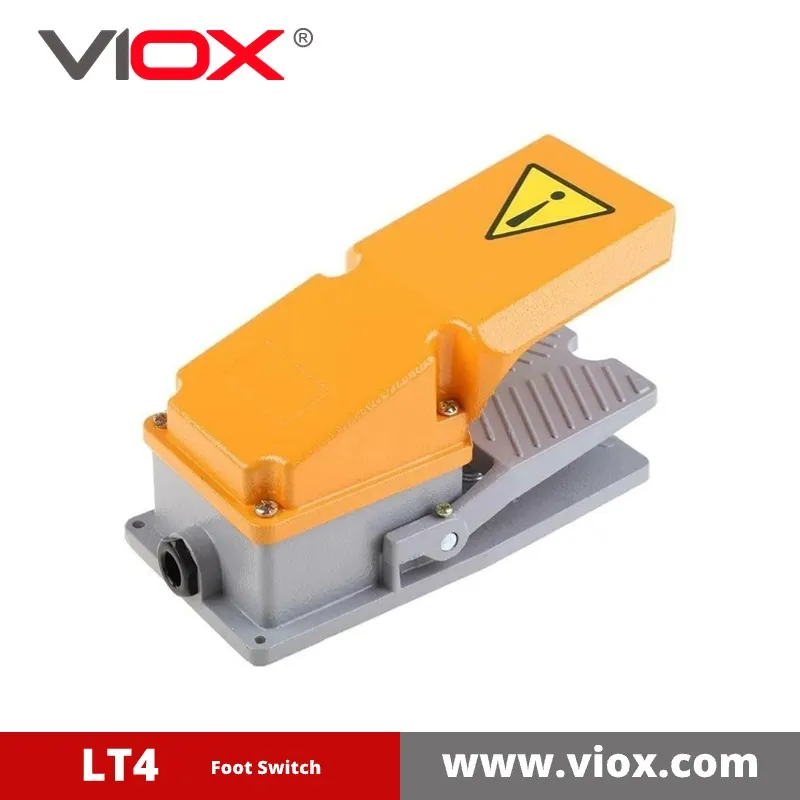

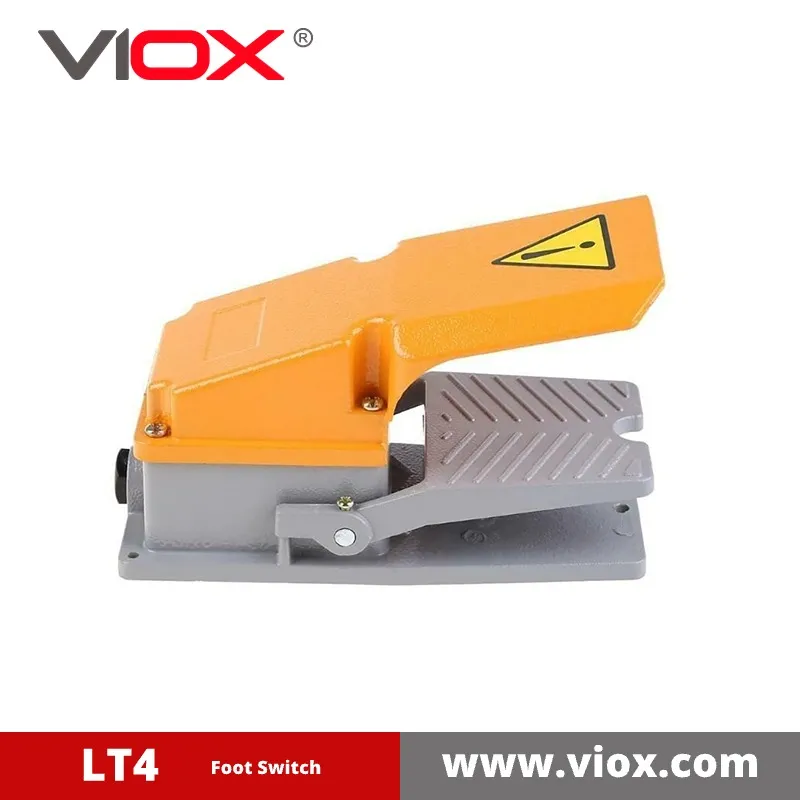

LT4 Foot Switch
Overview
The LT4 foot switch, also known as a pedal or treadle switch, is a robust industrial control device designed for machine tool applications. It offers reliable operation and durability, making it ideal for environments requiring hands-free machine control.
Key Features
- Durable Construction: Aluminum case for enhanced protection
- Versatile Operation: Reset and self-lock action methods
- Reliable Performance: Matched micro-switch (LXW5-11G2)
- Industrial-Grade Design: Suitable for high-current applications
Technical Specifications
- Contact Configuration: 1NO + 1NC
- Contact Rating:
- Reset: 15A@380VAC
- Self-lock: 5A@380VAC
- Contact Resistance: ≤50mΩ (initial)
- Insulation Resistance: ≥100MΩ at 500Vdc
- Dielectric Strength: 2000Vac, 50Hz for 1min
- Protection Rating: IP62
- Operating Temperature: -25°C to 70°C
- Lifespan:
- Electrical: ≥1×10^5 operations
- Mechanical: ≥1×10^6 operations
| Model number | LT4 |
| Contact form | 1NO+1NC |
| Action method | Reset, self-lock |
| Contact rating | Reset: 15A@380VAC; Self-lock: 5A@380VAC |
| Case material | Aluminium |
| Contact resistance | 50mΩ max (First time) |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Machine life | 1×106 operations min |
| Electrical Life | 1×105 operations min |
| IP Rating | IP62 |
| Operating temperature | -25-70 ℃ |
| Operating humidity | 45 to 85% RH, no condensation |
| Alias name | LT4 pedal switch |
Applications
The LT4 foot switch is ideal for:
- Machine tool control
- Industrial equipment operation
- Manufacturing process control
- Hands-free activation of machinery
Benefits
- Efficient hands-free operation
- Durable design for industrial environments
- Reliable performance for sensitive current control
- Versatile application in various industrial settings
