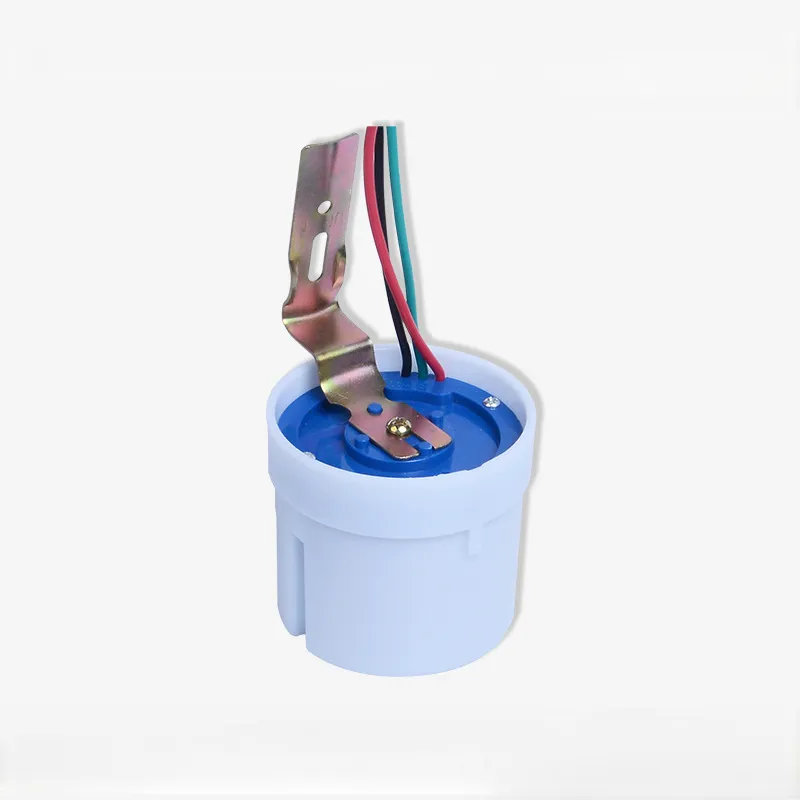

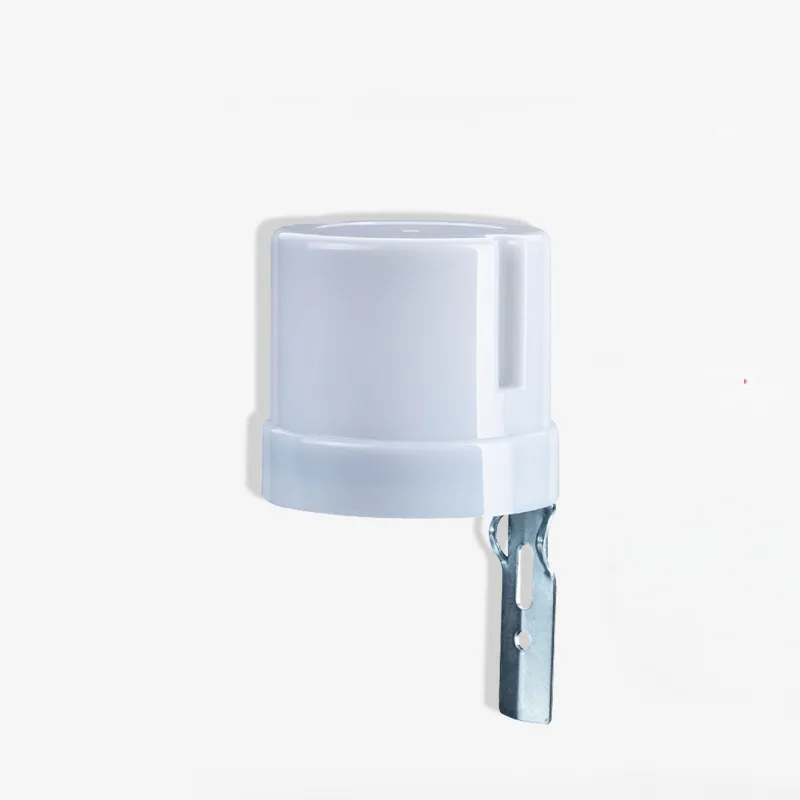

Light Sensor THC-303

THC-303 light sensor can automatically turn on or turn off the light according to the ambient light, available to adjust the light sensitivity. The ambient temperature and humidity do not affect normal operation. Not only is it convenient and practical, but it can also control the load to work only at night. Widely used in street lamps, park lights, etc.

Send your requirements, we will quote for you within 12 hours​

Light Sensation Adustable Light controller THC-303

Overview

THC-303 light sensor can automatically turn on or turn off the light according to the ambient light, available to adjust the light sensitivity. The ambient temperature and humidity do not affect normal operation. Not only is it convenient and practical, but it can also control the load to work only at night. Widely used in street lamps, park lights, etc.

Technical Specifications

ItemNo THC-303
Available Operating Voltages 110V, 220V, AC 50/60Hz
Load Rating 16A, 20A, 25A
Life Rated Load 5000 Operations Minimum
Turn ON/TURN OFF < 1/5
Time Delay 30 to 120 Seconds (Instant Available)
Temperature Range -10°C to +50°C
Power Consumption < 1W
Dimension 57 × 121 × 53mm
QTY 50
G.W 12.2
N.W 9.2
MEAS 525 × 470 × 185
Photocell Cds or Silicon Phototransistor
Ambient Light 5-100LUX (adjustable)

Dimension

Light Sensor THC-303-Dimension
