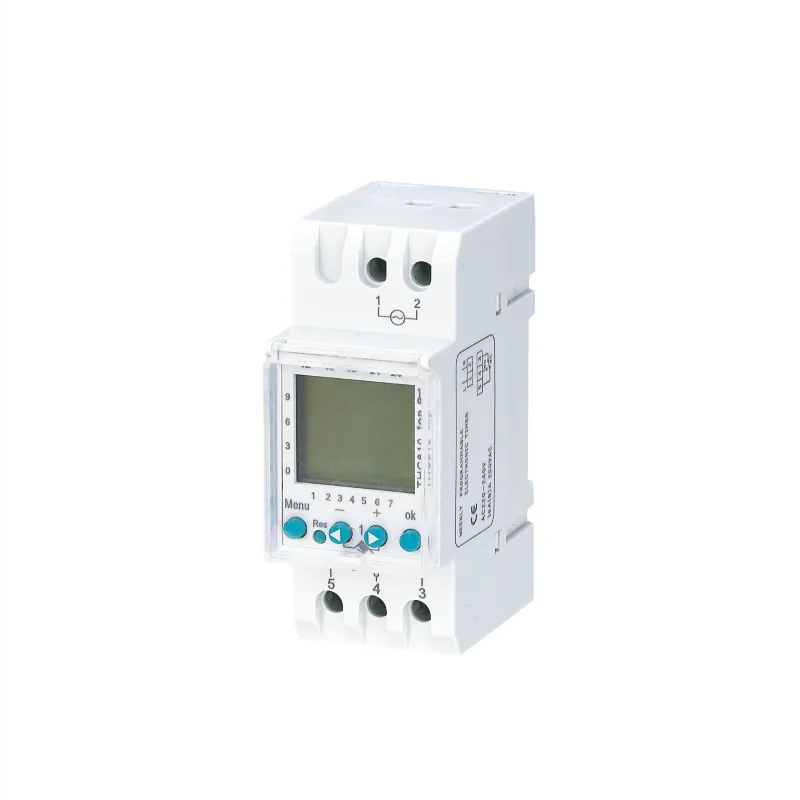

Digital Timer Switch THC 810
VIOX’s THC-810 20A programmable time switch offers precise control for diverse electrical applications. With multiple voltage options and currents up to 30A, it provides versatile functionality. Featuring a 24h/7day programmable range, LCD display, and 44 ON/OFF settings, it excels in managing industrial and commercial equipment. This compact, DIN rail-mounted switch ensures energy-efficient automation, flexible scheduling, and reliable performance with its robust anti-interference capabilities and 3-year battery life.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
Multi-function Programmable Time Switch THC-810 20A
Overview
The THC-810 20A is a versatile, programmable time switch designed for precise control of electrical equipment. Its compact size, low power consumption, and robust anti-interference capabilities make it ideal for various industrial and commercial applications.
Key Features
- Flexible Voltage Options: Available in 220VAC, 110VAC, 24VDC, and 12VDC
- Programmable Timing: Daily and weekly program options
- LCD Display: For easy programming and status monitoring
- Compact Design: 82 x 36 x 66 mm for space-efficient installation
- DIN Rail Mounting: For easy installation
- Long Battery Life: 3-year storage battery
TECHNICAL SPECIFICATIONS
| Item No | THC810 16A/20A/25A/30A | |
| Dimensions(mm) | 86× 36×66 | |
| Full Timing Range | 24h 7days | |
| Rated Voltage | AC220-240V 50Hz/60Hz(Other special voltages can be customized) | |
| Contact Capacity | 16A、20A、25A、30A、250VAC | |
| Contact Form | 1 changeover switch | |
| Accuracy | ≤1s/d(25℃) | |
| Display Mounting Form |
LCD DIN PAIL |
|
| Life | Electrical | ≥ 10⁵times |
| Mechanical | ≥ 107times | |
| Ambient Temperature Min. switching time |
-10℃~+50℃ 1 min |
|
| Programmable | 44ON/44OFF | |
| Storage Battery | 3YEARS | |
| Consumed power | 4VA | |
| QTY | 100PCS | |
| G.W | 18kg | |
| N.W | 17kg | |
| MEAS | 390×220×375mm | |
Dimension
|
Model
|
Rated Power
|
Number of Wiring Port
|
Current
|
|
THC810-16A-220V
|
AC220V
|
5
|
16A
|
|
THC810-16A-110V
|
AC110V
|
5
|
16A
|
|
THC810-16A-24V
|
AC/DC24V
|
5
|
16A
|
|
THC810-16A-12V
|
AC/DC12V
|
5
|
16A
|
|
THC810-20A-220V
|
AC220V
|
5
|
20A
|
|
THC810-20A-110V
|
AC110V
|
5
|
20A
|
|
THC810-20A-24V
|
AC/DC24V
|
5
|
20A
|
|
THC810-20A-12V
|
AC/DC12V
|
5
|
20A
|
|
THC810-30A-220V
|
AC220V
|
4
|
30A
|
|
THC810-30A-110V
|
AC110V
|
4
|
30A
|
|
THC810-30A-24V
|
AC/DC24V
|
4
|
30A
|
|
THC810-30A-12V
|
AC/DC12V
|
4
|
30A
|
Available Models
The THC-810 series is available in various configurations:
- 16A models: 220V, 110V, 24V, 12V
- 20A models: 220V, 110V, 24V, 12V
- 30A models: 220V, 110V, 24V, 12V (4 wiring ports)
Benefits
- Precise timing control for various electrical devices
- Energy-efficient with low power consumption
- Flexible programming options for different schedules
- Durable design with long-lasting battery backup
- High-precision, industrial-grade components for reliable performance
- Strong anti-interference ability for stable operation
