MCBではなくRCCBを使用する理由:2025年版完全電気安全ガイド

Why Use RCCB Instead of MCB
直接的な回答: You should use an RCCB (Residual Current Circuit Breaker) instead of an MCB (Miniature Circuit Breaker) when you need protection against electrical shocks, ground faults, and fire hazards caused by current leakage. While MCBs protect against overcurrent and short circuits, RCCBs detect dangerous current imbalances that could electrocute someone or start fires – making them essential for bathrooms, kitchens, outdoor circuits, and any area where human safety is critical.Understanding when to use RCCB instead of MCB could literally save lives and prevent electrical fires in your home or workplace. This comprehensive guide reveals the critical safety differences, proper applications, and expert selection criteria for these essential electrical protection devices.

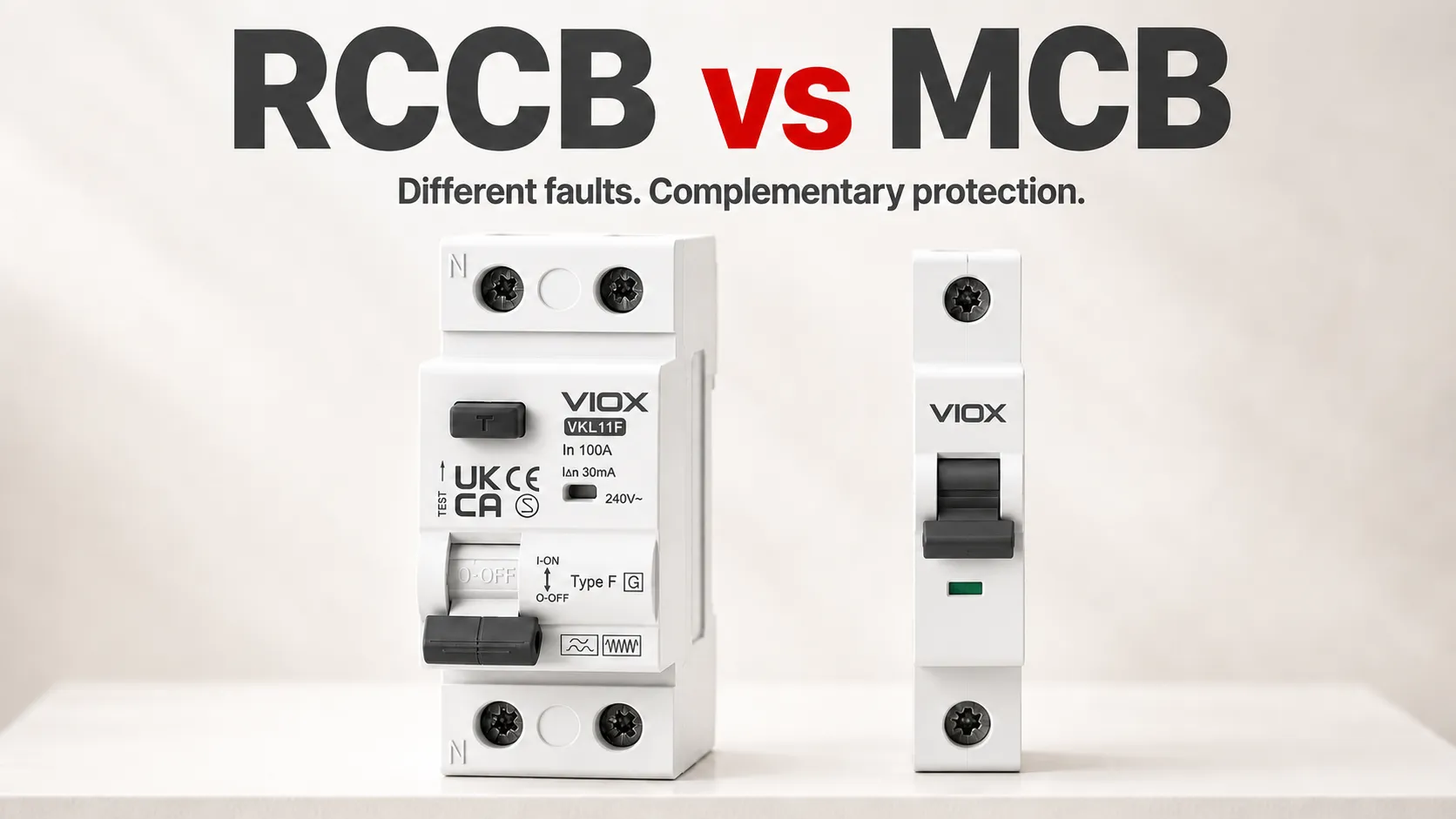

What is the Key Difference Between RCCB and MCB?

RCCB(残留電流サーキットブレーカー)

RCCBの難燃性シェル

VIOX RCCB

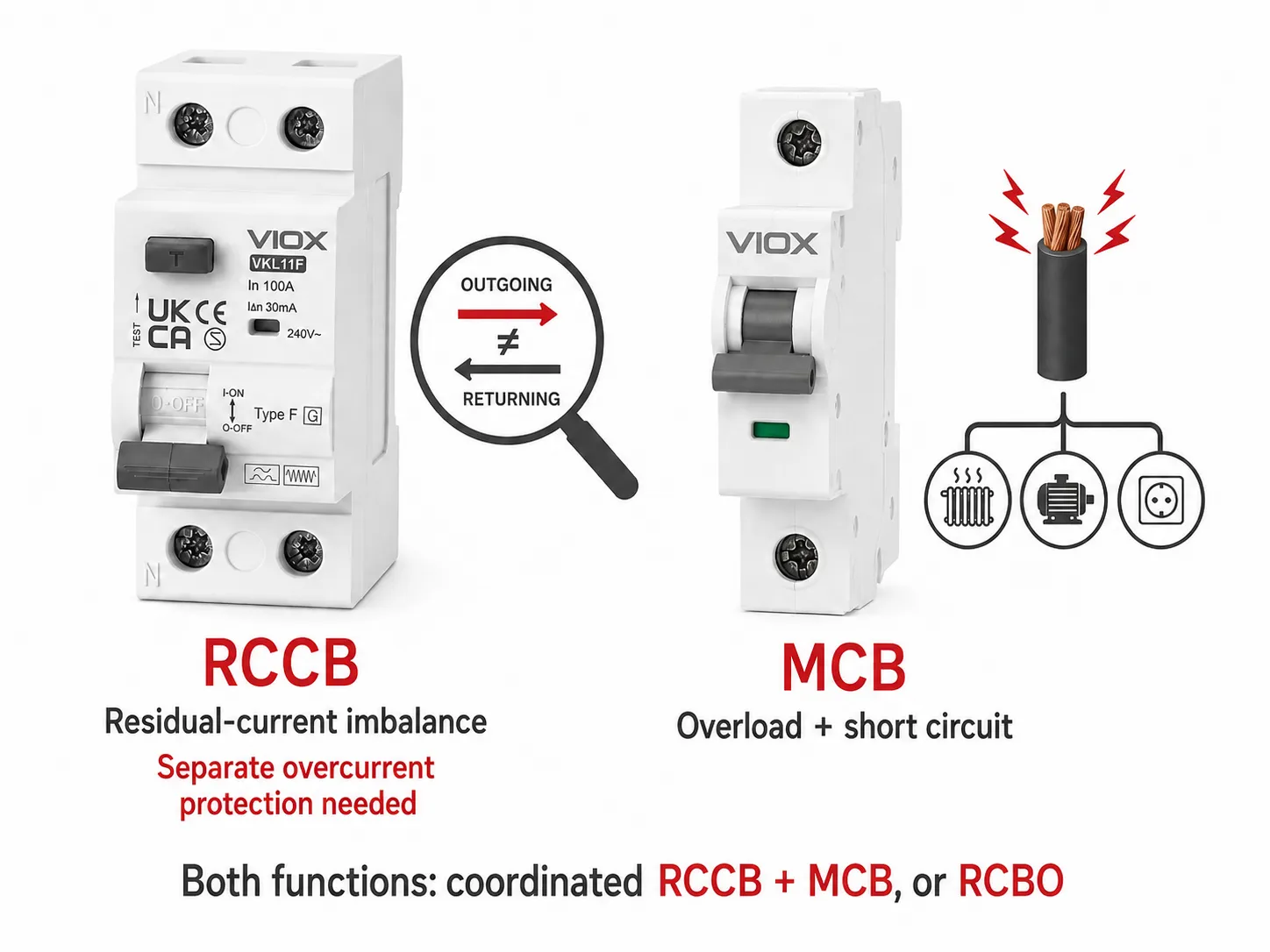

An RCCB monitors the current flowing through live and neutral wires. When it detects an imbalance (indicating current is leaking to ground), it immediately disconnects the circuit within 30 milliseconds. This protects against:

  • Electrical shock to humans
  • 地絡 fires
  • Equipment damage from insulation failure

MCB(ミニチュアサーキットブレーカー)

VIOX MCB

An MCB protects against excessive current flow in circuits. It trips when current exceeds the rated limit, protecting against:

🚨 安全警告: MCBs cannot detect current leakage to ground. A person can receive a fatal shock from a circuit protected only by MCB if current finds an alternate path through their body to ground.

回路ブレーカーを設置する

Comprehensive RCCB vs MCB Comparison Table

特徴 RCCB エムシービー
一次保護 Earth leakage current (30mA or less) Overcurrent and short circuit
検出方法 Current imbalance between live/neutral Excessive current flow
旅行時間 30 milliseconds 0.1~3秒
Shock Protection ✅ Excellent (life-saving) ❌ None
防火 ✅ Ground fault fires ✅ Overload fires
Code Requirement Mandatory in wet areas Mandatory for all circuits
リセット方法 手動リセットボタン Manual lever reset
コスト 高いイニシャルコスト イニシャルコストの低減
テスト Monthly test button 目視検査

When You Must Use RCCB Instead of MCB

Critical Safety Applications

1. Wet and Damp Locations

  • Bathrooms and shower areas
  • キッチンカウンターのコンセント
  • Laundry rooms
  • Basement areas prone to moisture

2. Outdoor Electrical Circuits

  • Garden lighting and power outlets
  • プール&スパ用品
  • Outdoor cooking areas
  • Garage door openers

3. High-Risk Areas

  • Children’s bedrooms and play areas
  • Elderly care facilities
  • Workshops with handheld power tools
  • Any circuit with portable equipment

Expert Tip: Combined Protection Strategy

Most electrical experts recommend using RCCBs in conjunction with MCBs, not instead of them. This provides comprehensive protection against both overcurrent and ground faults.

How RCCB Protection Saves Lives: Real-World Examples

Scenario 1: Bathroom Safety

When you use a hair dryer in the bathroom, if water enters the device and creates a path to ground through the metal frame, an RCCB will detect the 30mA current leakage and trip instantly. An MCB would not detect this condition, allowing potentially fatal current to flow through anyone touching the device.

Scenario 2: Outdoor Power Tools

Using an electric hedge trimmer outdoors, if the blade cuts through the power cord and touches your hand, the RCCB detects the current flowing through your body to ground and trips within 30 milliseconds – faster than your heart can go into fibrillation.

Scenario 3: Kitchen Appliance Faults

If a microwave oven develops internal insulation failure, causing current to leak to its metal case, an RCCB prevents electrocution when someone touches the appliance. The MCB would only trip if there was a complete short circuit.

RCCB Selection Criteria: Expert Guidelines

Sensitivity Ratings

RCCB Type 感度 申し込み
30mA High sensitivity Personal protection (required)
100mA Medium sensitivity Fire protection only
300mA Low sensitivity Industrial equipment protection

Time-Delay Classifications

  • Instantaneous (0ms): General residential use
  • Short delay (10ms): Reduces nuisance tripping
  • Selectable delay: Industrial applications with coordination needs

Step-by-Step RCCB Installation Guidelines

⚠️安全警告: RCCB installation must be performed by qualified electricians in accordance with local electrical codes (NEC in US, IEC internationally).

インストールプロセス:

  1. 主電源を切る 電気パネルで
  2. 電源がオフになっていることを確認する using a non-contact voltage tester
  3. Mount RCCB in appropriate panel position according to manufacturer specs
  4. Connect incoming supply to RCCB line terminals
  5. Connect outgoing circuits to RCCB load terminals
  6. テスト運用 using the built-in test button
  7. Restore power and verify normal operation
  8. Document installation for maintenance records

コードコンプライアンス要件

  • NEC 210.8: GFCI/RCCB protection required for bathrooms, kitchens, outdoors, crawl spaces, and unfinished basements
  • IEC 61008: International standard for RCCB performance and testing
  • Local amendments: Check with local authority having jurisdiction

Common RCCB Problems and Troubleshooting

頻繁に起こる迷惑なつまずき

原因がある:

  • Moisture in wiring or connections
  • Damaged cable insulation
  • Equipment with high leakage current
  • Incorrect sensitivity rating

解決策:

  • Inspect and dry all connections
  • Test cable insulation with megohmmeter
  • Use time-delayed RCCB for equipment with natural leakage
  • Upgrade to appropriate sensitivity rating

Test Button Doesn’t Work

原因がある:

  • Internal mechanism failure
  • Corroded contacts
  • End of service life (typically 10-15 years)

解決策:

  • Replace RCCB immediately – non-functional test indicates protection failure
  • 専門家による検査のスケジュール
  • Upgrade to current technology RCCB

専門家のヒント: Test your RCCB monthly using the test button. If it doesn’t trip immediately, the device has failed and provides no protection.

Professional Recommendations for RCCB vs MCB Selection

Use RCCB When:

  • Human contact with electrical equipment is possible
  • Circuits serve wet or outdoor locations
  • Portable equipment is connected
  • Building codes require ground fault protection
  • Maximum safety is the priority

Use MCB When:

  • Protecting fixed equipment with no human contact
  • Industrial motor circuits (with appropriate ground fault protection upstream)
  • Lighting circuits in dry locations
  • Fire alarm and emergency systems (where nuisance tripping is critical)

Use Both (RCCB + MCB) When:

  • Comprehensive protection is needed
  • Code requires both overcurrent and ground fault protection
  • Critical safety applications
  • 商業施設および工業施設

Quick Reference: RCCB Installation Checklist

Pre-Installation:

  • [ ] Verify local code requirements
  • [ ] Calculate load requirements
  • [ ] Select appropriate sensitivity (typically 30mA)
  • [ ] Obtain necessary permits

During Installation:

  • [ ] Power disconnected and verified
  • [ ] Proper mounting and connections
  • [ ] Correct wire sizing and routing
  • [ ] Test button operation verified

Post-Installation:

  • [ ] System testing completed
  • [ ] User education provided
  • [ ] Monthly testing schedule established
  • [ ] Documentation completed

よくある質問

Can I replace an MCB with an RCCB?

Yes, but you should consult a qualified electrician. The RCCB must have the same or higher current rating as the MCB it replaces, and you need to ensure compatibility with your electrical panel and local codes.

Why does my RCCB trip when it rains?

Rain can cause moisture infiltration into outdoor electrical connections or damaged cable insulation. This creates a path for current to leak to ground, which the RCCB correctly detects as a safety hazard.

How often should I test my RCCB?

Test monthly using the built-in test button. The device should trip immediately when tested. If it doesn’t trip, replace it immediately as it’s not providing protection.

Can I use a 100mA RCCB instead of 30mA?

For personal protection, 30mA is required. 100mA RCCBs are only suitable for fire protection, not shock protection, as 100mA can still be fatal to humans.

What’s the difference between RCCB and GFCI?

They’re essentially the same device with different names. GFCI(漏電遮断器) is the North American term, while RCCB is the international terminology.

Do I need RCCB protection for LED lighting?

While not always required for fixed LED lighting in dry locations, RCCB protection is recommended for any lighting circuit where maintenance involves human contact or in areas prone to moisture.

結論:電気安全のための正しい選択

The decision to use RCCB instead of MCB isn’t about replacement – it’s about proper protection for specific applications. RCCBs save lives by detecting dangerous current leakage that MCBs cannot detect, making them essential for any circuit where human safety is at risk.

For comprehensive electrical protection, work with qualified electricians who understand both local codes and safety best practices. The small additional cost of RCCB protection is insignificant compared to preventing electrical shock, fire, or loss of life.
