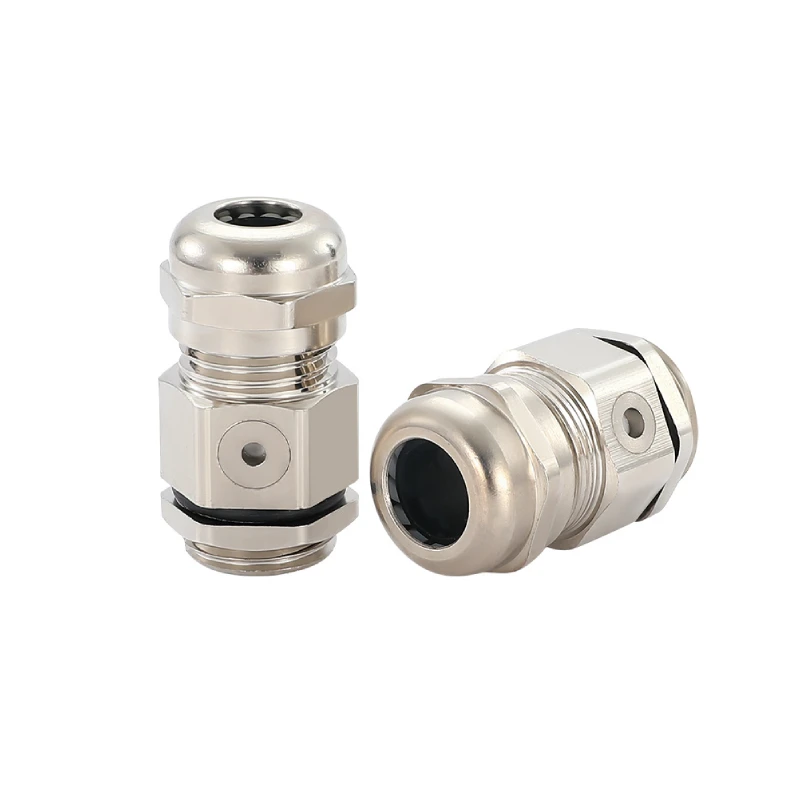

VIOX Breathable Cable Gland

• Nickel-plated brass body with Nylon PA clamping insert and NBR/EPDM seals
• IP68-10 bar rated, operating temperature -40°C to 100°C
• Available in Metric threads, sizes M12 to M40
• Suitable for cable diameters 3-30mm
• Pressure equalization feature prevents condensation in enclosures
• Ideal for outdoor electrical, HVAC, and marine applications

Send your requirements, we will quote for you within 12 hours​

VIOX Breathable Cable Gland

Overview

VIOX Breathable Cable Glands offer a high-quality solution for cable management in applications requiring pressure equalization. These glands provide excellent sealing and cable retention while allowing air exchange to prevent condensation buildup in enclosures.

Key Features

  • Body material: Nickel-plated brass
  • Clamping insert: Nylon PA
  • Seal options: Nitrile rubber (NBR) or weathering rubber (EPDM)
  • IP68-10 bar pressure protection (with specific cable range)
  • Wide operating temperature range
  • Available in various metric thread sizes
  • CE, RoHS, IP68, and ISO9001 certified

Technical Specifications

PropertySpecification
Body MaterialNickel-plated brass
Clamping InsertNylon PA
Seal MaterialNBR or EPDM
Protection GradeIP68-10 bar (with specific cable range)
Static Temperature Range-40°C to 100°C (short time to 120°C)
Thread TypeMetric
CertificationsCE, RoHS, IP68, ISO9001

Product Range

ModelThread AGCable range (mm)Thread Length (mm)Thread O.D (mm)Spanner Size (mm)
M12-BRM123-6.5711.917
M14-BRM144-8713.919
M16-BRM164-8715.921
M18-BRM185-10817.922
M20-BRM206-12819.924
M22-BRM2210-14821.927
M25-BRM2510-16924.927
M27-BRM2713-18926.930
M28-BRM2813-18927.930
M30-BRM3013-181029.936
M32-BRM3215-221031.938
M37-BRM3618-251236.942
M40-BRM4022-301239.946

Applications

  • Outdoor electrical enclosures
  • HVAC systems
  • Telecommunications equipment
  • Industrial control panels
  • Renewable energy installations
  • Marine and offshore equipment

Performance Benefits

  • Effective pressure equalization to prevent condensation
  • Excellent sealing against water and dust ingress
  • Strong cable retention with Nylon PA clamping insert
  • Corrosion resistance due to nickel-plated brass construction
  • Wide range of sizes to accommodate various cable diameters

Installation Advantages

  • Easy installation with standard tools
  • Short thread option for thin panels or equipment with inner threads
  • Long thread option available for thick-walled enclosures
  • Secure cable fixing with tightening of the sealing nut

Customization Options

VIOX offers customization services for the Breathable Cable Gland series. Options may include special materials, custom thread lengths, or specific breathable membrane properties. Contact our sales team for inquiries about bespoke breathable cable gland solutions tailored to your application needs.

Quality Assurance

VIOX Breathable Cable Glands are manufactured under strict quality control processes and undergo rigorous testing to ensure compliance with international standards. Each gland is designed to provide reliable pressure equalization and sealing performance across a wide range of industrial applications.
