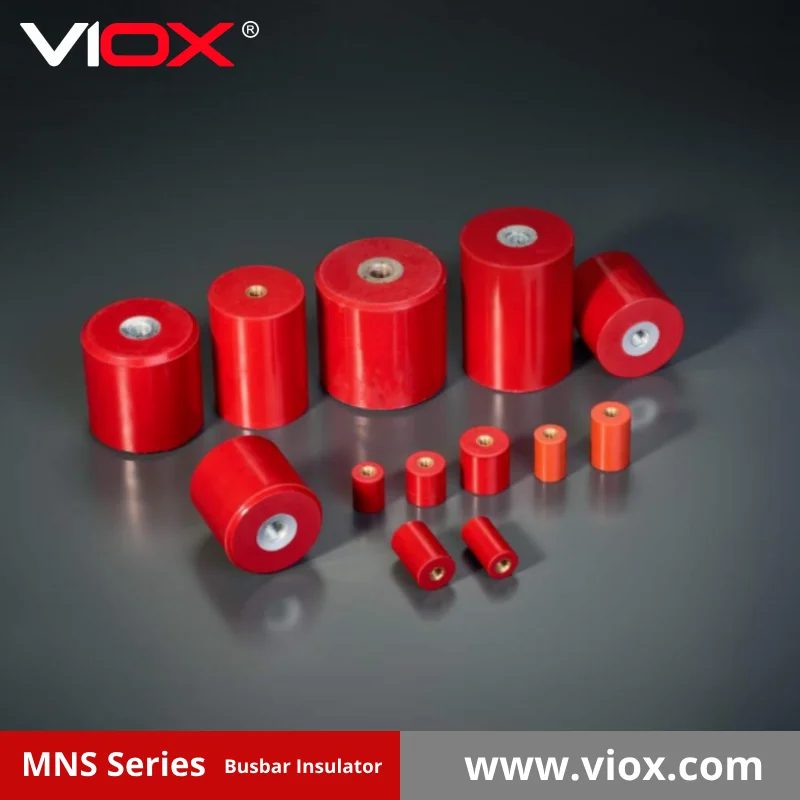

MNS Series Busbar Insulator
- High-quality BMC and SMC construction for durability and strength.
- Operating temperature range: -40°C to +140°C.
- Available with brass or steel inserts with zinc coating for enhanced corrosion resistance.
- Customizable color, insert, and material options to meet specific customer needs.
- Complies with international standards for reliable performance.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
MNS Series Busbar Insulator
Overview
VIOX Electric Co., LTD. introduces the MNS Series Busbar Insulator, designed to provide superior insulation and support for busbars in electrical systems. Constructed from high-quality BMC (Bulk Moulding Compound) and SMC (Sheet Moulding Compound), these insulators are engineered to withstand extreme temperatures and mechanical stresses, ensuring reliable performance in various industrial applications.
Features
- High-quality BMC and SMC construction for durability and strength.
- Operating temperature range: -40°C to +140°C.
- Available with brass or steel inserts with zinc coating for enhanced corrosion resistance.
- Customizable color, insert, and material options to meet specific customer needs.
- Complies with international standards for reliable performance.
Specifications
| Type | Diameter (mm) | Height (mm) | Screw (mm) | Screw Depth (mm) |
|---|---|---|---|---|
| MNS16 | Φ16 | 20, 25, 30, 35, 40 | M6 | 8 |
| MNS20 | Φ20 | 20, 25, 30, 35, 40 | M6 | 8 |
| MNS25 | Φ25 | 25, 30, 40, 50 | M6 | 9 |
| MNS30 | Φ30 | 30, 40, 50, 60 | M8 | 9 |
| MNS40 | Φ40 | 40, 50, 60, 70, 80 | M8, M10 | 12 |
| MNS50 | Φ50 | 50, 60, 70, 80 | M8, M10 | 15 |
| MNS60 | Φ60 | 60, 70, 80, 90 | M10, M12 | 15 |
| MNS70 | Φ70 | 70, 80, 90, 100, 110 | M14, M16 | 18, 22 |
Dimension
Applications
The MNS Series Busbar Insulator is ideal for providing insulation and support for busbars in electrical systems. Its robust construction and high-performance materials make it suitable for a wide range of industrial applications, ensuring reliable and safe operation.
Customer Support
At VIOX Electric Co., LTD., we are dedicated to providing exceptional customer service. Our support team is available to assist with any inquiries, ensuring timely delivery and comprehensive after-sales service. For advice on busbar insulators, please contact us.
