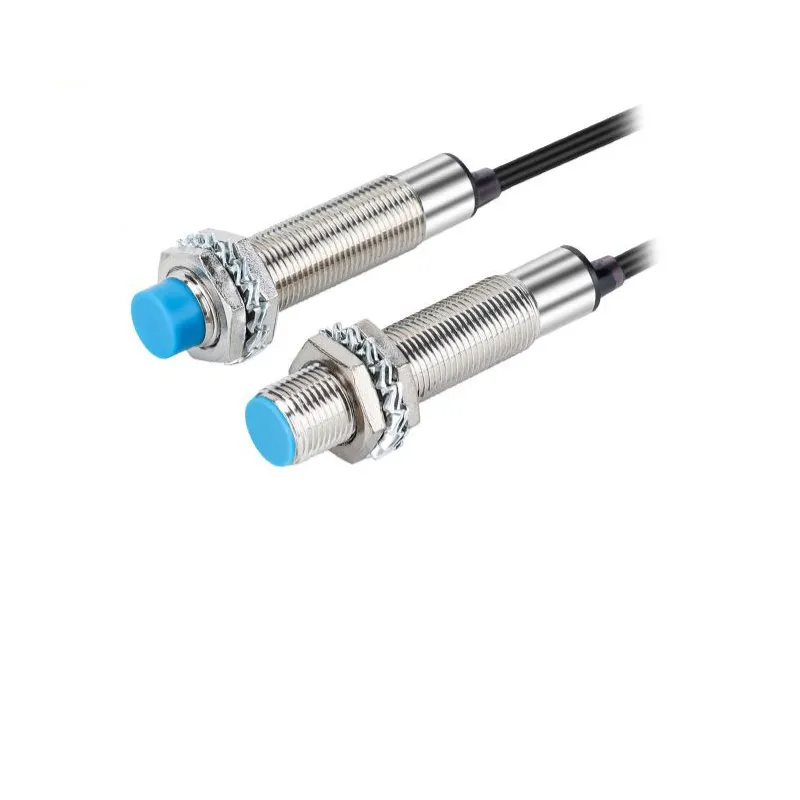

LM12 Inductive Proximity Sensor
Explore VIOX’s LM12 Inductive Proximity Sensors, offering precise contactless detection of metallic objects with sensing distances of 2mm (Flush) and 4mm (Non-flush). These versatile sensors support 10~30VDC and 90~250VAC, with models including NPN, PNP, and two-wire systems. With output currents of 200mA (DC) and 300mA (AC), and operating temperatures from -25℃ to +75℃, they are ideal for manufacturing, automotive, and agricultural applications. High precision of 0.01 repeatability and IP67 protection ensure reliability in harsh environments.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
| Model | LM12 | |||
| Dimension |  | |||
| Sense distance | 2mm±10% | |||
| Flush type | DC10~30VDC | NPN | NO | LM12-3002NA |
| NC | LM12-3002NB | |||
| NO+NC | LM12-3002NC | |||
| PNP | NO | LM12-3002PA | ||
| NC | LM12-3002PB | |||
| NO+NC | LM12-3002PC | |||
| Two-wire system | NO | LM12-3002LA | ||
| NC | LM12-3002LB | |||
| AC90~250VAC | NO | LM12-2002A | ||
| NC | LM12-2002B | |||
| NO+NC | LM12-2002C | |||
| Sense distance | 4mm±10% | |||
| Non-flush type | DC10~30VDC | NPN | NO | LM12-3004NA |
| NC | LM12-3004NB | |||
| NO+NC | LM12-3004NC | |||
| PNP | NO | LM12-3004PA | ||
| NC | LM12-3004PB | |||
| NO+NC | LM12-3004PC | |||
| Two-wire system | NO | LM12-3004LA | ||
| NC | LM12-3004LB | |||
| AC90~250VAC | NO | LM12-2004A | ||
| NC | LM12-2004B | |||
| NO+NC | LM12-2004C | |||
| Output current | DC | 200mA | ||
| AC | 300mA | |||
| Output voltage peak | DC type below 3V、Two wire type below 3.9V、 AC below l0V DC<3V, AC<10V | |||
| Consumption current | DC type 8mA at 12V, 15mA at 24V, AC below 10mA DC<15mA, AC<10mA | |||
| Standard detected object | 15×15×1 (A3 iron) | |||
| Repeatability | 0.01 | |||
| Response frequency | 400Hz/25Hz | |||
| Ambient temperature | -25℃-+75℃ | |||
| Insulation resistance | ≥50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
