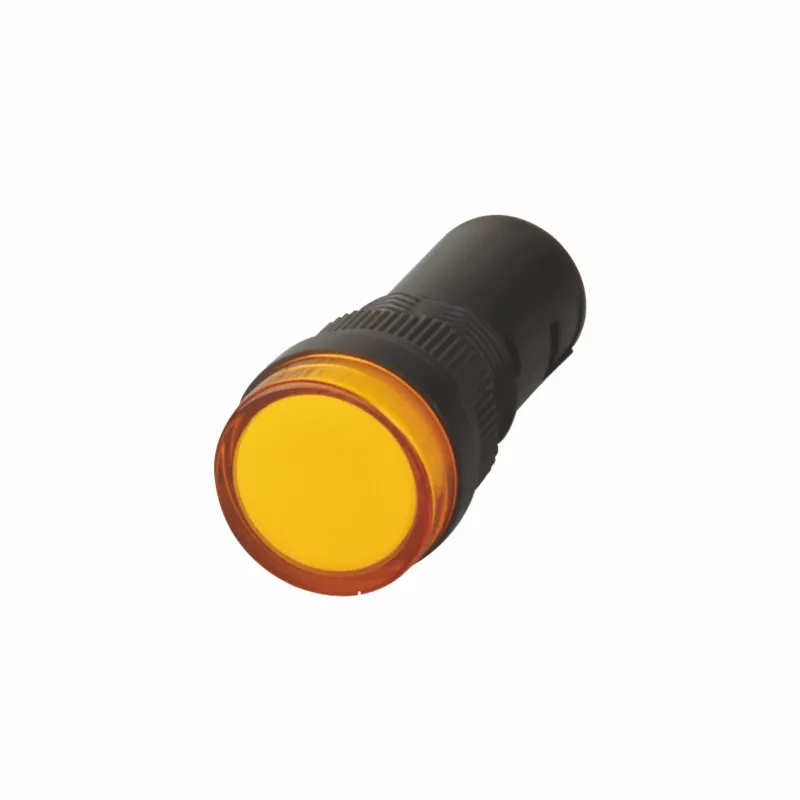

Indicator Light AD16-16DS

VIOX’s AD16-16DS digital display indicator light offers versatile signaling for industrial applications. With a 9-380V AC/DC range and 16mm diameter, it provides compact, efficient functionality. Featuring IP65 waterproof construction and ≥30,000-hour lifespan, it excels in harsh environments. Available in multiple colors, this LED indicator ensures clear visibility for control panels, switchgear, and marine equipment. Its low power consumption, vibration resistance, and CE certification make it ideal for reliable, long-term use in diverse industrial settings.

Send your requirements, we will quote for you within 12 hours​

AD16-16DS Digital Display Indicator Light

Overview

The VIOX AD16-16DS is a versatile, waterproof digital display indicator light designed for various equipment and industrial applications. With its durable grey body and LED technology, it offers reliable visual signaling for telecommunications, electrical systems, and other industrial equipment.

Key Features

  • Versatile Voltage Range: Compatible with 9V to 380V AC/DC
  • Compact Design: 16mm diameter for space-efficient installation
  • Waterproof Construction: IP65 rated for harsh environments
  • Long Lifespan: ≥30,000 hours of continuous operation
  • Multiple Color Options: Available in Red, Green, Blue, White, and Yellow
  • Low Power Consumption: ≤20mA rated current
  • High Reliability: Vibration-resistant and durable

Technical Specifications

  • Model: AD16-16DS
  • Rated Voltage: 9V, 12V, 24V, 36V, 48V, 110V, 220V, 380V
  • Light Type: Flashing LED
  • Sound Type: Intermittent
  • Brightness: ≤100cd/m²
  • Withstand Voltage: 2.5kV for 1 Minute
  • Insulation Resistance: ≥2MΩ
  • Operating Temperature: -25°C to +55°C
  • Voltage Fluctuation: ±2%

Dimension

Indicator Light AD16-16DS-Dimension

Certifications

  • CCC (China Compulsory Certification)
  • CE (European Community Safety Certification)
  • China Classification Society’s Marine Product Type Approval

Applications

The VIOX AD16-16DS is ideal for:

  • Industrial control panels
  • Telecommunications equipment
  • Electrical switchgear
  • Marine and offshore equipment
  • Manufacturing machinery
  • Process control systems

Benefits

  • Clear visual indication in various lighting conditions
  • Suitable for a wide range of voltage requirements
  • Resistant to water and dust ingress
  • Energy-efficient LED technology
  • Minimal maintenance due to long operational life
  • Compact size for easy integration into existing systems
  • Multiple color options for different signaling needs
