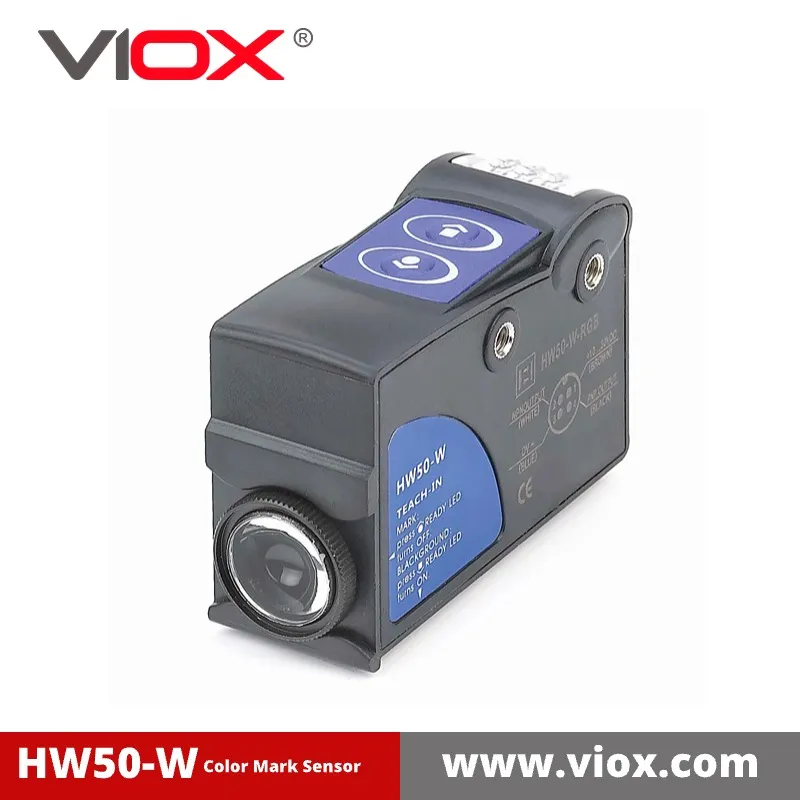

HW50-W Color Code Sensor

VIOX HW50-W-RGB Color Code Sensor offers advanced color detection with RGB LEDs for industrial applications like packaging and printing machinery. With a 10mm sensing distance and a spot size of 1.5x5mm, it delivers high-precision results. The sensor features PNP/NPN outputs, a rapid 33μs response time, and a 15kHz switching frequency. Built with an IP67-rated metal housing, it ensures durability in various environments. Additional benefits include automatic light source selection and flexible delay settings, making it ideal for deviation correction, quality control, and other high-accuracy tasks.

Send your requirements, we will quote for you within 12 hours​

  • TEL:+8618066396588
  • Whatsapp:+8618066396588
  • Email:sales@viox.com
Ask an offer now
Technical Specifications HW50-W
Supply Voltage10…30Vdc
Supply Ripple2Vpp max
Current Consumption (excluding output current)50mA max at 24Vdc
Output Signal1 PNP output, 1 NPN output
Output Current100mA max
Output Saturation Voltage≤2V
Response Time33μs
Switching Frequency15kHz
Delay0/20ms selectable (default setting is no delay)
Status IndicatorOutput indicator (green) / Ready indicator (yellow) / Delay indicator (red)
ButtonColor mark button, background button
Light On/Dark On SelectionAutomatic (default setting is Light On mode)
Operating Temperature-10…55°C
Storage Temperature-20…70°C
Insulation Strength500Vac 1 minute, between electrical parts and housing
Insulation Resistance>20MΩ 500Vdc, between electrical parts and housing
Detection Distance10mm±3mm
Minimum Spot Size1.5×5mm at 10mm
Light Source TypeBlue (465nm) / Green (520nm) / Red (630nm) automatic selection
Ambient Light SuppressionAccording to EN60947-5-2
Vibration0.5mm amplitude, 10…55Hz frequency, in each direction (EN60068-2-6)
Shock11ms (30G), 6 impacts, in each direction (EN60068-2-27)
Housing MaterialABS
Lens MaterialPMMA
Mechanical Protection DegreeIP67
Connection TypeM12-4 pin connector
Weight90g max
