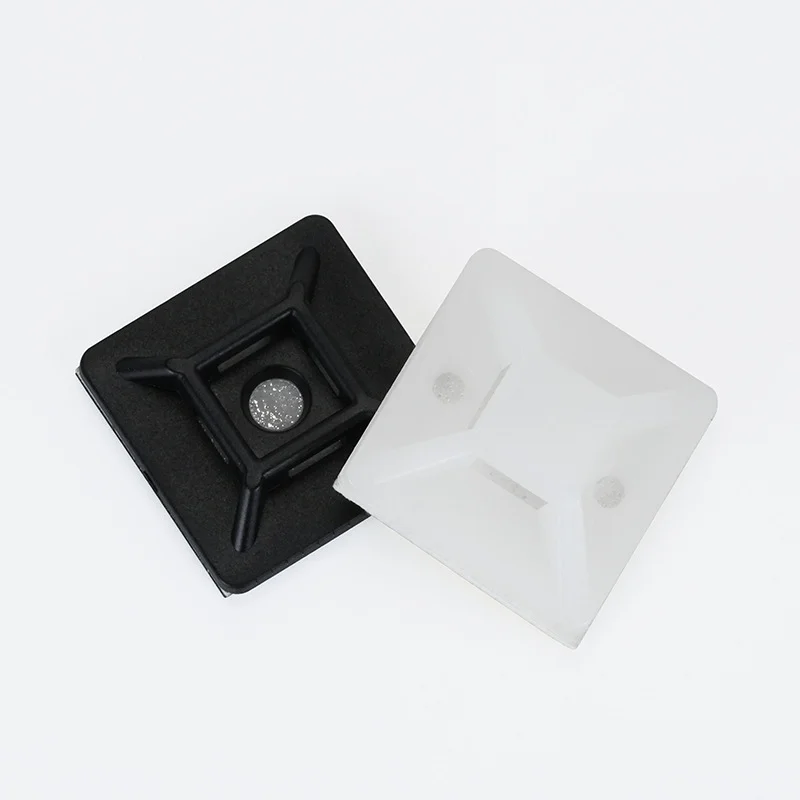

VIOX 4-Way Adhesive Cable Tie Mounts
Overview
VIOX 4-Way Adhesive Cable Tie Mounts provide a simple and effective solution for securing cables to various surfaces. Designed with superior acrylic adhesive, these mounts ensure long-term reliability and easy cable management. Suitable for metal, plastic, glass, and other clean surfaces, they help keep your workspace organized.
Key Features
- Superior Adhesive: Made with high-quality acrylic adhesive for secure and reliable attachment.
- 4-Way Entry: Allows for fast and easy cable tie orientation, enhancing installation efficiency.
- Multiple Sizes: Available in .50″ x .50″, .75″ x .75″, 1.125″ x 1.125″, and 1.50″ x 1.50″ for versatile applications.
- UL Listed: Meets UL94V-2 Flammability Classification for safety and compliance.
- Optional Screw Mounting: Includes a counter-sinked screw hole for additional holding strength, recommended for outdoor use.
Benefits
- Easy Installation: Adhesive backing allows for cable routing where drilling is not possible.
- Secure Attachment: Simply peel off the backing paper and press onto the surface for a firm hold.
- Versatile Use: .75″ and 1″ mounts can be secured with a self-tapping screw for extra stability.
Material Options
Natural Cable Tie Mounts
- Made from Nylon 6/6 for general indoor use.

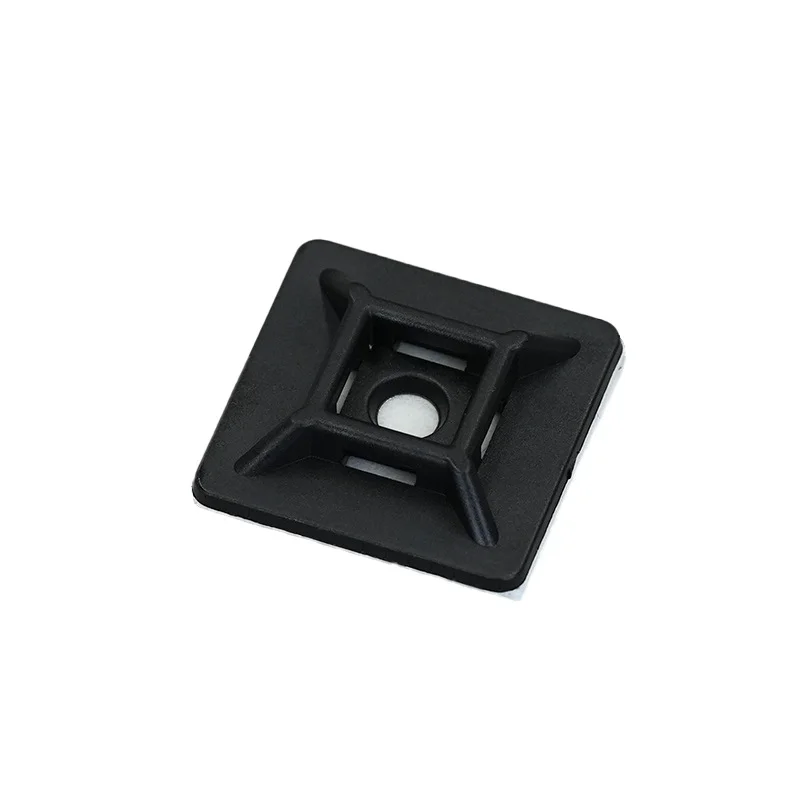

UV Black Cable Tie Mounts
- UV-resistant for both indoor and outdoor use.
- Made from UV-stabilized Nylon 6/6, offering enhanced durability against sunlight exposure.
Dimension
| Specification | L (mm) | W (mm) | H (mm) | Drill Hole T (mm) | Screw R (mm) |
|---|---|---|---|---|---|
| ND12.5 | 12.3 | 12.3 | 3.4 | 3.0 | / |
| ND19 | 19.4 | 19.4 | 4.2 | 4.5 | 3.6 |
| HS-101S | 19.5 | 19.5 | 4.2 | 4.5 | 3.0 |
| ND20 | 19.0 | 19.0 | 7.2 | 5.5 | 3.9 |
| ND21 | 20.8 | 20.8 | 4.0 | 4.5 | / |
| ND25 | 23.5 | 23.5 | 11.5 | 7.3 | 4.5 |
| ND28 | 28.0 | 28.0 | 6.4 | 5.8 | 6.0 |
| ND40 | 39.8 | 39.8 | 6.2 | 11.7 | 7.6 |
Applications
Ideal for organizing cables in various settings, VIOX 4-Way Adhesive Cable Tie Mounts are perfect for use in offices, workshops, and outdoor environments. Their robust design and versatile application make them an essential tool for efficient cable management.
