Tapón de ventilación de nylon
Rosca: métrica, PG, G (PF) y NPT
Protection Degree: IP67-IP68 (with O-ring) (2 meters / 60 min)
Working Temperature: -40℃ to 100℃, instantaneous heat resistance up to 120℃. -20℃ to 80℃ in dynamic, instantaneous heat resistance up to 100℃.
Materiales: ePTFE para la membrana transpirable, latón niquelado para el cuerpo principal y las tuercas, silicona resistente a altas temperaturas para la junta tórica
Typical Airflow: 2000ml/min (dp=70mbar)
Water Entry Pressure:5 psi/30 sec = 0.34 bar/30 sec
Envíenos sus requisitos, le haremos un presupuesto en 12 horas
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
Tapón de ventilación de nylon
Visión general

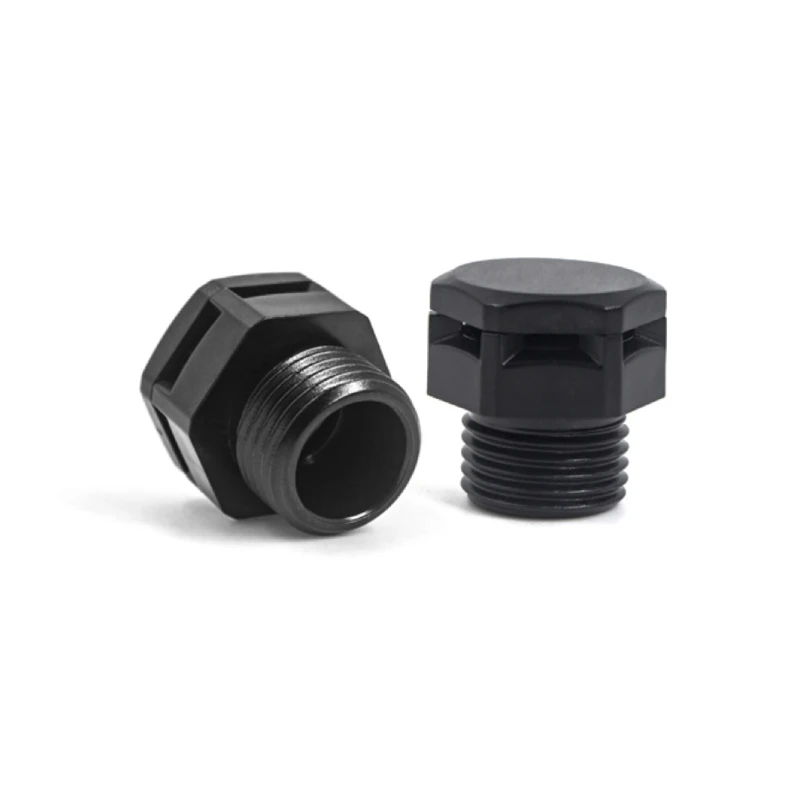

The VIOX Nylon Breather Vent Plug is designed to maintain pressure balance and prevent condensation in outdoor lighting and enclosures. It features a robust design with high-quality materials to ensure durability and reliability in various industrial applications. This vent plug allows air to pass through while preventing moisture and dust ingress, making it ideal for hazardous areas and explosion-proof electrical equipment connections.
Parámetros técnicos
| Artículo | Detalles |
|---|---|
| Hilo | Métrico, PG, G (PF) y NPT |
| Grado de protección | IP67-IP68 (with O-ring) (2 meters / 60 min) |
| Temperatura de trabajo | -40℃ to 100℃, instantaneous heat resistance up to 120℃. -20℃ to 80℃ in dynamic, instantaneous heat resistance up to 100℃. |
| Materiales | ePTFE para la membrana transpirable, latón niquelado para el cuerpo principal y las piezas de la tuerca, silicona resistente a altas temperaturas para la junta tórica |
| Typical Airflow | 2000ml/min (dp=70mbar) |
| Water Entry Pressure | 5 psi/30 sec = 0.34 bar/30 sec |
Características
- Permite el paso del aire al tiempo que impide la entrada de humedad y polvo.
- Mantiene el equilibrio de la presión y evita la condensación en los recintos.
- Nivel de impermeabilidad personalizable en función de la profundidad del agua y la permeabilidad al aire.
- Ideal para zonas peligrosas, equipos eléctricos a prueba de explosiones, productos químicos, petróleo y diversos sectores de la electricidad, la industria ligera y la maquinaria.
Descripción del producto
The VIOX Nylon Breather Vent Plug is a new type of breathable material made from polymer materials, offering a compact structure and excellent breathability. It is widely used in various breathable equipment and materials in medical, industrial, construction, and other fields.
Características del producto
- High Breathability: Ensures good internal ventilation of the equipment, enhancing processing efficiency and performance.
- Strong Wear Resistance: Smooth surface that resists pollutants, maintaining performance over time.
- High Temperature Resistance: Withstands high temperatures without deforming, melting, or cracking.
- Waterproof and Dustproof: Protects internal equipment from external contamination.
- Alta resistencia: Offers high strength and fatigue resistance for stable long-term operation.
Product Advantages
- Economical and Affordable: Cost-effective with lower usage costs.
- Convenient Maintenance: Simple and convenient maintenance with a long service life.
- Wide Applicability: Suitable for gas and liquid treatment and filtration in various fields.
- Lightweight Design: Reduces equipment weight, improving operating efficiency and performance.
Application Fields
- Medical Field: Used in medical equipment such as ventilators and hemodialysis machines.
- Industrial Field: Suitable for gas filtration, liquid treatment, and environmental protection equipment.
- Construction Field: Used in building materials such as partitions and wall panels.
Ficha técnica
| Hilo | Rosca O.D (mm) | Longitud de la rosca (mm) | Material del cuerpo | Permeabilidad al aire | Nivel de protección | Grado oleofóbico |
|---|---|---|---|---|---|---|
| M24*1.5 | 24 | 10 | PA66/PC | >7000ml/min at 7kpa | IP68 | 8 |
| M16*1.5 | 16 | 9 | PA66/PC | >4600ml/min at 7kpa | IP68 | 8 |
| M12*1.5 | 12 | 9 | PA66/PC | >2200ml/min at 7kpa | IP68 | 8 |
| M10*1.5 | 10 | 9 | PA66/PC | >2200ml/min at 7kpa | IP68 | 8 |
| M8*1.25 | 8 | 9 | PA66/PC | >1200ml/min a 7kpa | IP68 | 8 |
| M6*0.75 | 6 | 6 | PA66/PC | >600ml/min at 7kpa | IP68 | 8 |
| M5*0.8 | 5 | 6 | PA66/PC | >600ml/min at 7kpa | IP68 | 8 |
