Digital Timer Switch Manufacturer for Industrial Control

Compare VIOX digital timer switches for scheduled control of lighting, pumps, ventilation and industrial equipment. Select the mounting format, supply, contact duty, channels and program before requesting a model quote.

Weekly programmingDaily and weekly schedules by model

Supply selectionAC and DC variants by model

Contact and channelMatch the connected load

Formato de montajeDIN rail, panel or screw mounting

Compare timer models Solicitar soporte de modelo
VIOX Digital Timer Switch SERIESGama de productos publicada

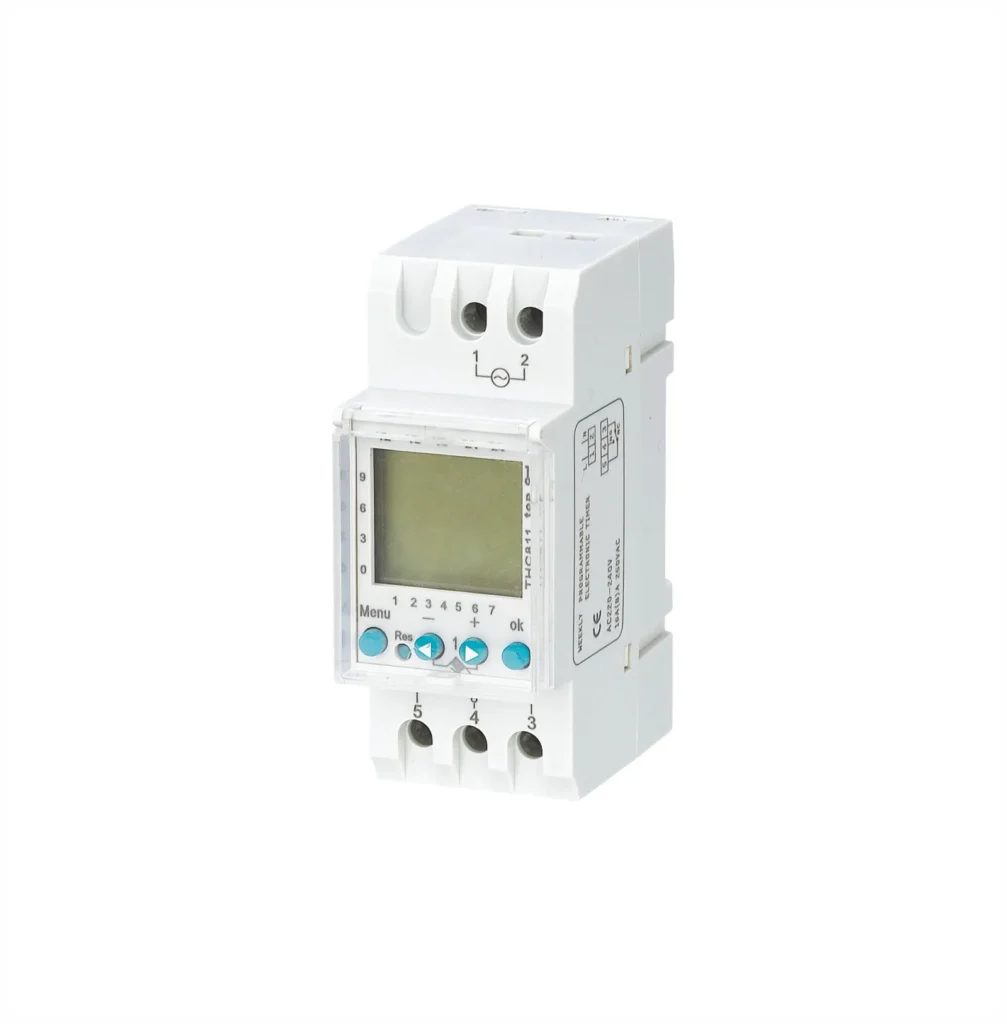

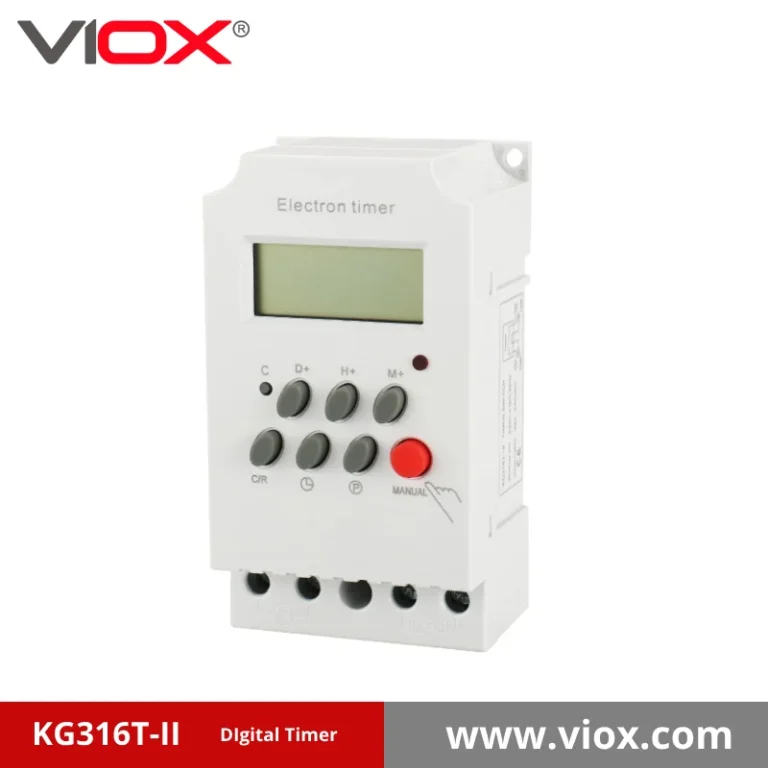

KG316T-II Digital Timer SwitchVIOX KG316T-IIDigital Timer Switch THC 810VIOX THC810Digital Timer Switch THC 811VIOX THC811

What is a digital timer switch?

A digital timer switch opens or closes an electrical control output according to stored daily, weekly, pulse, cycle or other model-specific programs. It is used to automate loads such as lighting, pumps, ventilation and process auxiliaries.

Selection depends on the supply voltage, contact and load duty, number of outputs, shortest switching interval, program capacity, power reserve, mounting format and whether an interposing contactor is required.

Guía de selección Comparar alternativas
Program storedThe selected daily, weekly or model-specific schedule is saved in the timer.
Time condition reachedThe internal clock evaluates the next programmed event.
Output changes stateThe timer contact controls the load directly or commands an interposing device.

Digital Timer Switch Selection Table

Representative published models for preliminary selection. Ratings and available variants belong to the named model only; open its product page and confirm the exact ordered reference.

ModeloMontajePublished supplyContact / outputPublished programsBackup / reserve
THC810Riel DIN220–240V AC; 110V AC and 12/24V variants listed16–30A at 250V AC by variant; 1 changeover44 ON / 44 OFF3 años
THC812Riel DIN220V AC, 50/60Hz16(10)A at 250V AC; 2 changeover44 ON / 44 OFF3 años

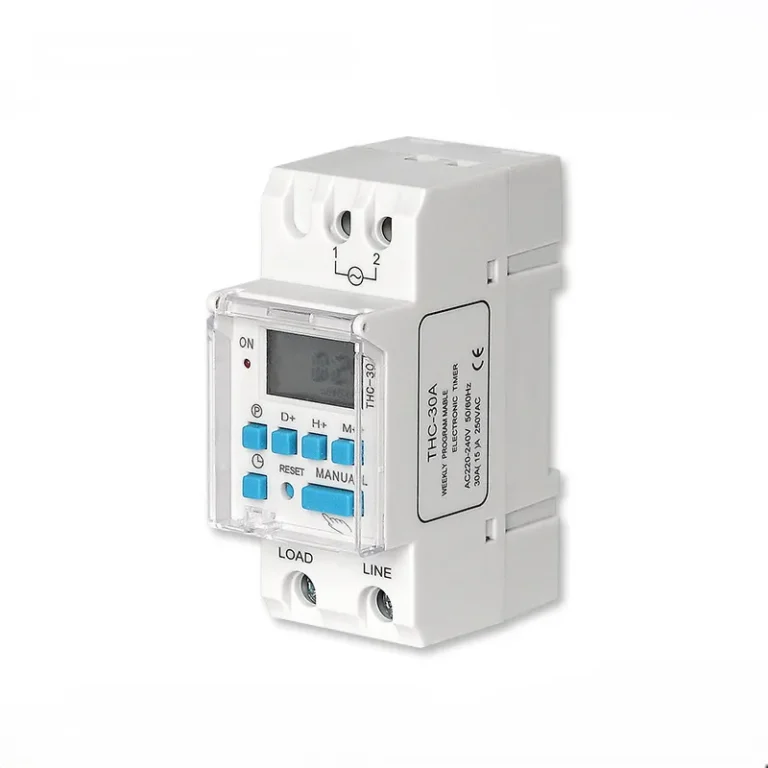

THC30ARiel DIN220–240V AC, 50/60Hz30A at 250V AC resistive; NO + NC output16 ON / 16 OFF3 años

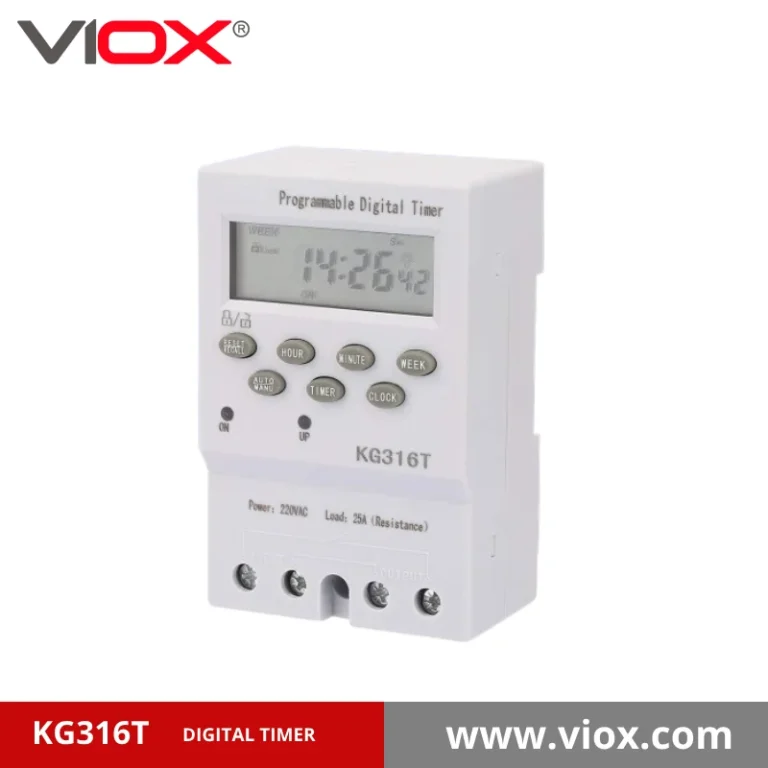

KG316TConfirm product drawing220V AC, 50Hz25A resistive; 20A inductive18 ON / OFF5-year lithium battery

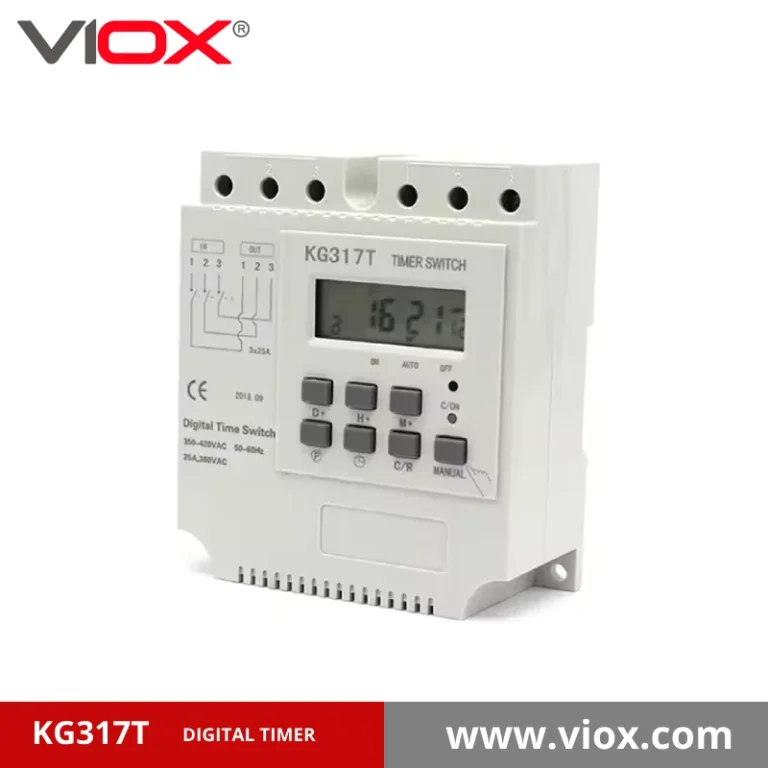

KG317TConfirm product drawing380 V CA25A16 ON / OFFBatería de reserva

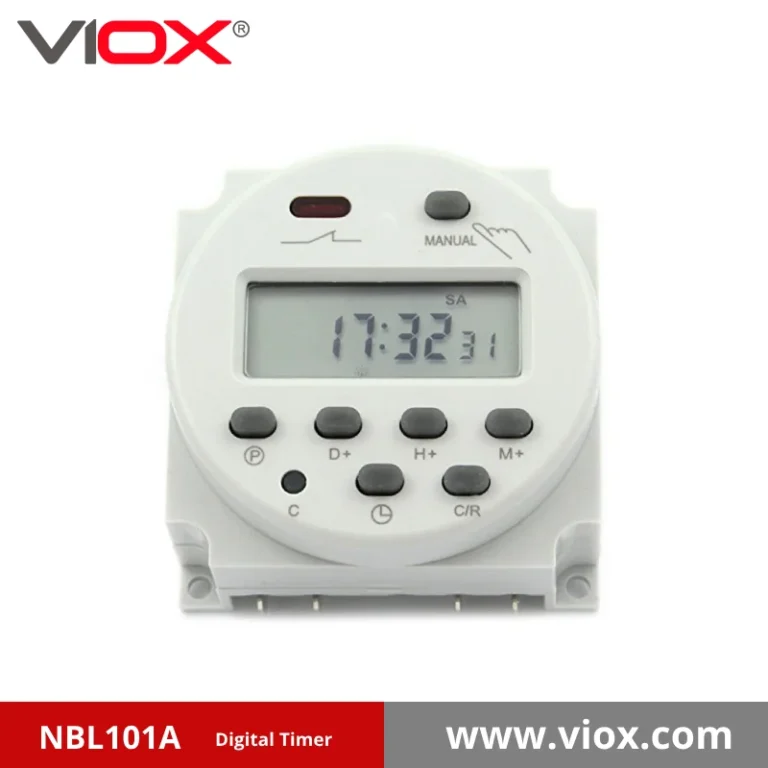

NBL101AMontaje en panel220–240V AC; additional voltage variants listed16(8)A at 250V AC17 ON / OFFMore than 60 days

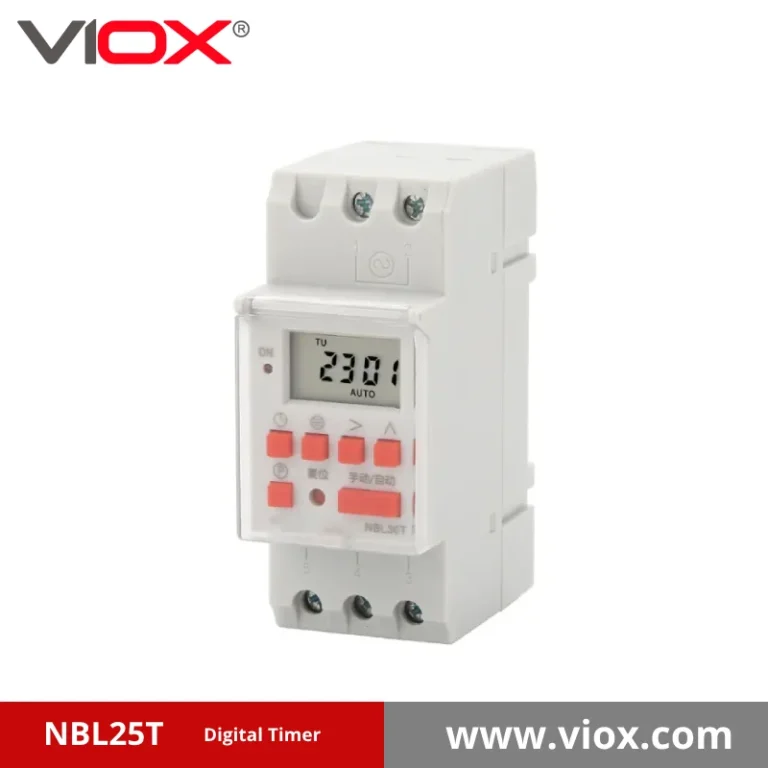

NBL25TCarril DIN de 35 mmUp to 240VUp to 30A8 ON / OFF cyclesBuilt-in CR2450 battery

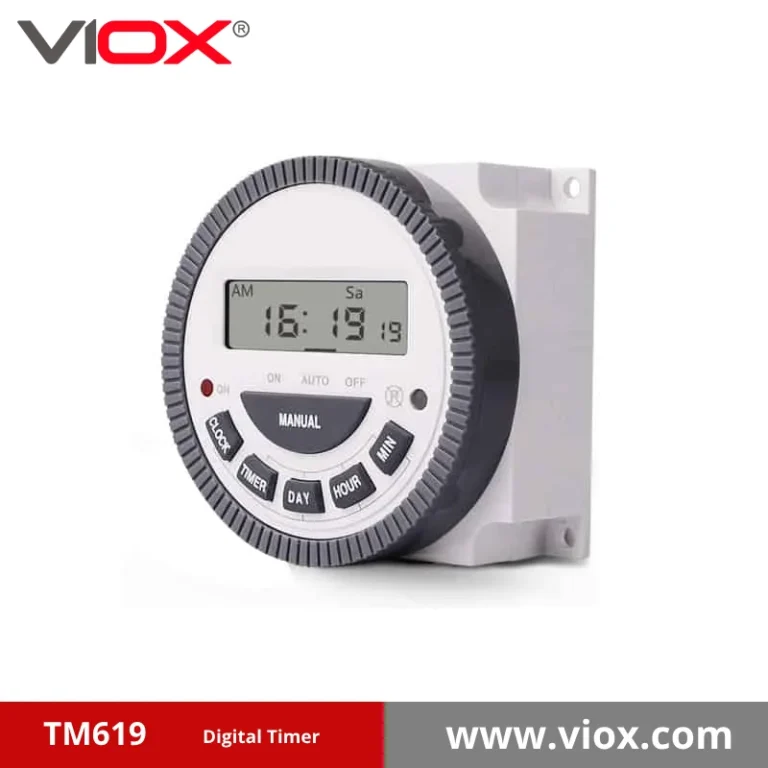

TM619Screw mounting12/24/48V AC/DC; 110/220V AC16A resistive; 8A inductive16 ON / OFFUp to 60 days

Digital Timer Switch Product Range

Browse all 25 published VIOX digital timer, programmable time-switch and light-control product pages, organized by purchasing use rather than one flat list.

DIN-Rail Weekly Timer Switches

Programmable weekly timers for distribution boards, control panels, lighting and equipment scheduling.

Panel and Alternative-Format Time Switches

KG, NBL and TM models covering panel, screw-mounted and application-specific programmable control.

Astronomical and Light-Control Timers

Location- or ambient-light-aware timers for outdoor lighting and scheduled illumination control.

Browse all Digital Timer Switch products

How to choose a digital timer switch

Define the schedule and connected load first, then match the electrical supply, output, mounting and power reserve.

Program and minimum interval

Confirm daily or weekly events, pulse or cycle functions, channels and the shortest required switching time.

Tensión de alimentación

Match the exact AC or DC supply and frequency published for the ordered model.

Contact and load duty

Check resistive, inductive or motor duty; use a suitable contactor when the timer output should not switch the load directly.

Mounting and power reserve

Confirm DIN-rail, panel or screw mounting, module width, wiring access and retained-clock duration.

Build the timer into the complete control circuit

The timer, load, contactor, protection and manual override must be coordinated as one control arrangement.

TTimer supply and programmed function
KContactor or interposing relay where required
LConnected load and protective device
Read the Digital Timer Switch selection guide

Digital Timer Switch Applications

Entornos típicos donde deben verificarse las características exactas del producto.

Smart residential building with rooftop solar and connected electrical systems

Edificios residenciales

Time-based control for suitable lighting, water heating and building-service loads.

Automated manufacturing facility with industrial robotic systems

Automatización industrial

Scheduled operation of pumps, ventilation, heaters and process auxiliaries.

Utility-scale solar farm with battery energy storage system

Energía solar y almacenamiento de energía

Time-based control of suitable auxiliary circuits within coordinated energy systems.

Cuadros eléctricos y distribuciónDIN-rail and panel-mounted scheduling inside control and distribution assemblies.Sector naval y aplicaciones en exterioresLighting and auxiliary scheduling inside appropriately rated enclosed installations.

Digital Timer Switch Knowledge & Selection Guides

Todos los artículos
Timer Switch Selection Guide: How to Cut Energy Waste and Automate Any LoadSelección y dimensionamiento

Guía de selección de interruptores de temporizador: Cómo reducir el desperdicio de energía y automatizar cualquier carga

Definición y fundamentosComprensión de los tipos, funciones y aplicaciones de los temporizadoresCableado y ConexiónMétodos comunes de cableado del temporizadorComparaciones y alternativasFotocélula vs Interruptor de temporizador astronómico: Detenga las fallas de iluminación con la elección correcta [Guía del ingeniero 2025]

Digital Timer Switch Selection Questions

Respuestas rápidas para la comparación preliminar de familias de productos antes de la verificación detallada del circuito.

What information is needed to select a digital timer switch?

Provide the supply voltage and frequency, connected load type and current, required program, number of outputs, minimum switching interval, mounting format and power-reserve requirement.

Can a timer switch control a motor or pump directly?

Only when the exact output rating and utilization duty permit it. Many motor, pump and high-inrush loads require a correctly selected contactor or interposing relay.

¿Cuál es la diferencia entre un interruptor temporizador y un relé temporizador?

A digital timer switch commonly schedules calendar-based ON and OFF events. A timer relay normally performs a delay or sequence after an input or trigger. Some products overlap, so compare the required timing diagram.

When should an astronomical timer be used?

An astronomical timer calculates switching from location and date, which can suit outdoor lighting where sunrise and sunset change through the year. Confirm the exact model functions.

What happens to the program during a power failure?

Power-reserve design and duration vary by model. Verify the published battery or reserve specification and whether the clock and stored program are retained.

Need the Right Digital Timer Switch?
Let’s Match the Schedule and Load.

Send the program, supply voltage, load type and current, outputs, mounting, quantity, marking, packaging and required model documents. VIOX will prepare the relevant timer-switch options for review.

Request Digital Timer Switch Support
