Indicator Light AD22-30DS
VIOX’s AD22-30DS 30mm LED signal indicator light offers superior visibility for industrial applications. With a large 30mm diameter, 60cd/m² brightness, and polycarbonate construction, it provides durable, energy-efficient functionality. Featuring a ≥30,000-hour lifespan and -25°C to +55°C operating range, it excels in harsh environments. This robust indicator ensures clear signaling for control panels, manufacturing equipment, and safety systems. Its vibration resistance, adjustable IP40-IP67 protection, and international certifications make it ideal for reliable, high-visibility indication across various industrial settings.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

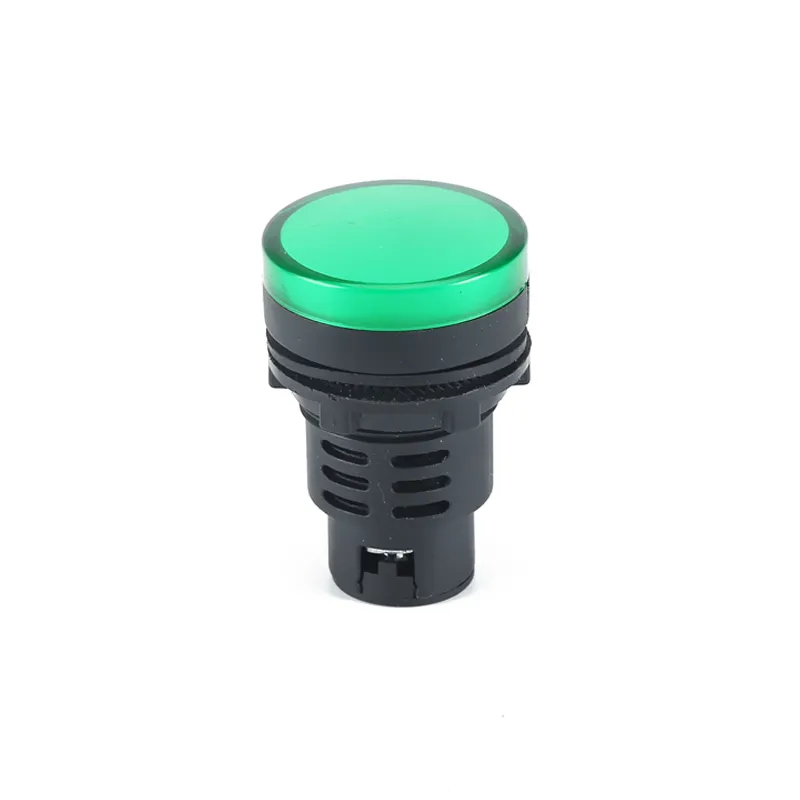

AD22-30DS 30mm LED Signal Indicator Light
Overview
The VIOX AD22-30DS is a large 30mm LED signal indicator light designed for clear visual signaling in industrial applications. This high-performance indicator offers excellent visibility and durability, making it ideal for various control panels and equipment signaling needs.
Key Features
- Large Size: 30mm diameter for enhanced visibility
- High Brightness: 60cd/m² for clear indication in industrial settings
- Durable Construction: Polycarbonate lampshade with anti-surge performance
- Long Lifespan: ≥30,000 hours of continuous operation
- Adjustable Protection: IP40 standard, upgradable to IP67
- Wide Operating Range: -25°C to +55°C temperature tolerance
Technical Specifications
- Model: AD22-30DS
- Operating Temperature: -25°C to +55°C
- Relative Humidity: ≤98%
- Vibration Resistance: 2-80Hz frequency, 0.7g/h acceleration
- Pollution Grade: III
- Installation Category: III
- Withstand Voltage: 2.5kV AC for 1 minute
- Insulation Resistance: 1MΩ
- Voltage Fluctuation Tolerance: ±20% for AC indicator
- Operating Frequency: AC 50-60Hz
- Leakage Index CT1: ≥100
Dimension
Certifications
- ISO9001
- RoHS
- CE
- UL
- TUV
Applications
Ideal for signaling and indication in:
- Industrial control panels
- Manufacturing equipment
- Process control systems
- Power distribution centers
- Machine operation interfaces
- Safety warning systems
- High-visibility status indicators
Benefits
- High light transmission for superior visibility
- Wear-resistant design for extended durability
- Energy-efficient LED technology
- Accurate and intuitive visual indication
- Suitable for moist tropical environments (with “TH” sign)
- Bolt-type connector for safe and convenient installation
- Adaptable protection grade for various environmental needs
- Compliant with international safety standards
