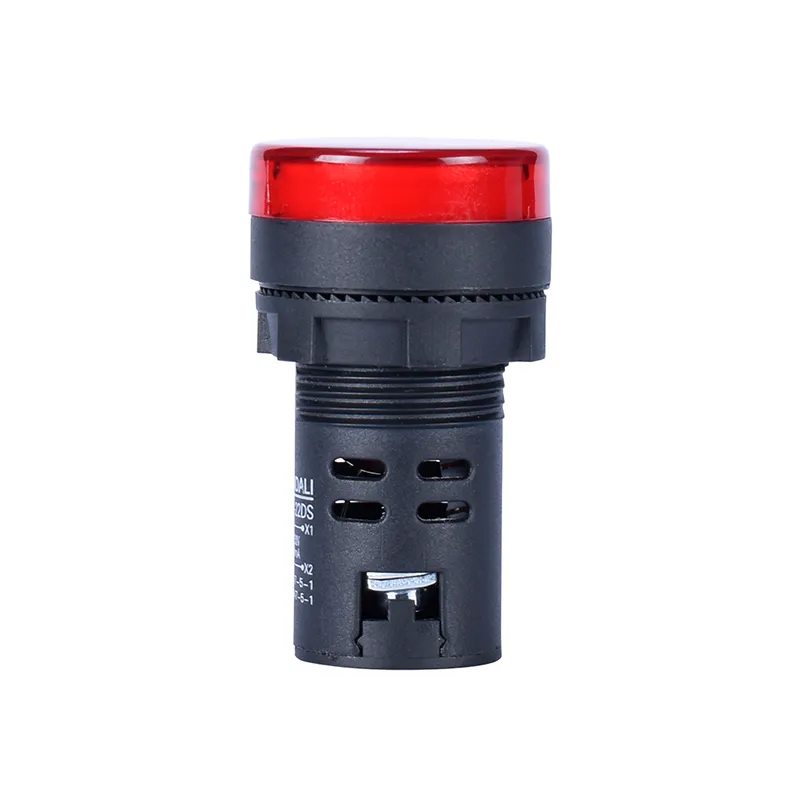

Indicator Light AD22-22DS

VIOX’s AD22-22DS industrial LED indicator light offers superior brightness and reliability for diverse applications. With a 22mm diameter, ≥60cd/m² brightness, and polycarbonate construction, it provides compact, durable functionality. Featuring a ≥30,000-hour lifespan and -25°C to +55°C operating range, it excels in harsh environments. This versatile indicator ensures clear signaling for electrical, telecommunications, and manufacturing systems. Its vibration resistance, adjustable IP40-IP67 protection, and international certifications make it ideal for reliable indication across various industrial settings.

Send your requirements, we will quote for you within 12 hours​

  • TEL:+8618968898989
  • Whatsapp:+8618968898989
  • Email:sales@viox.com
Ask an offer now

AD22-22DS Industrial LED Indicator Light

Overview

The VIOX AD22-22DS is a high-quality 22mm LED indicator light designed for industrial applications. This versatile indicator offers superior brightness, reliability, and aesthetics, making it an ideal choice for various signaling needs in equipment lines.

Key Features

  • High Brightness: ≥60cd/m² for excellent visibility
  • Compact Design: 22mm diameter for versatile installation
  • Durable Construction: Polycarbonate lampshade with anti-surge performance
  • Long Lifespan: ≥30,000 hours of continuous operation
  • Adjustable Protection: IP40 standard, upgradable to IP67
  • Wide Operating Range: -25°C to +55°C temperature tolerance

Technical Specifications

  • Model: AD22-22DS
  • Operating Temperature: -25°C to +55°C
  • Relative Humidity: ≤98%
  • Vibration Resistance: 2-80Hz frequency, 0.7g/h acceleration
  • Pollution Grade: III
  • Installation Category: III
  • Withstand Voltage: 2.5kV AC for 1 minute
  • Insulation Resistance: 1MΩ
  • Voltage Fluctuation Tolerance: ±20% for AC indicator
  • Operating Frequency: AC 50-60Hz
  • Leakage Index CT1: ≥100

Dimension

Indicator-Light-AD22-22DS Dimension VIOX

Certifications

  • ISO9001
  • RoHS
  • CE
  • UL
  • TUV

Applications

Ideal for signaling and indication in:

  • Electrical power systems
  • Telecommunications equipment
  • Industrial control panels
  • Manufacturing machinery
  • Process control systems
  • Safety warning systems
  • Equipment status indicators

Benefits

  • High light transmission for clear visibility
  • Wear-resistant design for extended durability
  • Energy-efficient LED technology
  • Suitable for moist tropical environments (with “TH” sign)
  • Bolt-type connector for safe and convenient installation
  • Adaptable protection grade for various environmental needs
  • Compliant with international standards
  • Replaces traditional incandescent and neon indicators
