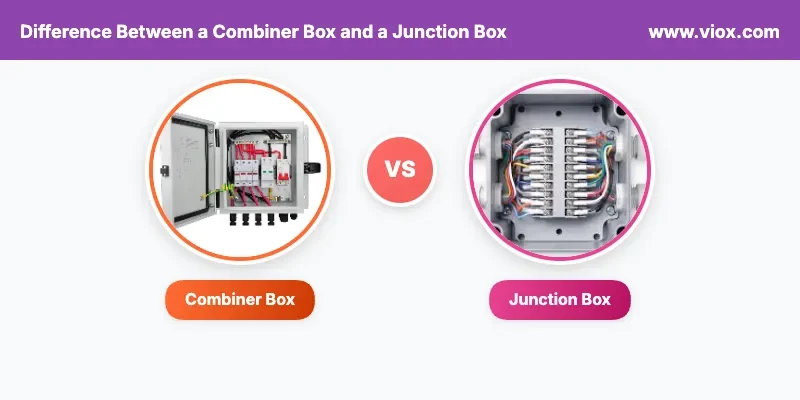

The primary difference between a combiner box and a junction box is their function: a combiner box combines multiple electrical inputs from sources like solar panels into a single output with built-in safety protection, while a junction box simply protects wire connections and splices without combining power sources.
Understanding this distinction is crucial for electrical safety, code compliance, and system efficiency. Choosing the wrong type can compromise both safety and performance while violating electrical codes.
Quick Reference: Key Differences
| Feature | Combiner Box | Junction Box |
|---|---|---|
| Primary Function | Combines multiple power inputs into one output | Protects and houses wire connections |
| Power Combination | Yes – merges electrical sources | No – does not combine power |
| Built-in Protection | Fuses, circuit breakers, surge protection | None – protection only |
| Applications | Solar PV systems, renewable energy | General electrical wiring |
| Voltage Range | High voltage (up to 600V DC) | Low to medium voltage |
| Cost | Higher investment | Budget-friendly |
| Environment | Outdoor rated, weatherproof | Indoor/outdoor options |
Combiner Box: Definition and Purpose
A combiner box is a specialized electrical enclosure designed for renewable energy systems that combines multiple power inputs into a single output while providing overcurrent and surge protection.
Key Components of a Combiner Box
Combiner boxes are more than simple junction boxes—they’re packed with important safety components including:
- Circuit Breakers and Fuses: Provide the first line of defense against overcurrent situations, with fuses that blow to cut off power and circuit breakers that can be reset rather than replaced
- DC Surge Protection Devices (SPDs): Shield systems from lightning strikes and voltage spikes
- DC Disconnect Switch: Enables quick system shutdown during maintenance or emergencies
- Monitoring Capabilities: Track individual string performance in advanced models
- Weatherproof Enclosure: Minimum NEMA 3R rating, with NEMA 4 and 4X enclosures more common for outdoor installations
Primary Applications for Combiner Boxes
Combiner boxes are essential for renewable energy projects with multiple power sources:
- Solar PV Systems: Combining multiple solar panel strings into parallel configuration before feeding to the inverter
- Wind Energy Installations: Consolidating outputs from multiple turbines
- Large Commercial Arrays: Projects with anywhere from four to 4,000 strings require combiner boxes for efficient power management
- Residential Solar: While not required for 2-3 string systems, combiner boxes provide centralized disconnect and maintenance advantages
Junction Box: Definition and Function
A junction box is a general-purpose electrical enclosure that houses and protects wire connections, splices, and electrical joints in residential, commercial, and industrial wiring systems.
Essential Characteristics of Junction Boxes
- Wire Protection: Protects connections from accidental damage and helps contain sparks and heat from loose connections or short circuits
- Code Compliance: Must be made of non-combustible materials like metal or plastic, suitable for specific environmental conditions
- Accessibility: All junction boxes must be accessible according to NEC 314.29
- Size Requirements: Volume must be sufficient for conductors, devices, and cable clamps per NEC 314.16
Common Junction Box Applications
Junction boxes serve diverse electrical connection needs:
- Residential Wiring: Lighting fixtures, switches, and power outlets
- Commercial Buildings: Electrical systems in offices, retail shops, and warehouses
- Industrial Settings: Protection against machinery and equipment damage
- Outdoor Installations: Weatherproof models for garden lighting and external connections
Technical Specifications Comparison
Voltage and Current Handling
| Specification | Combiner Box | Junction Box |
|---|---|---|
| Voltage Range | Up to 600V DC (solar applications) | 120V-240V AC (typical residential) |
| Current Capacity | 63A to 630A with DC MCCBs for high-power systems | Varies by wire gauge and application |
| Power Combination | Multiple inputs to single output | No power combination capability |
| Protection Devices | Built-in fuses, breakers, SPDs | External protection required |
Environmental Ratings
Combiner Box Environmental Standards:
- Minimum NEMA 3R for outdoor use, with NEMA 4X non-metallic preferred for harsh conditions
- UV-resistant materials for prolonged sun exposure
- Temperature considerations for equipment cooling
Junction Box Environmental Standards:
- IP65 or higher rating for outdoor/damp installations
- Weatherproof or waterproof boxes required for damp locations to prevent corrosion and electrical shock
- Material selection based on environmental exposure
Safety Requirements and Code Compliance
National Electrical Code (NEC) Requirements
For Junction Boxes:
- Materials: Non-combustible construction (metal or approved plastic)
- Sizing: Minimum volume calculations based on conductor count and size per Section 314.16
- Grounding: Required per Section 250.110 to provide fault current return path
- Accessibility: Must maintain 36-inch depth and 30-inch width clearance per Section 110.26
- Support: Proper mounting to prevent shifting or loosening
For Combiner Boxes:
- Overcurrent Protection: Fuses rated according to string current, circuit breakers for system protection
- Surge Protection: SPDs required for lightning and overvoltage protection
- Grounding: Comprehensive grounding system for safety
- Labeling: Clear identification of circuits and safety warnings
⚠️ Critical Safety Warning
Not installing a junction box is probably the biggest mistake people make. Junction boxes hold connected wires together and keep them away from combustible materials like wood, helping prevent electrical fires and accidental damage.
Selection Criteria: When to Use Each Type
Choose a Combiner Box When:
- ✅ You Need to Combine Multiple Power Sources
- Solar PV installations with 4+ strings
- Wind energy systems with multiple turbines
- Any renewable energy project requiring power consolidation
- ✅ High-Power DC Applications
- Systems handling high-power, DC, and multi-group line convergence
- Voltage levels approaching 600V DC
- Current requirements exceeding standard residential capacity
- ✅ Outdoor Renewable Energy Projects
- Systems requiring weatherproof and UV-resistant protection for harsh outdoor conditions
- Installations needing integrated safety features
- Projects requiring monitoring capabilities
Choose a Junction Box When:
- ✅ General Electrical Wiring Needs
- Residential home decoration requiring hidden wiring with safe branching points
- Commercial building electrical distribution
- Industrial equipment wiring protection
- ✅ Wire Splicing and Connection Protection
- Cable transitions from conduit to open wiring
- Wire gauge changes or routing modifications
- Temporary or permanent electrical connections
- ✅ Budget-Conscious Applications
- Cost-effective solutions for general electrical applications
- Standard residential and commercial projects
- Non-renewable energy electrical systems
Installation Best Practices
Combiner Box Installation Guidelines
Location Selection:
- Mount on north-facing walls where shade is available to limit direct sunlight exposure and reduce internal component temperatures
- Ensure accessibility for maintenance and inspection
- Maintain proper clearances per manufacturer specifications
Size Considerations:
- Larger enclosures allow greater air volume and surface area for cooling internal components while making field wiring easier
- Plan for future expansion or additional strings
- Consider local climate conditions for temperature management
Junction Box Installation Guidelines
Proper Sizing:
- Calculate minimum box volume using NEC 314.16 requirements based on conductor size and quantity
- Allow adequate space for wire manipulation
- Avoid overfilling boxes to prevent overheating and short circuit risks
Mounting Requirements:
- In drywall and noncombustible materials, boxes can sit back 1/4 inch; must be flush with wood paneling and flammable surfaces
- Secure mounting to prevent movement during use
- Proper cable clamping to prevent wire damage
Common Installation Mistakes to Avoid
Critical Errors with Junction Boxes
- ❌ Making Connections Outside the Box Making electrical connections outside of a junction box damages wiring and increases risk of heat and sparks, potentially causing fires
- ❌ Using Undersized Boxes When wires are crammed into small spaces, overheating and short-circuiting become more likely, creating fire hazards
- ❌ Poor Wire Length Planning Short wires cause connection difficulties and safety hazards – NEC requires six inches of free conductor at every electrical box
Critical Errors with Combiner Boxes
- ❌ Incorrect Cable Orientation Improper mounting with incorrect positive and negative wire orientation can damage the combiner box or inverter
- ❌ Undersized Wiring Connecting undersized wires results in excessive heat loss and reduced system efficiency
- ❌ Poor Grounding Practices Poorly grounded systems may lead to electrical shock or fires – always follow correct grounding practices
Professional Installation Recommendations
When to Contact a Licensed Electrician
For Combiner Boxes:
- High-voltage DC systems (over 48V)
- Complex multi-string solar installations
- Commercial or utility-scale projects
- Any installation requiring electrical permits
For Junction Boxes:
- When unsure about any aspect of installation, code compliance, or safety requirements
- Electrical work in hazardous locations
- Modifications to existing electrical systems
- Complex wiring scenarios or troubleshooting
💡 Expert Tip: System Planning
For residential systems with 2-3 strings, combiner boxes aren’t required by code, but they provide valuable centralized disconnection and maintenance benefits that justify the investment
Frequently Asked Questions
What makes a combiner box different from a regular junction box?
A combiner box serves three specific purposes: transition to conduit, overcurrent protection through fuses or circuit breakers, and combining strings into parallel configuration. A junction box only provides the transition to conduit function.
Can I use a junction box instead of a combiner box for solar panels?
No, junction boxes do not have the specific components necessary to combine power inputs safely. Using inappropriate boxes compromises safety and system efficiency in solar applications.
What size junction box do I need for my project?
Calculate minimum volume using NEC requirements: for 14 AWG wire, allow 2 cubic inches per conductor, plus 4 cubic inches per device, plus 2 cubic inches for all ground wires combined.
Are junction boxes required to be accessible?
Yes, NEC 314.29 requires all boxes to be accessible. You cannot conceal junction boxes in walls, ceilings, or non-accessible areas.
When do solar systems require combiner boxes?
Combiner boxes become necessary for larger projects with four or more strings, though they provide benefits in smaller residential installations for centralized maintenance and disconnection.
What protection level should I choose for outdoor installations?
Select junction boxes with IP54 rating or higher for damp areas, while combiner boxes should have IP65 or above to prevent rainwater and dust entry.
Bottom Line: Making the Right Choice
For renewable energy projects requiring power source combination with built-in safety protection, choose a combiner box. For general electrical wiring that needs connection protection without power combination, select a junction box.
The key is matching the device to your specific application requirements, environmental conditions, and electrical code compliance needs. When in doubt, consult with a licensed electrician to ensure safety and code compliance.
Remember: Both types of electrical boxes are critical safety components. Proper selection, installation, and maintenance protect both your electrical system and personal safety. Never compromise on quality or code compliance to save costs.
