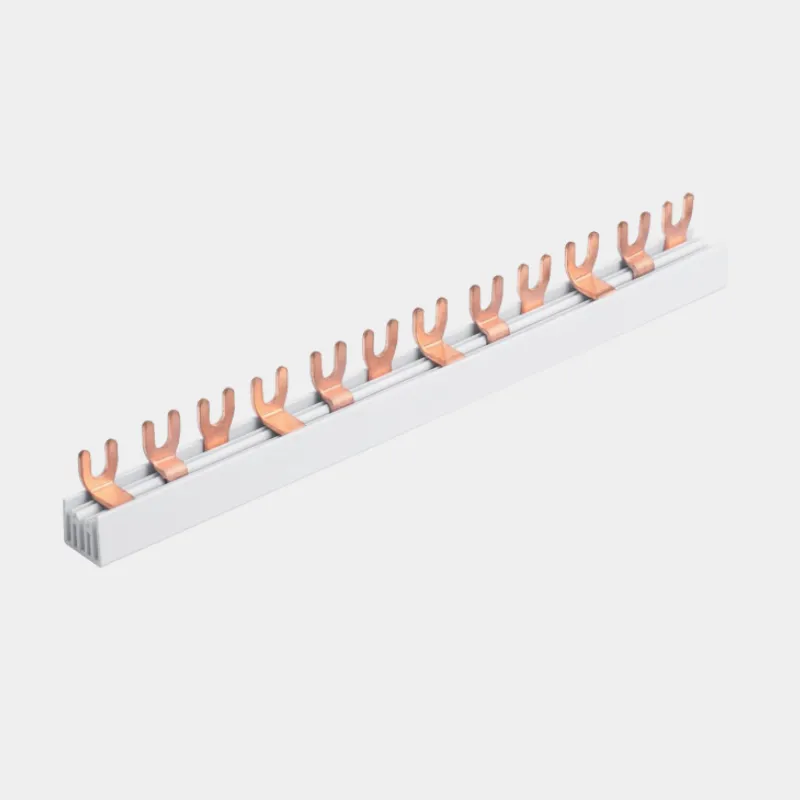

VIOX Fork type, 3-phase busbars (M5)
VIOX Fork-Type Busbars for M5 clamping screws offer efficient power distribution with superior connectivity. Available in 8-16mm² cross-sections, these high-grade copper busbars provide 50A to 80A current capacity. With 17.8mm distance and 12mm fork dimensions, they’re suitable for single to four-phase systems. Lengths range from 210mm to 1016mm, accommodating various applications. Compliant with IEC 60664 and EN/IEC 60439-1, these color-coded busbars ensure easy installation, reduced temperature rise, and improved system reliability. Ideal for MCBs, RCCBs, and industrial panels, they offer versatile, safe, and customizable power distribution solutions.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
VIOX Fork-Type Busbars for M5 Clamping Screws
Overview
VIOX Fork-Type Busbars are specialized electrical components designed for efficient and secure power distribution. Optimized for M5 clamping screws, these busbars offer superior connectivity, safety, and ease of installation in various electrical systems.
Key Features
- Fork Geometry: Unique design allows easy installation and removal without full disconnection
- M6 Clamping Screw Compatibility: Ensures robust and secure connections
- High Conductivity: Reduces temperature rise and improves system reliability
- Color Coding: Facilitates easy identification of wire sizes
- Flexible Configuration: Suitable for single-phase, two-phase, three-phase, and four-phase systems
- Customizable Length: Can be cut to size for specific installation requirements
Applications
- Modular Installation Devices (MCBs, RCCBs)
- Two-Phase Power Distribution Systems
- Industrial Electrical Panels
- Commercial Building Electrical Systems
- Residential Power Distribution
Technical Specifications
- Cross-Section Options: 10 mm², 16 mm² (other sizes available on request)
- Nominal Current: Up to 63 A for 10 mm² (varies by model)
- Compliance: IEC 60664, EN/IEC 60439-1
- Material: High-grade copper for optimal conductivity
Model
| Description | Cross Section | Distance (mm) | Width of Fork (mm) | Length of Fork (mm) | Modules | Length (mm) | Reference Current |
|---|---|---|---|---|---|---|---|
| F-3L-210/8 | 8mm² | 17.8 | 12 | 12 | 12 | 210 | 50A |
| F-3L-210/10 | 10mm² | 17.8 | 12 | 12 | 12 | 210 | 63A |
| F-3L-210/13 | 13mm² | 17.8 | 12 | 12 | 12 | 210 | 70A |
| F-3L-210/16 | 16mm² | 17.8 | 12 | 12 | 12 | 210 | 80A |
| F-3L-1000/8 | 8mm² | 17.8 | 12 | 12 | 54 | 1000 | 50A |
| F-3L-1000/10 | 10mm² | 17.8 | 12 | 12 | 54 | 1000 | 63A |
| F-3L-1000/13 | 13mm² | 17.8 | 12 | 12 | 54 | 1000 | 70A |
| F-3L-1000/16 | 16mm² | 17.8 | 12 | 12 | 54 | 1000 | 80A |
| F-3L-1016/8 | 8mm² | 17.8 | 12 | 12 | 57 | 1016 | 50A |
| F-3L-1016/10 | 10mm² | 17.8 | 12 | 12 | 57 | 1016 | 63A |
| F-3L-1016/13 | 13mm² | 17.8 | 12 | 12 | 57 | 1016 | 70A |
| F-3L-1016/16 | 16mm² | 17.8 | 12 | 12 | 57 | 1016 | 80A |
Dimension
Installation and Maintenance
- Easy installation process reduces labor time and costs
- Fork design allows for individual terminal access without full system disruption
- Reduced risk of short circuits due to secure clamping mechanism
- Customizable length for perfect fit in various panel configurations
Safety Features
- High-quality insulation to prevent electrical hazards
- Secure clamping reduces risk of loose connections
- Temperature rise prevention for enhanced system longevity
- Color-coded for easy identification and reduced wiring errors
Advantages
- Versatile application in various electrical systems
- Improved system reliability and performance
- Easy maintenance and upgrades
- Cost-effective solution for power distribution
- Compliant with international safety standards
Customization Options
VIOX offers customization services to meet specific project requirements. Contact our sales team for tailored solutions including custom lengths, special configurations, or specific current ratings.
