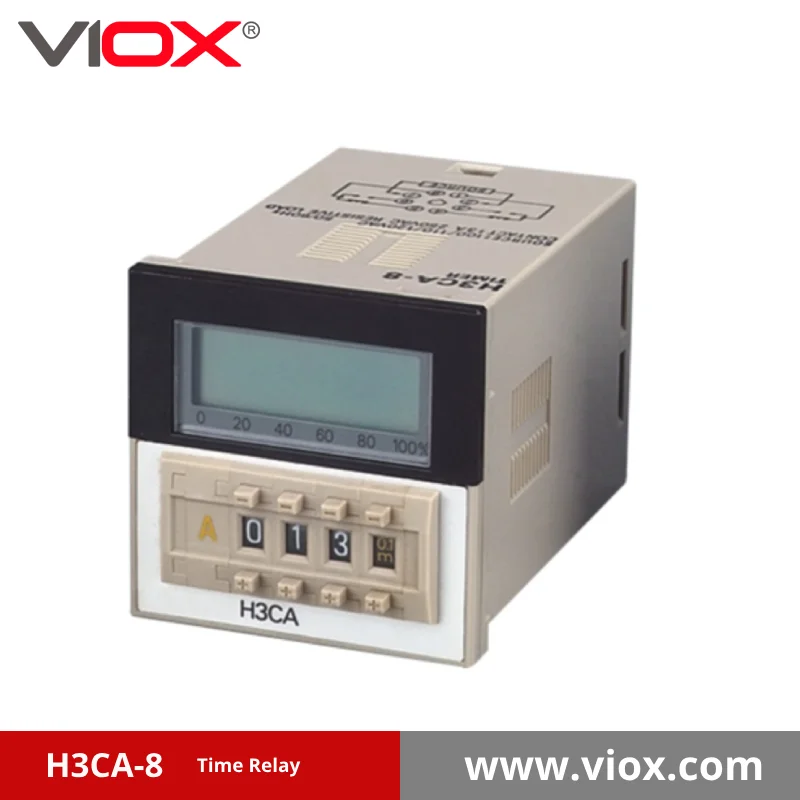

H3CA-8 Time Relay
The VIOX H3CA-8 Multi Range Timer Relay is a versatile and precise timing device designed for various industrial and automation applications. This timer relay offers a wide range of timing settings and voltage options, ensuring flexibility and accuracy in timing control. It features robust construction and reliable performance, making it an ideal choice for demanding environments.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
VIOX H3CA-8 Multi Range Timer Relay
Overview
The VIOX H3CA-8 Multi Range Timer Relay is a versatile and precise timing device designed for various industrial and automation applications. This timer relay offers a wide range of timing settings and voltage options, ensuring flexibility and accuracy in timing control. It features robust construction and reliable performance, making it an ideal choice for demanding environments.
Key Features
- Wide Timing Range: Offers a full timing range from 0.1 seconds to 9990 hours.
- High Accuracy: Ensures precise timing with repeat error of ±2% max and setting error of ±5% max.
- Robust Output Contacts: Rated at 5A for 250VAC resistive loads.
- Flexible Voltage Options: Operates on various AC and DC voltages, including 24, 110, and 220 VAC, and 24, 48 VDC.
- Durable Construction: Designed for long-lasting performance with high mechanical and electrical life.
- Visual Indicators: LCD indicators for easy monitoring of operation status.
- Flexible Mounting Options: Can be mounted on a surface or flush using various sockets.
Specifications
| Classification | Multi Range Timer | Multi Range Timer | Multi Range Timer | |
| Specification Model | H3CR-A8 | H3CA-A | H3CA-8 | |
| Dimension | 48H × 48W × 81.6D | 48H × 48W × 81.6D | 48H × 48W × 81.6D | |
| Mounting & Socket | Surface(-N) | PS-08 PF083A | PF113A(E) | PS-08 PF083A |
| Flush(-Y) | US-08 P3G-08 | US-11 | US-08 P3G-08 | |
| Full Timing Range | 0.5SEC~300HRS | 0.1SEC~9990HRS | 0.1SEC~9990HRS | |
| Rated Voltage (V) | AC: 24,110~240(50/60Hz) | AC: 24~240(50/60Hz) | AC: 24,110, 220 (50/60Hz) | |
| DC: 12,24~240(50/60Hz) | DC: 24~240(50/60Hz) | DC: 24,48(50/60Hz) | ||
| Indicator Operating | Time Operating Flicker | LCD | LCD | |
| O/P Contact | Model | H3CR-A8 | H3CA-A | H3CA-8 |
| Time Limit 1C | 5A | |||
| Time Limit 2C | 5A(AC250) | 5A | ||
| Instantaneous 1C | ||||
| Life | Mechanical | 107 Times | 107 Times | 107 Times |
| Electrical | 105 Times | 105 Times | 105 Times | |
| Accuracy | Repeat Error | ±2% max | ±2% max | ±2% max |
| Setting Error | ±5% max | ±5% max | ±5% max | |
| Voltage Error | ±5% max | ±5% max | ±5% max | |
| Temp Error | ±2% max | ±2% max | ±2% max | |
| Reset Time | 0.5 sec max | 0.5 sec max | 0.5 sec max | |
| Consumed Power | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | |
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | |
| Ambient Huminity | 35~85% RH | 35~85% RH | 35~85% RH | |
| Weight | 100g | 100g | 100g |
Applications
The VIOX H3CA-8 Multi Range Timer Relay is ideal for a variety of applications in industrial automation, control panels, machinery, and other systems requiring precise timing control. Its robust design and reliable performance make it suitable for both commercial and industrial environments.
Technical Data
- Model: H3CA-8
- Dimensions: 48H × 48W × 81.6D mm
- Mounting & Socket: Surface: PS-08, PF083A; Flush: US-08, P3G-08
- Full Timing Range: 0.1 seconds to 9990 hours
- Rated Voltage: AC: 24, 110, 220 (50/60Hz); DC: 24, 48 (50/60Hz)
- Indicator Operating: LCD
- Output Contact: Time Limit 1C: 5A; Time Limit 2C: 5A (AC250)
- Life: Mechanical: 107 times; Electrical: 105 times
- Accuracy: Repeat Error: ±2% max; Setting Error: ±5% max; Voltage Error: ±5% max; Temp Error: ±2% max
- Reset Time: 0.5 sec max
- Consumed Power: 100-240VAC: 10VA; 12VDC, 24-240VDC: 1.5W
- Ambient Temperature: -10°C to +55°C
- Ambient Humidity: 35-85% RH
- Weight: 100g
Mounting & Socket
- Surface Mounting: PS-08, PF083A
- Flush Mounting: US-08, P3G-08
