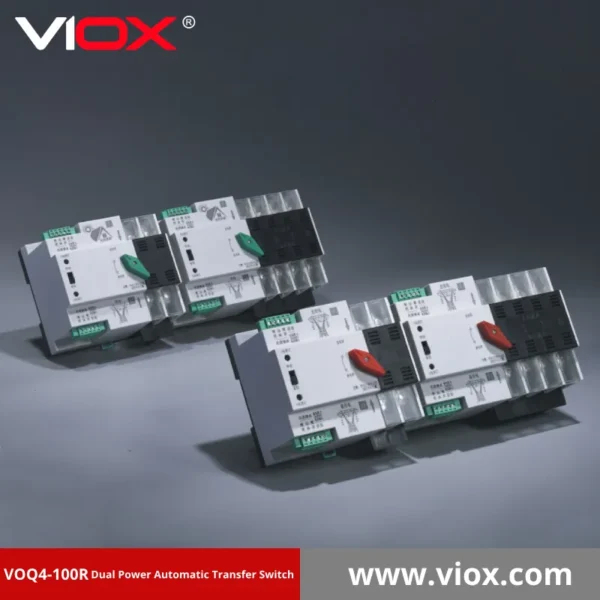

Commutateur de transfert automatique à double alimentation VOQ4-100R
- Control device: built in controller
- Product structure: no power off, guide rail type, high current, small volume, two-stage type, simple structure, ATS integration
- Features: fast switching speed, low failure rate, convenient maintenance and reliable performance
- Wiring mode: front plate wiring
- Conversion mode: power grid to power grid, power grid to generator, automatic switching and self recovery
- Product frame: 100
- Product current: 10, 16, 20, 25, 32, 40, 50, 63,80, 100A
- Product classification: direct load type
- Pole No.： 2,3,4
- Standard: GB/T14048.11
- ATSE: PC class
- Switching time: 0.008s/8ms
Envoyez-nous vos demandes, nous vous ferons un devis dans les 12 heures.
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
Aperçu du produit
Les Commutateur de transfert automatique à double alimentation VOQ4-100R from VIOX Electric represents cutting-edge power management technology designed for critical applications requiring uninterrupted power supply. This miniaturized household and commercial power switch automatically detects the status of both main power supply and standby power supply, ensuring seamless power transition during outages or power quality issues.
Key Features & Benefits
Intelligent Automatic Operation
- Automatic detection and switching between main and standby power sources
- Fast switching time: ≤0.008s/8ms for minimal power interruption
- Manual and automatic operation modes for maximum flexibility
Robust Design & Reliability
- Solid structure with reliable conversion and convenient installation
- Conforms to GB/T14048.11 national standards
- Wide operating temperature range: -40°C to +70°C
- Pollution grade 3 rating for harsh environments
Applications polyvalentes
- Specially designed for household rail installation
- Perfect for FZC distribution boxes and power distribution systems
- Suitable for 50/60Hz power systems up to 400V AC
- Available in 2P, 3P, and 4P configurations
Spécifications techniques
[INSERT IMAGE: Technical specifications table and dimensions diagram]
Paramètres électriques
| Paramètres | 2P Configuration | 3P Configuration | 4P Configuration |
|---|---|---|---|
| Courant nominal (In) | 16A, 20A, 25A | 32A, 40A, 50A, 63A | 80A, 100A |
| Rated Voltage (Un) | AC400V, 50Hz | AC400V, 50Hz | AC400V, 50Hz |
| Tension d'isolation (Ui) | AC400V, 50Hz | AC400V, 50Hz | AC400V, 50Hz |
| Poids | 0.55kg | 0.6kg | 0.65kg |
| Short Circuit Current | 50kA | 50kA | 50kA |
Caractéristiques de performance
- Control Circuit: AC220V/50Hz rated control voltage
- Circuit auxiliaire: 2 relays with auxiliary contacts
- Conversion Time: ≤50ms for all switching operations
- Power Off Time: ≤50ms
- Switching Capability: 0.008s/8ms response time
Installation & Wiring
Exigences en matière d'installation
Conditions environnementales
- Température de fonctionnement: -40°C to +70°C ambient
- Température de stockage: -5°C to +35°C
- Humidité relative: ≤95% at 35°C maximum
- Installation Altitude: ≤2000m above sea level
- Niveau de pollution: Grade 3 classification
Lignes directrices pour l'installation
- Ensure professional installation by qualified electricians
- Verify all power sources are disconnected before installation
- Follow proper safety distance requirements (S1: >30mm, S2: >20mm)
- Use appropriate circuit breakers for overcurrent protection
- Maintain proper ventilation and dust-free environment
Configuration du câblage
The VOQ4-100R Dual Power Automatic Transfer Switch supports multiple wiring configurations:
- Standard Wiring: For typical dual power applications
- Timing Switch Connection: For scheduled power management
- Generator Integration: Seamless backup generator connection
- Load Management: Priority load switching capabilities
Applications & Use Cases
Applications résidentielles
- Home backup power systems
- Critical appliance protection
- Solar panel integration with grid backup
- Emergency lighting systems
Applications commerciales
- Office buildings and retail facilities
- Centres de données et salles de serveurs
- Medical facilities and hospitals
- Industrial manufacturing plants
Model Designation
VOQ4-100-R Model Breakdown:
- V: VIOX Electric brand identifier
- O: Optimized design series
- Q4: Quad-pole maximum configuration
- 100: 100A maximum current rating
- R: Rail-mount installation type
Programme d'entretien régulier
Monthly Inspections
- Visual inspection for physical damage or overheating
- Check terminal connections for tightness
- Verify indicator lights and display functions
Annual Maintenance
- Complete electrical testing and calibration
- Mesure de la résistance de contact
- Insulation resistance testing (minimum 10MΩ)
- Operating mechanism lubrication
Safety Recommendations
- Always disconnect all power sources before maintenance
- Use proper personal protective equipment (PPE)
- Follow lockout/tagout procedures
- Maintain detailed maintenance records
Compliance & Standards
The VOQ4-100R Dual Power Automatic Transfer Switch meets or exceeds:
- GB/T14048.11: Chinese national standard for automatic transfer switches
- Normes CEI: International electrical safety requirements
- Homologué UL: Underwriters Laboratories certification
- Marquage CE: European conformity standards
Pourquoi choisir VIOX Electric ?
Industry Expertise
With decades of experience in power management solutions, VIOX Electric delivers reliable, innovative products that meet the most demanding applications.
Assurance qualité
Every VOQ4-100R undergoes rigorous testing and quality control procedures to ensure long-term reliability and performance.
Support technique
Our experienced engineering team provides comprehensive technical support, from product selection to installation guidance and troubleshooting.
Warranty Coverage
VIOX Electric backs the VOQ4-100R with comprehensive warranty coverage and readily available replacement parts.
Questions fréquemment posées
Q: What is the difference between manual and automatic operation modes?
A: Automatic mode provides hands-free operation with intelligent power source monitoring, while manual mode allows operator control for maintenance or testing purposes.
Q: Can the VOQ4-100R handle generator backup systems?
A: Yes, the switch is specifically designed to work with generator backup systems, providing seamless transition when utility power fails.
Q: What maintenance is required?
A: Regular visual inspections monthly and comprehensive electrical testing annually by qualified technicians ensure optimal performance.
Q: Is the unit suitable for outdoor installation?
A: The VOQ4-100R is designed for indoor installation in electrical panels. For outdoor applications, appropriate enclosure protection is required.
Technical Downloads
- Product Datasheet (PDF)
- Installation Manual (PDF)
- Wiring Diagrams (CAD)
- Compliance Certificates (PDF)
Contact & Support
Ready to enhance your power reliability with the VOQ4-100R Dual Power Automatic Transfer Switch? Our technical experts are standing by to help you select the right configuration for your specific application.
Get a Quote Today
- Technical consultation available
- Custom configurations possible
- Competitive pricing and fast delivery
- Comprehensive warranty and support
*The VOQ4-100R Dual Power Automatic Transfer Switch from VIOX Electric – Your reliable partner for uninterrupted power management solutions.*
