VIOX Pin type, 1-phase busbars

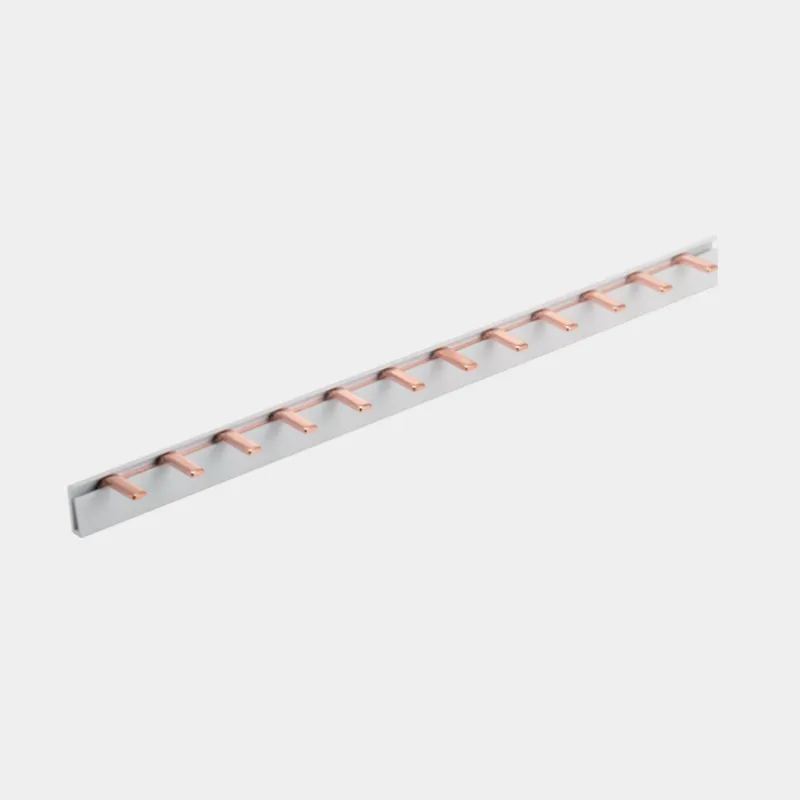

VIOX Pin-Type Busbars for 1-Phase Systems offer efficient power distribution in single-phase setups. Available in 8-16mm² cross-sections, these busbars provide 50A to 80A current capacity. With 17.8mm distance and 4×11.5mm pin dimensions, they’re ideal for compact installations. Lengths range from 210mm to 1016mm, suiting various applications. Compliant with DIN EN 50274 for finger-safe design, these busbars ensure easy installation and maintenance. Perfect for MCBs, RCCBs, and residential systems, they offer a space-efficient, versatile solution for single-phase power distribution, combining reliability with simple, organized wiring.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
VIOX Pin-Type Busbars for 1-Phase Systems
Overview
VIOX Pin-Type Busbars for 1-Phase Systems are specialized electrical components designed for efficient and organized power distribution. These busbars offer a simple, compact, and user-friendly solution for single-phase electrical installations in residential and small commercial settings.
Key Features
- Pin Geometry: Simple pole-like structure for secure connections
- Easy Installation: Time-saving wiring solution
- Compact Design: Ideal for space-limited applications
- Customizable Length: Can be cut to size for specific requirements
- Universal Compatibility: Suitable for MCBs and similar devices
- Low Contact Resistance: Ensures good conductivity and reliability
- Temperature Resistant: Safe and reliable under varying conditions
Applications
- Circuit Breakers
- Residual Current Circuit Breakers (RCCBs)
- Modular Installation Devices
- Single-Phase Power Distribution Systems
- Residential Electrical Systems
- Small Commercial Electrical Installations
Technical Specifications
| Description | Cross Section | Distance (mm) | Width of Pin (mm) | Length of Pin (mm) | Modules | Length (mm) | Reference Current |
|---|---|---|---|---|---|---|---|
| S-1L-210/8 | 8mm² | 17.8 | 4 | 11.5 | 12 | 210 | 50A |
| S-1L-210/10 | 10mm² | 17.8 | 4 | 11.5 | 12 | 210 | 63A |
| S-1L-210/13 | 13mm² | 17.8 | 4 | 11.5 | 12 | 210 | 70A |
| S-1L-210/16 | 16mm² | 17.8 | 4 | 11.5 | 12 | 210 | 80A |
| S-1L-1000/8 | 8mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 50A |
| S-1L-1000/10 | 10mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 63A |
| S-1L-1000/13 | 13mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 70A |
| S-1L-1000/16 | 16mm² | 17.8 | 4 | 11.5 | 54 | 1000 | 80A |
| S-1L-1016/8 | 8mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 50A |
| S-1L-1016/10 | 10mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 63A |
| S-1L-1016/13 | 13mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 70A |
| S-1L-1016/16 | 16mm² | 17.8 | 4 | 11.5 | 57 | 1016 | 80A |
Dimension
Safety and Maintenance
- Finger-Safe Design: Compliant with DIN EN 50274 for enhanced safety
- Easy Maintenance: Regular cleaning and connection checks recommended
- Organized Wiring: Reduces risk of short circuits and simplifies troubleshooting
Key Benefits
- Efficient Power Distribution: Streamlined approach enhances system reliability
- Versatility: Available in various configurations to suit different installation needs
- Time-Saving Installation: Simple design allows for quick and easy setup
- Space-Efficient: Compact structure ideal for limited-space applications
Customization Options
VIOX offers customization services to meet specific project requirements. Contact our sales team for tailored solutions including custom lengths, special configurations, or specific current ratings.
