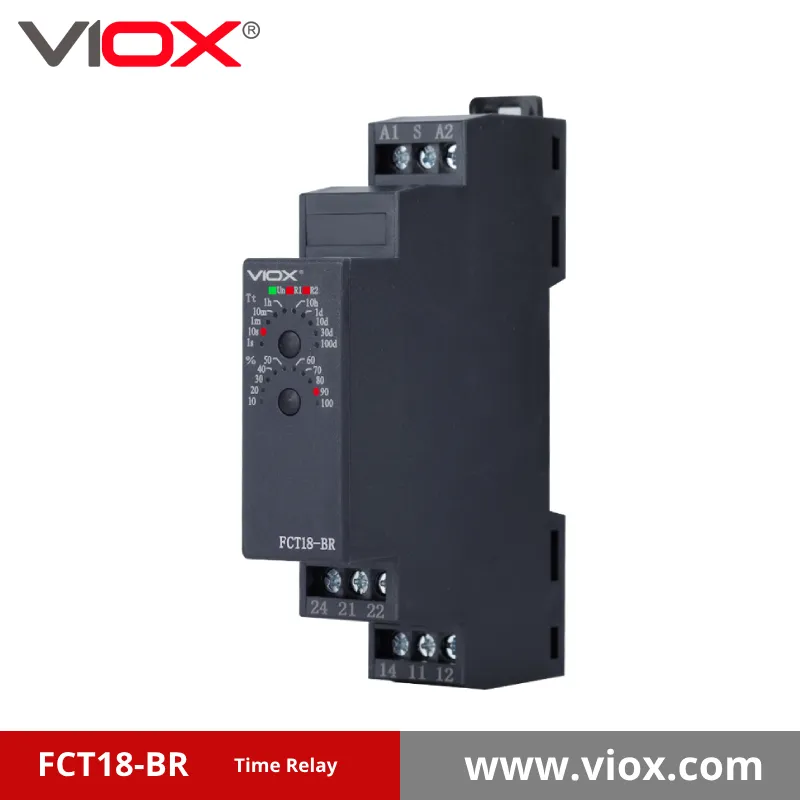

VIOX FCT18-BR Single Interval timer relay with control signal
The VIOX FCT18-BR Single Interval Timer Relay provides precise OFF-delay timing (0.1s – 100 days) with rising-edge NPN/PNP control. Features <0.5% error, 1 or 2 SPDT contacts, DIN rail mount, and supports AC/DC 12-240V. Ideal for industrial process control and automation systems.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
Precise Timing Control for Industrial Applications
The VIOX FCT18-BR is a professional-grade single interval timer relay designed for industrial control systems requiring precise timing functions with rising edge triggering. This versatile timing relay combines exceptional accuracy, wide operating ranges, and robust construction to deliver reliable performance in various automation applications.
Key Features and Benefits
- Extensive Time Range: From 0.1 seconds to 100 days, providing flexibility for virtually any timing application
- Wide Power Supply Compatibility: Operates with 12V to 240V AC/DC power sources, eliminating the need for multiple relay models
- Rising Edge Triggering (OFF-delay): Precise BR function that triggers on the rising edge of the control signal
- Superior Timing Accuracy: Time error less than 0.5% with time deviation of just 0.1%
- Strong Anti-interference Capability: Ensures reliable operation in electrically noisy industrial environments
- User-friendly Setup: Easy configuration with convenient wiring diagrams printed directly on the device
- Clear Visual Indicators: Green LED for power supply and red LED for relay status
- Compact DIN Rail Design: 90mm × 18mm × 64mm dimensions for efficient panel space utilization
Understanding the FCT18-BR Timing Function
The FCT18-BR operates with an OFF-delay function with rising edge triggering (BR). This specific timing mode works as follows:
- When power (Un) is applied, the relay remains inactive
- When the control signal (S) is applied (rising edge), the relay (R) activates immediately
- When the control signal (S) is removed, the relay (R) remains activated for the preset time interval (T)
- After the time interval (T) elapses, the relay deactivates
- If the control signal is reapplied during the time interval, the timing sequence restarts
This timing pattern makes the FCT18-BR ideal for applications requiring extended operation after a trigger event has ended.
Comprehensive Time Range Settings
The FCT18-BR offers an extensive range of time settings to accommodate various industrial timing requirements:
| Range | Minimum | Maximum |
|---|---|---|
| 0.1-1s | 0.1 seconds | 1 second |
| 1-10s | 1 second | 10 seconds |
| 0.1-1m | 6 seconds | 1 minute |
| 1-10m | 1 minute | 10 minutes |
| 0.1-1hr | 6 minutes | 1 hour |
| 1-10hr | 1 hour | 10 hours |
| 0.1-1day | 2.4 hours | 24 hours |
| 1-10day | 1 day | 10 days |
| 3-30day | 3 days | 30 days |
| 10-100day | 10 days | 100 days |
Precision Ratio Setting
The FCT18-BR features a fine-tuned ratio setting dial that allows users to precisely adjust the timing within each range. The ratio dial can be set from 10% to 100% of the selected time range in increments of 5%, providing exceptional control over timing operations:
| Ratio Settings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 10% | 15% | 20% | 25% | 30% | 35% | 40% | 45% | 50% | 55% |
| 60% | 65% | 70% | 75% | 80% | 85% | 90% | 95% | 100% | |
Technical Specifications
Model Variants and Ordering Information
The FCT18-BR is available in different configurations, identified by the model code: FCT18-BR_X_Y_Z
| Position | Code | Description |
|---|---|---|
| 1: Function | BR | OFF-delay with rising edge triggering |
| 2: Type of output | 1 | 1CO contact (SPDT) |
| 2 | 2CO contacts (DPDT) | |
| 3: Supply voltage | A | AC230V |
| D | DC24V | |
| W | AC/DC 12-240V | |
| 4: Control signal | N | NPN |
| P | PNP |
Detailed Specifications
| Parameter | FCT18-BR1 | FCT18-BR2 |
|---|---|---|
| Input Terminal | A1-A2 | |
| Voltage range | AC 230V / DC24V / AC/DC 12-240V | |
| Power consumption | AC 3.5VA/ DC 2.0W | |
| Voltage tolerance | -15% ~ +10% | |
| Supply indication | Green LED | |
| Relay indication | Red LED | |
| Time ranges | 0.1s-100days | |
| Time setting | Button | |
| Time deviation | 0.1% | |
| Repeat accuracy | 0.5% | |
| Temperature coefficient | 0.05%/°C, at 20°C (0.05%/°F, at 68°F) | |
| Output contact | 1*SPDT | 2*SPDT |
| Rated current | 1*16A | 2*16A |
| Mechanical life | 1*10⁷ | |
| Electrical life | 1*10⁵ | |
| Ambient Temperature | -20 … +60 °C / -40 … +85 °C | |
| Mounting | DIN rail EN/IEC 60715 | |
| IP Rating | IP20 | |
| Stripping length | 7mm (0.28in) | |
| Installed altitude | ≤2200m | |
| Pollution level | 2 | |
| Max cable size | AWG13-20 0.4N·m | |
| Dimension | 90mm*18mm*64mm | |
| Weight | about 90g | |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 | |
Wiring Configurations
The FCT18-BR supports both NPN and PNP control signal input types, providing versatility for different industrial control system configurations:
NPN Configuration
For NPN configuration, the control signal is connected to the S terminal, with the control source providing a path to ground when activated. Terminal connections are as follows:
- A1: DC+ / AC L
- A2: DC- / AC N
- S: Control signal input
- Outputs: Terminals 11-12-14 (and 21-22-24 for BR2 model)
PNP Configuration
For PNP configuration, the control signal provides positive voltage to the S terminal when activated. Terminal connections are as follows:
- A1: DC+ / AC L
- A2: DC- / AC N
- S: Control signal input
- Outputs: Terminals 11-12-14 (and 21-22-24 for BR2 model)
Dimension
Applications for the FCT18-BR Single Interval Timer Relay
The FCT18-BR’s off-delay with rising edge triggering functionality makes it particularly well-suited for numerous industrial applications:
Industrial Process Control
- Conveyor Belt Systems: Maintaining operation for a set period after sensors detect the passage of materials
- Material Handling: Controlling the timing of sorting mechanisms and transfer operations
- Packaging Equipment: Precisely timing the sealing, cutting, or labeling operations after product detection
Automation Systems
- Machine Tool Control: Maintaining coolant flow for a predetermined time after machining operations cease
- Robotic Process Timing: Controlling the duration of specific actions in automated assembly operations
- Sequential Control: Creating timing-based sequences in multi-step automated processes
Building and Facility Management
- Lighting Control: Maintaining illumination for preset periods after activation
- Ventilation Systems: Continuing air extraction for specified times after humidity sensors trigger
- Security Systems: Timing alarm activations or door releases after security events
Agricultural Applications
- Irrigation Control: Sustaining water flow for programmed durations
- Livestock Management: Timing feeding systems and environmental controls
- Greenhouse Control: Managing ventilation, heating, or misting systems with precise timing
Installation and Mounting
The FCT18-BR is designed for easy installation and integration into control panels:
- DIN Rail Mounting: Snaps securely onto standard 35mm DIN rails (EN/IEC 60715)
- Compact Size: 90mm × 18mm × 64mm dimensions allow for installation in space-constrained control cabinets
- Terminal Accessibility: Well-spaced terminals accommodate wire sizes up to AWG13
- Clear Terminal Markings: Easy identification of connection points
Setup and Configuration
Setting up the FCT18-BR is straightforward with the following steps:
- Mount the relay securely on a DIN rail in the control panel
- Connect power supply wires to terminals A1 and A2, ensuring correct voltage
- Connect the control signal to the S terminal, observing correct NPN or PNP configuration
- Connect the load devices to the output contacts (terminals 11-12-14 for single contact model, and additionally 21-22-24 for dual contact model)
- Select the desired time range using the range selector
- Fine-tune the timing by adjusting the ratio dial (10% to 100% of selected range)
- Verify connections and apply power
Quality and Reliability
The FCT18-BR is engineered to deliver reliable performance in demanding industrial environments:
- High-Quality Construction: Rugged housing and components designed for industrial use
- Extensive Testing: Each unit undergoes rigorous testing to ensure reliable operation
- Standards Compliance: Manufactured in accordance with GB/T 14048.5, IEC60947-5-1, and EN6812-1 standards
- Extended Operating Temperature: Functions reliably in environments from -20°C to +60°C
- Industrial-Grade Protection: IP20 rating for protection against solid objects
Why Choose VIOX FCT18-BR Single Interval Timer Relay?
The FCT18-BR stands out in the market of single interval timer relays for several key reasons:
- Exceptional Versatility: The extensive time range from 0.1 seconds to 100 days covers virtually any timing requirement
- Superior Accuracy: With a time deviation of just 0.1% and repeat accuracy of 0.5%, the FCT18-BR delivers precise timing control
- Universal Power Supply: The wide 12-240V AC/DC operating range eliminates the need for multiple relay models
- Robust Construction: Designed for reliable performance in challenging industrial environments
- User-Friendly Design: Clear indicators, intuitive controls, and conveniently printed wiring diagrams simplify setup and operation
- Space-Efficient Form Factor: Compact DIN rail mounting design optimizes control panel space
Conclusion
The VIOX FCT18-BR Single Interval Timer Relay offers a comprehensive solution for industrial timing applications requiring precise off-delay control with rising edge triggering. With its exceptional versatility, accuracy, and reliability, the FCT18-BR provides engineers and system integrators with a powerful tool for implementing sophisticated timing control in a wide range of industrial applications.
Whether you’re designing new automation systems or upgrading existing control installations, the FCT18-BR delivers professional-grade timing functionality in a compact, easy-to-use package that stands up to the demands of industrial environments.
Note: The information provided is subject to change without further notice. Always refer to the latest product documentation for the most current specifications.
