TM619 Time Switch
The VIOX TM619 Digital Timer is a versatile and highly accurate programmable time switch designed for a wide range of applications. With the ability to set up to 16 ON/OFF programs per day, this timer is ideal for controlling electrical loads such as lighting, advertising boards, and digital gates. Its large LCD display ensures easy reading and operation, while the built-in CR2032 battery provides a backup time of up to 60 days, ensuring continuous operation even during power outages. The TM619 supports resistive loads up to 16A and inductive loads up to 8A, and is compatible with various voltage options including 12VDC/AC, 24VDC/AC, 48VDC/AC, 110VAC, and 220VAC. Made from flame-resistant plastic, it offers enhanced safety and longevity, and features a screw-mounted design for easy installation.
PDF DOWNLOAD:TM619 Time Switch Manual
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

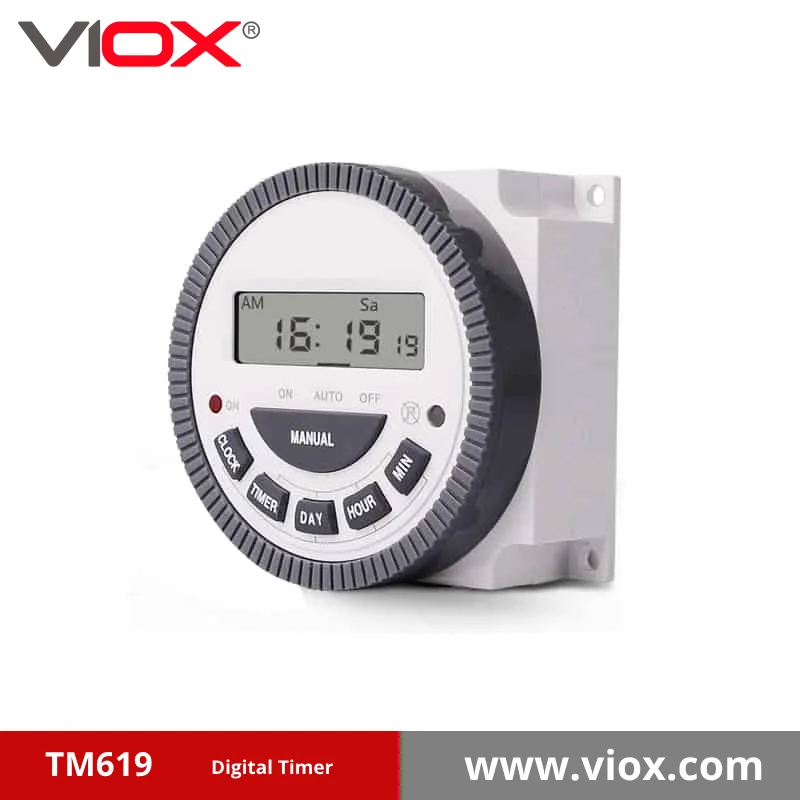

VIOX TM619 Digital Timer
Overview
The VIOX TM619 Digital Timer is a versatile and highly accurate programmable time switch designed for a wide range of applications. With the ability to set up to 16 ON/OFF programs per day, this timer is ideal for controlling electrical loads such as lighting, advertising boards, and digital gates. Its large LCD display ensures easy reading and operation, while the built-in battery provides a backup time of up to 60 days, ensuring continuous operation even during power outages.
Key Features
- 7-Day Programmable Timer: Allows for weekly programming with up to 16 ON/OFF settings per day.
- Large LCD Display: Provides clear and easy-to-read information for straightforward operation.
- Built-in Battery: CR2032 button battery ensures the timer continues to run for up to 60 days without power.
- High Contact Capacity: Supports resistive loads up to 16A and inductive loads up to 8A.
- Flexible Voltage Options: Compatible with 12VDC/AC, 24VDC/AC, 48VDC/AC, 110VAC, and 220VAC.
- Manual and Automatic Operation: Easily switch between manual and automatic modes for flexible control.
- Durable Construction: Made from flame-resistant plastic for enhanced safety and longevity.
- Easy Installation: Screw-mounted design for secure and straightforward installation.
Specifications
| Item | Details |
|---|---|
| Model | TM619 |
| Working Voltage | 12VDC/AC, 24VDC/AC, 48VDC/AC, 110VAC 50/60Hz, 220VAC 50/60Hz |
| Contact Capacity | Resistive load 16A, Inductive load 8A, Motor 50W |
| Enlarge Contact Capacity | Available, can be used with contactor to enlarge load capacity |
| Self-Consumption | Approx 3W |
| Running Accuracy | ± 1 second / day at 20°C |
| Admissible Ambient Temperature | -10°C ~ +55°C |
Applications
The VIOX TM619 Digital Timer is perfect for a variety of applications, including controlling neon lights, billboards, and other electrical devices that require precise timing. Its robust design and reliable performance make it suitable for both commercial and industrial environments.
Technical Data
- Model: TM619
- Working Voltage: 12VDC/AC, 24VDC/AC, 48VDC/AC, 110VAC 50/60Hz, 220VAC 50/60Hz
- Contact Capacity: Resistive load 16A, Inductive load 8A, Motor 50W
- Enlarge Contact Capacity: Available, can be used with contactor to enlarge load capacity
- Self-Consumption: Approx 3W
- Running Accuracy: ± 1 second / day at 20°C
- Admissible Ambient Temperature: -10°C ~ +55°C
Dimension
