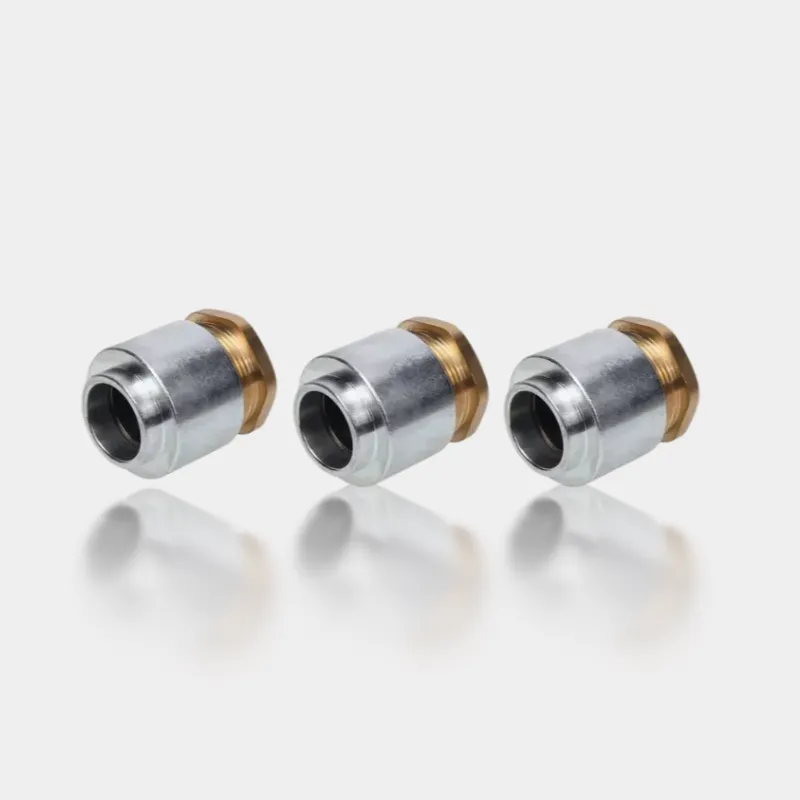

TH Marine Cable Gland
- Material: Chromium-plated brass
- Hermetic Seal: NBR, Silicone rubber
- O-Ring: NBR, Silicone rubber
- Metal Washer: Nickel-plated hoop
- Product Certification: CE certification and ISO9001
- Protection Degree: IP54
- Working Temperature (Static): -40℃ to 100℃, short time up to 120℃
- Working Temperature (Dynamic): -20℃ to 80℃, short time up to 100℃
- Function: Suitable for use in meters, machines, transportation, medicine, and all types of unarmored marine electrical cable fittings
- Customization: Customization options available upon request
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
VIOX TH Marine Cable Gland
Overview
The VIOX TH Marine Cable Gland is designed for secure and reliable cable entry in various marine and industrial applications. Made from high-quality chromium-plated brass, this cable gland offers excellent resistance to weather, chemicals, and mechanical stress. It ensures a hermetic seal with NBR and silicone rubber, making it suitable for both indoor and outdoor use. The product is certified with CE and ISO9001, ensuring high standards of quality and safety.
Key Features
- Durable Material: Body made from chromium-plated brass for high strength and durability.
- Weather Resistant: Hermetic seal and O-ring made from NBR and silicone rubber for excellent protection against environmental factors.
- High Protection: Rated IP54 for protection against dust and water splashes.
- Wide Temperature Range: Operates efficiently in static temperatures from -40℃ to 100℃, with short-term resistance up to 120℃, and in dynamic temperatures from -20℃ to 80℃, with short-term resistance up to 100℃.
- Versatile Thread Options: Available in various thread sizes.
- Approvals: CE certification and ISO9001 certified.
- Customization: Customization options available upon request.
Specifications
| Item | Details |
|---|---|
| Body | Chromium-plated brass |
| Hermetic Seal | NBR, Silicone rubber |
| O-Ring | NBR, Silicone rubber |
| Metal Washer | Nickel-plated hoop |
| Product Certification | CE certification and ISO9001 |
| Protection Degree | IP54 |
| Working Temperature (Static) | -40℃ to 100℃, short time up to 120℃ |
| Working Temperature (Dynamic) | -20℃ to 80℃, short time up to 100℃ |
Technical Data
TH Thread
| Item | Range (mm) | Thread | Thread Length H1 (mm) | Thread O.D. D1 (mm) | Joint Length H (mm) | Spanner Size (mm) |
|---|---|---|---|---|---|---|
| TH-8 | 5-7 | M16×1 | 9 | 13 | 32 | 18 |
| TH-13 | 6-12 | M20×1 | 10 | 17 | 35 | 22 |
| TH-16 | 11-15 | M27×1.5 | 12 | 22 | 40 | 30 |
| TH-19 | 14-18 | M30×1.5 | 12 | 24 | 42 | 32 |
| TH-24 | 17-23 | M35×1.5 | 12 | 30 | 44 | 36 |
| TH-28 | 22-27 | M42×2 | 15 | 35 | 46 | 45 |
| TH-34 | 26-33 | M47×2 | 15 | 42 | 49 | 50 |
| TH-42 | 32-41 | M55×2 | 15 | 50 | 54 | 57 |
| TH-50 | 40-49 | M62×2 | 15 | 58 | 56 | 64 |
| TH-58 | 48-57 | M71×2 | 20 | 66 | 56 | 76 |
Applications
The VIOX TH Marine Cable Gland is ideal for use in various marine and industrial applications requiring secure and reliable cable entry. It is suitable for environments exposed to weather, chemicals, and mechanical stress, ensuring safe and reliable operation. Its robust design and reliable performance make it suitable for both commercial and industrial environments, including meters, machines, transportation, medicine, and all types of unarmored marine electrical cable fittings.
