Multi Hole Cable Gland
· Material: UL approved Nylon PA66
· Fix Claw: UL approved Nylon PA66
· Hermetic Seal: Weather resistant EPDM Rubber
· Washer(O Ring): Weather resistant EPDM Rubber
· Fire Proof Degree: UL94V-2 (V0 customized)
· Protection Degree: IP68
· Working Temperature: -40℃ to 100℃
· Color: Black(RAL9005), Grey(RAL7035), customized colors
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

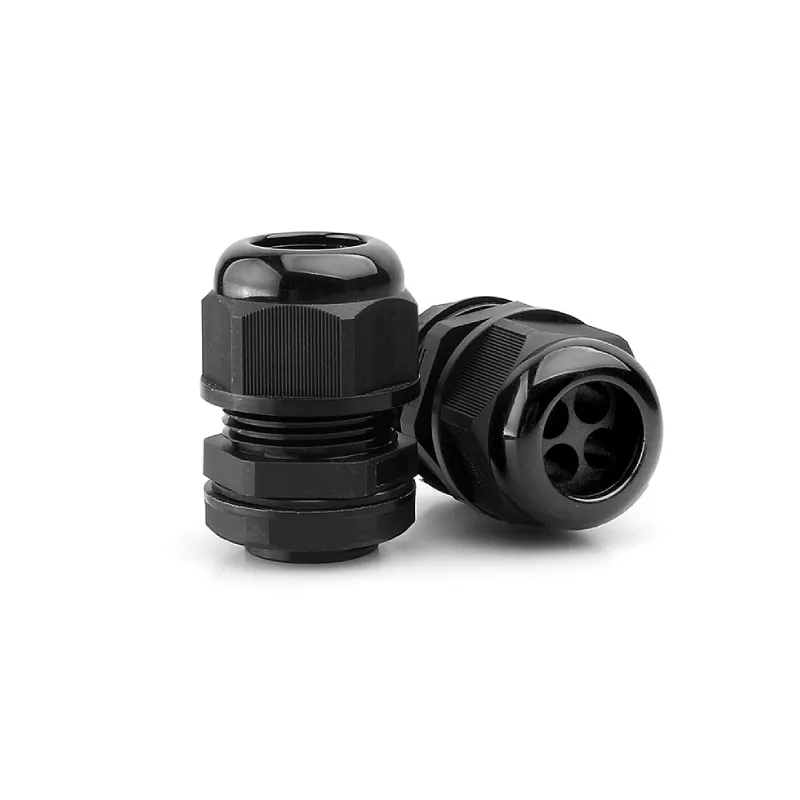

VIOX Multi Hole Cable Gland
Overview
The VIOX Multi Hole Cable Gland is a high-performance sealing solution designed for various industrial applications. Made from UL-approved Nylon PA66, this cable gland offers excellent resistance to weather, chemicals, and mechanical stress. It ensures a hermetic seal with weather-resistant EPDM rubber, making it suitable for both indoor and outdoor use. The multi-hole design allows for multiple cables to be routed through a single gland, enhancing both functionality and aesthetics.
Key Features
- Durable Material: Made from UL-approved Nylon PA66 for high strength and durability.
- Weather Resistant: Hermetic seal and washer made from weather-resistant EPDM rubber.
- High Protection: Rated IP68 for excellent protection against dust and water.
- Wide Temperature Range: Operates efficiently in temperatures from -40℃ to 100℃.
- Versatile Thread Options: Available in Metric, PG, and NPT thread types.
- Approvals: CE and ROHS certified.
- Color Options: Available in black (RAL9005), grey (RAL7035), and other customized colors.
- Multi-Hole Design: Allows for multiple cables to be routed through a single gland, improving cable management and reducing installation space.
Specifications
| Item | Details |
|---|---|
| Material | UL approved Nylon PA66 |
| Fix Claw | UL approved Nylon PA66 |
| Hermetic Seal | Weather resistant EPDM Rubber |
| Washer (O Ring) | Weather resistant EPDM Rubber |
| Fireproof Degree | UL94V-2 (V0 customized) |
| Protection Degree | IP68 |
| Working Temperature | -40℃ to 100℃ |
| Color | Black (RAL9005), Grey (RAL7035), customized colors |
Dimension
Technical Data
| Metric Multi Hole Cable Gland | ||||||
|
Thread |
Part No |
Cable Range |
AG |
GL |
H |
SW1/SW2 |
|
mm |
mm |
mm |
mm |
mm |
||
| Metric Nylon Cable Gland With 2 Holes | ||||||
| M12 x 1.5 | 1003-M12-H2-3 |
1.2-3 |
12 |
9 |
25 |
18/19 |
| M16 x 1.5 | 1003-M16-H2-4 |
1.6-4 |
16 |
10 |
30 |
22/22 |
| M20 x 1.5 | 1003-M20-H2-6 |
2.5-6 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H2-6 |
2.5-6 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H2-6.5 |
3-6.5 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H2-8 |
4-8 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H2-10 |
5-10 |
32 |
15 |
40 |
41/42 |
| Metric Nylon Cable Gland With 3 Holes | ||||||
| M12 x 1.5 | 1003-M12-H3-2.6 |
1.2-2.6 |
12 |
9 |
25 |
18/19 |
| M16 x 1.5 | 1003-M16-H3-4 |
1.6-4 |
16 |
15 |
30 |
22/22 |
| M20 x 1.5 | 1003-M20-H3-5 |
2-5 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H3-5 |
2-5 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H3-6.5 |
4-6.5 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H3-8 |
4-8 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H3-10 |
5-10 |
32 |
15 |
40 |
41/42 |
| M50 x 1.5 | 1003-M50-H3-12 |
10-12 |
50 |
22 |
54 |
62/62 |
| M63 x 1.5 | 1003-M63-H3-13 |
10-13 |
63 |
25 |
59 |
75/76 |
| Metric Nylon Cable Gland With 4 Holes | ||||||
| M12 x 1.5 | 1003-M12-H4-2.3 |
1-2.3 |
12 |
9 |
25 |
18/19 |
| M16 x 1.5 | 1003-M16-H4-3.2 |
1.5-3.2 |
16 |
15 |
30 |
22/22 |
| M20 x 1.5 | 1003-M20-H4-2.5 |
1-2.5 |
20 |
15 |
31 |
27/27 |
| M20 x 1.5 | 1003-M20-H4-3.5 |
1.5-3.5 |
20 |
15 |
31 |
27/27 |
| M20 x 1.5 | 1003-M20-H4-4.5 |
2-4.5 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H4-5 |
3.5-5 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H4-6 |
4-6 |
25 |
15 |
34 |
33/33 |
| M25 x 1.5 | 1003-M25-H4-7 |
5-7 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H4-7 |
5-7 |
32 |
15 |
40 |
41/42 |
| M32 x 1.5 | 1003-M32-H4-9 |
4.5-9 |
32 |
15 |
40 |
41/42 |
| M40 x 1.5 | 1003-M40-H4-12 |
10-12 |
40 |
20 |
45 |
50/52 |
| Metric Nylon Cable Gland With 5 Holes | ||||||
| M20 x 1.5 | 1003-M20-H5-3 |
1.5-3 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H5-6 |
3-6 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H5-8 |
4-8 |
32 |
15 |
40 |
41/41 |
| Metric Nylon Cable Gland With 6 Holes | ||||||
| M16 x 1.5 | 1003-M16-H6-2.1 |
1.5-2.1 |
16 |
15 |
30 |
22/22 |
| M25 x 1.5 | 1003-M25-H6-5.3 |
2.5-5.3 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H6-5.5 |
3-5.5 |
32 |
15 |
40 |
41/42 |
| M32 x 1.5 | 1003-M32-H6-7 |
3.5-7 |
32 |
15 |
40 |
41/42 |
| Metric Nylon Cable Gland With 7 Holes | ||||||
| M20 x 1.5 | 1003-M20-H7-3 |
2-3 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H7-5 |
3-5 |
25 |
15 |
34 |
33/33 |
| M32 x 1.5 | 1003-M32-H7-6 |
3-6 |
32 |
15 |
40 |
41/42 |
| Metric Nylon Cable Gland With 8 Holes | ||||||
| M20 x 1.5 | 1003-M20-H8-2 |
1-2 |
20 |
15 |
31 |
27/27 |
| M25 x 1.5 | 1003-M25-H8-4 |
3-4 |
25 |
15 |
34 |
33/33 |
| PG Multi Hole Cable Gland | ||||||
|
Thread |
Part No |
Cable Range |
AG |
GL |
H |
SW1/SW2 |
|
mm |
mm |
mm |
mm |
mm |
||
| PG Nylon Cable Gland With 2 Holes | ||||||
| PG7 | 1003-PG7-H2-3 |
1.2-3 |
12.5 |
9 |
25 |
17/19 |
| PG9 | 1003-PG9-H2-3 |
1.2-3 |
15.2 |
9 |
25 |
22/19 |
| PG11 | 1003-PG11-H2-4 |
1.6-4 |
18.6 |
10 |
30 |
24/22 |
| PG13.5 | 1003-PG13.5-H2-5.3 |
1.5-5.3 |
20.4 |
10.5 |
31 |
27/24 |
| PG16 | 1003-PG16-H2-6 |
2.5-6 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG21-H2-6 |
2.5-6 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG21-H2-6.5 |
3-6.5 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG21-H2-8 |
4-8 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H2-10 |
5-10 |
37 |
12 |
40 |
46/41 |
| PG Nylon Cable Gland With 3 Holes | ||||||
| PG7 | 1003-PG7-H3-2.6 |
1.2-2.6 |
12.5 |
9 |
25 |
17/19 |
| PG9 | 1003-PG9-H3-2.6 |
1.2-2.6 |
15.2 |
9 |
25 |
22/19 |
| PG11 | 1003-PG11-H3-4 |
1.6-4 |
18.6 |
10 |
30 |
24/22 |
| PG13.5 | 1003-PG13.5-H3-5 |
2-5 |
20.4 |
10 |
31 |
27/24 |
| PG16 | 1003-PG16-H3-5 |
2-5 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG21-H3-5 |
2-5 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG21-H3-6.5 |
4-6.5 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG21-H3-8 |
4-8 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H3-10 |
5-10 |
37 |
12 |
40 |
46/41 |
| PG42 | 1003-PG42-H3-12 |
10-12 |
54 |
15 |
54 |
64/62 |
| PG Nylon Cable Gland With 4 Holes | ||||||
| PG7 | 1003-PG7-H4-2.3 |
1-2.3 |
12.5 |
9 |
25 |
17/19 |
| PG9 | 1003-PG9-H4-2.3 |
1-2.3 |
15.2 |
9 |
25 |
22/19 |
| PG11 | 1003-PG11-H4-3.2 |
1.5-3.2 |
18.6 |
10 |
30 |
24/22 |
| PG13.5 | 1003-PG13.5-H4-4 |
2-4 |
20.4 |
10 |
31 |
27/24 |
| PG16 | 1003-PG16-H4-2.5 |
1-2.5 |
22.5 |
10.8 |
34 |
30/27 |
| PG16 | 1003-PG16-H4-3.5 |
1.5-3.5 |
22.5 |
10.8 |
34 |
30/27 |
| PG16 | 1003-PG16-H4-4.5 |
2-4.5 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG16-H4-5 |
3.5-5 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG16-H4-6 |
4-6 |
28.3 |
12 |
35 |
36/33 |
| PG21 | 1003-PG21-H4-7 |
5-7 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H4-7 |
5-7 |
37 |
12 |
40 |
46/41 |
| PG29 | 1003-PG29-H4-9 |
4.5-9 |
37 |
12 |
40 |
46/41 |
| PG36 | 1003-PG36-H4-12 |
10-12 |
47 |
15 |
45 |
57/52 |
| PG Nylon Cable Gland With 5 Holes | ||||||
| PG16 | 1003-PG16-H5-3 |
1.5-3 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG21-H5-6 |
3-6 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H5-8 |
4-8 |
37 |
12 |
40 |
46/41 |
| PG Nylon Cable Gland With 6 Holes | ||||||
| PG11 | 1003-PG11-H6-2.1 |
1.5-2.1 |
18.6 |
10 |
30 |
24/22 |
| PG21 | 1003-PG21-H6-5.3 |
2.5-5.3 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H6-5.5 |
3-5.5 |
37 |
12 |
40 |
46/41 |
| PG29 | 1003-PG29-H6-7 |
3.5-7 |
37 |
12 |
40 |
46/41 |
| PG Nylon Cable Gland With 7 Holes | ||||||
| PG16 | 1003-PG16-H7-3 |
2-3 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG21-H7-5 |
3-5 |
28.3 |
12 |
35 |
36/33 |
| PG29 | 1003-PG29-H7-6 |
3-6 |
37 |
12 |
40 |
46/41 |
| PG Nylon Cable Gland With 8 Holes | ||||||
| PG16 | 1003-PG16-H8-2 |
1-2 |
22.5 |
10.8 |
34 |
30/27 |
| PG21 | 1003-PG21-H8-4 |
3-4 |
28.3 |
12 |
35 |
36/33 |
