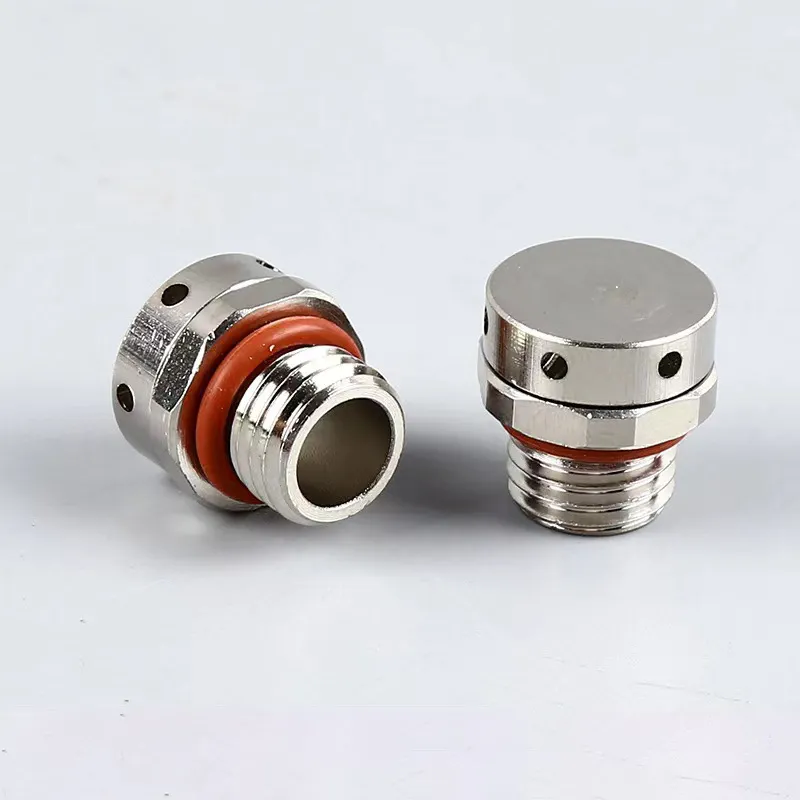

Metal Breather Vent Plug
Technical Parameters
The VIOX Metal Breather Vent Plug is engineered to maintain pressure balance and prevent condensation in outdoor lighting and enclosures. It features a robust design with high-quality materials to ensure durability and reliability in various industrial applications.
Specifications
| Item | Details |
|---|---|
| Thread | Metric, PG, G (PF), and NPT |
| Protection Degree | IP67-IP68 (with O-ring) |
| Working Temperature | -40℃ to 250℃ |
| Materials | ePTFE for breathable membrane, brass with nickel plating for main body and nut parts, high temperature resistant silicone for O-ring |
| Airflow | 0.2ml to 12L per hour at 7kpa |
| Water Inlet Pressure | 5 bar |
Features
- Allows air passage while preventing moisture and dust ingress.
- Maintains pressure balance and avoids condensation in enclosures.
- Customizable waterproof level based on water depth and air permeability.
- Ideal for hazardous areas, explosion-proof electrical equipment, chemicals, petroleum, and various sectors of electricity, light industry, and machinery.
Product Description
The VIOX Metal Breather Vent Plug is a versatile device designed to control the flow of gas and liquid. It is composed of a durable shell, spring plates, and breathable materials, making it suitable for regulating, balancing, and releasing gases or liquids in pipelines and containers. The shell is made from high-quality aluminum alloy or brass with nickel plating, offering excellent corrosion resistance and strength. The spring plate, made from high elastic alloy material, ensures good elasticity and tightness, allowing for quick and accurate pressure adjustments. The breathable materials, including high-quality mesh plates, can be adjusted for optimal ventilation based on different fluid characteristics.
Advantages
- High Reliability: Constructed with high-strength materials for excellent corrosion, compression, and wear resistance, ensuring long-term stable operation.
- Easy to Use: Simple structure, small size, and easy installation. The internal breathable material can be replaced as needed for flexible application.
- Wide Adaptability: Suitable for various media transportation and different pressure, flow rate, and temperature ranges. Can be used with other pipelines or equipment to form a stable flow system.
Technical Data Sheet
| Thread | Thread O.D (mm) | Thread Length (mm) | Body Material | Air Permeability | Oleophobic Grade |
|---|---|---|---|---|---|
| M5*0.8 | 5 | 6 | Brass | >500ml/min at 7kpa | 8 |
| M6*1.0 | 6 | 6 | Brass | >800ml/min at 7kpa | 8 |
| M8*1.0 | 8 | 7 | Brass | >1000ml/min at 7kpa | 8 |
| M8*1.25 | 8 | 7 | Brass | >1200ml/min at 7kpa | 8 |
| M12*1.5 | 12 | 8 | Brass | >2000ml/min at 7kpa | 8 |
| M16*1.5 | 16 | 8 | Brass | >3800ml/min at 7kpa | 8 |
| M20*1.5 | 20 | 8 | Brass | >5000ml/min at 7kpa | 8 |
Applications
The VIOX Metal Breather Vent Plug is widely used in industries such as chemical, metallurgical, aviation, and military. It is ideal for regulating, balancing, and releasing gases or liquids in pipelines and containers, ensuring stable and safe operation in various industrial fields.
