Male to Male Cable Gland Adaptor
- Material: High-quality materials
- Thread Types: Male or Female
- Compliance: IECEx, ATEX, cCSAus
- Usage: For use with most electrical fittings
- Function: Provides secure and reliable connections
- Customization: Customization options available upon request
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

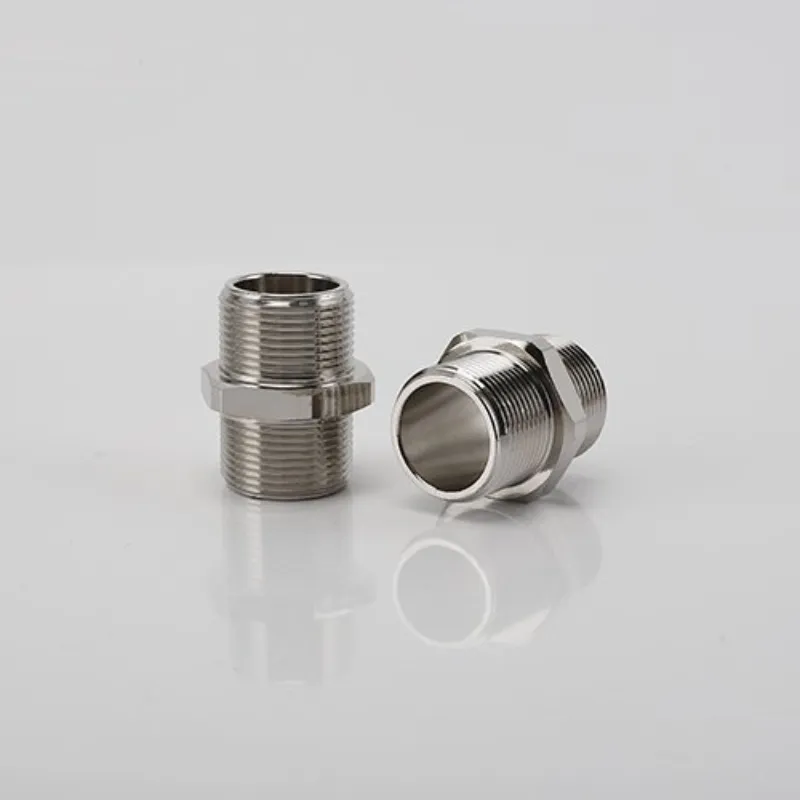

VIOX male to male Cable Gland Adaptor
Overview
The VIOX Male to Male Cable Gland Adaptor is designed to convert existing threads, making it an essential accessory for various industrial applications. This adaptor is available in both general-purpose and industrial versions and can be supplied with male or female threads. It offers thread conversion capabilities and includes an equipment interface ‘O’ ring seal for enhanced protection on male-male adaptors. The adaptor is suitable for use in extreme temperatures ranging from -60°C to +200°C and is globally certified with IECEx, ATEX, and cCSAus marks.
Key Features
- Durable Material: Made from high-quality materials to ensure strength and durability.
- Weather Resistant: Designed to withstand extreme temperatures and environmental conditions.
- High Protection: Rated for use in temperatures from -60°C to +200°C.
- Versatile Application: Suitable for various industrial environments requiring secure and reliable cable protection.
- Easy Installation: Available with male or female threads and includes an ‘O’ ring seal for secure connections on male-male adaptors.
- Compliance: Globally certified with IECEx, ATEX, and cCSAus marks.
- Customization: Available in multiple thread sizes and configurations to fit different specifications.
Specifications
| Item | Details |
|---|---|
| Material | High-quality materials |
| Temperature Range | -60°C to +200°C |
| Certification | IECEx, ATEX, cCSAus |
| Thread Types | Male or Female |
| Function | Converts existing threads |
| Application | General purpose and industrial environments |
| Accessories | Equipment interface ‘O’ ring seal (on male-male adaptors) |
Technical Data
Female-Female Adaptor
| Type | Forward Thread Size ‘C’ | Minimum Thread Length ‘E’ (mm) | Rear Thread ‘A’ | Across Flats ‘D’ (mm) | Across Corners ‘D’ (mm) | Bore Diameter ‘B’ (mm) | Protrusion ‘F’ (mm) | Installation Torque (Nm) |
|---|---|---|---|---|---|---|---|---|
| Female | M16 X 1.5 | 15.0 | M16 X 1.5 | 24.0 | 26.4 | 14.0 | 34.0 | 7.0 |
| Female | M20 X 1.5 | 15.0 | M20 X 1.5 | 24.0 | 26.4 | 14.0 | 36.0 | 7.0 |
| Female | M25 X 1.5 | 15.0 | M25 X 1.5 | 30.5 | 33.5 | 16.0 | 36.6 | 10.0 |
| Female | M32 X 1.5 | 15.0 | M32 X 1.5 | 36.0 | 39.6 | 27.7 | 37.0 | 15.0 |
| Female | M40 X 1.5 | 15.0 | M40 X 1.5 | 46.0 | 50.6 | 33.0 | 37.6 | 25.0 |
| Female | M50 X 1.5 | 15.0 | M50 X 1.5 | 55.0 | 60.5 | 45.5 | 40.6 | 30.0 |
| Female | M63 X 1.5 | 15.0 | M63 X 1.5 | 70.1 | 77.1 | 57.5 | 40.6 | 45.0 |
| Female | M75 X 1.5 | 15.0 | M75 X 1.5 | 80.0 | 88.0 | 68.2 | 37.0 | 45.0 |
| Female | M90 X 2.0 | 24.0 | M90 X 2.0 | 100.0 | 110.0 | 82.0 | 52.0 | 45.0 |
| Female | M100 X 2.0 | 24.0 | M100 X 2.0 | 108.0 | 118.8 | 91.0 | 52.0 | 45.0 |
Male-Male Adaptor
| Type | Forward Thread Size ‘C’ | Minimum Thread Length ‘E’ (mm) | Rear Thread ‘A’ | Across Flats ‘D’ (mm) | Across Corners ‘D’ (mm) | Bore Diameter ‘B’ (mm) | Protrusion ‘F’ (mm) | Installation Torque (Nm) |
|---|---|---|---|---|---|---|---|---|
| Male | M16 X 1.5 | 15.0 | M16 X 1.5 | 24.0 | 26.4 | 10.0 | 18.0 | 7.0 |
| Male | M20 X 1.5 | 15.0 | M20 X 1.5 | 24.0 | 26.4 | 14.0 | 18.0 | 7.0 |
| Male | M25 X 1.5 | 15.0 | M25 X 1.5 | 30.5 | 33.5 | 20.0 | 18.0 | 10.0 |
| Male | M32 X 1.5 | 15.0 | M32 X 1.5 | 36.0 | 39.6 | 26.8 | 20.0 | 15.0 |
| Male | M40 X 1.5 | 15.0 | M40 X 1.5 | 46.0 | 50.6 | 32.7 | 20.0 | 25.0 |
| Male | M50 X 1.5 | 15.0 | M50 X 1.5 | 55.0 | 60.5 | 44.1 | 20.0 | 30.0 |
| Male | M63 X 1.5 | 15.0 | M63 X 1.5 | 70.1 | 77.1 | 55.6 | 20.0 | 45.0 |
| Male | M75 X 1.5 | 15.0 | M75 X 1.5 | 80.0 | 88.0 | 65.6 | 21.0 | 45.0 |
| Male | M90 X 2.0 | 24.0 | M90 X 2.0 | 100.0 | 110.0 | 82.0 | 23.0 | 45.0 |
| Male | M100 X 2.0 | 24.0 | M100 X 2.0 | 108.0 | 118.8 | 91.1 | 23.0 | 45.0 |
Applications
The VIOX Male to Male Cable Gland Adaptor is ideal for use in various industrial environments requiring secure and reliable cable protection. It is suitable for applications in the automobile industry, construction machinery, wind power generation equipment, agricultural machinery, shipbuilding, military, mining equipment, oil drilling rigs, public facilities, rail transport, transmission systems, metallurgical equipment, and more. The adaptor’s durable construction and high protection rating make it suitable for both commercial and industrial applications.
