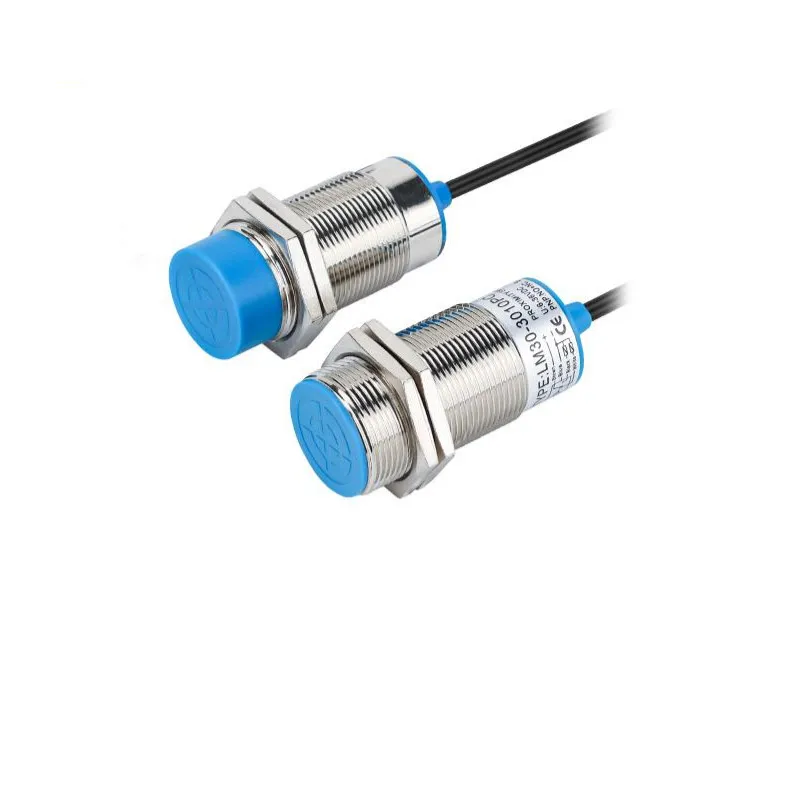

LM30 Inductive Proximity Sensor
VIOX’s LM30 Inductive Proximity Sensor: 10mm/15mm sensing distances, with NPN, PNP, and 2-wire output options. Available in flush and non-flush designs, featuring high durability (IP67). Ideal for industrial automation and manufacturing, with customizable options from VIOX Electric.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:[email protected]
| Model | LM30 | |||
| Dimension |  |
|||
| Sense distance | 10mm±10% | |||
| Flush type | DC10~30VDC | NPN | NO | LM30-3010NA |
| NC | LM30-3010NB | |||
| NO+NC | LM30-3010NC | |||
| PNP | NO | LM30-3010PA | ||
| NC | LM30-3010PB | |||
| NO+NC | LM30-3010PC | |||
| Two-wire system | NO | LM30-3010LA | ||
| NC | LM30-3010LB | |||
| AC90~250VAC | NO | LM30-2010A | ||
| NC | LM30-2010B | |||
| NO+NC | LM30-2010C | |||
| Sense distance | 15mm±10% | |||
| Non-flush type | DC10~30VDC | NPN | NO | LM30-3015NA |
| NC | LM30-3015NB | |||
| NO+NC | LM30-3015NC | |||
| PNP | NO | LM30-3015PA | ||
| NC | LM30-3015PB | |||
| NO+NC | LM30-3015PC | |||
| Two-wire system | NO | LM30-3015LA | ||
| NC | LM30-3015LB | |||
| AC90~250VAC | NO | LM30-2015A | ||
| NC | LM30-2015B | |||
| NO+NC | LM30-2015C | |||
| Output current | DC | 200mA | ||
| AC | 300mA | |||
| Output voltage peak | DC type below 3V、Two wire type below 3.9V、 AC below l0V DC<3V, AC<10V | |||
| Consumption current | DC type 8mA at 12V, 15mA at 24V, AC below 10mA DC<15mA, AC<10mA | |||
| Standard detected object | 30×30×1 (A3 iron) | |||
| Repeatability | 0.05 | |||
| Response frequency | 200Hz/25Hz | |||
| Ambient temperature | -25℃-+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
