KG317T Digital Timer
The VIOX KG317T 3 Phases 380V Weekly Programmable Timer Switch is designed for industrial applications, offering precise control and stable performance for three-phase systems. With a voltage output range of 350V~415V AC and a 25A switching capacity, it handles high loads efficiently. The user-friendly interface allows easy programming with 16 ON/OFF schedules, while the high-contrast LCD ensures clear monitoring. It includes a manual override and battery backup for uninterrupted operation, making it ideal for pumps, water heaters, neon signs, and more.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com

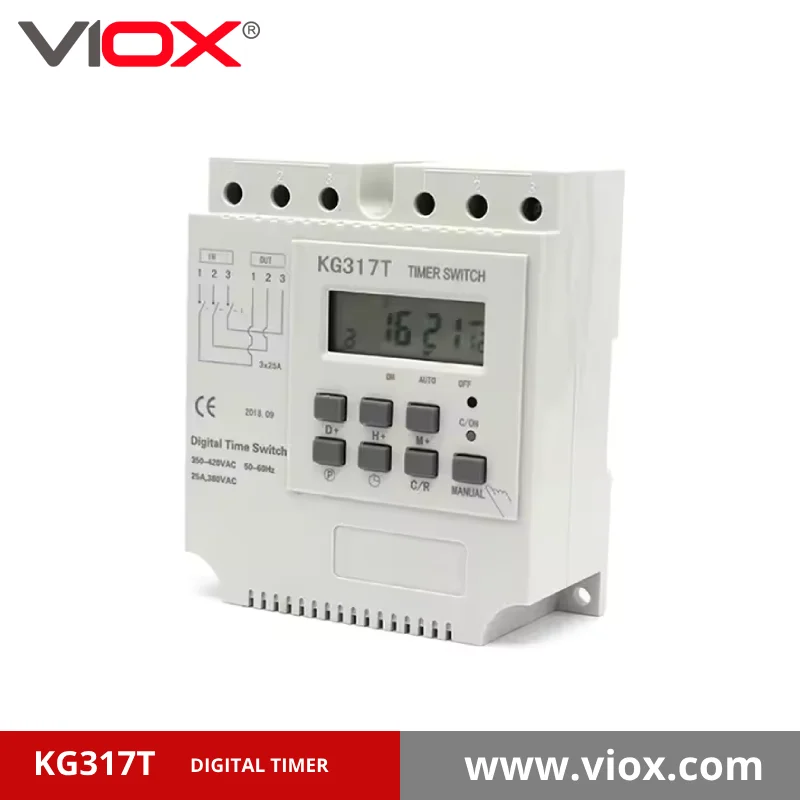

VIOX 3 Phases KG317T 380V Weekly Programmable Timer Switch
Overview
The VIOX KG317T 3 Phases 380V Weekly Programmable Timer Switch is a high-quality, digital timer switch designed for industrial applications. It offers precise control and stable performance, making it ideal for managing three-phase electrical systems. This timer switch is perfect for use in pumps, pond aerators, steaming machines, water heaters, billboards, neon signs, exhaust fans, and more.
Key Features
- High-Quality Construction: Built with robust materials to ensure durability and long-lasting performance in industrial environments.
- Easy Programming: User-friendly programming interface allows for quick setup after reading the manual just once.
- Excellent Load Capacity: Capable of handling high loads with a voltage output range of 350V~415V AC.
- Accurate Control: Provides accurate-to-the-minute control with 16 ON/OFF programs for daily and weekly scheduling.
- LED Display: Features a high-contrast LCD display for easy reading and monitoring.
- Manual Override: Includes a manual override function for temporary control adjustments.
- Battery Backup: Equipped with a battery backup to maintain settings during power outages.
Specifications
| Item | Details |
|---|---|
| Power Supply Voltage | 380V AC |
| Voltage Output | 350V~415V AC |
| Switching Capacity | 25A |
| Timing Control Range | 1min – 168h |
| Number of Programs | 16 ON/OFF programs |
| Display | High-contrast LCD |
| Dimensions | Standard industrial size |
| Battery Backup | Yes |
Applications
The VIOX KG317T Timer Switch is widely used in various industrial applications, including pumps, pond aerators, steaming machines, water heaters, billboards, neon signs, exhaust fans, and more. Its reliable performance and precise control make it an excellent choice for managing three-phase electrical systems.
Technical Data
- Power Supply Voltage: 380V AC
- Voltage Output: 350V~415V AC
- Switching Capacity: 25A
- Timing Control Range: 1 min – 168 hours
- Number of Programs: 16 ON/OFF programs
- Display: High-contrast LCD
- Manual Override: Yes
- Battery Backup: Yes
Dimension
