ATDV-N Time Relay

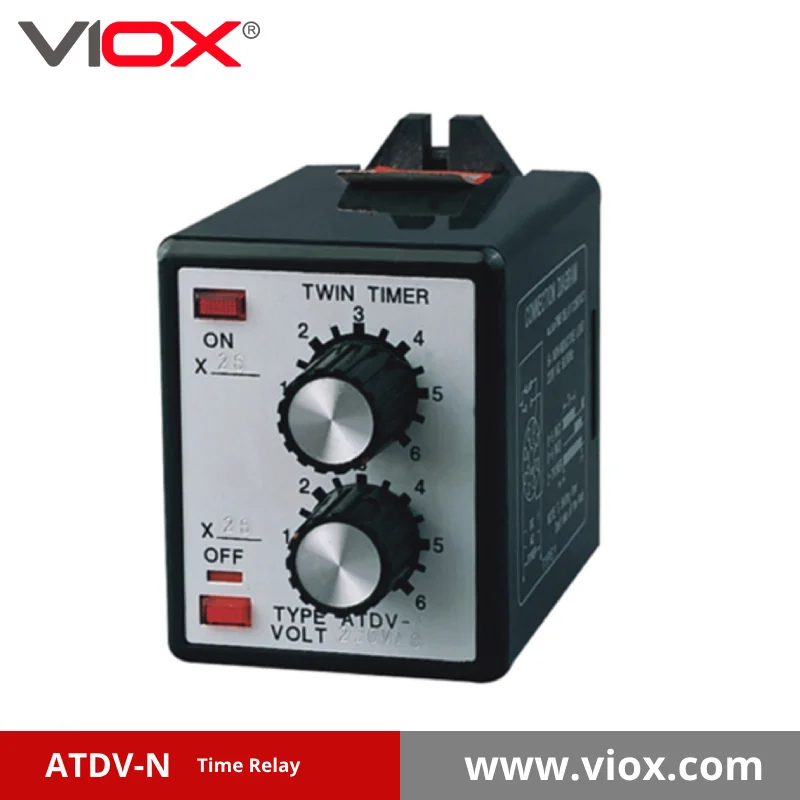

The VIOX ATDV-N On Delay Timer Relay is a highly accurate and reliable time-limited timer designed for various industrial and automation applications. This relay offers a wide range of time settings and voltage options, ensuring flexibility and precision in timing control. It features a customized CMOS IC for low power consumption and high operational stability, making it an ideal choice for demanding environments.
Send your requirements, we will quote for you within 12 hours
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
VIOX ATDV-N On Delay Timer Relay
Overview
The VIOX ATDV-N On Delay Timer Relay is a highly accurate and reliable time-limited timer designed for various industrial and automation applications. This relay offers a wide range of time settings and voltage options, ensuring flexibility and precision in timing control. It features a customized CMOS IC for low power consumption and high operational stability, making it an ideal choice for demanding environments.
Key Features
- Precise Timing Control: Offers 16 different time ranges for versatile applications.
- High Stability: Customized CMOS IC ensures low power consumption and high operation stability.
- Robust Output Contacts: Rated at 5A for 120/240 VAC and 30 VDC resistive loads.
- Independent Adjustment: Allows for continuous ON-OFF operation and precise time settings.
- Durable Construction: Designed for long-lasting performance with high mechanical and electrical life.
- Flexible Mounting Options: Can be mounted on a surface or flush using various sockets.
- Visual Indicators: LED indicators for easy monitoring of operation status.
Specifications
| Classification | Twin Timer | ||
| Model | ATDV-N | ATDV-Y | |
| Dimensions | 61H×49W×70D | 88H×58W×68D | |
| Mounting & Socker | Surface(-N) | PF083A(E), PS-08 | |
| Flush(-Y) | US-08, P3G-08 | ||
| Full Timing Range | 6s X 6s, 6s X 60s, 60s X 6s 60s X 60s, 6m X 6m 6m X 60m, 60m X 6m, 60m X 60m |
||
| Rated Voltage | DC(V): 12~24V AC(V): 12~240V |
||
| Indicator Operating | ON, OFF Operating | ||
| O/P Contact | Model | ATDV-N | ATDV-Y |
| Time Limit 1C | 5A | 5A | |
| Time Limit 2C | |||
| Instantenous 1C | |||
| Life | Mechanical | 5×106times | |
| Electrical | 105times | ||
| Accuracy | Repea Error | ±1% Max. | |
| Setting Error | ±10% Max. | ||
| Voltage Error | ±1% Max. | ||
| Temp. Error | ±2% Max. | ||
| Reset Time | 0.2 Sec. Max. | ||
| Consumed Power | 2VA | ||
| Ambient Temperature | -10℃～+55℃ | ||
| Ambent Huminity | 48～85%RH | ||
| Weight | 160g | ||
| Connection Diagrams & Timing Chart | 33G | ||
Applications
The VIOX ATDV-N On Delay Timer Relay is ideal for a variety of applications in industrial automation, control panels, machinery, and other systems requiring precise timing control. Its robust design and reliable performance make it suitable for both commercial and industrial environments.
Technical Data
- Model: ATDV-N
- Contact Rating: 250VAC 5A (resistive load)
- Life: Electrical: 1×105 times; Mechanical: 5×106 times
- Accuracy: Repeat Error: ±1.0% max; Setting Error: ±10.0% max; Voltage Error: ±1.0% max; Temperature Error: ±2.0% max
- Reset Time: Max 0.2 sec
- Insulation Resistance: 100MΩ (DC 500V) min
- Class of Protection: 1500 VAC
- Permitted Ambient Temperature: -10 ~ +50 °C (non-icing)
- Power Consumption: 2 VA
Mounting & Socket
- Surface Mounting: PF083A(E)/PS-08
- Flush Mounting: US-08/P3G-08
Connection Diagram
The VIOX ATDV-N On Delay Timer Relay features a straightforward connection diagram for easy installation. The device starts counting the set time when the power supply voltage is applied, then switches the relay contacts and remains in this position. Below is the wiring diagram:
