Electric pop-up socket in the raised position

DESKTOP POWER · ELECTRIC LIFTING

Pop-Up Socket Manufacturer for Desks and Countertops

Source retractable desktop and countertop power for distributor, furniture and project requirements. Select the destination-market outlet, lifting method, charging or data modules, finish and OEM scope.

  • UK · EU · FR · USRegional outlet formats
  • Manual or electricModel-dependent lifting
  • OEM project scopeFinish, logo and packing
Explore configurations ຮ້ອງຂໍການສະໜັບສະໜູນດ້ານຮຸ່ນ

DOCUMENTATION SUPPORT

Confirm compliance by configuration and target market.

ISO documentation mark ROHS documentation mark UL documentation mark CE documentation mark CSA documentation mark

CONFIGURATION SELECTOR

Start with the installation and lifting method.

Use this table to narrow the product family before confirming the exact outlet rating, charging output and model-level documents.

ປະເພດການຕິດຕັ້ງທົ່ວໄປLifting methodAvailable module direction
Desktop Pop-Up SocketOffice desks and meeting tablesManual or electricRegional AC, USB-C, HDMI or RJ45
Kitchen Pop-Up OutletKitchen islands and worktopsManual or electricRegional AC, USB and optional wireless charging
Motorized Lifting SocketConference tables and smart interiorsTouch-operated electric liftRegional power, charging and selected data modules
Custom OEM SocketDistributor and project programsSelected platformOutlet mix, modules, finish, logo and packaging

BUYER CHECKLIST

Define the order with model-level data.

VIOX confirms electrical values, charging output, approvals, MOQ and lead time against the requested configuration rather than applying one specification to every variant.

Outlet standards
UK, German/Schuko, French, US and multi-function configurations shown
Voltage & current
Confirmed from the selected outlet module and destination-market datasheet
Charging
USB-A, USB-C and wireless charging options; output confirmed by model
Installation reference
100 mm opening and 5–40 mm surface thickness shown for the supplied reference
OEM options
Module sequence, finish, logo, label content and packaging review
MOQ
Confirmed by configuration, finish and OEM scope
Sample timing
Confirmed after the target market, module mix and finish are approved
Bulk lead time
Quoted against quantity, production scope and delivery requirements

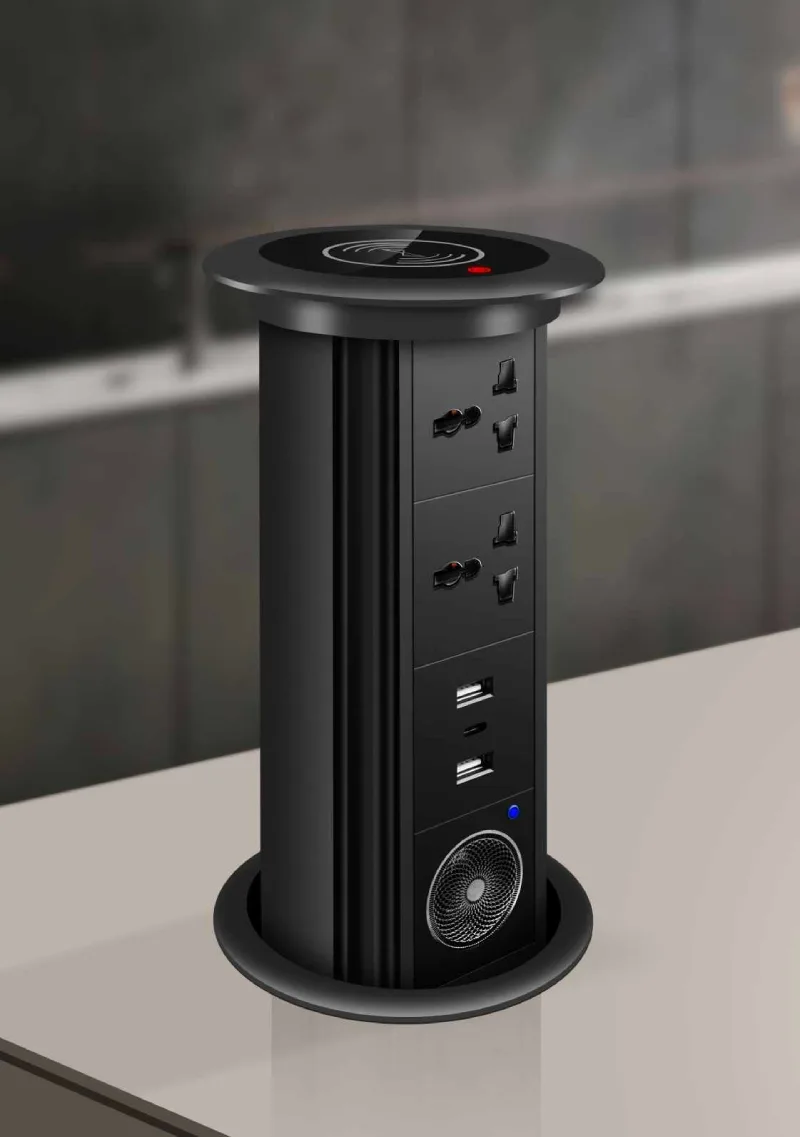

Electric lifting socket product range

ELECTRIC LIFTING SOCKET

Specify one lifting platform around the project.

The cylindrical platform keeps the selected outlet and charging modules compact at the work surface. Confirm the socket format, module sequence, finish, electrical rating and operating method before sampling.

Pop-up socket construction and operating details
Request the product catalog

SURFACE FINISHES

Five published finish directions.

Final color appearance can vary by display and production batch. Confirm the approved sample for volume orders.

Jazz White pop-up socket finish
ແຈສ ຂາວ
Champagne Gold pop-up socket finish
Champagne Gold
K-Space Gray pop-up socket finish
K-Space Gray
Space Gray pop-up socket finish
Space Gray
Elegant Black pop-up socket finish
Elegant Black

MODULAR PLATFORM

Build the module combination around the application.

Different regional outlets and low-voltage modules can be reviewed within the supported housing and electrical platform.

Customizable pop-up socket module combination diagram
One housing, selected functions.Confirm the required sequence before sampling.
Bluetooth audio module for a pop-up socket
ສຽງ Bluetooth
French socket module for a pop-up socket
French socket
A15 rounded socket module for a pop-up socket
A15 rounded socket
A13 square socket module for a pop-up socket
A13 square socket
German socket module for a pop-up socket
ເຕົ້າຮັບເຢຍລະມັນ
American standard module for a pop-up socket
ມາດຕະຖານອາເມລິກາ
American socket module for a pop-up socket
ເຕົ້າຮັບອາເມລິກາ
2 USB + 1 Type-C module for a pop-up socket
2 USB + 1 Type-C
Five-hole socket module for a pop-up socket
ເຕົ້າສຽບຫ້າຮູ
Multi-function three-hole module for a pop-up socket
Multi-function three-hole

OPERATING FEATURES

Designed around access, protection and charging.

Feature availability depends on the selected model and module configuration.

Touch operation for an electric lifting socket

Two-tap lifting

A supported electric model can rise through touch operation for clean access without a projecting handle.

Closed pop-up socket with splash protection design

Closed-surface protection

The referenced closed structure is designed to limit exposure to splashes and everyday work-surface contaminants.

Wireless charging surface on a pop-up socket

Wireless charging option

Selected top surfaces can integrate wireless charging while power and connectivity modules remain available below.

INSTALLATION REFERENCE

Prepare, insert and secure the lifting body.

These images reproduce the supplied installation sequence. The drawing packaged with the ordered model remains the final reference.

  1. Use a 100 mm opening in a work surface between 5 mm and 40 mm thick, then confirm adequate clearance below.
    00

    Prepare the surface

    Use a 100 mm opening in a work surface between 5 mm and 40 mm thick, then confirm adequate clearance below.

  2. Remove the locking ring, washer and retaining ring from the threaded body before insertion.
    01

    Remove the retaining parts

    Remove the locking ring, washer and retaining ring from the threaded body before insertion.

  3. Lower the unit vertically into the prepared 100 mm opening without forcing the housing.
    02

    Insert the socket

    Lower the unit vertically into the prepared 100 mm opening without forcing the housing.

  4. Align the locking and retaining components, then install the specified M3 × 28 screws.
    03

    Align the retaining ring

    Align the locking and retaining components, then install the specified M3 × 28 screws.

  5. Fit the washer, retaining ring and locking ring in sequence along the threaded body.
    04

    Reassemble below the surface

    Fit the washer, retaining ring and locking ring in sequence along the threaded body.

  6. Tighten the locking ring and screws evenly, then verify stable travel before electrical use.
    05

    Secure and verify

    Tighten the locking ring and screws evenly, then verify stable travel before electrical use.

SAMPLE REVIEW

Confirm the socket standard, modules and finish before volume production.

Share the destination market, installation surface, module combination, preferred finish and planned quantity. VIOX will review the nearest available configuration and sample route.

Request a sample

PROJECT SUPPORT

Support beyond the lifting mechanism.

Selection, sampling, delivery and installation information stay connected to the approved product configuration.

Pop-up socket selection consultation

Selection consultation

Review the work surface, regional outlet standard, power modules and connectivity requirements.

Manual lift pop-up socket options

Configuration recommendation

Compare electric and manual lifting options and narrow the module combination for the project.

VIOX product logistics support

Order and logistics support

Align packaging, quantities, destination and shipping requirements before order release.

Pop-up socket installed in a work surface

Installation information

Use the model drawing and supplied instructions to confirm the opening and clearance requirements.

KNOWLEDGE & SELECTION

Pop-up socket questions.

Practical answers before model-level review and installation planning.

Which modules can be combined in one electric lifting socket?

Available combinations can include regional power outlets, USB-A, USB-C, wireless charging and selected data or audio modules. Confirm the final combination and charging output against the selected model.

What information is needed before selecting a model?

Confirm the destination market, required outlet standard, module combination, finish, installation surface thickness, opening size, quantity and any branding or packaging requirement.

Can the socket finish be customized?

The published range includes five finish directions. Logo, label and packaging requirements can be reviewed for OEM orders within the approved product scope.

Is every configuration certified for every market?

No. Compliance and certification depend on the exact socket modules, electrical configuration and destination market. Request the applicable documentation for the selected model before specification.

What opening is shown in the installation reference?

The supplied installation reference shows a 100 mm opening and a work-surface thickness of 5 mm to 40 mm. Confirm the drawing supplied with the ordered model before cutting the surface.

Can VIOX provide samples?

Sample availability and timing are confirmed after the outlet standard, module combination, finish and destination market are defined.

RELATED POWER ACCESS

ກຸ່ມຜະລິດຕະພັນພະລັງງານຕິດຕາມເຕົ້າ ຄູ່ມືການເລືອກHow to Choose a Pop-Up Socket Technical guidePop-Up Socket Guide

OEM & PROJECT INQUIRY

Turn the installation into a model-level RFQ.

Send the target market, outlet rating, lifting method, charging or data modules, finish, opening, quantity and required delivery date.

Request configuration review
