VIOX Gen3 Power Track Socket Manufacturer
VIOX Electric stands as a leading Power Track Socket Manufacturer, specializing in innovative movable track socket systems for modern residential and commercial applications. Our state-of-the-art manufacturing facility produces high-quality S8 Power Track systems that combine exceptional 8000W power capacity with intelligent design and user-friendly installation.
S8 Power Track consists of Track and Socket
Gen 3 Tracks
Gen3 All Types Socket/Outlet
parameters of VIOX Gen 3 Track Power sockets

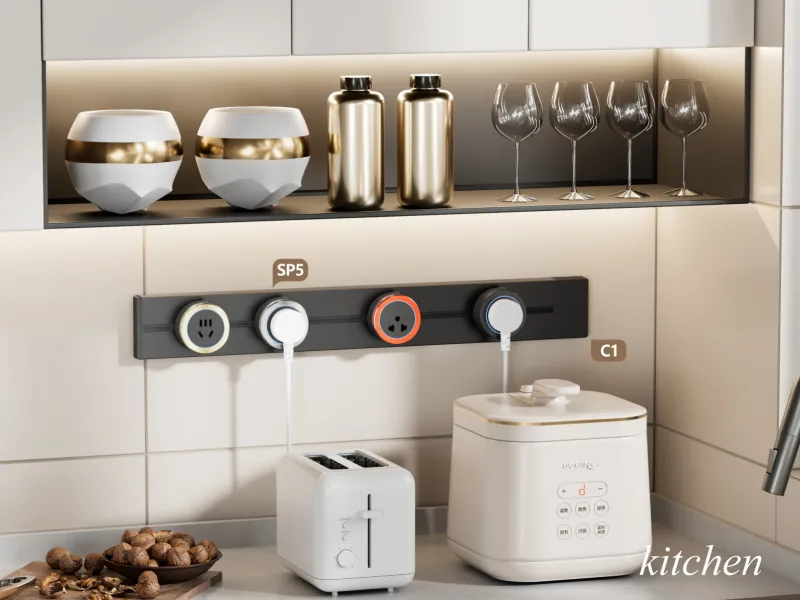

VIOX Gen3 C1 Surface Mounted Track
| TRACK NAME | VIOX Gen3 C1 Surface Mounted Track |
|---|---|
| Track Color | Black, White, Grey |
| Material | Sandblasting Aluminum Alloy + Small anodizing |
| Total Power Capacity | 8000W |
| Individual Adapter Power | 2500W Maximum |
| Rated Voltage | 110-250V |
| Rated Current | 32A |
| Dimensions | Width 86mm, thickness 17mm, length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized |
| Special Features | Intelligent sensing, LED indication, movable adapters |

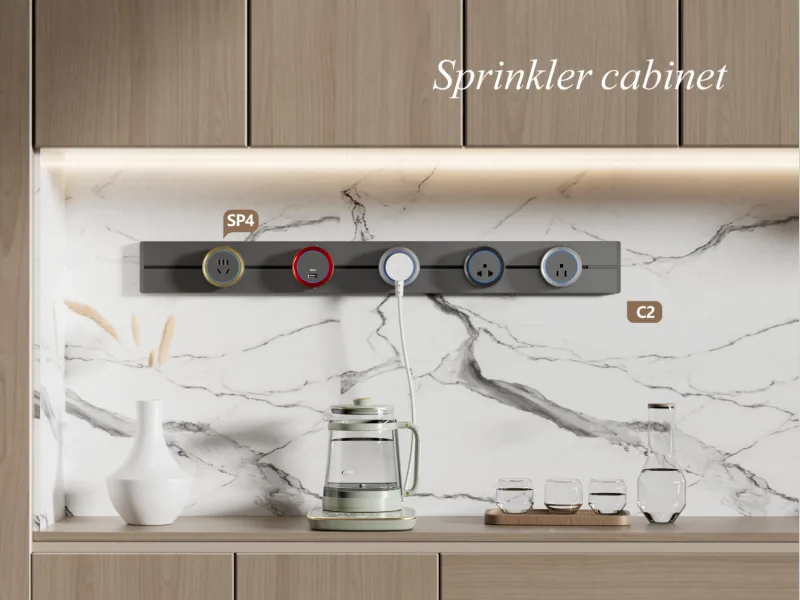

VIOX Gen3 C2 Surface Mounted Track
| TRACK NAME | VIOX Gen3 C2 Surface Mounted Track |
|---|---|
| Track Color | Black, White, Grey |
| Material | Sandblasting Aluminum Alloy + Small anodizing |
| Total Power Capacity | 8000W |
| Individual Adapter Power | 2500W Maximum |
| Rated Voltage | 110-250V |
| Rated Current | 32A |
| Dimensions | Width 86mm, thickness 17mm, length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized |
| Special Features | Intelligent sensing, LED indication, movable adapters |
VIOX Gen3 C3 LED Surface Mounted Track
| TRACK NAME | VIOX Gen3 C3 Surface Mounted Track |
|---|---|
| Track Color | Black, White, Grey |
| Material | Sandblasting Aluminum Alloy + Small anodizing |
| Total Power Capacity | 8000W |
| Individual Adapter Power | 2500W Maximum |
| Rated Voltage | 110-250V |
| Rated Current | 32A |
| Dimensions | Width 86mm, thickness 17mm, length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized |
| Special Features | Intelligent sensing, LED indication, movable adapters |

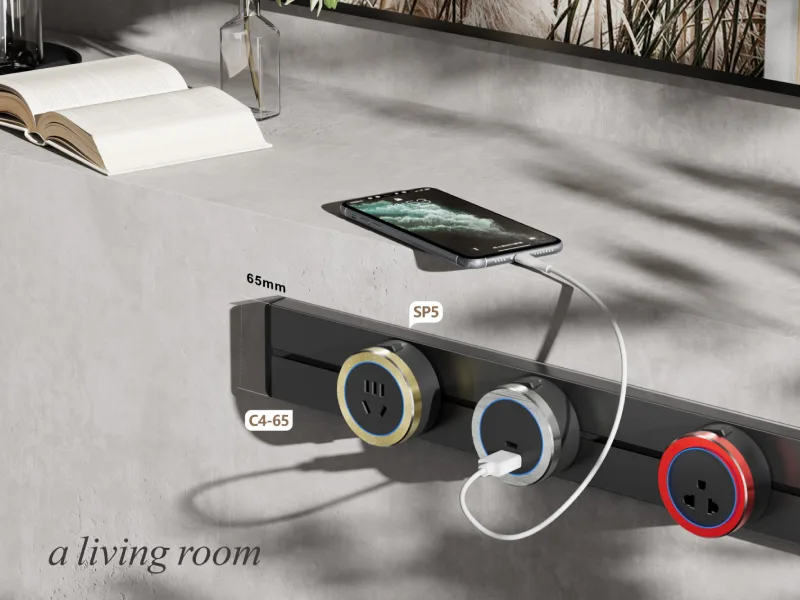

VIOX Gen3 C4 Surface Mounted Track
| TRACK NAME | VIOX Gen3 C4 Surface Mounted Track |
|---|---|
| Track Color | Black, White, Grey |
| Material | Sandblasting Aluminum Alloy + Small anodizing |
| Total Power Capacity | 8000W |
| Individual Adapter Power | 2500W Maximum |
| Rated Voltage | 110-250V |
| Rated Current | 32A |
| Dimensions | Width 86mm, thickness 17mm, length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized |
| Special Features | Intelligent sensing, LED indication, movable adapters |

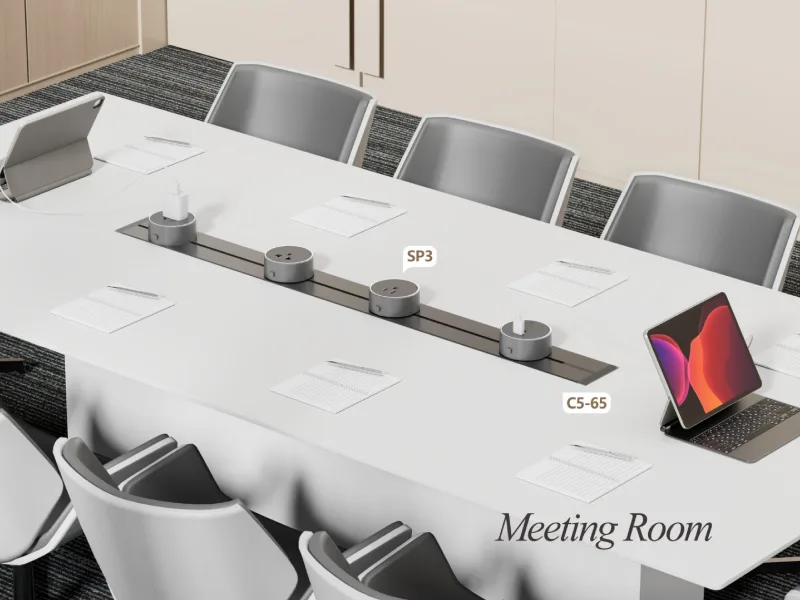

VIOX Gen3 C5 LED Concealed Track
| TRACK NAME | VIOX Gen3 C5 LED Concealed Track |
|---|---|
| Track Color | Black, White, Grey |
| Material | Sandblasting Aluminum Alloy + Small anodizing |
| Total Power Capacity | 8000W |
| Individual Adapter Power | 2500W Maximum |
| Rated Voltage | 110-250V |
| Rated Current | 32A |
| Dimensions | Width 86mm, thickness 17mm, length 0.3/0.4/0.6/0.8/1.1/1.2/1.5/3m can be customized |
| Special Features | Intelligent sensing, LED indication, movable adapters |
Types of socket adapters
VIOX offers a comprehensive range of socket adapters designed for global compatibility and style. Our products cover major international standards, including European, American, British, and Asian formats, with various lighting options and configurations.
GEN 3 Adapter/Socket
- Power-on Ambient Light
- Child safety lock
- No independent switch
GEN 2 Adapter/Socket
- No ambient light
- Child safety lock
- No independent switch
GEN 1 Adapter/Socket
- No ambient light
- Without safety lock
- No independent switch

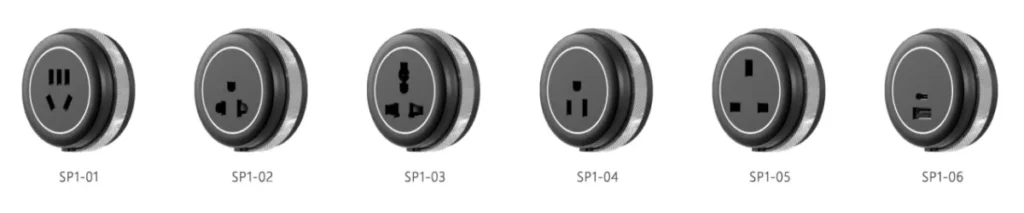

SP1 Socket Adapter LED Ambient Light/Color Optional

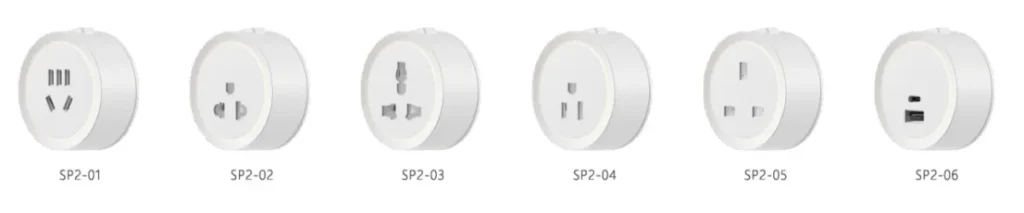

SP2 Socket Adapter LED Ambient Light/Color Optional
SP4 Socket Adapter LED Ambient Light/Color Optional
SP5 Socket Adapter LED Ambient Light/Color Optional

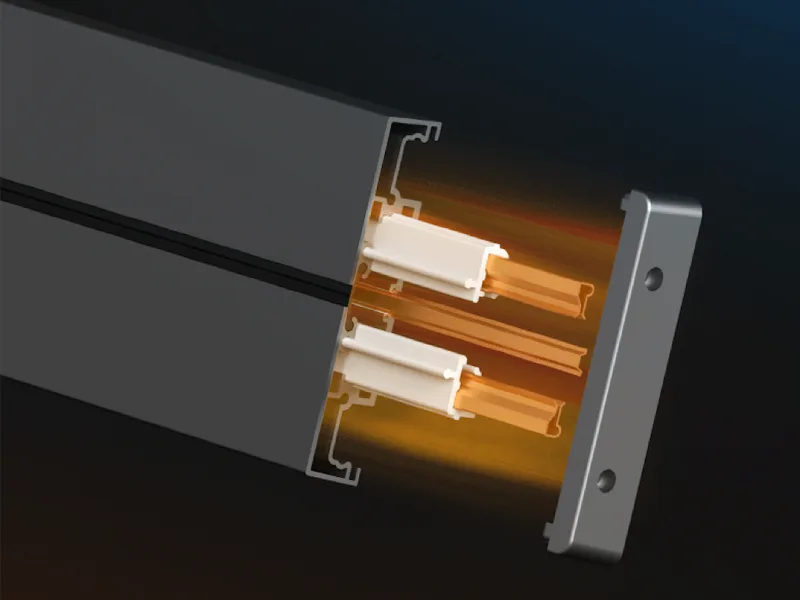

Integrated copper strip design
Interior: high-quality copper, integrally formed
Good cond., low temp. rise, safe use

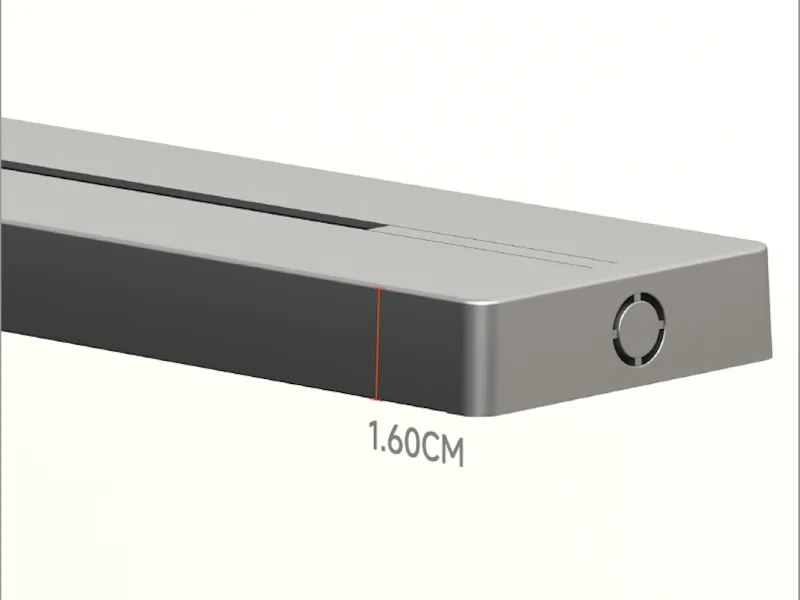

Brand new upgrade Thinner on-wall
The thickness of the track is 1.6 cm
Fit the wall for enhanced aesthetics
Power Track Application
Island

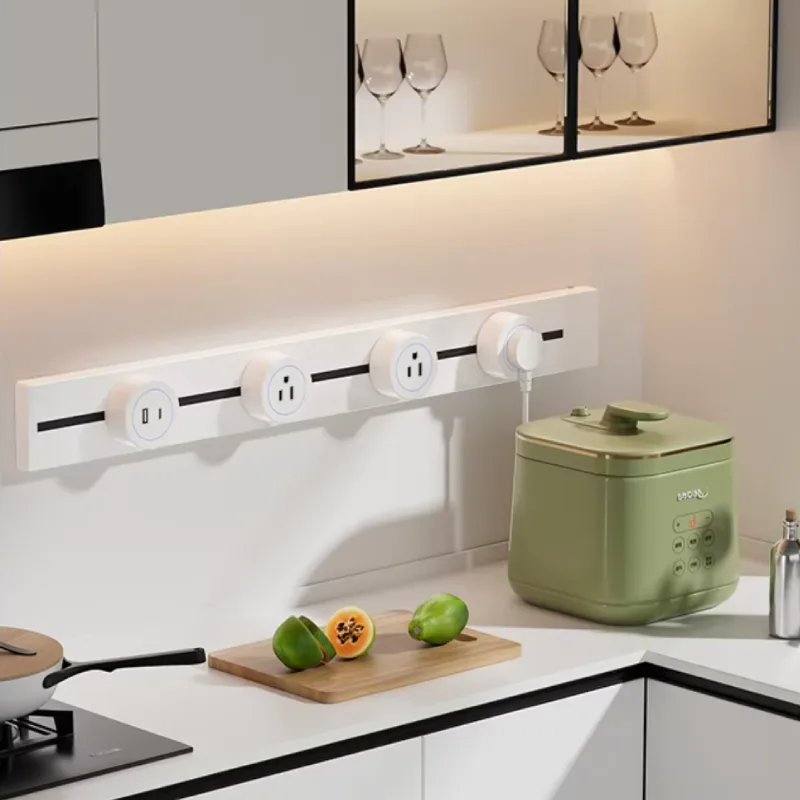

Kitchen
Study
Meal side cabinet
Adapter operation schematic diagram
MOVE
In power-off state
Adapter slides parallel on track
Power on
After adapter inserted into track
Rotate 90 degrees clockwise for power on
Power off
Adapter in powered-on state
Rotate 90° counterclockwise for power-on
Exclusive Discounts and Services for Power Track Socket Purchases: Partner with VIOX
At VIOX, we continually strive to collaborate with electricians, mechanical contractors, and other industry professionals by offering exceptional discounts and services for our Power Track Sockets.
★ Direct from Factory Pricing – As a manufacturer of high-quality Power Track Socket, purchasing directly from VIOX ensures you receive the lowest factory prices. While cost is an important factor, our commitment to durability and reliability sets our products apart.
★ Priority Service and Free Planning – Benefit from our priority service, including free planning assistance to optimize your projects. Our efficient process delivers ready-to-use information, saving you time and helping you maximize savings on orders.
★ Free Samples for VIP Customers – We provide free samples to VIP customers, allowing you to test market demand and quality without initial costs. Our commitment to high-quality samples ensures consistency in bulk production and helps secure new orders.
★ Free Samples for VIP Customers – We provide free samples to VIP customers, allowing you to test market demand and quality without initial costs. Our commitment to high-quality samples ensures consistency in bulk production and helps secure new orders.
★ Significant Discounts on Bulk Orders – Large volume orders increase productivity and reduce raw material costs. We pass these savings on to you with substantial discounts on bulk purchases, giving you a competitive advantage.
Dimension of Track Socket (Can Customized)
Installation steps for power Track sockets
S8 Power Track Sockets Non Punching Installation method
Open the terminal and connect the wires.
Apply no-nail adhesive on the backboard.
Stick the track to the wall and hold for 3-5 minutes. Apply auxiliary stickers. Use after 72 hours.
S8 Power Track Sockets Punching Installation Method
Step 1: Drill holes on the wall to secure the backboard

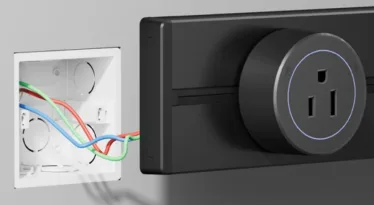

Step 2: Open the wiring terminals and connect the wires properly

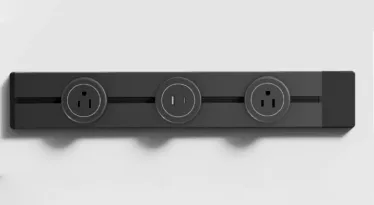

Step 3: Buckle the track onto the back panel and complete the installation
Track socket wiring method
Method One
Connect the corresponding terminal
Wire lead out of the cover plate outlet,cover the cover plate
Connect the track and the reserved wire, align it with the buckld card,and the installation is complete
Method Two
Connect to the corresponding terminal wire along the track well plugged
Attach the terminal cover
Connect the track and the reserved wire, align it with the buckle card, and the installation is complete
Method Three
Tap the round hole on the side cover gently to introduce the wire,Connect to the corresponding terminal
Attach the terminal cover
Align the buckle card,the installation is complete
Directly plug the lead out of the open wire into the socket to get electricity
More Than Just a Power Track Socket Manufacturer
At VIOX, we pride ourselves on providing timely support, adhering to high standards, and offering tailor-made solutions that meet our customers’ needs, forming the foundation of our growing reputation with Power Track Sockets.
Service Consultation
If your Power Track Socket requirements are straightforward, and you don’t need an external consultation, our team can offer expert advice and guidance for a reasonable fee.
Power Track Socket Recommendations
Unsure which Power Track Sockets to choose for your project? We provide personalized recommendations based on your specific needs, free of charge for all our customers.
Logistics Support
If you lack a suitable freight forwarder, we can help arrange the transportation of your Power Track Sockets from our factory to your project site without any extra service fees.
Installation Support
If you have questions about installing Power Track Sockets, feel free to reach out to us. We offer installation assistance and can even send an engineer to your project site for hands-on support.
About power track socket
what is power Track socket?
A power track socket is a flexible electrical outlet system that combines a mounted rail with movable sockets, offering adaptable power distribution in various environments. Unlike traditional fixed power outlets, power track sockets can be easily repositioned along the track to meet changing electrical needs without requiring rewiring.
Core Components of Power Track
Power track systems consist of two essential components: the power track and socket adapters. The track, typically rated for 110-250V and capable of handling up to 8000W, serves as a continuous power source along its length. It can be installed on walls, ceilings, or floors, providing a versatile foundation for power distribution. Socket adapters, the second crucial element, are designed to snap or slide onto the track, allowing users to create power outlets wherever needed along the system. These adapters can be easily repositioned, offering unparalleled flexibility in managing power access within a space.
Key Features of Power Track Sockets
- Power track sockets offer several key features that set them apart from traditional power outlets, making them an attractive option for modern, flexible spaces. Here are the main advantages of power track systems:
- Flexibility: Sockets can be easily moved along the track to accommodate changing power needs, unlike fixed outlets.
- Safety: Many models incorporate advanced safety features such as anti-electric shock protection and high-temperature flame retardant materials.
- High power capacity: Some systems can handle up to 7,500W or 8,000W, suitable for high-demand applications.
- Aesthetic appeal: Available in various finishes and designs, power tracks can seamlessly integrate with modern interiors.
- Space-saving: The modular nature of power tracks allows for efficient use of wall space, particularly beneficial in compact areas.
- Convenience: Users can add or remove socket adapters as needed, providing power exactly where it’s required.
- Durability: Tracks often use high-quality materials like aluminum for longevity and reliability.
- Versatility: Suitable for various environments including commercial spaces, offices, workshops, and homes.
These features combine to create a power distribution system that is not only practical and efficient but also adaptable to the evolving needs of modern spaces.
Power Track Socket Mechanics
Power track sockets operate through a system of conductive rails embedded within the track. When a socket adapter is attached to the track, it makes contact with these rails, drawing power from them. The process works as follows:
- Connection: The socket adapter snaps or slides into place on the track, ensuring contact with the conductive rails.
- Power Flow: Electricity flows through the conductive rails to the socket, powering connected devices without additional wiring.
- Mobility: Users can easily reposition the socket along the track as needed, providing immediate access to power in various locations.
- Safety Features: Most power tracks incorporate overload protection and short circuit prevention to ensure safe operation.
This innovative design allows for flexible power distribution, enabling users to add, remove, or reposition outlets with a simple twist, making it ideal for dynamic environments where power needs frequently change.
Customization Options for Tracks
Power track systems offer a range of customization options to suit various needs and aesthetics. Track lengths can be adjusted from 0.3m to 3m, allowing for precise fitting in different spaces. Users can choose from multiple socket types, including standard outlets and USB ports, to accommodate diverse device charging requirements. The tracks and adapters are available in various finishes such as meteorite black, deep space gray, and matte white, enabling seamless integration with different interior designs. Some manufacturers, like VIOX, offer surface or concealed mounting options, providing flexibility in installation methods to match architectural preferences.
Maintenance and Durability of Power Track Systems
Power track systems are designed for durability and longevity, but regular maintenance is crucial to ensure optimal performance and safety. Periodic inspections should include checking connections, cleaning tracks, and testing circuit breakers. It’s important to avoid overloading the system and to schedule professional inspections to catch potential issues early.
While power tracks are generally robust, they can be susceptible to wear in high-traffic areas. To maximize durability, choose systems made with high-quality materials like aluminum alloy for the main body, which offers strength, lightness, and corrosion resistance. Anodized finishes and phosphorus copper components further enhance protection and conductivity. Regular maintenance, combined with these durable materials, ensures that power track systems remain reliable and efficient for years, making them a smart investment for both residential and commercial applications.
Electrical Flow in Power Tracks
Power track systems utilize conductive rails to distribute electricity efficiently along their length. The electrical flow in these systems is facilitated by conductive strips embedded within the track, typically made of copper or aluminum for optimal conductivity. When a socket adapter is connected to the track, it makes contact with these conductive elements, allowing electricity to flow from the power source to the connected devices.
The system is designed to maintain a consistent voltage along the entire length of the track, typically ranging from 110V to 250V. This ensures that devices can be powered reliably regardless of their position on the track. Safety features such as circuit breakers and overload protection are integrated into the system to monitor and control the electrical flow, automatically cutting power if unsafe conditions are detected. This combination of efficient conductivity and built-in safety measures allows power tracks to deliver flexible and secure electrical distribution in various settings.
Chinese Track Socket Manufacturers
China is home to numerous manufacturers specializing in power track socket systems, with many concentrated in the eastern coastal provinces. Among them, VIOX Electric stands out for its innovative and customizable solutions. The company offers a variety of power track sockets designed to meet international standards, emphasizing energy efficiency and advanced features to cater to both residential and commercial needs.
What makes VIOX different from other power track manufacturers?
VIOX Electric combines advanced manufacturing capabilities with direct factory pricing, comprehensive technical support, and customization options. Our S8 Power Track systems feature premium aluminum construction, international safety certifications, and proven reliability in diverse applications worldwide.
What is the maximum power capacity of gen 3 Power Track?
The Gen 3 Power Track system supports up to 8000W total power capacity, with individual socket adapters handling up to 2500W maximum. This high capacity makes it suitable for demanding applications including commercial kitchens, workshops, and office environments.
Can Gen3 power track be customized for specific projects?
Yes, as a leading power track socket manufacturer, VIOX offers extensive customization including custom lengths, specific socket configurations, color matching, and specialized mounting solutions for unique project requirements.
What safety features are included?
All Gen3 power track socket systems include intelligent sensing, LED indication, child safety locks, anti-electric shock protection, overload protection, and high-temperature flame retardant materials.
