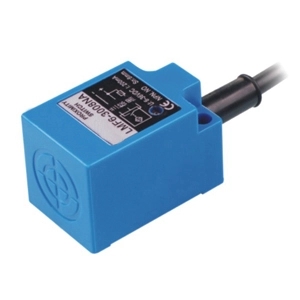

LMF7 Τετράγωνος επαγωγικός αισθητήρας προσέγγισης
Explore the versatile LMF7 Series Inductive Sensors from VIOX: With 10mm and 15mm detection distances, our sensors support DC 10-30V and AC 90-250V. Available in NPN/PNP configurations, with IP67 protection and robust ABS Resin housing, ensuring reliable performance in industrial environments.
Στείλτε τις απαιτήσεις σας, θα σας παραθέσουμε εντός 12 ωρών
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
| OVERALL DIMENSIONS |  |
|||
| DETECTION DISTANCE 10mm | ||||
|
F l u s h |
DC 10- 30 VDC AC |
NPN | NO | LMF7-3010NA |
| NC | LMF7-3010NB | |||
| NO+NC | ||||
| PNP | NO | LMF7-3010PA | ||
| NC | LMF7-3010PB | |||
| NO+NC | ||||
|
two wire system |
NO | LMF7-3010LA | ||
| NC | LMF7-3010LB | |||
| SCR
Control- |
NO | LMF7-2010A | ||
| NC | LMF7-2010B | |||
| NO+NC | LMF7-2010C | |||
| Relay output | ||||
| DETECTION DISTANCE 15mm | ||||
|
F l u s h |
DC 10- 30 VDC AC |
NPN | NO | LMF7-3015NA |
| NC | LMF7-3015NB | |||
| NO+NC | LMF7-3015NC | |||
| PNP | NO | LMF7-3015PA | ||
| NC | LMF7-3015PB | |||
| NO+NC | LMF7-3015PC | |||
|
two wire system |
NO | LMF7-3015LA | ||
| NC | LMF7-3015LB | |||
| SCR
Control- |
NO | LMF7-2015A | ||
| NC | LMF7-2015B | |||
| NO+NC | LMF7-2015C | |||
| Relay output | ||||
| Control output | DC | 200mA | ||
| SCR/ Relay | 300mA | |||
| Output voltage dropDC/AC | DC<3V、AC<10V | |||
| Consumption current | DC<15mA、AC<10mA | |||
| Standard detected object | 35X35X1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 200Hz/15Hz | |||
| Θερμοκρασία περιβάλλοντος εργασίας | -25℃～+75℃ | |||
| Αντίσταση μόνωσης | 50MΩ | |||
| Shell material | ABS Resin | |||
| Βαθμός προστασίας | IP67 | |||
| Altemative model at home and abroad | TL-N10M口 | |||
