Ürüne Genel Bakış

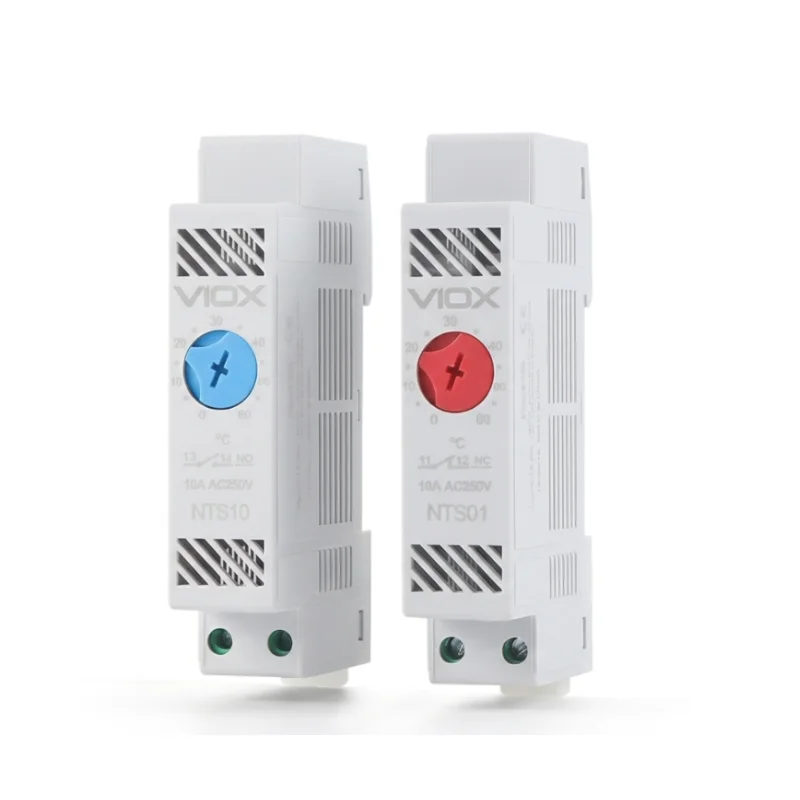

The VIOX NTS01/NTS10 cabinet thermostat series regulates temperature inside electrical enclosures, control cabinets, and industrial panels. Its compact 18mm-wide housing mounts on a standard 35mm DIN rail, helping panel builders control heaters, fans, cooling devices, warning lights, and alarm circuits from one adjustable thermostat platform.
The series provides two contact functions for different control tasks. NTS01-60 uses a normally closed contact for heating and anti-condensation control. NTS10-60 uses a normally open contact for cooling, ventilation, and signaling. Both models cover a 0 to +60°C setting range.
Model Seçenekleri
| Model | İletişim Türü | İletişim Formu | Ana Uygulama |
|---|---|---|---|
| NTS01-60 | SPST-NC | Normalde Kapalı | Isıtıcı ve nem alma kontrolü |
| NTS10-60 | SPST-NO | Normalde Açık | Fan, soğutma ekipmanı, uyarı ışığı ve alarm kontrolü |
Temel Özellikler
- Isıtma ve soğutma kontrolü için iki termostat versiyonu
- 0 ila +60°C arasında sıcaklık ayar aralığı
- Compact 18mm-wide design for electrical cabinet installation
- 35mm DIN rail mounting according to EN 60715
- Bimetal thermostat element for temperature sensing and switching
- Isıtıcılar, filtre fanları, soğutma cihazları ve alarm sinyalleri için uygundur
- Flexible mounting position inside enclosures and control panels
Teknik Özellikler
| Parametre | Şartname |
|---|---|
| Temperature setting range | 0 ila +60°C |
| Switching difference | 7K (+/−4K) |
| Temperature sensor | Bimetal termostat elemanı |
| Temas direnci | ≤50mΩ |
| Hizmet ömrü | >100.000 döngü |
| İletişim derecesi | 10(2)A at 250VAC; 15(2)A at 120VAC; 30W at DC24V to 72V |
| Connection terminal | 2 kutuplu vida terminali |
| Rigid wire capacity | 2,5 mm² |
| Flexible wire capacity | Yüksüklü 1,5mm² |
| Montaj yöntemi | 35mm DIN rail, EN 60715 |
| Muhafaza malzemesi | Gri alev geciktirici ABS |
| Boyutlar | 86 × 48 × 18mm |
| Montaj konumu | Herhangi bir pozisyon |
| Ortam sıcaklığı | −45°C to +80°C |
| Ortam nemi | ≤90% RH, yoğuşmasız |
| Koruma derecesi | IP20 |
| Ağırlık | Yaklaşık 40g |
How the Two Models Work
Choose the contact function according to the equipment that must switch when enclosure temperature moves below or above the selected setpoint.
NTS01-60: Heating Control
The normally closed contact is used with heaters and anti-condensation equipment. When enclosure temperature falls below the set value, the circuit supports heating or dehumidification control.
NTS10-60: Cooling and Signaling
The normally open contact is used with fans, cooling equipment, warning lights, and alarms. When enclosure temperature rises above the set value, it can activate ventilation, cooling, or signaling equipment.
Uygulamalar
Typical enclosure climate-control and signaling applications for the NTS01/NTS10 series include:
- Electrical enclosures and distribution panels
- Endüstriyel kontrol kabinleri
- Panel heaters and anti-condensation systems
- Filtre fanları ve soğutma fanları
- Cooling devices for cabinet climate control
- Warning lights and alarm circuits
Neden VIOX NTS01/NTS10 Termostatlarını Seçmelisiniz
The NTS01/NTS10 series gives panel builders, OEMs, and distributors a clear choice between heating and cooling control in the same compact DIN rail format. The two contact versions simplify model selection while supporting common enclosure climate-control and signaling tasks.
- Isıtma veya soğutma kontrolü için net model seçimi
- Compact housing for space-conscious panel layouts
- Straightforward 35mm DIN rail installation
- One thermostat family for climate-control and signaling applications
- OEM, distribütör ve proje tedariki için uygundur
SSS
NTS01 ve NTS10 arasındaki fark nedir?
NTS01-60 is an SPST-NC normally closed thermostat for heater and dehumidification control. NTS10-60 is an SPST-NO normally open thermostat for fan, cooling, warning-light, and alarm control.
Sıcaklık ayar aralığı nedir?
Both models cover an adjustable setting range from 0 to +60°C.
Termostat nasıl monte edilir?
The thermostat mounts on a standard 35mm DIN rail according to EN 60715.
Bu termostat hangi yükleri anahtarlayabilir?
The available product data lists 10(2)A at 250VAC, 15(2)A at 120VAC, and 30W at DC24V to 72V.
Bu termostat genellikle nerede kullanılır?
Typical applications include electrical enclosures, control cabinets, panel heaters, filter fans, cooling devices, warning lights, and alarm systems.
