Gambaran Keseluruhan Produk

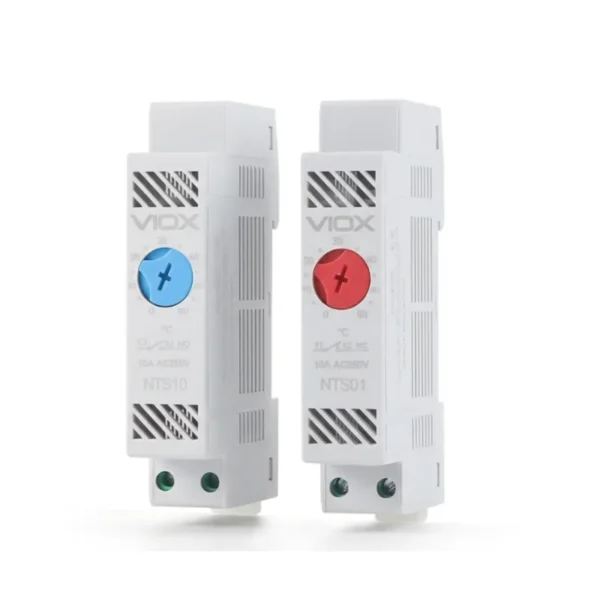

The VIOX NTS01/NTS10 cabinet thermostat series regulates temperature inside electrical enclosures, control cabinets, and industrial panels. Its compact 18mm-wide housing mounts on a standard 35mm DIN rail, helping panel builders control heaters, fans, cooling devices, warning lights, and alarm circuits from one adjustable thermostat platform.
The series provides two contact functions for different control tasks. NTS01-60 uses a normally closed contact for heating and anti-condensation control. NTS10-60 uses a normally open contact for cooling, ventilation, and signaling. Both models cover a 0 to +60°C setting range.
Pilihan Model
| Model | Jenis Sesentuh | Bentuk Sentuhan | Aplikasi Utama |
|---|---|---|---|
| NTS01-60 | SPST-NC | Biasanya Tertutup | Kawalan pemanas dan penyahlembapan |
| NTS10-60 | SPST-NO | Biasanya Terbuka | Kipas, peralatan penyejukan, lampu amaran dan kawalan penggera |
Ciri-ciri Utama
- Dua versi termostat untuk kawalan pemanasan dan penyejukan
- Julat tetapan suhu dari 0 hingga +60°C
- Compact 18mm-wide design for electrical cabinet installation
- 35mm DIN rail mounting according to EN 60715
- Bimetal thermostat element for temperature sensing and switching
- Sesuai untuk pemanas, kipas penapis, peranti penyejukan dan isyarat penggera
- Flexible mounting position inside enclosures and control panels
Spesifikasi Teknikal
| Parameter | Spesifikasi |
|---|---|
| Temperature setting range | 0 hingga +60°C |
| Switching difference | 7K (+/−4K) |
| Temperature sensor | Elemen termostat Bimetal |
| Rintangan sentuhan | ≤50mΩ |
| Jangka hayat perkhidmatan | >100,000 kitaran |
| Penarafan sesentuh | 10(2)A at 250VAC; 15(2)A at 120VAC; 30W at DC24V to 72V |
| Connection terminal | Terminal skru 2 kutub |
| Rigid wire capacity | 2.5mm² |
| Flexible wire capacity | 1.5mm² dengan ferul |
| Kaedah pemasangan | 35mm DIN rail, EN 60715 |
| Bahan perumah | ABS kalis api kelabu |
| Dimensi | 86 × 48 × 18mm |
| Kedudukan pemasangan | Mana-mana kedudukan |
| Suhu persekitaran | −45°C to +80°C |
| Kelembapan ambien | ≤90% RH, tanpa pemeluwapan |
| Darjah perlindungan | IP20 |
| Berat badan | Anggaran. 40g |
How the Two Models Work
Choose the contact function according to the equipment that must switch when enclosure temperature moves below or above the selected setpoint.
NTS01-60: Heating Control
The normally closed contact is used with heaters and anti-condensation equipment. When enclosure temperature falls below the set value, the circuit supports heating or dehumidification control.
NTS10-60: Cooling and Signaling
The normally open contact is used with fans, cooling equipment, warning lights, and alarms. When enclosure temperature rises above the set value, it can activate ventilation, cooling, or signaling equipment.
Aplikasi
Typical enclosure climate-control and signaling applications for the NTS01/NTS10 series include:
- Electrical enclosures and distribution panels
- Kabinet kawalan industri
- Panel heaters and anti-condensation systems
- Kipas penapis dan kipas penyejuk
- Cooling devices for cabinet climate control
- Warning lights and alarm circuits
Mengapa Memilih Termostat VIOX NTS01/NTS10
The NTS01/NTS10 series gives panel builders, OEMs, and distributors a clear choice between heating and cooling control in the same compact DIN rail format. The two contact versions simplify model selection while supporting common enclosure climate-control and signaling tasks.
- Pemilihan model yang jelas untuk kawalan pemanasan atau penyejukan
- Compact housing for space-conscious panel layouts
- Straightforward 35mm DIN rail installation
- One thermostat family for climate-control and signaling applications
- Sesuai untuk OEM, pengedar dan perolehan projek
Soalan Lazim
Apakah perbezaan antara NTS01 dan NTS10?
NTS01-60 is an SPST-NC normally closed thermostat for heater and dehumidification control. NTS10-60 is an SPST-NO normally open thermostat for fan, cooling, warning-light, and alarm control.
Apakah julat tetapan suhu?
Both models cover an adjustable setting range from 0 to +60°C.
Bagaimanakah termostat dipasang?
The thermostat mounts on a standard 35mm DIN rail according to EN 60715.
Apakah beban yang boleh dihidupkan oleh termostat ini?
The available product data lists 10(2)A at 250VAC, 15(2)A at 120VAC, and 30W at DC24V to 72V.
Di manakah termostat ini biasanya digunakan?
Typical applications include electrical enclosures, control cabinets, panel heaters, filter fans, cooling devices, warning lights, and alarm systems.
