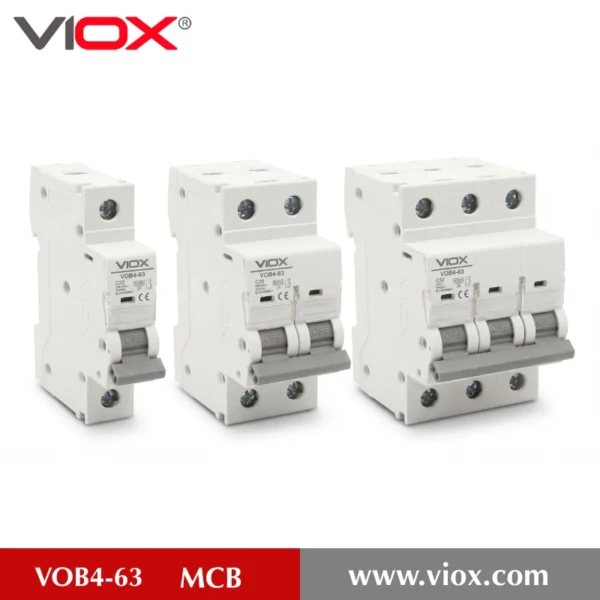

VOB4-63 MCB – Miniature Circuit Breaker

VOB4-63 High-Performance Miniature Circuit Breaker

Industrial-Grade MCB with 6kA/10kA Breaking Capacity – VIOX VOB4-63 series miniature circuit breakers deliver superior protection for demanding commercial and industrial installations. Dual-standard compliant (IEC 60898-1 & IEC 60947-2), thermal-magnetic trip technology, 500V insulation rating, complete range from 1A to 63A.

Why Choose VOB4-63 High-Performance MCB?

• Dual Breaking Capacity: 6000A or 10000A – superior fault protection for industrial systems
• Enhanced Insulation: AC 500V rated insulation voltage (higher than standard 415V)
• Dual Standard Compliance: IEC 60898-1 & IEC 60947-2 certified for both residential and industrial applications
• Complete Rating Range: 1A to 63A in full increments (1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A)
• All Trip Curves Available: Type B, C, D curves for any application requirement
• Βιομηχανική αντοχή: 10,000 mechanical operations, 4,000 electrical cycles
• Επαγγελματική εγκατάσταση: DIN rail mounting, 1-25mm² terminal capacity
• Proven Quality: Manufactured by ISO 9001:2015 certified VIOX Electric

---

Complete Technical Specifications

Παράμετρος	Προδιαγραφές
Product Series	VOB4-63
Ικανότητα θραύσης (Icn)	6000A or 10000A
Αριθμός πόλων	1P, 2P, 3P, 4P
Ονομαστικό ρεύμα (In)	1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Ονομαστική τάση λειτουργίας	1P: 240V/415V~ 2P, 3P, 4P: 415V~
Trip Unit Technology	Θερμομαγνητικό
Curve Code (Trip Characteristics)	B, C, D (all curves available)
Ονομαστική τάση μόνωσης (Ui)	AC 500V~ (enhanced)
Ονομαστική τάση αντοχής σε παλμούς (Uimp)	4000V
Μηχανική αντοχή	10.000 κύκλοι
Ηλεκτρική αντοχή	4,000 cycles
Ροπή σύσφιξης	M5 2.5N·m ⚠
IP Degree of Protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient Air Temperature for Operation	-5°C έως +40°C
Συμμόρφωση με τα πρότυπα	IEC 60898-1 & IEC 60947-2
EU RoHS Directive	Compliant EU RoHS Declaration
Βαθμός ρύπανσης	2 conforming to IEC/EN 60898-1
Χωρητικότητα τερματικού σταθμού	Upper/Lower Wiring: 1-25mm² (flexible/rigid conductor)
Τοποθέτηση	35mm DIN rail (IEC/EN 60715)

---

Understanding Breaking Capacity: 6kA vs 10kA

The VOB4-63 series offers two breaking capacity options to match your installation requirements:

6kA Breaking Capacity (6000A)

• Ιδανικό για: Residential buildings, small commercial offices, light industrial facilities
• Typical installations: Lighting circuits, small motor loads, general power distribution
• Fault current handling: Up to 6,000 amperes short-circuit protection

10kA Breaking Capacity (10000A) – Recommended for Industrial

• Ιδανικό για: Industrial plants, large commercial buildings, high-power equipment installations
• Typical installations: Motor control centers, industrial automation, heavy machinery protection
• Fault current handling: Up to 10,000 amperes short-circuit protection
• Additional safety margin: 67% higher capacity than 6kA for demanding applications

How to Choose: Calculate your installation’s prospective short-circuit current (PSC). For most industrial applications with transformers above 200kVA, 10kA breaking capacity is recommended.

---

Trip Curve Selection Guide

Select the correct trip curve based on your load characteristics:

Type B Curve MCB (3-5 × In)

Best for resistive loads with minimal inrush current:

• Residential and commercial lighting circuits
• Heating elements and resistive heaters
• Domestic appliances
• Long cable runs where trip sensitivity is needed

Type C Curve MCB (5-10 × In) – Most Common

Best for general-purpose commercial and industrial applications:

• Motor-driven equipment (pumps, fans, compressors)
• Fluorescent and LED lighting with electronic ballasts
• Transformers and inductive loads
• Συστήματα HVAC
• General power distribution panels

Type D Curve MCB (10-20 × In)

Best for high inrush current loads:

• Large industrial motors and motor starters
• Welding equipment and X-ray machines
• Large transformers with high magnetizing inrush
• Capacitive loads
• Industrial machinery with high starting currents

---

Applications by Industry

Βιομηχανική μεταποίηση

• Motor control centers (MCCs) for production equipment
• CNC machines and industrial automation systems
• Conveyor systems and material handling equipment
• Industrial robots and automated assembly lines
• Power distribution in factory electrical panels

Εμπορικά κτίρια

• Office building main and sub-distribution boards
• Shopping mall electrical systems
• Hotel and hospitality power distribution
• Data center electrical protection
• Commercial HVAC and mechanical systems

Infrastructure & Construction

• Public building electrical installations
• Educational facilities (schools, universities)
• Healthcare facilities (hospitals, clinics)
• Transportation hubs (airports, train stations)
• Government and municipal buildings

Energy & Utilities

• Solar PV system protection circuits
• Wind turbine electrical systems
• Power generation auxiliary equipment
• Electrical substations and switchgear
• Energy storage system protection

OEM & Panel Builders

• Electrical panel manufacturers and switchgear assemblers
• Control system integrators
• Industrial equipment manufacturers
• Automation system providers
• Custom electrical solution designers

---

Dimensions & Installation Data

Modular Width (Standard 18mm Module):

• 1P: 1 module (17.8mm)
• 2P: 2 modules (35.6mm)
• 3P: 3 modules (53.4mm)
• 4P: 4 modules (71.2mm)

Φυσικές διαστάσεις:

• Height: 83mm
• Depth: 74mm (1P), 63.5mm (multi-pole)
• DIN rail depth: 35mm

Εγκατάσταση:

• Mounting: Standard 35mm DIN rail per IEC/EN 60715
• Terminal type: Screw terminals (torque-controlled)
• Wire capacity: 1-25mm² (both stranded and solid conductors)
• Connection: Top and bottom terminals for daisy-chain wiring

---

Certifications & Quality Standards

Συμμόρφωση με τα διεθνή πρότυπα

✓ IEC 60898-1: Household and similar installations (residential, light commercial)
✓ IEC 60947-2: Industrial low-voltage switchgear and controlgear
✓ EN 60898-1: European standard for MCB performance
✓ Pollution Degree 2: Suitable for standard industrial environments

Manufacturing Quality

✓ ISO 9001:2015 Certified: Quality management system certified
✓ EU RoHS Compliant: Lead-free, environmentally responsible manufacturing
✓ Factory Testing: 100% electrical testing before shipment
✓ Traceability: Full batch tracking and quality documentation

Third-Party Verification

✓ Independent laboratory testing for breaking capacity verification
✓ Type testing per IEC standards
✓ Continuous production monitoring

---

VOB4-63 vs VOB3-63: Which MCB Should You Choose?

Χαρακτηριστικό γνώρισμα	VOB3-63	VOB4-63
Ικανότητα θραύσης	4.5kA / 6kA	6kA / 10kA ✓
Insulation Voltage	415V~	500V~ ✓
Πρότυπα	IEC 60898-1	IEC 60898-1 & 60947-2 ✓
Recommended Use	Residential, Light Commercial	Industrial, Heavy Commercial
Τιμή	Οικονομία	Ασφάλιστρο

Choose VOB4-63 when:

• Working in industrial environments with higher fault currents
• Protecting high-value equipment requiring maximum safety margin
• Compliance with IEC 60947-2 is required
• Long-term reliability in demanding conditions is critical

---

Why VIOX Electric for Your MCB Supply?

Direct Manufacturer Advantages

• Factory-direct pricing without middleman markup
• Consistent quality control throughout production
• Flexible MOQ for both small orders and bulk projects
• Custom labeling and OEM partnership available

Τεχνική υποστήριξη

• Pre-sales engineering consultation
• Application-specific recommendations
• Τεχνική τεκμηρίωση σε πολλές γλώσσες
• After-sales technical support

Global Supply Capability

• ISO 9001:2015 certified manufacturing facility
• Capacity for large-volume orders
• Reliable delivery schedules
• International shipping experience

Σειρά προϊόντων

• Complete MCB ratings from 1A to 63A
• All pole configurations (1P, 2P, 3P, 4P)
• All trip curves (B, C, D)
• Both breaking capacities (6kA, 10kA)

---

How to Order VOB4-63 MCB

Model Numbering System: VOB4-63 [Breaking Capacity] [Poles] [Curve] [Rating]

Examples:

• VOB4-63 10kA 3P C 32A – 10kA, 3-Pole, Type C curve, 32A rated current
• VOB4-63 6kA 2P C 16A – 6kA, 2-Pole, Type C curve, 16A rated current
• VOB4-63 10kA 4P D 63A – 10kA, 4-Pole, Type D curve, 63A rated current

Ordering Information Checklist:

1. Breaking capacity required (6kA or 10kA)
2. Number of poles (1P, 2P, 3P, 4P)
3. Trip curve type (B, C, or D)
4. Rated current (1A to 63A)
5. Απαιτούμενη ποσότητα
6. Delivery timeline

---

Get Your Quote Today

Contact VIOX Electric – MCB Manufacturer

For Distributors & Volume Orders:

• Competitive volume pricing tiers
• Distributor partnership programs
• Co-branding and private labeling options
• Technical training and support

For Panel Builders & OEM:

• Engineering sample requests
• Custom specifications available
• CAD drawings and technical documentation
• Integration support

For Electrical Contractors:

• Project-specific quotations
• Mixed order flexibility
• Fast delivery for urgent projects
• Τεχνική υποστήριξη εφαρμογών

Συχνές ερωτήσεις (FAQ)

Q: What’s the difference between 6kA and 10kA breaking capacity?
A: The breaking capacity indicates the maximum short-circuit current the MCB can safely interrupt. 10kA provides 67% more protection than 6kA, making it essential for industrial installations with higher fault current levels.

Q: Can VOB4-63 replace my existing MCB?
A: Yes, VOB4-63 is DIN-rail compatible and follows standard modular sizing. Ensure the breaking capacity, voltage rating, and pole configuration match your application requirements.

Q: What’s the lead time for bulk orders?
A: Standard lead time is 2-4 weeks depending on order quantity and specifications. Contact our sales team for urgent orders.

Q: Do you provide technical documentation?
A: Yes, complete technical datasheets, CAD drawings, installation manuals, and certificates are provided with every order.

Q: What’s your MOQ (Minimum Order Quantity)?
A: We accommodate both small sample orders and large-volume projects. Contact us for specific MOQ based on your requirements.

---
