Quick Answer: Uc vs Up
Uc and Up are two different voltage parameters on a surge protective device (SPD). Uc, also called maximum continuous operating voltage বা এমসিওভি, is the highest voltage the SPD can withstand continuously without operating abnormally. Up, or voltage protection level, is the voltage that may still appear across the SPD terminals during a surge test.
In simple terms, Uc tells you whether the SPD can live safely on the system, যখন Up tells you how well it limits surge voltage for downstream equipment.
| প্যারামিটার | Full name | এটি আপনাকে কী জানায় | Selection risk |
|---|---|---|---|
| Uc / MCOV | সর্বাধিক একটানা অপারেটিং ভোল্টেজ | Whether the SPD can remain connected under normal system voltage and voltage variation | Too low may cause aging, heating, or disconnection; unnecessarily high Uc may reduce protection effectiveness |
| উপরে | ভোল্টেজ সুরক্ষা স্তর | The residual voltage level during a specified surge test | Too high may expose downstream equipment to damaging voltage |
আপনার যদি প্রথমে ডিভাইসটির বিস্তৃত পটভূমি জানার প্রয়োজন হয়, তাহলে শুরু করুন What Is a Surge Protective Device?. This article focuses specifically on the two voltage parameters that buyers, panel builders, and engineers most often misread on SPD datasheets.
What Does Uc Mean on an SPD?
ইউসি হয় maximum continuous operating voltage of an SPD. It is the highest voltage that can be continuously applied across a specific SPD protection mode without abnormal operation.
In UL terminology, the equivalent concept is commonly called এমসিওভি (Maximum Continuous Operating Voltage). In IEC-based datasheets, the marking is usually ইউসি.
Uc answers a very practical question:
Can this SPD remain connected to this system continuously without operating, overheating, aging prematurely, or disconnecting under normal voltage conditions?
Why Uc Is Not Just the Nominal System Voltage
An electrical system marked as 230 V, 400 V, 480 V, 690 V, or 1000 V DC does not stay at exactly that value in real operation. The SPD must tolerate:
- normal supply voltage variation
- temporary overvoltage (TOV) conditions
- line-to-earth and line-to-neutral voltage differences
- neutral behavior in TN, TT, and IT systems
- DC open-circuit voltage in PV systems
- manufacturer-defined voltage and protection mode limits
This is why an SPD is not selected by nominal voltage alone. It is selected by matching Uc to the real maximum continuous voltage that can appear across each protection mode.
What Happens If Uc Is Too Low?
If Uc is too low for the actual system, the SPD may conduct during normal operation or during normal voltage variation. That can cause:
- unnecessary thermal stress
- accelerated MOV aging
- nuisance end-of-life indication
- module disconnection
- backup protection operation in severe cases
In practical terms, a too-low Uc makes the SPD behave as if ordinary system voltage is already a problem.
What Happens If Uc Is Too High?
Higher Uc is not automatically safer. If Uc is unnecessarily high, the SPD may have a higher voltage protection level and may provide less effective limitation for sensitive equipment.
The correct approach is not "choose the highest Uc available." It is:
choose the lowest Uc that is still suitable for the system voltage, earthing arrangement, temporary overvoltage behavior, protection mode, and manufacturer data.
Some designs apply additional margin for voltage fluctuation or temporary overvoltage, but the correct Uc must be selected according to the real system and the SPD datasheet. Avoid using a universal formula such as
Uc = 1.3 x Unas a substitute for engineering review.
What Does Up Mean on an SPD?
উপরে হয় voltage protection level of an SPD. It represents the voltage that appears across the SPD terminals during a specified surge test condition.
In practical language, Up is the SPD’s let-through voltage under the defined test. It answers:
When the SPD conducts during a surge event, how much voltage may still reach the downstream equipment?
An SPD does not reduce the voltage to zero. It limits the surge to a lower residual level. That residual level is what Up helps describe.
Why Lower Up Is Usually Better, But Not Always Enough
A lower Up value generally means better voltage limitation, but only when compared under the same:
- SPD প্রকার
- স্ট্যান্ডার্ড
- ভোল্টেজ রেটিং
- test waveform
- discharge current condition
- protection mode
- ইনস্টলেশন পদ্ধতি
Comparing Up values across different SPD types or standards can be misleading. A Type 1 SPD designed for lightning-current duty and a Type 2 SPD designed for distribution-level protection may not be directly comparable just because both datasheets show a Up value.
Up Must Be Read With Installation Lead Length
The Up value is measured at the SPD terminals under standard test conditions. In a real panel, the protected equipment sees:
SPD terminal voltage + voltage added by connection leads and wiring layout
Long, looped, or poorly routed SPD conductors add inductive voltage during a surge. This can make the actual let-through voltage higher than the datasheet Up value suggests.
That is why installation quality is part of voltage protection. For the field checklist, see SPD Installation Mistakes and How to Fix Them.

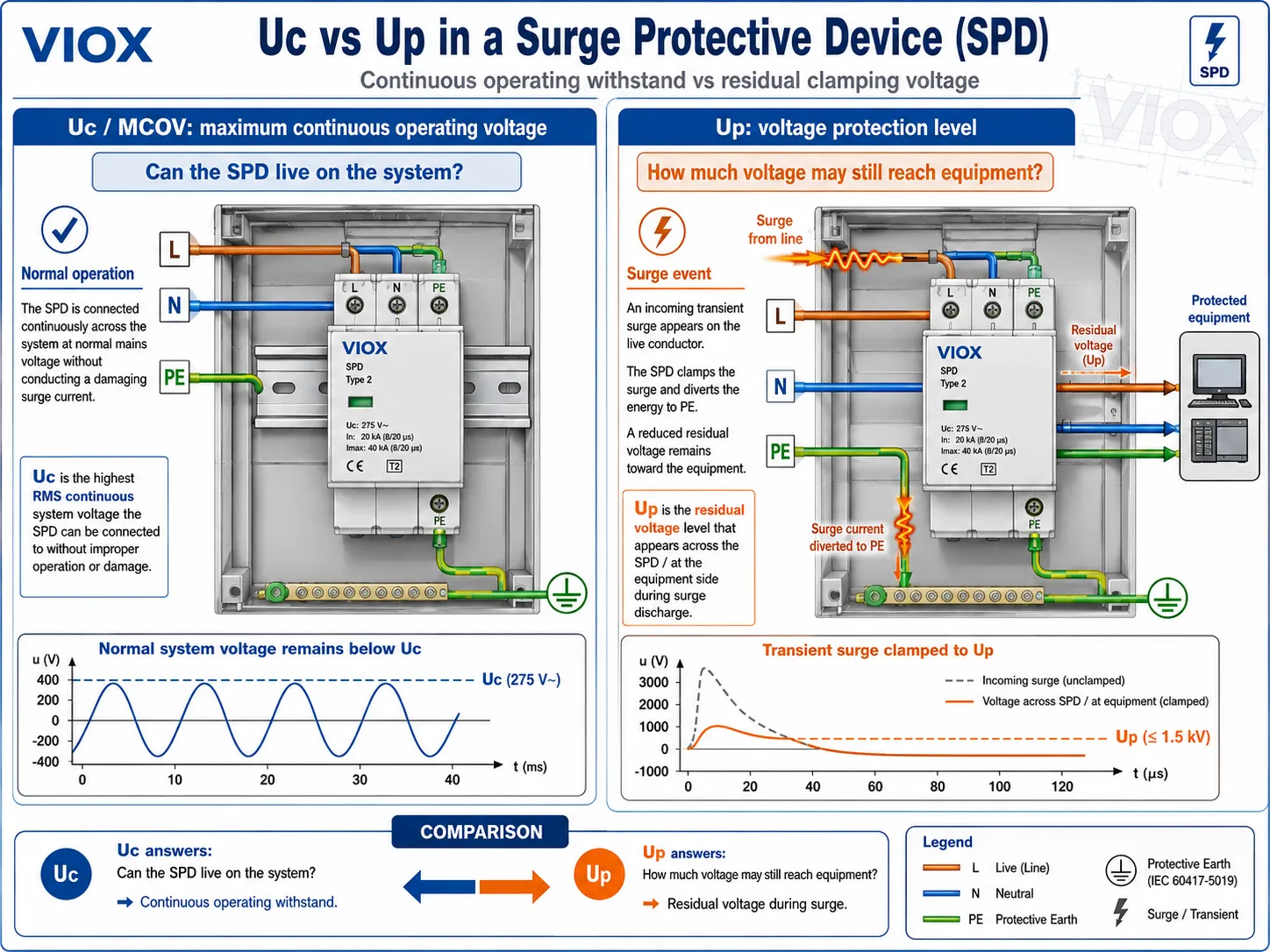

Uc vs Up Comparison Table
| তুলনার বিষয় | Uc / MCOV | উপরে |
|---|---|---|
| Full name | সর্বাধিক একটানা অপারেটিং ভোল্টেজ | ভোল্টেজ সুরক্ষা স্তর |
| Main question answered | Can the SPD stay connected safely under normal system voltage? | How much voltage may remain during a surge test? |
| When it matters | Before the surge event, during continuous operation | During the surge event |
| Wrong low value risk | Heating, aging, nuisance disconnection, unsafe operation | Not usually selected "too low," but must match device type and system |
| Wrong high value risk | Weaker voltage limitation for sensitive equipment | Equipment may still see damaging voltage |
| Related parameter | Ucpv for PV DC systems; MCOV in UL terminology | VPR in UL terminology; equipment impulse withstand voltage |
| Selection priority | Check first because it determines system compatibility | Check after Uc because it determines protection quality |
| সাধারণ ভুল | Choosing by nominal voltage only | Comparing values across different test conditions |
The two parameters work together. Uc must be high enough for the system; Up must be low enough for the equipment. If either side is wrong, the SPD selection is weak.
Why Uc Must Match the System Voltage
Uc is system-dependent. The same SPD may be suitable in one power system and unsuitable in another, even if both systems have similar nominal voltage.
Important factors include:
- nominal AC or DC voltage
- maximum expected continuous voltage
- line-to-neutral and line-to-earth voltage
- temporary overvoltage behavior
- earthing arrangement
- SPD protection mode
- AC, DC, or PV-specific rating
- manufacturer’s permitted wiring configuration
For AC low-voltage SPDs, IEC 61643-11 is the key IEC product standard. For photovoltaic DC-side SPDs, IEC 61643-31 is the relevant IEC framework. In North American projects, UL 1449 terminology such as MCOV and VPR may appear.
For standards context, see Surge Protection Standards: IEC 61643 vs UL 1449 vs GB 18802.
Why Up Must Match the Equipment Withstand Level
Up should be lower than the impulse withstand level of the protected equipment, with margin for installation lead voltage and coordination. The exact margin depends on the standard, equipment category, project requirements, and the protection strategy.
Avoid treating a simple formula such as
Up <= 0.8 x Uwas a universal rule. It may be used as a design principle in some contexts, but real selection should account for:
- equipment impulse withstand voltage
- overvoltage category
- distance between SPD and equipment
- lead length and routing
- upstream/downstream SPD coordination
- Type 1, Type 2, or Type 3 SPD role
- test condition behind the published Up value
For sensitive electronics, control panels, PLC systems, IT equipment, and EV charging electronics, Up often becomes the parameter that determines whether the protection is genuinely useful, not just installed.

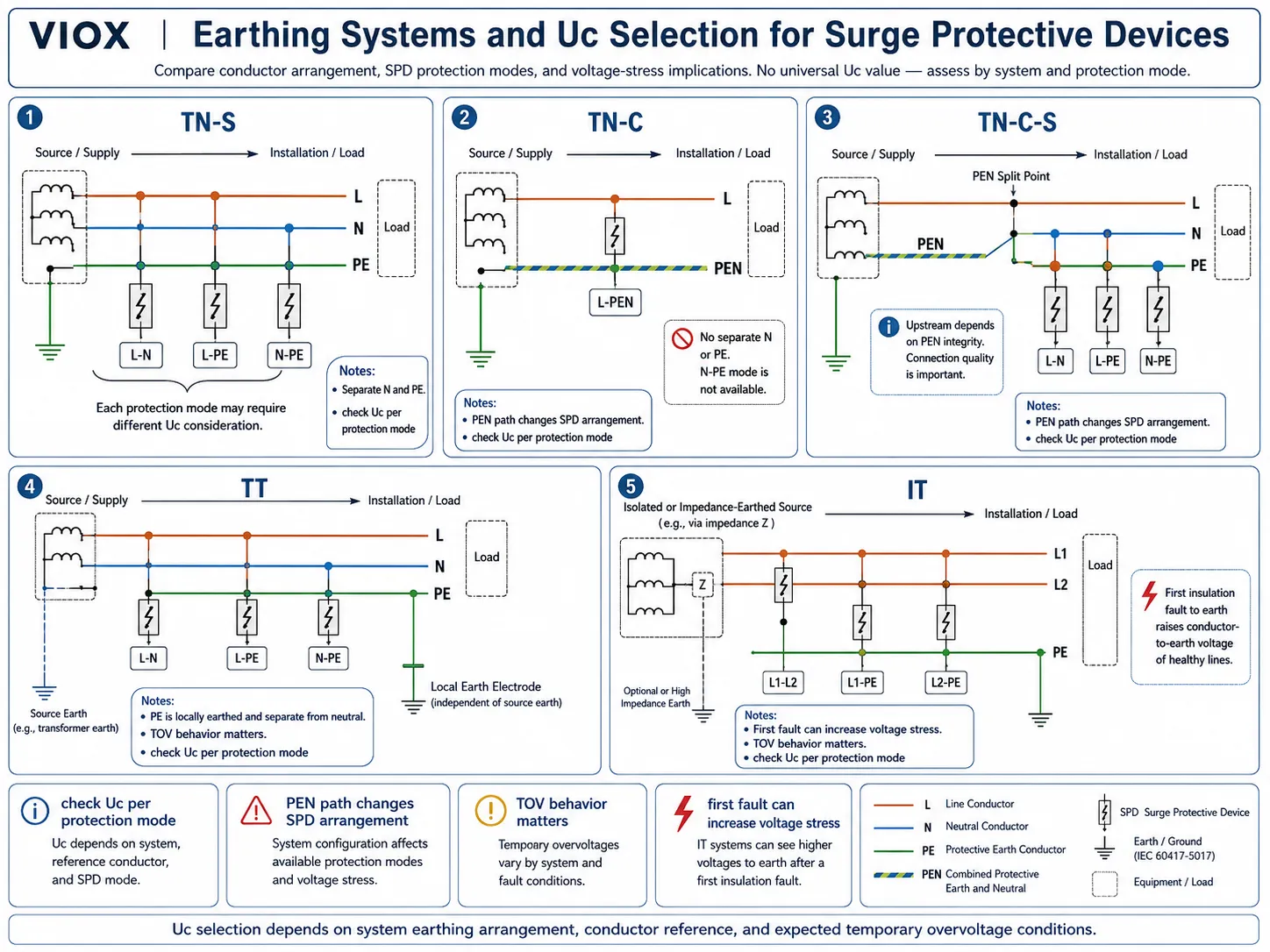

How Earthing Systems Affect Uc Selection
Earthing arrangement affects which conductors may experience voltage stress and which protection modes are required. This is one of the most common places where SPD voltage selection goes wrong.
| সিস্টেম | Why it matters for Uc | Selection note |
|---|---|---|
| টিএন-এস | Line, neutral, and protective earth are separated; L-PE and N-PE protection modes may be used | Check Uc for each protection mode, not only the line-to-neutral system voltage |
| টিএন-সি | Neutral and protective earth are combined as PEN in part or all of the system | Do not treat it the same as TN-S without checking the exact wiring point and permitted SPD arrangement |
| টিএন-সিএস | PEN is separated into N and PE at a defined point | The transition point matters; confirm the SPD wiring diagram for that location |
| টিটি | Local earth electrode impedance and neutral-to-earth behavior can influence overvoltage stress | N-PE path and Uc must be selected carefully; TOV behavior is especially important |
| আইটি (IT) | First fault condition can raise voltage stress on healthy conductors | Higher Uc may be required depending on system design and insulation monitoring strategy |
| PV DC | String voltage changes with temperature and open-circuit voltage | Use Ucpv and a DC/PV-rated SPD, not an AC-only Uc value |
This table is a selection guide, not a replacement for local code, project design, or manufacturer wiring instructions.

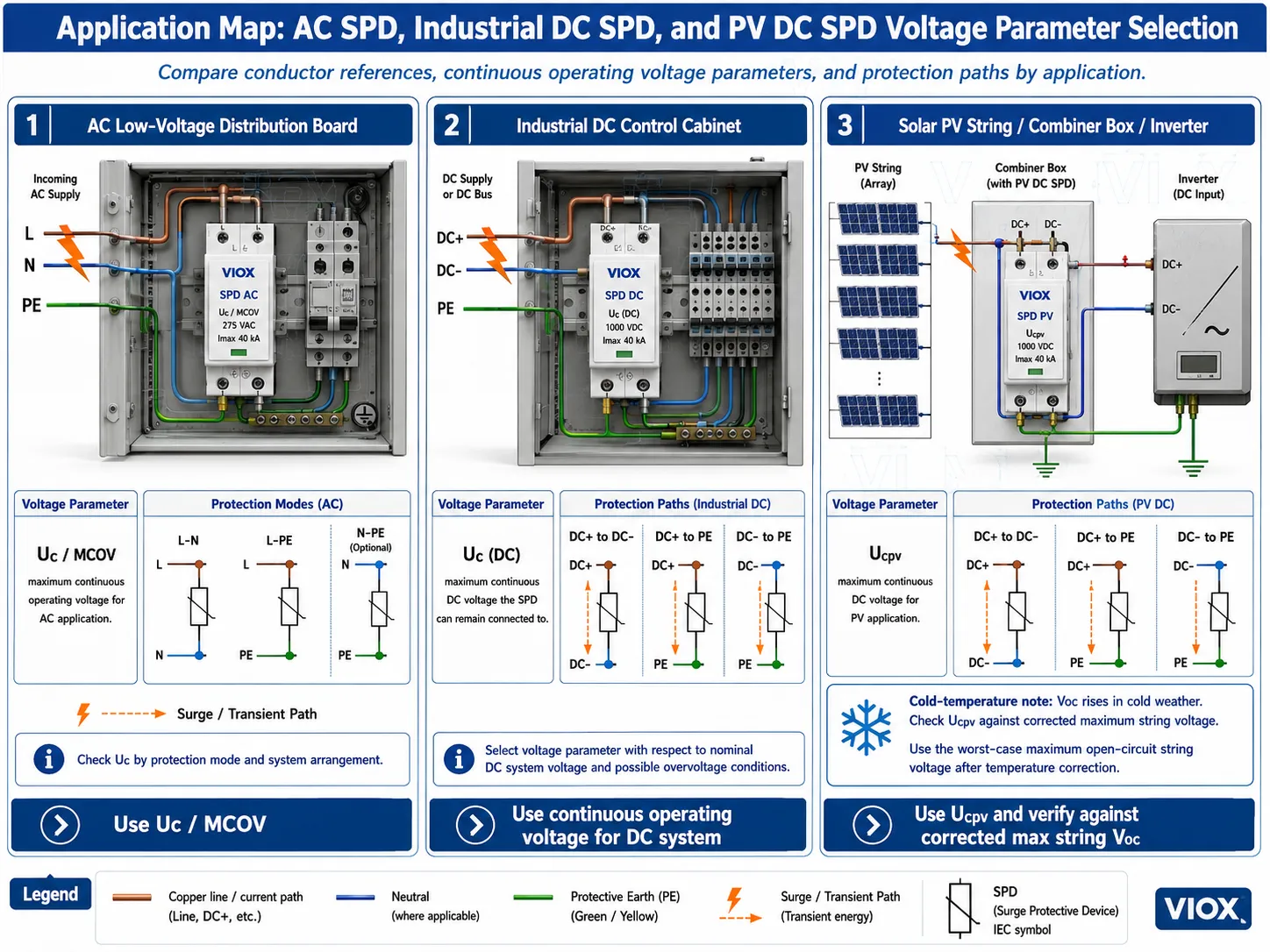

AC SPD vs DC SPD vs PV SPD Voltage Parameters
AC, DC, and PV SPDs use similar ideas, but the voltage parameters are not interchangeable.
| SPD application | Voltage parameter to check | Main selection issue |
|---|---|---|
| AC low-voltage SPD | Uc or MCOV | Must match line-to-neutral, line-to-earth, line-to-line, and earthing arrangement |
| PV DC SPD | Ucpv or maximum continuous PV voltage rating | Must exceed the maximum PV string voltage, including cold-temperature open-circuit voltage |
| Industrial DC SPD | DC continuous operating voltage | Must match polarity, fault behavior, and system insulation arrangement |
| Signal SPD | Maximum operating voltage for the signal interface | Must not disturb communication, bandwidth, or measurement accuracy |
For solar systems, nominal DC voltage is not enough. PV string open-circuit voltage increases in cold conditions, so Ucpv must be selected against the maximum corrected voltage, not just the inverter’s nominal DC range.
For the broader application boundary, see the DC Surge Protection Devices Guide.
How Uc, Up, In, Imax, and Iimp Fit Together
Uc and Up are voltage parameters, but they should not be read alone. A complete SPD label also includes current and application ratings.
| রেটিং | এটি আপনাকে কী জানায় | Selection role |
|---|---|---|
| Uc / MCOV | Maximum continuous voltage | Confirms the SPD can live on the system |
| Up / VPR | Residual voltage during test | Confirms protection quality for downstream equipment |
| ভিতরে | নামমাত্র স্রাব বর্তমান | Indicates repeated surge-duty capability |
| আইম্যাক্স | সর্বোচ্চ স্রাব বর্তমান | Indicates maximum 8/20 us surge-current capability |
| আইম্প | Impulse current | Indicates Type 1 lightning-current duty, commonly associated with 10/350 us waveform |
| এসসিসিআর | শর্ট-সার্কিট কারেন্ট রেটিং | Confirms suitability for available fault current at the installation point |
Do not choose an SPD only by Imax. A high Imax value with the wrong Uc or high Up can still be a poor selection.
For current-rating interpretation, use সার্জ প্রোটেকশন ডিভাইসের জন্য আইম্যাক্স বনাম ইন রেটিং. For type selection, use সার্জ প্রোটেক্টিভ ডিভাইস টাইপ ১ বনাম টাইপ ২ বনাম টাইপ ৩.
Common Uc and Up Selection Mistakes
| ভুল | ফলাফল | আরও ভালো উপায় |
|---|---|---|
| Choosing SPD only by Imax | Voltage protection may still be poor | Check Uc, Up, In/Imax/Iimp, type, and installation location together |
| Selecting Uc too close to nominal voltage | Heating, aging, nuisance disconnection, or premature end-of-life indication | Allow for normal voltage variation and TOV conditions |
| Selecting Uc unnecessarily high | Higher residual voltage and weaker protection for sensitive equipment | Use the lowest suitable Uc confirmed by system and manufacturer data |
| Comparing Up across different test conditions | Misleading product comparison | Compare Up only under the same standard, type, voltage class, and test context |
| Ignoring lead length | Real let-through voltage becomes higher than datasheet Up suggests | Keep SPD conductors short, straight, and correctly routed |
| Using AC SPD on PV DC system | Unsafe or non-compliant selection | Use PV/DC-rated SPD with correct Ucpv |
| Ignoring earthing system | Wrong protection mode or wrong voltage stress assumption | Confirm TN, TT, IT, PV, and protection-mode requirements before selecting Uc |

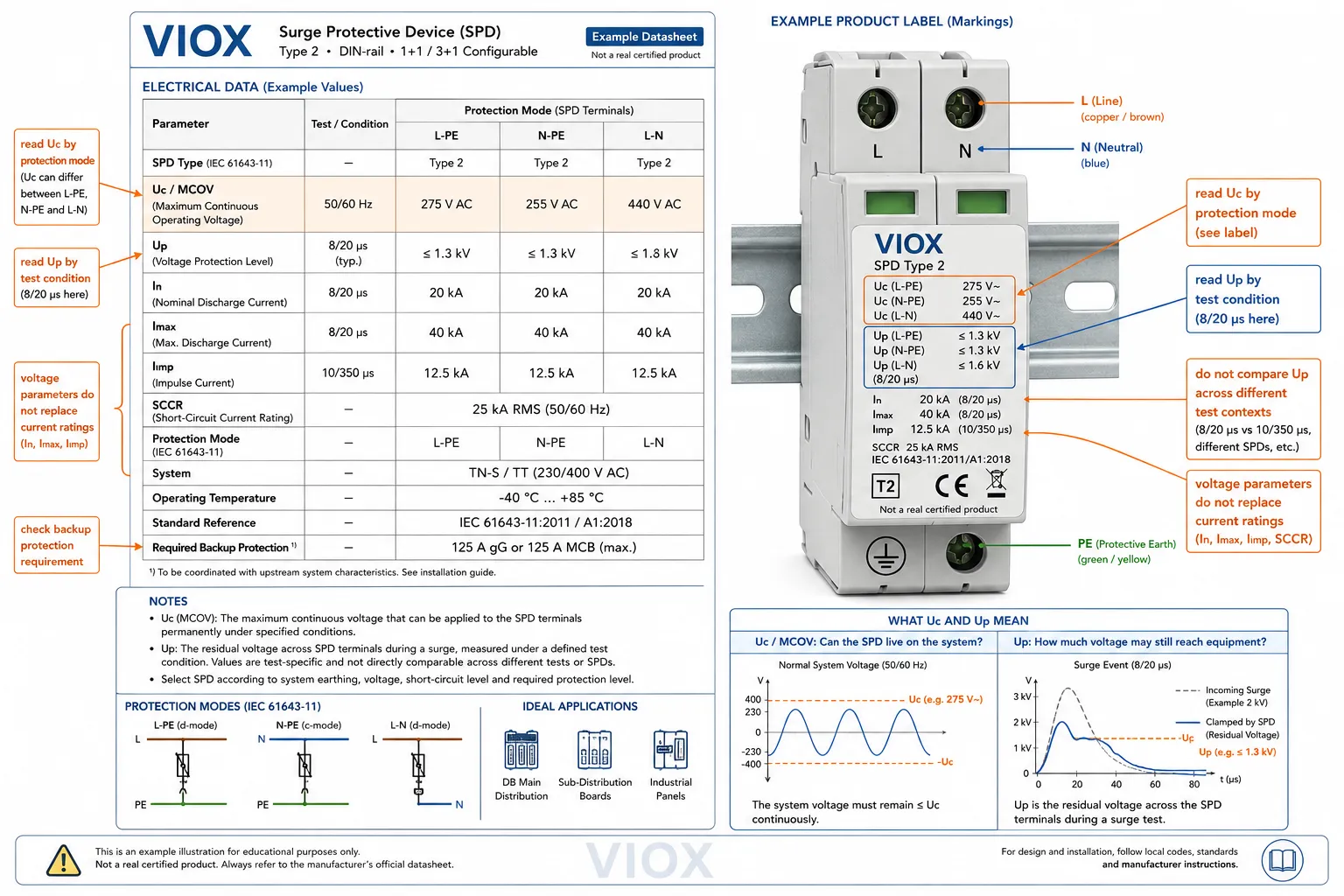

How to Read Uc and Up on an SPD Datasheet
When reviewing an SPD datasheet, do not read the front label as a collection of independent numbers. Read it as a protection design.
Use this sequence:
- Identify the SPD application. AC, DC, PV, signal, Type 1, Type 2, Type 3, or Type 1+2.
- Confirm the standard. IEC 61643-11 for AC low-voltage SPDs, IEC 61643-31 for PV DC-side SPDs, UL 1449 for North American SPD applications, or another local standard where required.
- Read Uc or MCOV by protection mode. Check whether the listed value applies to L-N, L-PE, N-PE, L-L, DC+/DC-, or DC-to-PE.
- Read Up by test condition. Confirm the SPD type, waveform, discharge current, and voltage class behind the published Up value.
- Compare Up with equipment withstand level. Include margin for lead length and coordination.
- Check In, Imax, Iimp, and SCCR. Voltage parameters do not replace surge-current and short-circuit checks.
- Confirm backup protection. Follow the manufacturer’s fuse or breaker requirement.
- Check installation diagram. The same SPD module may have different allowed wiring configurations depending on system type.
If you are moving from parameter reading to product evaluation, review the VIOX SPD product page and verify the exact model’s Uc, Up, In, Imax, Iimp, SCCR, protection mode, and installation instructions against the real project.
প্রায়শই জিজ্ঞাসিত প্রশ্নাবলী
What does Uc mean on an SPD?
Uc means maximum continuous operating voltage. It is the highest voltage that can be continuously applied across the SPD’s protection mode without abnormal operation. In UL terminology, the similar parameter is MCOV.
What does Up mean on an SPD?
Up means voltage protection level. It is the residual voltage that appears across the SPD terminals during a specified surge test. In practical terms, it describes the let-through voltage that downstream equipment may still see.
Is lower Up always better?
Lower Up generally means better voltage limitation, but only when comparing SPDs under the same standard, type, voltage rating, waveform, and test condition. Installation lead length and coordination also affect the real voltage seen by equipment.
What happens if Uc is too low?
If Uc is too low, the SPD may conduct during normal voltage variation or temporary overvoltage. This can accelerate aging, cause heating, trigger end-of-life indication, or disconnect the protection module.
What happens if Uc is too high?
If Uc is unnecessarily high, the SPD may provide less effective voltage limitation and may have a higher Up value. Higher Uc should be used only when required by system voltage, earthing arrangement, TOV behavior, or manufacturer guidance.
Is Uc the same as MCOV?
They are closely related terms from different standard contexts. Uc is commonly used in IEC-based SPD datasheets. MCOV, maximum continuous operating voltage, is commonly used in UL-based terminology.
How do I choose Uc for a TT or IT system?
For TT systems, pay close attention to N-PE behavior, temporary overvoltage, and the protection mode. For IT systems, the first fault condition can raise voltage stress on healthy conductors, so Uc selection may need additional margin. In both cases, use the project earthing design and manufacturer data rather than a generic voltage table alone.
Can I compare Up values from different SPD types?
Only with caution. Up values are meaningful when the standard, SPD type, voltage rating, waveform, discharge current, and test context are comparable. Comparing a Type 1 SPD and Type 2 SPD only by Up can lead to a wrong conclusion.
What is Ucpv on a DC solar SPD?
Ucpv is the maximum continuous operating voltage rating for a PV DC SPD. It must be selected against the maximum PV string open-circuit voltage, including cold-temperature correction, not just the nominal PV system voltage.
Should I choose an SPD by Uc and Up only?
No. Uc and Up are critical voltage parameters, but a complete SPD selection also checks Type 1/2/3, In, Imax, Iimp, SCCR, backup protection, earthing system, installation location, lead length, and applicable standard.
