What Are Disconnect Switches? (Understanding the Basics)
A disconnect switch, also known as a safety switch or isolation switch, is a manual device designed to completely cut off electrical power from a circuit or piece of equipment. These switches serve as the primary safety mechanism that allows maintenance workers to service electrical equipment without risk of electrocution or equipment damage.
The fundamental purpose of any disconnect switch is to create a physical gap in the electrical circuit, ensuring that no current flows to the downstream equipment. This isolation is critical for lockout/tagout (LOTO) procedures and compliance with workplace safety regulations.
NEC Requirements Overview
According to NEC Article 430.102B, disconnect switches must be located “in sight” from all motors and manufacturing equipment. The National Electrical Code defines “in sight” as visible and not more than 50 feet from the controlled equipment. This requirement ensures that maintenance personnel can quickly and safely disconnect power when needed.
Fused Disconnect Switches Explained
How Fused Disconnect Switches Work
Fused disconnect switches combine two essential functions in a single enclosure: circuit isolation and overcurrent protection. These devices contain fuses that will blow (open) when electrical current exceeds safe levels, protecting both the circuit and connected equipment from damage.
When an overload or short circuit occurs, the fuse element melts, creating an open circuit that stops current flow. This dual functionality makes fused disconnect switches particularly valuable in applications where additional circuit protection is necessary beyond what’s provided at the main panel.
Key Features of Fused Disconnect Switches
- Built-in Overcurrent Protection: The integrated fuses provide immediate protection against electrical faults, often reacting faster than distant circuit breakers.
- Visual Fault Indication: When a fuse blows, it’s immediately apparent which circuit experienced the fault, simplifying troubleshooting and maintenance.
- Enhanced Equipment Safety: Sensitive or expensive equipment benefits from the localized protection that prevents damage from electrical surges or faults.
- Compartmentalized Design: Many fused disconnect switches feature separated compartments for switching and fuses, allowing safer fuse replacement without exposure to line voltage.
Common Applications for Fused Disconnect Switches
- เครื่องจักรกลอุตสาหกรรมหนัก: Manufacturing equipment with variable loads benefits from the additional protection layer.
- ศูนย์ควบคุมมอเตอร์: Large motors without adequate upstream protection require fused disconnects for safe operation.
- Commercial HVAC Systems: Air conditioning units and heat pumps often specify fused disconnects for optimal protection.
- Processing Equipment: Food processing, chemical, and pharmaceutical equipment where downtime is costly.
Non-Fused Disconnect Switches Explained
How Non-Fused Disconnect Switches Work
Non-fused disconnect switches focus solely on circuit isolation without providing additional overcurrent protection. They rely on external devices like circuit breakers or fuses in the main panel to handle fault protection.
These switches operate by physically separating electrical contacts when opened, creating an air gap that prevents current flow. The simplicity of this design makes non-fused disconnect switches reliable, cost-effective, and easy to maintain.
Key Features of Non-Fused Disconnect Switches
- Simplified Operation: With fewer components, non-fused switches offer straightforward on/off operation with minimal maintenance requirements.
- Cost-Effective Solution: Lower initial cost and reduced component count make these switches attractive for budget-conscious applications.
- Quick Power Restoration: After resolving an issue, power can be restored immediately without replacing blown fuses.
- การออกแบบที่กะทัดรัด: Without fuse compartments, these switches require less space and are often easier to install in tight locations.
Common Applications for Non-Fused Disconnect Switches
- Light Commercial Applications: Office buildings, retail spaces, and small commercial facilities.
- Residential HVAC Systems: Home air conditioning and heating equipment with adequate panel protection.
- การใช้งานการควบคุมมอเตอร์: When motor starters include built-in overload protection.
- General Electrical Isolation: Equipment disconnection for maintenance when overcurrent protection exists elsewhere.
Side-by-Side Comparison: Fused vs. Non-Fused Disconnect Switches
| คุณสมบัติ | Fused Disconnect | Non-Fused Disconnect |
|---|---|---|
| หน้าที่หลัก | Isolation + Protection | Isolation Only |
| ระบบป้องกันกระแสไฟเกิน | Built-in via fuses | External devices required |
| Fault Indication | Visual (blown fuse) | None |
| การฟื้นฟูพลังงาน | Requires fuse replacement | Immediate switch reset |
| ต้นทุนเริ่มต้น | Higher | Lower |
| Maintenance Complexity | Moderate (fuse replacement) | ต่ำ |
| Enclosure Size | Larger | Smaller |
| Installation Complexity | Higher | Lower |
| Best for | Sensitive equipment, high-current loads | Cost-conscious, protected circuits |

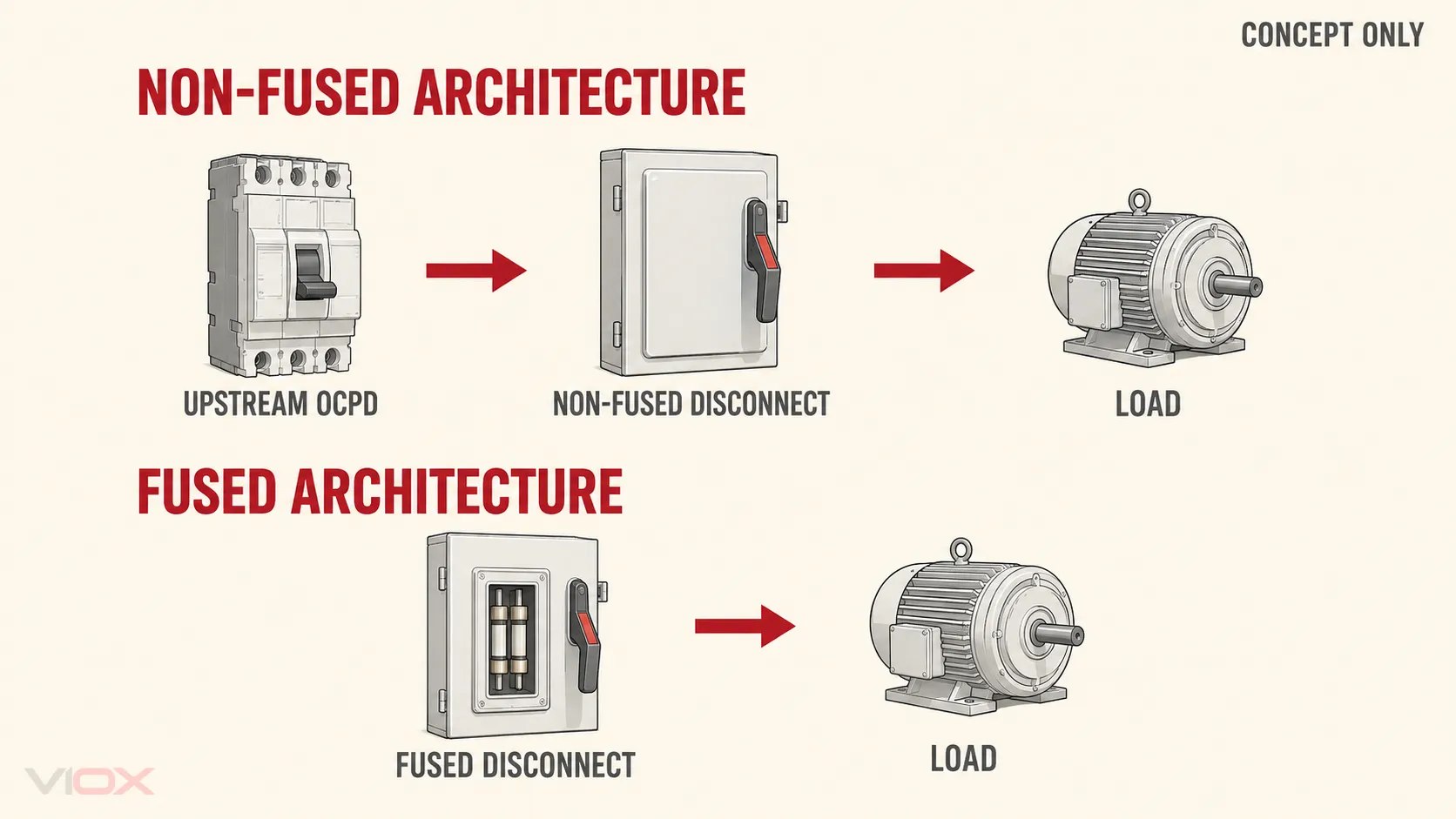

Protection Capabilities
The most significant difference lies in protection capabilities. Fused disconnect switches provide localized overcurrent protection that can respond faster than distant circuit breakers. This immediate protection is particularly valuable for:
- Equipment with surge-sensitive components
- Applications where upstream protection may be oversized
- Systems requiring precise fault current coordination
Non-fused disconnect switches depend entirely on upstream protection devices. While this approach works well in many applications, it may leave equipment vulnerable if the upstream protection is inadequate or improperly sized.
การพิจารณาต้นทุน
Initial Purchase Price: Non-fused disconnect switches typically cost 20-40% less than equivalent fused models. This cost difference increases with higher amperage ratings.
ต้นทุนการติดตั้ง: Fused switches require larger enclosures and more complex wiring, potentially increasing installation labor by 15-25%.
Long-term Maintenance: While fused switches require periodic fuse replacement, non-fused switches may experience more frequent contact maintenance due to higher fault current exposure.
Replacement Fuse Costs: Industrial fuses can range from $20-200+ depending on amperage and type, representing an ongoing operational expense.
When to Choose Fused Disconnect Switches
Ideal Applications
Choose fused disconnect switches when:
- Equipment Manufacturer Specifies Fuses: Many motor and equipment manufacturers require fused disconnects for warranty compliance and optimal protection.
- Inadequate Upstream Protection: When the main panel breaker is oversized for the specific equipment, localized fuse protection ensures proper coordination.
- Sensitive Electronic Equipment: Variable frequency drives, servo motors, and computerized equipment benefit from fast-acting fuse protection.
- High Fault Current Applications: In electrical systems with high available fault current, fuses can provide better arc energy limitation than some circuit breakers.
Regulatory Requirements
Several codes and standards favor or require fused disconnect switches:
- NEC Article 430: Motor protection requirements often necessitate fused disconnects.
- Equipment Standards: UL-listed equipment may specify fused disconnects for proper protection coordination.
- Insurance Requirements: Some insurance providers prefer fused disconnects for high-value equipment protection.
When to Choose Non-Fused Disconnect Switches
Optimal Use Cases
Select non-fused disconnect switches when:
- Adequate Upstream Protection Exists: When properly sized circuit breakers provide sufficient protection, additional fuses may be redundant.
- ข้อจำกัดด้านงบประมาณ: For cost-sensitive projects where basic isolation meets safety requirements.
- Simplified Maintenance Preferred: Applications where minimizing component count reduces maintenance complexity.
- Low-Risk Applications: Equipment with built-in protection or applications where fault risk is minimal.
Cost-Benefit Scenarios
Non-fused switches offer the best value when:
- Upstream protection is properly coordinated
- Equipment has internal overload protection
- Maintenance staff prefers simplified systems
- Initial cost is a primary concern
NEC Requirements and Code Compliance
Article 430.102B Requirements
The National Electrical Code establishes specific requirements for disconnect switch placement and operation:
- “In Sight” Definition: Disconnect switches must be visible and within 50 feet of controlled equipment. This ensures maintenance personnel can verify switch position before beginning work.
- Lockout/Tagout Compliance: Disconnect switches must be capable of being locked in the open position. Section 110.25 specifies that locking provisions must be permanently installed with the switch.
- Accessibility Standards: Switches must be readily accessible to qualified personnel but protected from accidental operation.
Installation Standards
- Enclosure Ratings: Choose appropriate NEMA ratings based on environmental conditions:
- NEMA 1: General purpose indoor use
- NEMA 3R: Outdoor applications with rain protection
- NEMA 4: Indoor/outdoor use with hose-down protection
- NEMA 4X: Corrosion-resistant for harsh environments
- Grounding Requirements: All metallic enclosures must be properly grounded per NEC Article 250.
2023 NEC Updates
Recent code updates include enhanced emergency disconnect requirements for residential applications. New dwellings must have readily accessible outdoor emergency disconnects for first responder safety.

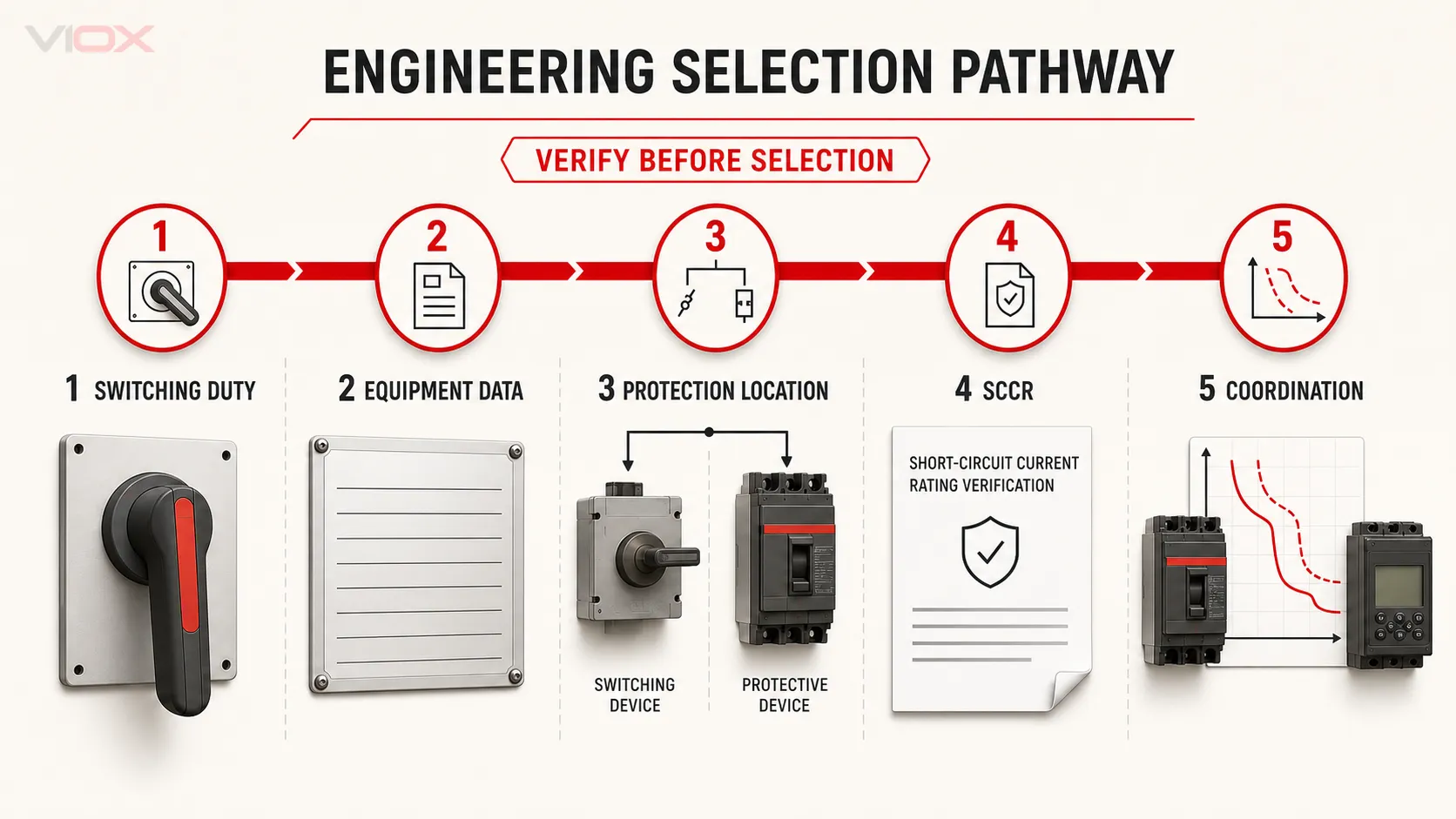

Selection Guide: Choosing the Right Disconnect Switch
Assessment Criteria
Follow this systematic approach for optimal switch selection:
- Evaluate Existing Protection:
- Review upstream circuit breaker sizing
- Assess protection coordination
- Consider fault current levels
- Identify protection gaps
- Assess Equipment Requirements:
- Check manufacturer specifications
- Review warranty requirements
- Consider equipment sensitivity
- Evaluate startup characteristics
- Consider Maintenance Factors:
- Evaluate staff capabilities
- Consider spare part availability
- Assess downtime tolerance
- Review maintenance schedules
- Review Regulatory Compliance:
- Verify NEC requirements
- Check local code amendments
- Consider insurance requirements
- Evaluate industry standards
- Calculate Total Cost of Ownership:
- Compare initial costs
- Factor maintenance expenses
- Consider downtime costs
- Evaluate replacement requirements
Common Selection Mistakes
Avoid these frequent pitfalls:
- Over-Specifying Protection: Adding unnecessary fused switches to already-protected circuits increases costs without benefit.
- Ignoring Maintenance Access: Installing switches in difficult-to-reach locations compromises safety and increases maintenance time.
- Undersizing for Future Needs: Failing to consider load growth may require premature replacement.
- Neglecting Environmental Factors: Inadequate enclosure ratings lead to premature failure and safety hazards.
แนวทางปฏิบัติที่ดีที่สุดในการติดตั้ง
การวางแผนก่อนการติดตั้ง
- Site Survey: Assess installation location for accessibility, environmental conditions, and code compliance.
- Load Calculations: Verify switch ratings match actual and projected electrical loads.
- Protection Coordination: Ensure proper coordination between upstream and downstream protective devices.
- Code Review: Confirm compliance with local electrical codes and amendments.
แนวทางการติดตั้งโดยมืออาชีพ
- Licensed Electrician Requirement: Most jurisdictions require licensed electricians for disconnect switch installation.
- Safety Protocols: Follow NFPA 70E requirements for electrical safety during installation.
- Testing and Commissioning: Verify proper operation, grounding, and protection coordination before energizing.
- เอกสารประกอบ: Maintain installation records, testing results, and as-built drawings.
การบำรุงรักษาและการแก้ไขปัญหา
Fused Disconnect Switch Maintenance
Regular Inspection Schedule:
- Monthly: Visual inspection of enclosure and external components
- Quarterly: Fuse condition check and connection inspection
- Annually: Complete electrical testing and mechanical operation verification
Fuse Replacement Procedures:
- Always de-energize the circuit before fuse replacement
- Use only manufacturer-specified fuse types and ratings
- Inspect fuse holders for damage or overheating
- Test proper operation after replacement
Common Failure Modes:
- Fuse degradation from repeated overloads
- Contact oxidation from environmental exposure
- Mechanical wear from frequent operation
Non-Fused Disconnect Switch Maintenance
Maintenance Advantages:
- Fewer components require attention
- No consumable parts to replace
- Simpler troubleshooting procedures
Inspection Points:
- Contact condition and alignment
- Mechanical operation smoothness
- Enclosure integrity and sealing
- Connection tightness
การแก้ไขปัญหาทั่วไป
Switch Won’t Operate:
- Check for mechanical obstructions
- Verify proper handle engagement
- Inspect for contact welding
Nuisance Operations:
- Review load characteristics
- Check protection coordination
- Verify environmental conditions
Contact Deterioration:
- Monitor connection temperatures
- Assess load current levels
- Consider environmental factors
Cost Analysis and ROI Considerations
Initial Investment Comparison
Equipment Costs by Rating:
- 30A Non-fused: $85-150
- 30A Fused: $125-220
- 100A Non-fused: $200-350
- 100A Fused: $280-475
Installation Factors:
- Fused switches require 25-40% larger enclosures
- Additional wiring complexity adds 15-25% to installation time
- Specialized fuse types may require specific supply arrangements
Long-term Operating Costs
Maintenance Frequency:
- Fused switches: Quarterly inspections, annual fuse checks
- Non-fused switches: Semi-annual inspections, bi-annual testing
Replacement Considerations:
- Fuse costs: $20-200+ per fuse depending on type and rating
- Contact replacement: $50-300+ depending on switch size
- Labor costs: 2-4 hours for major maintenance
Downtime Analysis:
- Fused switches: Immediate fault indication, fuse replacement time
- Non-fused switches: Faster restoration, potentially longer troubleshooting
Industry Applications and Case Studies
Manufacturing and Industrial
การใช้งานการควบคุมมอเตอร์: Large industrial motors benefit from fused disconnects that provide both isolation and protection. A textile manufacturer reduced motor failures by 40% after upgrading to properly sized fused disconnects.
อุปกรณ์กระบวนการ: Chemical processing equipment requires reliable disconnect switches that can handle corrosive environments. Stainless steel NEMA 4X fused disconnects provide both protection and longevity.
อาคารพาณิชย์
HVAC System Protection: Office buildings commonly use non-fused disconnects for rooftop units when adequate panel protection exists. This approach reduces initial costs while maintaining safety.
Emergency Power Systems: Backup generators typically require non-fused disconnects for simple isolation during maintenance, relying on upstream protection for fault clearing.
พลังงานทดแทน
Solar Panel Systems: DC disconnect switches (typically non-fused) are required for solar installations, with circuit protection provided by specialized DC circuit breakers.
Wind Turbine Applications: High-voltage disconnect switches in wind turbines often use fused designs for enhanced protection in remote locations.
Future Trends and Technologies
Smart Disconnect Switches
Modern disconnect switches increasingly incorporate intelligent features:
- การรวม IoT: Remote monitoring capabilities allow facility managers to track switch status and receive maintenance alerts.
- Predictive Maintenance: Advanced switches can monitor contact condition and predict maintenance needs before failure occurs.
- Remote Operation: Some applications benefit from remotely operated disconnect switches that enhance safety during emergency situations.
คุณสมบัติความปลอดภัยขั้นสูง
- Arc Flash Mitigation: New designs incorporate features that reduce arc flash energy during switching operations.
- Improved Lockout Mechanisms: Enhanced lockout devices provide better security and visual indication of locked status.
- Environmental Resistance: Advanced materials and sealing techniques extend switch life in harsh environments.
บทสรุป
The choice between fused and non-fused disconnect switches depends on your specific application requirements, existing protection systems, and operational priorities. Fused disconnect switches provide valuable localized protection for sensitive or critical equipment, while non-fused switches offer cost-effective isolation for adequately protected circuits.
Key Selection Factors:
- Protection Needs: Choose fused when additional overcurrent protection is required.
- Cost Constraints: Select non-fused for budget-conscious applications with adequate upstream protection.
- Maintenance Preferences: Consider staff capabilities and spare part availability.
- Code Compliance: Ensure selection meets all applicable electrical codes and standards.
Professional Consultation Recommended: Given the complexity of electrical protection coordination and safety requirements, consult with licensed electrical professionals for proper disconnect switch selection and installation. Their expertise ensures optimal safety, code compliance, and long-term performance.
Whether you choose fused or non-fused disconnect switches, proper selection, installation, and maintenance are essential for electrical safety and system reliability. Regular inspection and adherence to manufacturer guidelines will ensure years of safe, dependable operation.
ที่เกี่ยวข้อง
สวิตช์เปลี่ยนคืออะไร: คู่มือฉบับสมบูรณ์
