Solar PV & Energy Storage Protection Components
Coordinate DC connection, overcurrent protection, surge protection and isolation from PV strings to inverter and battery-side DC circuits.
Map protection by its place in the DC system.
Connection, overcurrent protection, isolation and surge protection perform different duties. Start with the system architecture, then verify each device against the maximum voltage, current, fault conditions and installation rules.
- Фотоэлектрические стрингиSource circuits from the array
- СоединятьPV field connections
- Combine & protectString combining and overcurrent functions
- ИзоляцияDefined DC isolation point
- ConvertInverter or power-conversion input
Conceptual system map—not a wiring diagram. The exact location, device type, ratings and coordination depend on the PV or storage architecture, equipment instructions and applicable installation requirements.
Battery-side DC protection is a separate design decision.
Confirm bidirectional current, maximum DC voltage, prospective fault current, isolation requirements and the battery or PCS manufacturer’s instructions before applying a PV-oriented component to a storage circuit.
Choose products by protection function.
Use these product families to build a shortlist, then confirm the exact model, ratings, wiring arrangement and documents for the selected project.
Распределительные коробки для солнечных батарей
Combine multiple PV strings and organize string-level protective functions.
Explore the range →
DC Miniature Circuit Breakers
Interrupt overload and short-circuit current within the model’s declared DC ratings.
Explore the range →
Photovoltaic DC Isolators
Provide a defined means of DC isolation for the selected system position.
Explore the range →
PV Surge Protective Devices
Limit transient overvoltage through a coordinated protection path to earth.
Explore the range →
Держатели предохранителей постоянного тока
Support replaceable DC fuse protection where the system design requires it.
Explore the range →

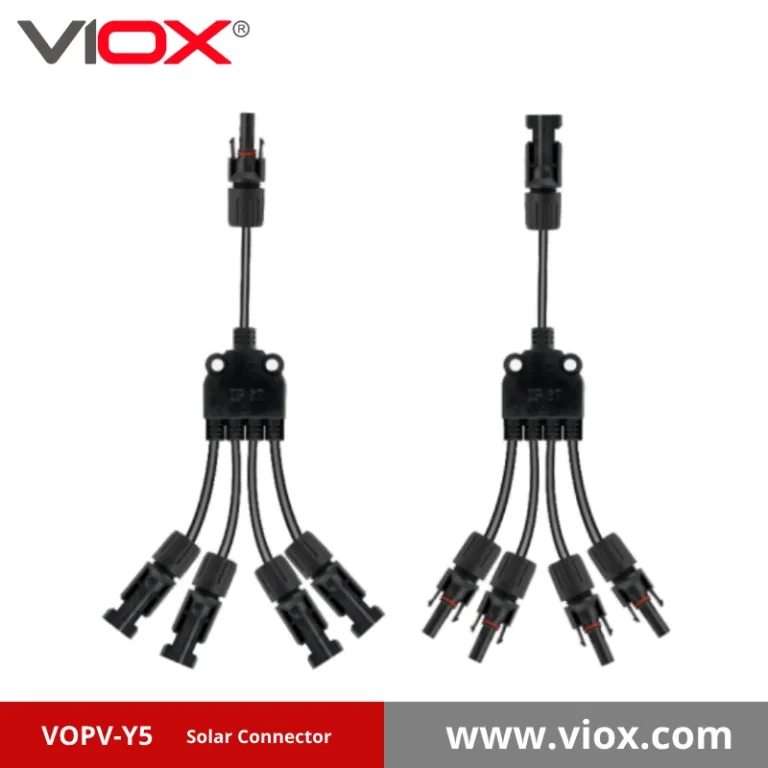

MC4-Compatible Connectors
Create field connections between PV conductors and compatible solar equipment.
Explore the range →The same product category serves different system conditions.
Application scale alone does not determine a model. Array architecture, electrical ratings, environmental exposure and maintenance strategy define what must be verified.
- Жилая крышная фотоэлектрическая система
- Confirm string count, maximum array voltage, inverter instructions, accessibility and required isolation points.
- Commercial & industrial rooftops
- Review multiple arrays, longer conductor paths, combiner architecture, coordination and enclosure conditions.
- Ground-mounted solar systems
- Account for array segmentation, environmental exposure, cable routes, fault conditions and service isolation.
- Аккумуляторные системы накопления энергии
- Verify source behavior, bidirectional current, DC fault energy and the exact battery and PCS requirements.
Prepare your solar DC protection specification.
Share confirmed values and mark unknown items for engineering review. A project name such as “rooftop solar” is not enough to select DC protective equipment.
- Архитектуры системы
- PV-only or PV plus storage, inverter or PCS arrangement, and required DC isolation points.
- Напряжение
- Maximum corrected PV voltage or battery operating-voltage range.
- Current & strings
- String current, parallel-string count, conductor capacity and expected operating current.
- Fault conditions
- Available DC fault current, source behavior and required interruption or backup coordination.
- Surge & grounding
- Earthing arrangement, protection modes, SPD location and upstream/downstream coordination.
- Installation & order
- Environment, enclosure, temperature, destination market, quantity and required documents.
Solar DC design and selection guides
Use the technical library to resolve system-level questions before confirming a product family or model.
Planning a solar PV or battery DC system?
Share the system voltage, current, string layout, protection scope, installation environment and target market with VIOX.
