CTB5515 Keramik-Klemmleiste

The CTB5515 Ceramic Terminal Block represents a significant advancement in multi-circuit connection technology, offering exceptional flexibility for complex electrical systems requiring multiple parallel connections. This professional-grade 5-in-5-out terminal block combines a 15A current rating with superior thermal stability and outstanding electrical insulation properties, making it the ideal choice for engineers and electricians working on sophisticated projects requiring multiple medium-current connections with unwavering reliability and safety.

Optimized Multi-Circuit Design for Complex Electrical Systems

The CTB5515 features an innovative 5-in-5-out configuration specifically engineered to maximize connection flexibility while maintaining a streamlined, low-profile form factor. Precision-manufactured from high-frequency ceramic material, this terminal block delivers superior insulation properties that significantly outperform conventional plastic alternatives in medium-current, high-temperature environments. The ceramic housing ensures complete resistance to aging, cracking, and deformation even under extreme temperature conditions up to 750°C, guaranteeing long-term stability and safety for your complex electrical connections.

Each terminal block incorporates ten precision-engineered connection points with copper core conductors for optimal electrical performance and M3-compatible screw terminals manufactured from durable iron-plated zinc material. This construction provides secure and reliable wire clamping that withstands vibration and thermal cycling without loosening over time, ensuring consistent electrical contact across all five circuits in demanding applications.

Hauptmerkmale und technische Vorteile

• Maximum Connection Flexibility: Five-in, five-out design enables complex multi-circuit configurations while maintaining compact dimensions
• Optimized Low-Profile Design: Slimline 13mm height allows installation in space-constrained applications while accommodating five complete circuits
• Extended Connection Array: 50mm length provides ample spacing between connection points for secure wire termination
• Enhanced Mounting System: Built-in 30mm spaced mounting holes for secure and standardized installation
• M3 Screw Compatibility: Designed to work with standard M3 screws for secure connections in space-constrained applications
• Moderate Wire Capacity: Accommodates wire gauges from 0.5mm² to 3mm², balancing current capacity with compact dimensions
• Hervorragende Temperaturbeständigkeit: Withstands continuous operation at high temperatures up to 750°C, ideal for applications where plastic terminals would fail
• Hervorragende elektrische Isolierung: Das keramische Material bietet eine außergewöhnliche Durchschlagsfestigkeit und verhindert Leckströme zwischen benachbarten Schaltkreisen
• Flammhemmend: Natürlich feuerfestes Material verhindert das Risiko einer Entzündung oder Flammenausbreitung
• Chemische Beständigkeit: Unempfindlich gegen Öle, Lösungsmittel und die meisten Säuren, was eine lange Lebensdauer in rauen chemischen Umgebungen gewährleistet

Technische Daten

CTB5515 Detailed Specifications:

• Aktuelle Bewertung: 15A per circuit
• Konfiguration: Five-in, Five-out

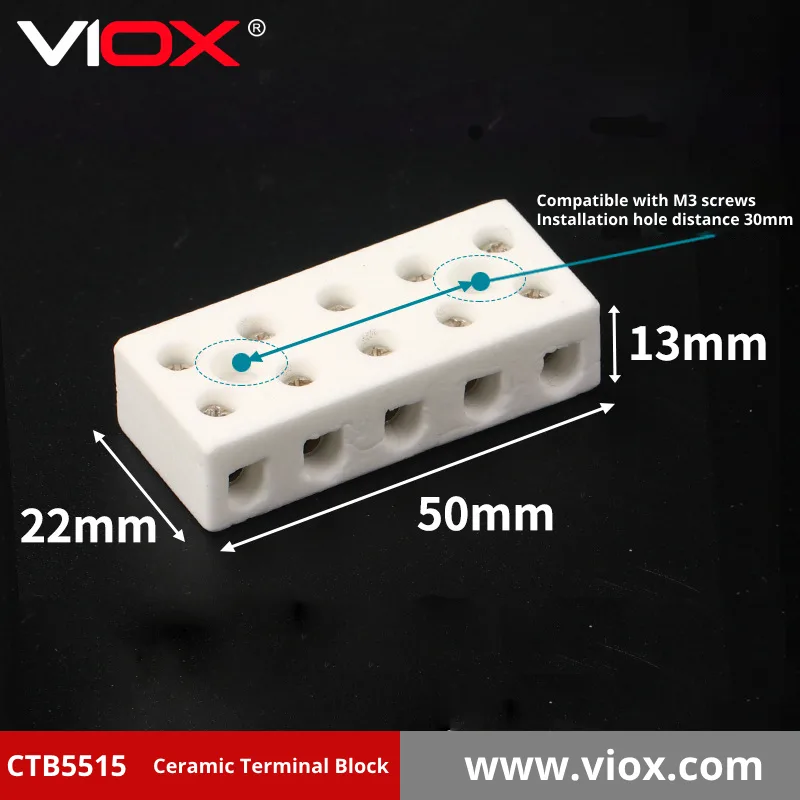

• Abmessungen: 50mm (L) × 22mm (W) × 13mm (H)
• Drahtbereich: 0.5-3mm²
• Durchmesser des Drahteingangslochs: 3mm
• Material des Gehäuses: Hochfrequenz-Keramik
• Material des Leiters: Kupferkern
• Material der Schraube: Eisenbeschichtetes Zink
• Kompatibilität der Schrauben: M3 thread
• Abstand der Befestigungslöcher: 30mm center-to-center
• Kompatible Kabeltypen: Sowohl für weiche als auch für harte Drähte geeignet
• Maximale Betriebstemperatur: 750°C
• Dielektrische Festigkeit: 2.8kV
• Isolationswiderstand: >1000MΩ bei 500VDC
• Durchgangswiderstand: <0.5mΩ
• Maximales Drehmoment: 0.6-0.8 N·m

Vielseitige Anwendungen

The CTB5515 Ceramic Terminal Block is specifically designed for complex applications requiring multiple medium-current circuits with a compact footprint:

• Complex Control Systems: Instrumentation and control panels requiring multiple isolated medium-current circuits
• Multi-Circuit Lighting: Sophisticated lighting systems with multiple independent control circuits
• Signalverarbeitung: Industrial instrumentation requiring multiple isolated signal circuits with high thermal stability
• Multi-Zone Environmental Control: Heating, cooling, and ventilation systems with multiple independent zones
• Automobilanwendungen: Specialized vehicle electrical systems requiring multiple isolated circuits in high-temperature environments
• Testing Equipment: Multi-channel testing apparatus requiring separate circuit isolation
• Audio/Visual Systems: Professional A/V equipment requiring multiple isolated signal paths
• Erneuerbare Energien: Solar and alternative energy systems with multiple monitoring and control circuits

Professionelle Installationsrichtlinien

For optimal performance, safety, and reliability in complex multi-circuit applications, follow these installation guidelines:

1. Stellen Sie sicher, dass die Montagefläche sauber, eben und hitzebeständig ist.
2. Utilize the integrated 30mm mounting holes for secure attachment
3. Plan circuit layout carefully to maintain proper separation between different electrical potentials
4. Strip wires to the appropriate length (typically 5-7mm for smaller gauge wires)
5. Lösen Sie die Klemmenschrauben vollständig, bevor Sie die Drähte einführen.
6. Führen Sie den Draht vollständig in die Öffnung der Klemme ein.
7. Tighten M3 screws to a torque of 0.6-0.8 N·m, being careful not to overtighten
8. Überprüfen Sie die sichere Verbindung durch leichtes Ziehen an jedem Kabel.
9. Achten Sie bei der Verwendung mehrerer Stromkreise auf eine ordnungsgemäße Isolierung zwischen verschiedenen elektrischen Potentialen.
10. Beschriften Sie jeden Stromkreis deutlich für zukünftige Wartung und Fehlersuche

The CTB5515 Advantage: Multi-Circuit Excellence with Compact Design

The CTB5515 Ceramic Terminal Block offers an exceptional balance of connection capacity, compact dimensions, and reliability for applications requiring multiple medium-current circuits. Its unique five-in, five-out configuration with low-profile design provides maximum connection flexibility while minimizing space requirements – making it the ideal choice for complex electrical systems where multiple circuits must be accommodated in limited space without compromising on reliability or thermal performance.

Trust in the proven performance of our ceramic terminal block technology combined with precision engineering to provide safe, reliable electrical connections for your most complex multi-circuit applications. The CTB5515 represents the perfect combination of connection flexibility, compact design, and thermal stability for today’s sophisticated electrical systems.
