নিচের লাইন আপ ফ্রন্ট: Selecting the right industrial plugs and sockets requires evaluating five critical factors: voltage and current requirements, environmental protection (IP ratings), applicable standards (IEC 60309), operating conditions, and application-specific needs. This comprehensive guide helps you make informed decisions that ensure safety, reliability, and compliance.
What Are Industrial Plugs And Sockets?
Industrial plugs and sockets are heavy-duty electrical connectors designed to handle higher voltages, currents, and harsh environmental conditions compared to standard household connectors. Unlike domestic plugs, they are engineered to operate under elevated voltage, extreme temperatures, and adverse environments such as manufacturing, construction, and agricultural settings.
The global industrial plug and socket market is projected to reach $5.1 billion by 2034, growing at a 5.1% CAGR, driven by increasing industrial automation and infrastructure development.
Key Selection Criteria For Industrial Plugs And Sockets
1. Voltage And Current Ratings
Primary Consideration: Always match the connector’s ratings to your equipment’s specifications.
ভোল্টেজ রেটিং:
- কম ভোল্টেজ: 24V to 42V for control circuits
- Standard industrial: 110V to 230V for single-phase applications
- Three-phase power: 230V to 400V for motor drives and heavy machinery
- উচ্চ ভোল্টেজের: Above 400V up to 1000V for specialized industrial equipment
বর্তমান রেটিং: Current ratings range from 16A to 125A for standard industrial applications, with specific ratings including:
- ১৬ক: Light industrial equipment, portable tools
- ৩২এ: Medium-power machinery, welding equipment
- ৬৩এ: Heavy industrial motors, large machinery
- 125A: High-power applications, distribution panels
2. Environmental Protection (IP Ratings)
IP (Ingress Protection) ratings indicate how well connectors resist dust and water ingress. The IP rating uses two digits: the first (0-6) indicates dust protection, while the second (0-8) shows water resistance capability.
Critical IP Ratings for Industrial Use:
IP44 – Basic Industrial Protection
- Dust protection: Prevents objects larger than 1mm from entering
- Water protection: Protects against water splashing from any direction
- অ্যাপ্লিকেশন: Indoor industrial environments, protected outdoor areas
IP67 – Advanced Industrial Protection
- Dust protection: Complete dust protection
- Water protection: Safe underwater immersion up to 1 meter for short periods
- অ্যাপ্লিকেশন: Outdoor installations, marine environments, food processing
IP55 – Intermediate Protection
- Dust protection: Limited dust ingress (no harmful deposits)
- Water protection: Protection against water jets from any direction
- অ্যাপ্লিকেশন: Semi-exposed industrial areas, construction sites
3. Standards And Certifications
IEC 60309 is the international standard for industrial plugs and sockets, covering connectors up to 1000V DC/AC, 800A current, and 500Hz frequency. This standard ensures global compatibility and safety.

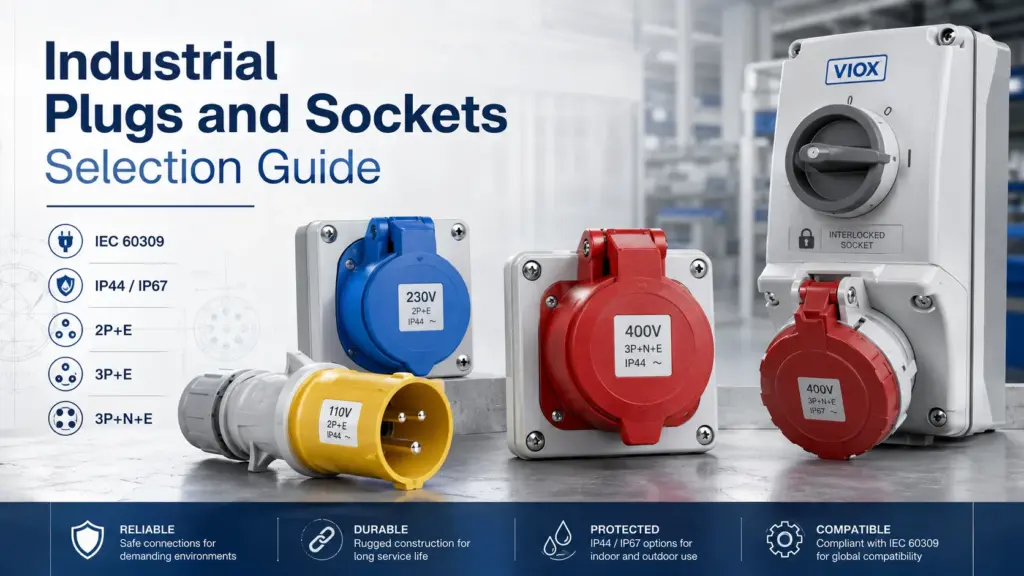

Color Coding System: The IEC 60309 standard uses specific colors to prevent dangerous misconnections:
- Yellow: 110V applications
- নীল: 230V single-phase
- Red: 400V three-phase
- Black: 500V (often marine applications)
- Green: High-frequency applications (above 60Hz)
Pin Configurations:
- 2P+E: Two poles plus earth (single-phase)
- 3P+E: Three poles plus earth (three-phase without neutral)
- 3P+N+E: Three poles plus neutral plus earth (three-phase with neutral)
Essential Certifications:
- UL (Underwriters Laboratories): Mandatory for US operations, ensuring rigorous safety testing
- সিই মার্কিং: Required for European markets
- IEC Compliance: Validates global safety criteria and international compatibility
4. Operating Environment Assessment
Temperature Considerations: Standard industrial connectors operate in ambient temperatures from -25°C to 40°C. Consider:
- Cold environments: Ensure materials remain flexible
- High-temperature areas: Select heat-resistant materials like polyamide 6
- Thermal cycling: Choose connectors rated for temperature fluctuations
Chemical Resistance: Evaluate exposure to:
- Oils and lubricants: Common in manufacturing environments
- Cleaning chemicals: Essential for food processing and pharmaceutical facilities
- Corrosive substances: Critical for chemical plants and marine applications
Mechanical Stress Factors:
- কম্পন: Motors and heavy machinery generate constant vibration
- Impact resistance: Construction sites require robust housings
- Cable strain relief: Prevents connection failure from cable movement
5. Application-Specific Requirements
Construction Sites
- Protection level: Minimum IP44, preferably IP67
- ভোল্টেজ: Often 110V for safety (yellow connectors)
- ফিচার: Interlock mechanisms to prevent live disconnection
উৎপাদন সুবিধা
- Current capacity: 32A to 63A for typical machinery
- Three-phase power: Red 400V connectors for motor drives
- Easy maintenance: Accessible connections for quick servicing
Marine And Offshore
- Protection: IP67 minimum for saltwater environments
- Materials: Corrosion-resistant metals and UV-stable plastics
- Special ratings: Consider IP69K for high-pressure washdown applications
খাদ্য প্রক্রিয়াকরণ
- Hygiene compliance: Smooth surfaces, easy cleaning
- রাসায়নিক প্রতিরোধের: Withstand sanitizing solutions
- Temperature ratings: Handle both high-heat processing and freezer environments
Advanced Selection Considerations
Interlocking Systems
Interlocked sockets prevent accidental disconnection by cutting power when unplugging and locking plugs until power is switched off. Essential for:
- High-current applications (above 32A)
- Safety-critical equipment
- Automated systems where accidental disconnection could cause damage
Cable Entry And Strain Relief
Threaded Cable Glands:
- Provide IP67 sealing when properly installed
- Accommodate various cable diameters
- Include strain relief to prevent cable damage
Push-In Terminals vs. Screw Terminals:
- স্ক্রু টার্মিনাল: More secure for permanent installations
- Push-in terminals: Faster installation, suitable for frequent changes
Future-Proofing Considerations
Amperage Headroom: Select connectors with 25% higher current rating than immediate needs to accommodate:
- Equipment upgrades
- Load increases
- Safety margins for aging connections
Modularity: Choose systems that allow:
- Easy replacement of individual components
- Standardization across multiple applications
- Compatibility with existing infrastructure
Common Selection Mistakes To Avoid
Undersizing Current Capacity
Under-sizing can lead to overheating and equipment malfunction. Always:
- Calculate total load including inrush current
- Add safety margin for continuous operation
- Consider ambient temperature derating
Inadequate Environmental Protection
Indoor vs. Outdoor Ratings:
- Indoor environments typically require minimum IP44
- Outdoor applications need IP66 or higher
- Marine environments demand specialized corrosion protection
Ignoring Standards Compliance
Regional Requirements:
- North American installations may require dual-rated Series I/II compliance
- European markets mandate CE marking
- Export markets need IEC certification
ইনস্টলেশনের সর্বোত্তম অনুশীলন
সঠিক মাউন্টিং
Socket Orientation: Mount sockets facing downward for optimal weather protection in outdoor installations.
অ্যাক্সেসযোগ্যতা:
- Ensure adequate clearance for plug insertion/removal
- Provide suitable lighting for connection procedures
- Consider ergonomic factors for frequent use
নিয়মিত রক্ষণাবেক্ষণ
Inspection Schedule:
- Monthly: Visual inspection for damage or corrosion
- Quarterly: Connection tightness verification
- Annually: Complete electrical testing and IP rating verification
Preventive Measures:
- Keep spare sealing rings for IP67 connectors
- Maintain manufacturer-recommended torque specifications
- Document all installations with ratings and certifications
Types Of Industrial Plugs And Sockets
IEC 60309 Pin & Sleeve Connectors (CEE Connectors)
Most Common Industrial Standard: IEC 60309 connectors, also known as CEE, CEEform, or “pin & sleeve” connectors, are the most widely used industrial electrical connectors globally. These connectors feature:
Pin Configurations:
- 2P+E: Two poles plus earth (single-phase applications)
- 3P+E: Three poles plus earth (three-phase without neutral)
- 3P+N+E: Three poles plus neutral plus earth (three-phase with neutral)
- P+N+E: Phase, neutral, and earth (single-phase with neutral)
বর্তমান রেটিং: 16A, 32A, 63A, 125A, and up to 800A for specialized applications.
NEMA Industrial Connectors (North American)
American Pin & Sleeve Standard: IEC 60309 Series II (North American) pin and sleeve connectors have gained significant traction in North America over the course of the last 30 years. Features include:
বর্তমান রেটিং: 20A, 30A, 60A, 100A, 200A, 300A, 350A, 500A, and 600A.
ভোল্টেজ রেটিং: Up to 1000V AC.
Color Coding: Yellow (125V), Blue (250V), Orange (125/250V), Red (380-480V), Black (600V).
High-Current Industrial Connectors
VEAM Powerlocks:
- রেটিং: 400A or 660A at 1kV
- Configuration: Single pole (five required for three-phase with neutral and ground)
- অ্যাপ্লিকেশন: Generator connections, high-power distribution boards
Cam-Lok Connectors:
- রেটিং: 600V 400A (E1016 Series)
- ডিজাইন: Single pole connector system
- Uses: High-current temporary power distribution
Specialized Industrial Connector Types
Interlocked Sockets: Sockets that have a switch or a circuit breaker that prevents the plug from being inserted or removed when the power is on. Essential safety features for industrial applications.
Lewden Waterproof Connectors: Metal bodied waterproof plugs and sockets made by Lewden with pin arrangements the same as BS 1363 and BS 546 plugs.
Socapex Multi-Pin Connectors: 19-pin connector often encountered on theatre and studio lighting rigs for running separate feeds through multicable.
প্রায়শই জিজ্ঞাসিত প্রশ্নাবলী (FAQ)
General Selection Questions
Q: What’s the difference between industrial and domestic plugs and sockets?
A: Industrial plugs and sockets are different from home plugs as they are more power, current and thermally intensive. They’re designed to handle higher voltages (up to 1000V), higher currents (up to 800A), harsh environmental conditions, and provide superior safety features like weatherproofing and interlocking mechanisms.
Q: What does IP44 vs IP67 mean for industrial connectors?
A: IP44 industrial sockets are capable of preventing particles larger than 1mm from entering while keeping safe when liquid splashes from any directions. IP67 industrial sockets completely prevent any dust from entering while keeping safe underwater (no deeper than 1 meter) for short periods.
Q: Can I use European IEC 60309 connectors in North American applications?
A: While mechanically similar, EU products have oddball European ampere ratings (EU 16A vs US 20A) and different voltage ratings. Without UL/CSA certification, they cannot be legally used in the US. Look for dual-rated Series I/II connectors for international compatibility.
Technical Standards Questions
Q: What is CEE form and how does it relate to IEC 60309?
A: CEE form refers to industrial plugs and sockets made to IEC 60309 standards. The CEE name originated from CEE 17, the original European standard that evolved into today’s IEC 60309.
Q: What color codes are used for IEC 60309 connectors?
A: The most widespread color codes are yellow 110V, blue 230V, and red 400V. Black 500V is often found on ships. For higher frequencies beyond 60Hz (up to 500Hz) green connectors are used. For any other voltage and frequency a grey housing is used.
Q: What’s the difference between 3P+E and 3P+N+E configurations?
A: 3P+E (three phase without neutral) is used for loads like motors that don’t need neutral, while 3P+N+E includes the neutral wire for three-phase loads requiring it. 3P+E has 4 pins, while 3P+N+E has 5 pins.
Application and Installation Questions
Q: When should I use interlocked industrial sockets?
A: Interlocked sockets are commonly used to enhance electrical safety in industrial plants. The interlock cuts power to the socket when nothing’s plugged in and locks any plug in the socket until the power is turned off. Essential for currents above 32A and safety-critical applications.
Q: What current rating should I choose for my application?
A: Always select a connector rated at least 25% higher than your equipment’s maximum current draw. Current ratings range from 16A to 125A for industrial plugs and sockets, with specific applications:
- 16A: Light industrial equipment, portable tools
- 32A: Medium-power machinery, welding equipment
- 63A: Heavy industrial motors, large machinery
- 125A: High-power applications, distribution panels
Q: Can I mount industrial sockets in any orientation?
A: When sockets are mounted looking downwards then the connector system is rated for outdoor use in all weather. This orientation provides optimal protection against water ingress.
Safety and Maintenance Questions
Q: Why do some industrial connectors have pilot pins?
A: Connectors rated at 63A and 125A may optionally feature a 6mm pilot contact located at the center. This smaller pin is shorter and designed to make contact after all other pins when inserted, and break contact before others during disconnection. The pilot contact switches off the load before separation to prevent dangerous arcing.
Q: What makes industrial plugs safer than standard plugs?
A: Industrial plugs and sockets are engineered to avoid shock, short circuit or fire. Most incorporate essential safety features such as grounding pins or locking systems to maintain tight engagement. They also feature weatherproofing, interlocking, and are switch-rated for disconnection under load.
Q: How often should I inspect industrial electrical connections?
A: Recommended inspection schedule:
- Monthly: Visual inspection for damage or corrosion
- Quarterly: Connection tightness verification
- Annually: Complete electrical testing and IP rating verification
Cost and Procurement Questions
Q: Are industrial plugs and sockets more expensive than standard ones?
A: Industrial plugs and sockets are relatively inexpensive and more affordable than having various wires and cables that would perform the same functions. While initial cost is higher than domestic connectors, they provide better value through durability, safety, and reduced maintenance.
Q: What certifications should I look for when purchasing?
A: Essential certifications include:
- UL/CSA: Required for North American installations
- সিই মার্কিং: Mandatory for European markets
- IEC Compliance: Validates global safety criteria
- ATEX/IECEx: For hazardous area applications
উপসংহার
Selecting industrial plugs and sockets requires careful evaluation of voltage/current requirements, environmental protection needs, applicable standards, and specific application demands. With the industrial electrical market expanding rapidly, making informed connector choices ensures safety, reliability, and long-term cost-effectiveness.
মূল বিষয়গুলি:
- Always prioritize safety certifications and standards compliance
- Match IP ratings to actual environmental conditions
- Allow for future expansion when selecting current ratings
- Consider total cost of ownership, including maintenance and replacement
For complex applications or specialized environments, consult with certified electrical engineers and connector manufacturers to ensure optimal selection and installation practices.
