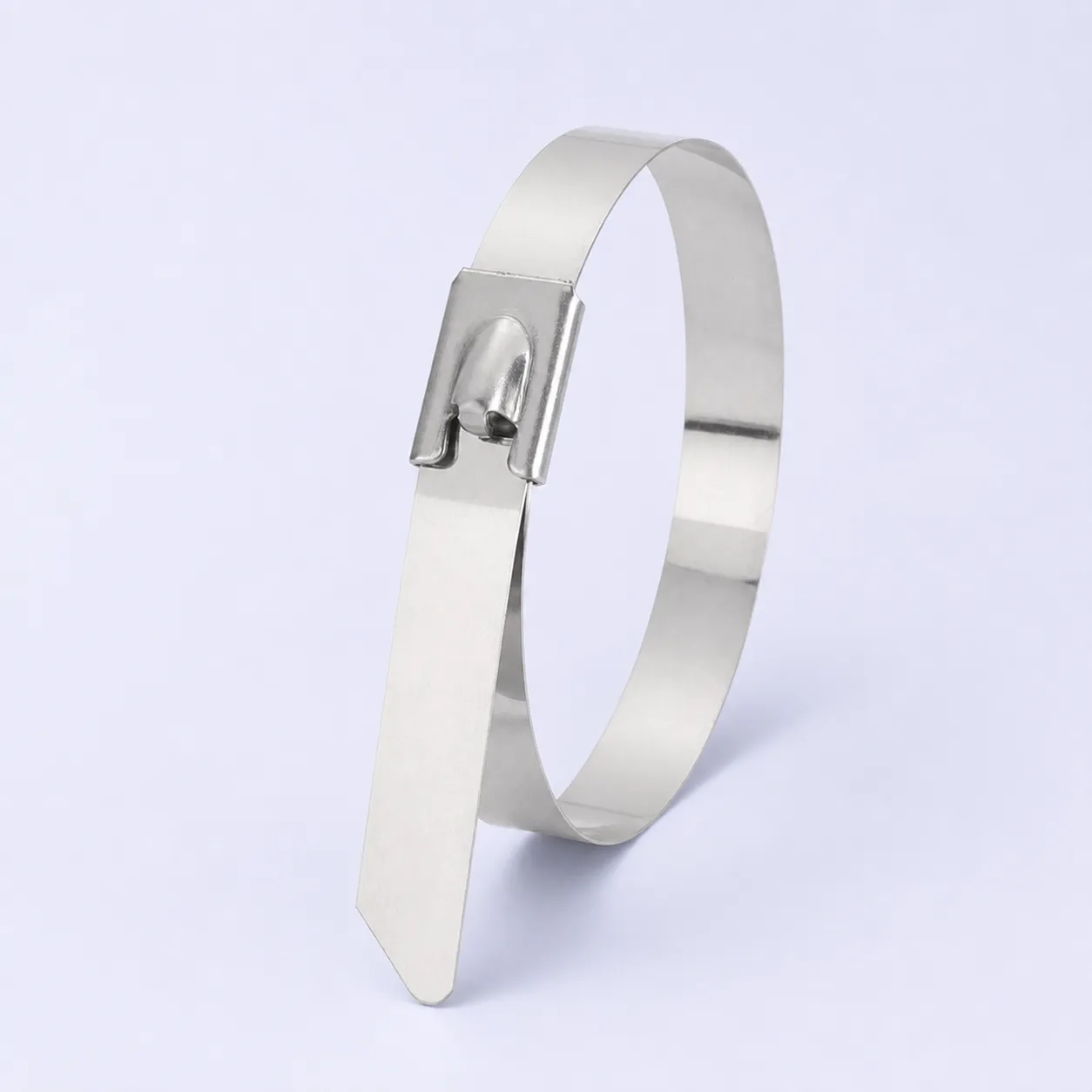

Uncoated Ball Lock Stainless Steel Cable Tie
- Unique self-locking mechanism for quick and reliable application.
- Available in both 304 and 316 stainless steel grades.
- کم اندراج قوت کے ساتھ اعلی تناؤ کی طاقت۔
- Fireproof and UV-resistant properties.
- Suitable for extreme temperature environments.
اپنی ضروریات بھیجیں، ہم آپ کے لیے 12 گھنٹے کے اندر حوالہ دیں گے۔
- TEL:+8618066396588
- واٹس ایپ:+8618066396588
- ای میل:sales@viox.com
Uncoated Ball Lock Stainless Steel Cable Tie
جائزہ
VIOX Electric Co., LTD. offers Uncoated Ball Lock Stainless Steel Cable Ties, featuring a unique self-locking mechanism that allows for quick and reliable application with low insertion force. These ties are ideal for extreme temperature environments, providing robust and secure fastening for cables and pipes. Made from high-quality stainless steel, they are available in both 304 and 316 grades to suit various applications.
Technical Information
مواد: Stainless Steel Grade 304 or 316
304 Grade: Standard applications
316 Grade: Extra corrosive environments
Working Temperature: -60°C to 300°C
Description: Metallic band and buckle
Flammability: Fireproof
Other Properties: UV-resistant
طول و عرض
Product Specifications
| حصہ نمبر | لمبائی (L) ملی میٹر (انچ) | چوڑائی (W) ملی میٹر (انچ) | Thickness (T) mm (inch) | زیادہ سے زیادہ بنڈل Ø ملی میٹر (انچ) | کم از کم لوپ ٹینسائل طاقت |
|---|---|---|---|---|---|
| MLG-130ST | 130 (5.08) | 4.6 (0.18) | 0.26 (0.01) | 33 (1.30) | 445 N / 45.4 kgf / 100 lbf |
| MLG-152ST | 150 (5.91) | 4.6 (0.18) | 0.26 (0.01) | 40 (1.57) | 445 N / 45.4 kgf / 100 lbf |
| MLG-200ST | 200 (7.87) | 4.6 (0.18) | 0.26 (0.01) | 50 (1.97) | 445 N / 45.4 kgf / 100 lbf |
| MLG-280ST | 280 (11.02) | 4.6 (0.18) | 0.26 (0.01) | 70 (2.76) | 445 N / 45.4 kgf / 100 lbf |
| MLG-300ST | 300 (11.81) | 4.6 (0.18) | 0.26 (0.01) | 76 (2.99) | 445 N / 45.4 kgf / 100 lbf |
| MLG-370ST | 370 (14.57) | 4.6 (0.18) | 0.26 (0.01) | 102 (4.02) | 445 N / 45.4 kgf / 100 lbf |
| MLG-520ST | 520 (20.47) | 4.6 (0.18) | 0.26 (0.01) | 156 (6.14) | 445 N / 45.4 kgf / 100 lbf |
| MLG-680ST | 680 (26.77) | 4.6 (0.18) | 0.26 (0.01) | 207 (8.15) | 445 N / 45.4 kgf / 100 lbf |
| MLG-840ST | 840 (33.07) | 4.6 (0.18) | 0.26 (0.01) | 257 (10.12) | 445 N / 45.4 kgf / 100 lbf |
| MLG-1050ST | 1050 (41.34) | 4.6 (0.18) | 0.26 (0.01) | 319 (12.56) | 445 N / 45.4 kgf / 100 lbf |
| MLG-152HD | 150 (5.91) | 7.9 (0.31) | 0.26 (0.01) | 40 (1.57) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-200HD | 200 (7.87) | 7.9 (0.31) | 0.26 (0.01) | 50 (1.97) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-300HD | 300 (11.81) | 7.9 (0.31) | 0.26 (0.01) | 76 (2.99) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-370HD | 370 (14.49) | 7.9 (0.31) | 0.26 (0.01) | 102 (4.02) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-450HD | 450 (17.72) | 7.9 (0.31) | 0.26 (0.01) | 135 (5.31) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-500HD | 500 (19.69) | 7.9 (0.31) | 0.26 (0.01) | 150 (5.91) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-680HD | 680 (26.77) | 7.9 (0.31) | 0.26 (0.01) | 207 (8.15) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-720HD | 720 (28.35) | 7.9 (0.31) | 0.26 (0.01) | 216 (8.50) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-840HD | 840 (33.07) | 7.9 (0.31) | 0.26 (0.01) | 257 (10.12) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-1020HD | 1020 (40.16) | 7.9 (0.31) | 0.26 (0.01) | 312 (12.28) | 1112 N / 113.4 kgf / 250 lbf |
| MLG-1050HD | 1050 (41.34) | 7.9 (0.31) | 0.26 (0.01) | 319 (12.56) | 1112 N / 113.4 kgf / 250 lbf |
خصوصیات
- Unique self-locking mechanism for quick and reliable application.
- Available in both 304 and 316 stainless steel grades.
- کم اندراج قوت کے ساتھ اعلی تناؤ کی طاقت۔
- Fireproof and UV-resistant properties.
- Suitable for extreme temperature environments.
ایپلی کیشنز
Our Uncoated Ball Lock Stainless Steel Cable Ties are perfect for use in:
- Petrochemical industry
- Food industry
- Power stations
- Mining
- Shipbuilding
- Offshore and other aggressive environments
سرٹیفیکیشنز
Our cable ties meet industry standards and certifications, including RoHS, and CE, ensuring high quality and reliability.
