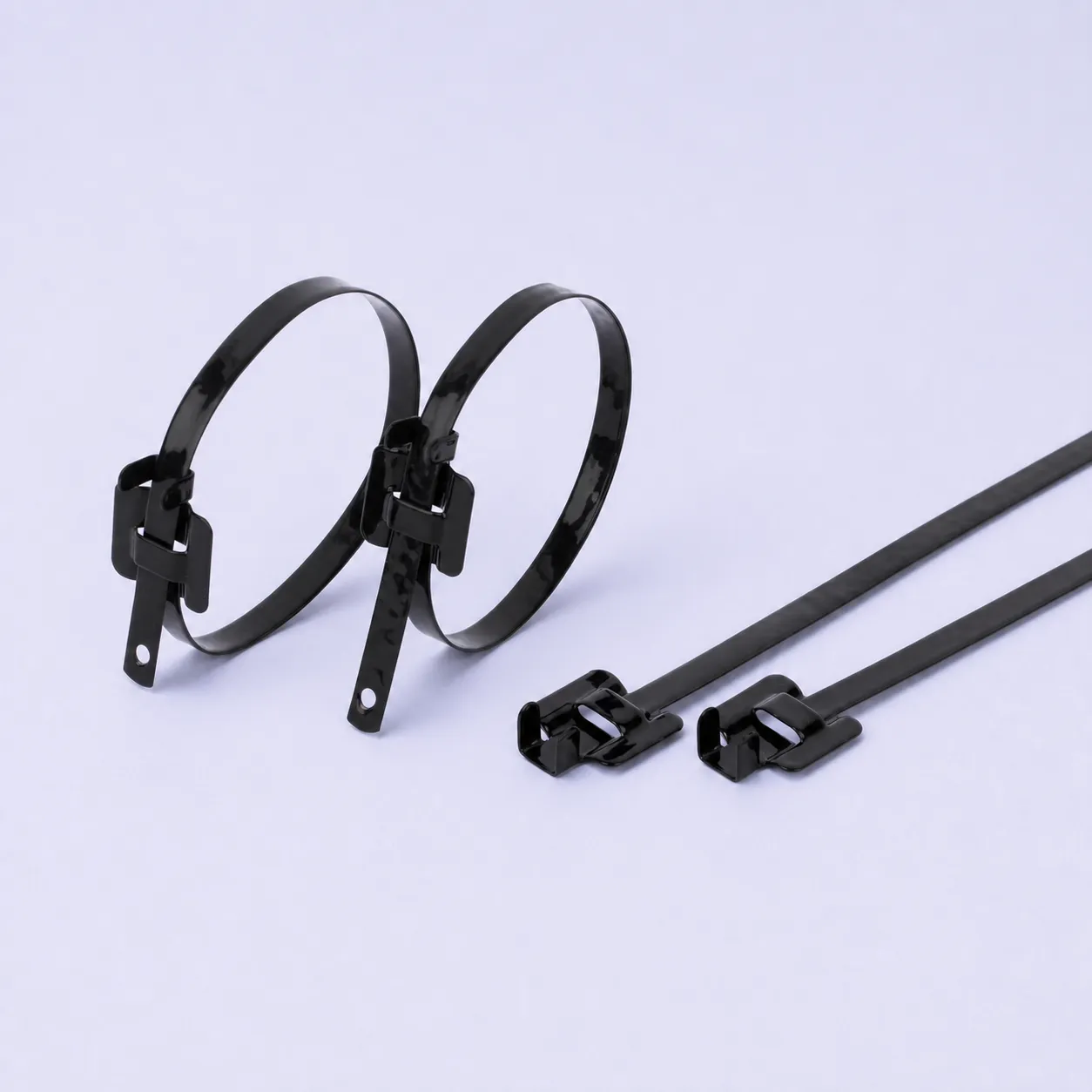

Releasable Stainless Steel Cable Ties
جائزہ
VIOX Electric Co., LTD. offers Releasable Stainless Steel Cable Ties, designed for secure and flexible fastening solutions. These ties can be double-wrapped for additional tensile strength and feature a unique releasable mechanism, allowing for reuse and adjustments. Coated with polyamide, they provide additional edge protection and prevent corrosion between dissimilar metals. Made from AISI 316 stainless steel, they are ideal for the most corrosive environments.
ایپلی کیشنز
Our Releasable Stainless Steel Cable Ties are perfect for use in:
- Petrochemical industry
- Food industry
- Power stations
- Mining
- Shipbuilding
- Offshore and other aggressive environments
Technical Information
مواد: Stainless Steel Grade 304 or 316
304 Grade: Standard applications
316 Grade: Extra corrosive environments
Coating: Epoxy and Polyamide available
UV Resistance: UV-resistant, low smoke, halogen-free material
Length: All lengths are available
طول و عرض
Product Specifications
| حصہ نمبر | لمبائی (L) ملی میٹر (انچ) | چوڑائی (W) ملی میٹر (انچ) | Thickness (T) mm (inch) | زیادہ سے زیادہ بنڈل Ø ملی میٹر (انچ) | کم از کم لوپ ٹینسائل طاقت |
|---|---|---|---|---|---|
| MLR-150ST | 150 (5.90) | 6.4 (0.25) | 0.38 (0.02) | 38 (1.50) | 334 N / 34.1 kgf / 75 lbf |
| MLR-230ST | 230 (9.05) | 6.4 (0.25) | 0.38 (0.02) | 63 (2.48) | 334 N / 34.1 kgf / 75 lbf |
| MLR-305ST | 305 (12.00) | 6.4 (0.25) | 0.38 (0.02) | 86 (3.39) | 334 N / 34.1 kgf / 75 lbf |
| MLR-460ST | 460 (18.11) | 6.4 (0.25) | 0.38 (0.02) | 137 (5.39) | 334 N / 34.1 kgf / 75 lbf |
| MLR-610ST | 610 (24.01) | 6.4 (0.25) | 0.38 (0.02) | 185 (7.28) | 334 N / 34.1 kgf / 75 lbf |
| MLR-150HD | 150 (5.90) | 9.6 (0.38) | 0.38 (0.02) | 38 (1.50) | 1112 N / 113.4 kgf / 250 lbf |
| MLR-230HD | 230 (9.05) | 9.6 (0.38) | 0.38 (0.02) | 63 (2.48) | 1112 N / 113.4 kgf / 250 lbf |
| MLR-305HD | 305 (12.00) | 9.6 (0.38) | 0.38 (0.02) | 86 (3.39) | 1112 N / 113.4 kgf / 250 lbf |
| MLR-460HD | 460 (18.11) | 9.6 (0.38) | 0.38 (0.02) | 137 (5.39) | 1112 N / 113.4 kgf / 250 lbf |
| MLR-610HD | 610 (24.01) | 9.6 (0.38) | 0.38 (0.02) | 185 (7.28) | 1112 N / 113.4 kgf / 250 lbf |
خصوصیات
- Releasable and reusable design for flexible applications.
- Can be double-wrapped for additional tensile strength.
- Polyamide coating provides additional edge protection and prevents corrosion between dissimilar metals.
- کم اندراج قوت کے ساتھ اعلی تناؤ کی طاقت۔
- UV-resistant, low smoke, halogen-free material.
- Suitable for extreme temperature environments.
سرٹیفیکیشنز
Our cable ties meet industry standards and certifications, including RoHS and HF, ensuring high quality and reliability.
