What Is a Consumer Unit

What Is a Consumer Unit

A consumer unit is the main electrical distribution point in your home that controls and protects all electrical circuits through circuit breakers and safety devices. Also known as a fuse box, electrical panel, or distribution board, the consumer unit is your property’s electrical control center that ensures safe power distribution throughout your home.

Quick Answer: Consumer Unit Essentials

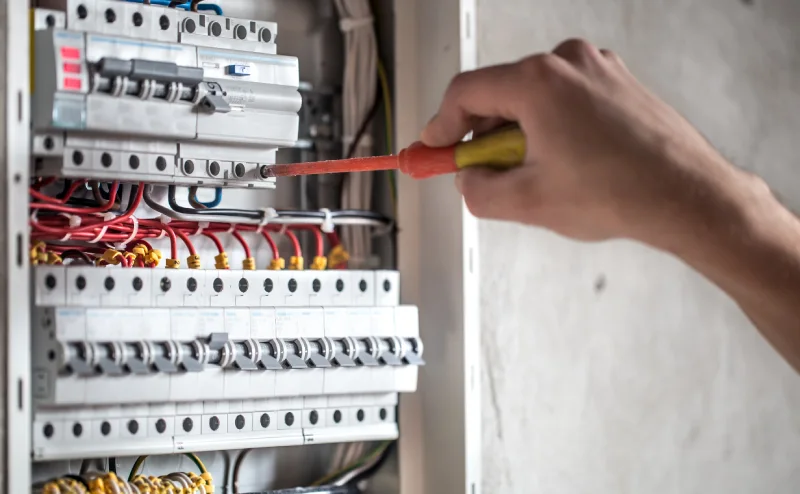

consumer unit

Consumer units distribute electricity from the main supply to individual circuits in your home while providing essential safety protection through:

What Is a Consumer Unit? Technical Definition

A consumer unit is an electrical distribution board that receives power from your electricity supplier’s meter and safely distributes it to individual circuits throughout your property. Modern consumer units contain circuit breakers, RCDs, and other protective devices that automatically disconnect power during electrical faults, preventing fires, electric shocks, and equipment damage.

Key Components of Every Consumer Unit:

  • Main switch: Isolates entire electrical installation
  • Întrerupătoare: Protect individual circuits from overload
  • RCD protection: Prevents fatal electric shocks
  • Bara de autobuz sistem: Distributes power to all circuits
  • Neutral and earth bars: Provide safe electrical connections

Types of Consumer Units: Complete Comparison

Here is a table that shows the main types of consumer units and their key characteristics:

Consumer Unit Type Nivelul de protecție Utilizare tipică Circuit Capacity Gama de costuri Complexitatea instalării
Standard Split Load RCD protection for some circuits Older homes 6-12 circuits £80-150 Moderat
High Integrity Dual RCD protection Modern homes 10-16 circuits £120-200 Moderat
RCBO Consumer Unit Protecție individuală a circuitelor New builds/upgrades 12-20 circuits £200-400 Advanced
SPD Consumer Unit Surge protection included High-tech homes 12-18 circuits £250-450 Advanced
Three-Phase Unit Commercial-grade protection Large properties 20+ circuits £300-600 Professional only

Standard Split Load Consumer Units

Standard split load consumer units divide circuits between RCD-protected and non-RCD sections. These units provide basic electrical safety but don’t meet current 18th Edition wiring regulations for new installations.

Cel mai potrivit pentru: Older properties requiring basic upgrades

Limitări: Limited RCD coverage, potential for multiple circuit failures

High Integrity Consumer Units

High integrity units feature dual RCD protection, ensuring that if one RCD fails, the other continues protecting remaining circuits. This design minimizes the risk of total power loss.

Cel mai potrivit pentru: Family homes requiring reliable power supply

Avantaje: Reduced inconvenience from RCD trips, improved safety

RCBO Consumer Units

RCBO (Residual Current Breaker with Overcurrent protection) consumer units provide individual protection for each circuit. Each RCBO combines circuit breaker and RCD functions in a single device.

Cel mai potrivit pentru: New installations and comprehensive upgrades

Avantaje: Individual circuit isolation, maximum safety, easier fault-finding

How Consumer Units Work: Step-by-Step Process

Here’s how your consumer unit protects your home’s electrical system:

  1. Power Entry: Electricity enters through the main switch from your supplier’s meter
  2. Distribution: The busbar system distributes power to individual circuit breakers
  3. Circuit Protection: Each circuit breaker monitors current flow to specific areas
  4. Fault Detection: RCDs continuously monitor for earth leakage currents
  5. Automatic Disconnection: Protective devices trip instantly during electrical faults
  6. Safe Isolation: Main switch allows complete power disconnection for maintenance

⚠️ Safety Warning: Professional Installation Required

Consumer unit installation and replacement must be carried out by qualified electricians and certified under Building Regulations Part P. DIY electrical work on consumer units is illegal and extremely dangerous.

Consumer Unit Components Explained

Circuit Breakers vs. Fuses

Caracteristică Întrerupătoare Traditional Fuses
Metodă de resetare Switch reset Wire replacement required
Response Speed Instant trip Slower response
Nivel de siguranță Mai mare De bază
Întreținere Minimală Regular replacement
Costuri Inițială superioară Lower initial
Conformitate Meets modern standards Outdated for new work

RCD Protection Levels

30mA RCDs: Standard protection for socket outlets and lighting circuits

100mA RCDs: Fire protection for larger appliances and heating systems

300mA RCDs: Commercial applications requiring discrimination

When Do You Need a New Consumer Unit?

Mandatory Replacement Scenarios

You must replace your consumer unit if:

  • Fuse box contains rewirable fuses (not compliant with current regulations)
  • No RCD protection exists for socket circuits
  • Unit shows signs of overheating, burning, or damage
  • Electrical work requires Building Regulations approval
  • Insurance requirements mandate modern protection

Sfat de expert: Signs Your Consumer Unit Needs Upgrading

  • Frequent fuse blowing or circuit breaker trips
  • Burning smells or scorch marks around the unit
  • Crackling sounds from electrical connections
  • Luminile se diminuează când pornesc aparatele electrocasnice
  • Lack of adequate circuit capacity for modern electrical loads

Consumer Unit Installation Requirements

Building Regulations Compliance

All consumer unit work must comply with:

  • Building Regulations Part P (England & Wales)
  • BS 7671 18th Edition Wiring Regulations
  • Local authority notification requirements
  • Electrical Installation Certificate provision

Installation Location Standards

Cerință Specificații Motiv
Înălțime 1.2m – 2m from floor Accessibility and safety
Accesibilitate 600mm clear space in front Maintenance access
Mediul înconjurător Dry, ventilated location Prevent moisture damage
Support Solid wall mounting Structural stability
Etichetare Clear circuit identification Emergency isolation

Consumer Unit Selection Guide

Choosing the Right Consumer Unit Size

Calculate your circuit requirements:

  1. Count existing circuits: Lighting, sockets, cooker, shower, etc.
  2. Plan future additions: Garden circuits, EV charging, home office
  3. Add 25% spare capacity: Accommodate unexpected needs
  4. Consider appliance demands: High-power equipment requirements

Expert Recommendation: Future-Proofing Your Installation

Choose RCBO consumer units for new installations. While initial costs are higher, they provide superior protection, easier fault-finding, and comply with latest safety standards.

Consumer Unit Safety and Maintenance

Monthly Safety Checks

Test your RCD protection monthly:

  1. Press the TEST button on each RCD
  2. Power should disconnect immediately
  3. Reset the RCD switch to restore power
  4. Contact an electrician if RCD fails to trip

⚠️ Critical Safety Warning

Never attempt to repair, modify, or work inside your consumer unit. All electrical work must be performed by qualified electricians holding appropriate certifications.

Professional Maintenance Schedule

Inspection Type Frecvența Requirements
Visual Check Lunar RCD testing, loose connections
Testare electrică 10 years (homes) Full installation testing
Commercial Testing 5 ani Comprehensive safety inspection
Rental Properties 5 ani Mandatory EICR certificate

Troubleshooting Common Consumer Unit Problems

Circuit Breaker Keeps Tripping

Possible causes and solutions:

  1. Overloaded circuit: Reduce appliances on affected circuit
  2. Faulty appliance: Disconnect devices individually to identify problem
  3. Damaged wiring: Contact electrician for circuit testing
  4. Incorrect breaker rating: Professional assessment required

RCD Trips Frequently

Investigation steps:

  1. Identify affected circuits: Note which RCD is tripping
  2. Verificați umiditatea: Inspect outdoor sockets and garden equipment
  3. Test appliances: Unplug devices and reset RCD
  4. Professional diagnosis: Persistent problems require electrical testing

ATS in Panel

Consumer Unit Costs and Installation

Price Breakdown by Type

Consumer Unit Type Cost unitar Costul de instalare Investiție totală
Basic Split Load £80-150 £300-500 £380-650
High Integrity £120-200 £400-600 £520-800
RCBO Unit £200-400 £500-800 £700-1200
SPD Protected £250-450 £600-900 £850-1350

Additional Installation Costs

Factor in these potential extras:

  • Testare electrică: £150-300
  • Building control notification: £150-200
  • Remedial work: Variable depending on existing installation
  • Certificare: Included with professional installation

fată deschide capacul panoului electric

Legal Requirements and Regulations

Building Regulations Part P

Consumer unit replacement requires:

  • Qualified electrician installation
  • Building control notification (or competent person scheme)
  • Electrical Installation Certificate
  • Compliance with BS 7671 standards

Sfat de expert: Choosing Qualified Electricians

Always use electricians registered with approved schemes (NICEIC, NAPIT, ELECSA) who can self-certify work under Building Regulations Part P.

Întrebări frecvente

What’s the difference between a consumer unit and a fuse box?

A consumer unit is the modern term for what was traditionally called a fuse box. Modern consumer units use circuit breakers and RCDs instead of traditional fuses, providing better protection and easier reset capability.

How long do consumer units last?

Consumer units typically last 20-30 years, but should be replaced sooner if they don’t meet current safety standards or show signs of wear. Units with traditional fuses should be upgraded immediately.

Can I replace my own consumer unit?

No. Consumer unit replacement is notifiable work under Building Regulations Part P and must be performed by qualified electricians. DIY installation is illegal and dangerous.

What happens if my RCD keeps tripping?

Frequent RCD tripping indicates an electrical fault that could be dangerous. Turn off all appliances, reset the RCD once, and contact a qualified electrician if the problem persists.

Do I need surge protection in my consumer unit?

Surge protection is increasingly recommended for homes with sensitive electronics, electric vehicle charging, or solar panels. SPD-protected consumer units prevent damage from voltage spikes.

How do I know if my consumer unit is safe?

Safe consumer units have RCD protection, proper labeling, no signs of overheating, and pass regular testing. If your unit has traditional fuses or is over 30 years old, arrange a professional inspection.

Next Steps: Professional Consumer Unit Services

Ready to upgrade your electrical safety? Contact certified electricians for:

  • Free safety assessments of your current installation
  • Detailed quotations for consumer unit replacement
  • Building Regulations compliance guidance
  • Electrical Installation Certificates for insurance and legal requirements

Your consumer unit is your home’s electrical safety foundation. Invest in professional installation and regular maintenance to protect your property and family from electrical hazards.
