Professional Double-Layer Terminal Blocks for Modern Control Panels
Looking for an efficient wiring solution that saves panel space while maintaining reliable connections? VIOX Electric’s TBD Terminal Block series offers industry-leading double-layer screw terminal blocks specifically designed for electrical control panels, automation systems, and distribution boxes where space optimization is critical.
What Are TBD Terminal Blocks?
TBD terminal blocks are premium double-layer (2-deck) screw terminal blocks manufactured by VIOX Electric for professional electrical applications. These space-saving components allow two separate levels of wiring connections within the same footprint, effectively doubling your connection capacity without expanding panel dimensions. Mounted on standard 35mm DIN rails, VIOX TBD terminal blocks combine convenience, reliability, and space efficiency in one comprehensive solution.
Key Features of VIOX TBD Terminal Blocks
Space-Optimized Design
- Innovative double-layer architecture reduces required panel space by up to 50%
- Compact dimensions with standardized mounting options
- Maintains excellent accessibility despite increased connection density
Superior Performance Specifications
- Voltage ratings up to 600V for industrial applications
- Current ratings from 10A to 30A depending on model
- Excellent insulation resistance (minimum 100 MΩ between channels)
- Compatible with wire sizes from 26AWG to 12AWG (0.5-6 mm²)
Міцна конструкція
- Manufactured from high-grade modified PPE or ABS material for long-term durability
- Galvanized copper conductive components ensure reliable electrical contact
- Designed to withstand industrial environments and temperature variations
- Secure screw-type terminal connections prevent wire loosening due to vibration
Просте встановлення та обслуговування
- Quick snap-on installation to standard 35mm DIN rails
- Accessible screw terminals for simple wiring and maintenance
- End plates included for professional finishing and safety
- Чіткі варіанти маркування для ідентифікації ланцюга
VIOX TBD Terminal Block Series Specifications
Our comprehensive TBD terminal block range includes three models to meet various current requirements while maintaining the space-saving advantages of double-layer design:
| Модель | Висота (мм) | Width a (mm) | Width b (mm) | Товщина (мм) | Current Rating (A) | Voltage Rating (V) | Conductor Size (mm²) |
|---|---|---|---|---|---|---|---|
| TBD-10A | 46 | 34 | 38.4 | 0.8 | 10 | 600 | 0.5-1.5 |
| TBD-20A | 46 | 34 | 38.4 | 1.0 | 20 | 600 | 0.5-2.5 |
| TBD-30A | 46 | 34 | 38.4 | 1.0 | 30 | 600 | 4-6 |
All VIOX TBD terminal blocks come with end plates for professional installation. The standard configuration includes 10 positions per rail, with custom configurations available upon request.

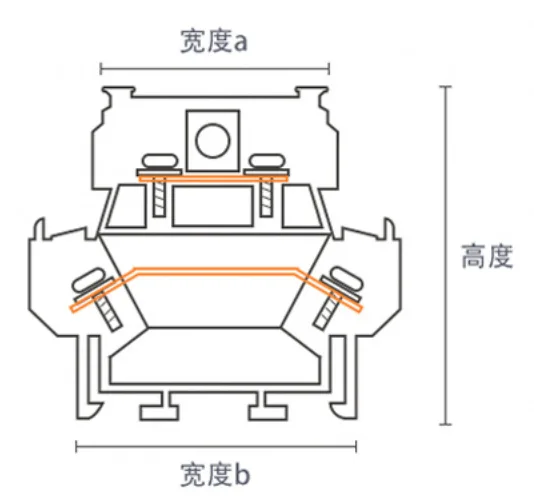

Вимір
Applications for VIOX TBD Terminal Blocks
VIOX TBD terminal blocks excel in numerous applications where space constraints and reliable connections are paramount:
- Промислова автоматизація: Organize control panel wiring efficiently in PLC and industrial automation systems
- Electrical Distribution: Streamline connections in distribution boxes and switchboards
- Виробниче обладнання: Provide reliable power and signal connections in machines with limited panel space
- Системи управління будівлями: Create compact connection solutions for HVAC and lighting control panels
- Railway and Transportation: Deliver vibration-resistant connections in limited-space applications
- Системи відновлюваної енергетики: Organize wiring in solar and wind power distribution panels
Why Choose VIOX TBD Terminal Blocks?
When comparing double-layer terminal block options, VIOX’s TBD series stands apart with several decisive advantages:
- Ефективність використання простору: Double-layer design maximizes connection density for modern compact control panels
- Надійність: Premium materials and construction ensure long-term performance even in demanding environments
- Безпека: Complete insulation between layers prevents cross-circuit interference
- Універсальність: Compatible with standard DIN rails and varied wire sizes for universal application
- Забезпечення якості: Manufactured to strict quality standards with comprehensive testing
- Значення: Professional-grade performance at competitive pricing for better ROI
Посібник з монтажу
Installing VIOX TBD terminal blocks is straightforward:
- Mount the terminal block onto a standard 35mm DIN rail using the integrated snap mechanism
- Strip wire ends to appropriate length (typically 6-8mm)
- Insert wire into terminal and tighten screw to manufacturer-recommended torque
- Verify connection security with a gentle tug test
- Attach end plates to finish the installation
Conclusion: The Professional Choice for Space-Saving Connections
VIOX Electric’s TBD Terminal Block series represents the ideal solution for electrical professionals seeking to maximize connection density without compromising reliability or safety. With models ranging from 10A to 30A, these double-layer terminal blocks deliver exceptional performance in a compact footprint, making them the professional choice for modern control panels and electrical installations.
Contact VIOX Electric today for detailed specifications, custom configurations, or to discuss how our TBD terminal blocks can optimize your next electrical project.
