LM50 Induktiv närhetsgivare
VIOX’s LM55 Plane Installation Type Inductive Sensors: 25mm detection distance, adaptable DC/AC compatibility, and versatile NPN/PNP configurations. Features IP67 protection, ABS Resin shell, and enhanced performance for industrial applications.
Skicka dina krav, vi kommer att offerera för dig inom 12 timmar
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
| Structural category | Plane installation type | |||
| Outward Appearance code | LM55 | |||

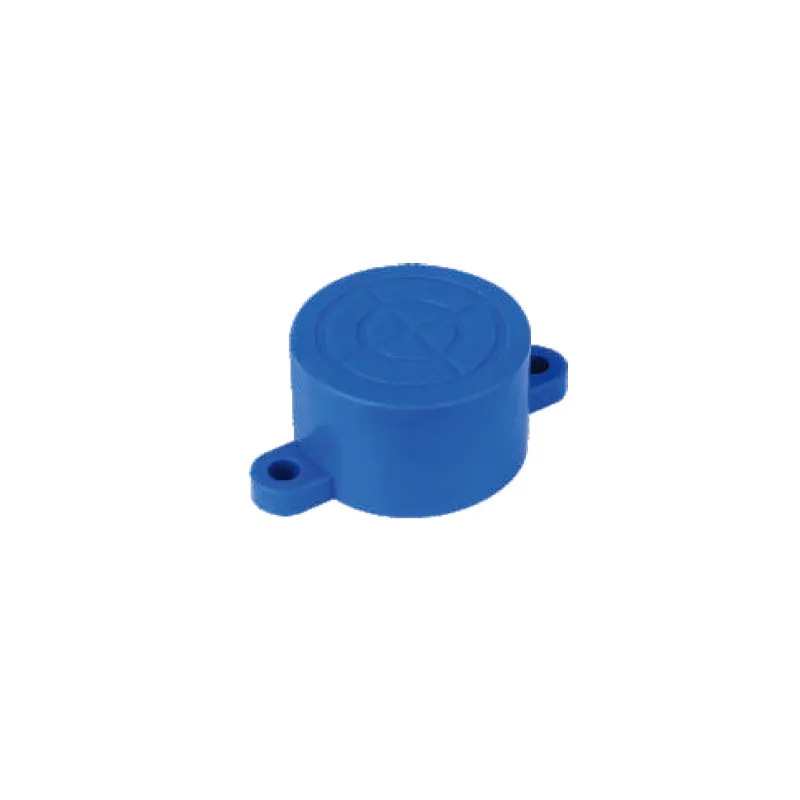

| Outward appearance illustration |  |
|||
| Övergripande mått |  |
|||
| DETEKTERINGSAVSTÅND | 25 mm | |||
| Ej spolbar | DC 10-30 VDC AC |
NPN | NEJ | LM55 3025NA |
| NC | LM55-3025NB | |||
| NO+NC | LM55-3025NC | |||
| PNP | NEJ | LM55-3025PA | ||
| NC | LM55-3025PB | |||
| NO+NC | LM55-3025PC | |||
| two wire system | NEJ | LM55-3025LA | ||
| NC | LM55-2025LB | |||
| SCR Controllable silicon | NEJ | LM55-2025A | ||
| NC | LM55-2025B | |||
| NO+NC | LM55-2025C | |||
| Reläutgång | LM55-2025JC | |||
| Controloutput | DC | 200 mA | ||
| SCR/ Relay | 300 mA | |||
| Utgångsspänningsfall DC/AC | DC (NPN PNP) type: below 3V, two-wire type: below 3.9V, AC below 10V DC＜3V, AC＜10V | |||
| Förbrukningsström | DC (NPN PNP) type DC 12V 8mA, 24V 15mA, AC 10mA or less DC＜15mA, AC＜10mA | |||
| Standard detekterat objekt | 55×55×1(A3 iron) | |||
| Repeated precision | 0.2 | |||
| DC/AC | 200Hz/10Hz | |||
| Temperatur i arbetsmiljön | -25℃~+75℃ | |||
| Isolationsmotstånd | 50MΩ | |||
| Material i skalet | ABS-harts | |||
| Skyddsklass | IP67 | |||
| Alyemative-modellen hemma och utomlands | SE-□□ | |||
