CTB3315 Keramisk kopplingsplint
VIOX CTB3315 Ceramic Terminal Block offers a 3-in-3-out, 15A design for medium-current multi-circuit needs. With 750°C heat resistance, it’s ideal for industrial control systems and HVAC. Trust VIOX for durable, safe connections in challenging high-temperature industrial settings.
Skicka dina krav, vi kommer att offerera för dig inom 12 timmar
- TEL:+8618066396588
- Whatsapp:+8618066396588
- Email:sales@viox.com
The CTB3315 Ceramic Terminal Block represents a significant advancement in medium-current multi-circuit connection technology, offering an efficient and reliable 3-in-3-out configuration rated at 15A. This professional-grade terminal block combines enhanced current-carrying capacity with superior thermal stability and excellent electrical insulation properties, making it the ideal choice for engineers and electricians working on complex projects requiring multiple medium-current connections with unwavering reliability and safety.
Advanced Multi-Circuit Design with Enhanced Current Capacity
The CTB3315 features an innovative 3-in-3-out configuration specifically engineered to handle increased current loads up to 15A while facilitating complex circuit arrangements. Meticulously crafted from high-frequency ceramic material, this terminal block delivers superior insulation properties that significantly outperform conventional plastic alternatives in medium-current, high-temperature environments. The ceramic housing ensures complete resistance to aging, cracking, and deformation even under extreme temperature conditions up to 750°C, guaranteeing long-term stability and safety for your critical electrical connections.
Each terminal block incorporates six precision-engineered connection points with substantial copper core conductors designed for optimal electrical performance and M4-compatible screw terminals manufactured from durable iron-plated zinc material. This construction provides exceptionally secure wire clamping that maintains consistent contact pressure even when subjected to vibration, thermal cycling, and sustained current loads – ensuring reliable performance across all three circuits in demanding applications.
Viktiga funktioner och tekniska fördelar
- Enhanced Current Capacity: 15A rating provides additional headroom for medium-current applications requiring multiple connection points
- Utökad kretskonfiguration: Konstruktionen med tre ingångar och tre utgångar möjliggör flera parallella anslutningar eller tre separata kretsar i en enda kompakt kopplingsplint
- Integrated Mounting System: Built-in 12mm spaced mounting holes for secure and standardized installation in control panels and junction boxes
- Ökad trådkapacitet: Accommodates wire gauges from 0.5mm² to 4mm², providing flexibility for various medium-current installation requirements
- Större kabelgenomföring: 4mm diameter wire entry holes facilitate easier installation of medium gauge wires
- M4 Skruv Kompatibilitet: Designed to work with standard M4 screws for secure connections and easy maintenance
- Överlägsen temperaturbeständighet: Tål kontinuerlig drift vid höga temperaturer upp till 750 °C, idealisk för applikationer där plastterminaler skulle gå sönder
- Utmärkt elektrisk isolering: Keramiskt material ger exceptionell dielektrisk styrka och förhindrar strömläckage mellan angränsande kretsar
- Flamskyddad: Naturligt brandsäkert material eliminerar risken för antändning eller flamspridning i känsliga installationer
- Kemisk beständighet: Ogenomtränglig för oljor, lösningsmedel och de flesta syror, vilket säkerställer hållbarhet i tuffa industriella miljöer
Tekniska specifikationer
| SPECIFIKATION | MODELL | LÄNGD | BREDD | HÖJD | LEDNINGSINTERVALL |
|---|---|---|---|---|---|
| 1 In 1 Ut 10A | CTB1110 | 19 mm | 10 mm | 15 mm | 0,5-2,5 mm2 |
| 1 in 1 ut 30A | CTB1130 | 18 mm | 14 mm | 18 mm | 0,5-6 mm2 |
| 2 in 2 ut 10A | CTB2210 | 20,7 mm | 18,9 mm | 13,9 mm | 0,5-2,5 mm2 |
| 2 in 2 ut 15A | CTB2215 | 28,4 mm | 20,4 mm | 16,3 mm | 0,5-4 mm2 |
| 2 in 2 ut 30A | CTB2230 | 31 mm | 27 mm | 18,9 mm | 1,5-6 mm2 |
| 2 In 2 Ut 60A | CTB2260 | 38,7 mm | 31 mm | 22,7 mm | 2,5-16 mm2 |
| 2 In 2 Ut 100A | CTB22100 | 41,1 mm | 30,2 mm | 25,85 mm | 6-25 mm2 |
| 3 in 3 ut 10A | CTB3310 | 31 mm | 20 mm | 14,3 mm | 0,5-2,5 mm2 |
| 3 in 3 ut 15A | CTB3315 | 35,5 mm | 20,3 mm | 20,2 mm | 0,5-4 mm2 |
| 3 in 3 ut 30A | CTB3330 | 46,2 mm | 26,4 mm | 19,2 mm | 1,5-6 mm2 |
| 4 in 4 ut 30A | CTB4430 | 57 mm | 25 mm | 18,8 mm | 1,5-6 mm2 |
| 5 in 5 ut 15A | CTB5515 | 50 mm | 22 mm | 13 mm | 0,5-2,5 mm2 |
| 6 in 6 ut 15A | CTB6615 | 56,6 mm | 21 mm | 13 mm | 0,5-2,5 mm2 |
| 8 in 8 ut 15A | CTB8815 | 68 mm | 21 mm | 13 mm | 0,5-2,5 mm2 |
| 10 In 10 Ut 15A | CTB101015 | 88 mm | 18 mm | 15 mm | 0,5-3,5 mm2 |
CTB3315 Detailed Specifications:
- Nuvarande betyg: 15A per krets
- Konfiguration: Tre in, tre ut

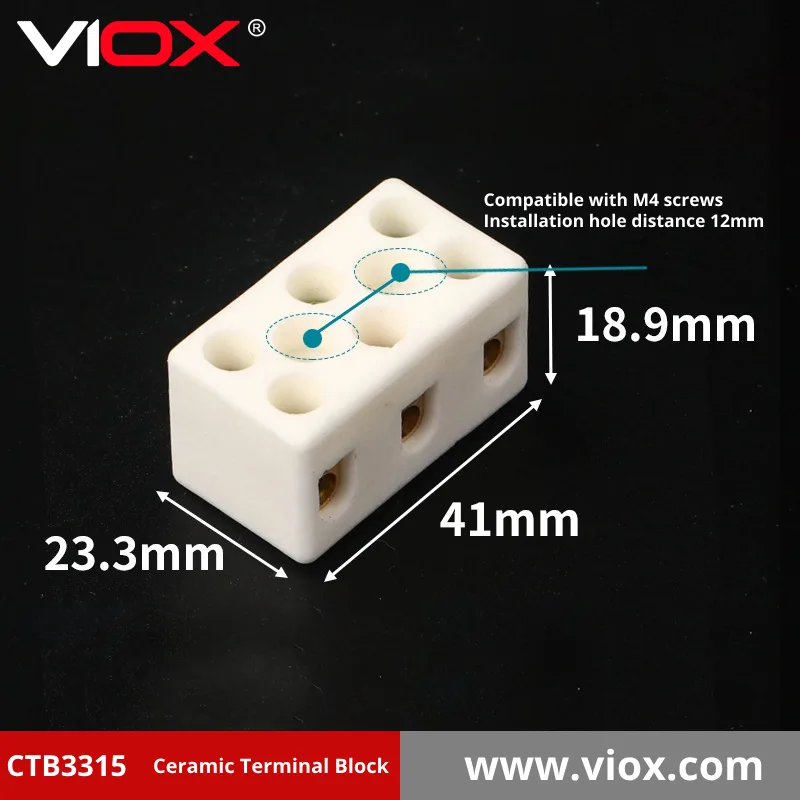

- Mått: 41mm (L) × 23.3mm (W) × 18.9mm (H)
- Wire Range: 0.5-4mm²
- Diameter på hål för trådgenomföring: 4mm
- Material för hölje: Högfrekvent keramik
- Ledarmaterial: Kopparkärna
- Skruvmaterial: Järnpläterad zink
- Skruv Kompatibilitet: M4-gänga
- Avstånd till monteringshål: 12mm center-to-center
- Kompatibla ledningstyper: Lämplig för både mjuka och hårda trådar
- Maximal driftstemperatur: 750°C
- Dielektrisk styrka: 2,8 kV
- Isolationsmotstånd: >1000MΩ vid 500VDC
- Kontaktmotstånd: <0,5 mΩ
Mångsidiga tillämpningar
The CTB3315 Ceramic Terminal Block is specifically designed for medium-current applications where multiple circuit connections, reliability, and heat resistance are essential:
- Industriella styrsystem: Multi-circuit control panels and distribution boxes requiring medium-current capacity
- Three-Phase Equipment: Ideal for three-phase connections in smaller industrial equipment and control systems
- Commercial HVAC: Multiple fan motors, heating elements, and control circuits in commercial heating and cooling systems
- Lighting Infrastructure: Commercial and industrial lighting systems requiring multiple circuit distribution
- Strömfördelningspaneler: Medium-current distribution panels with multiple circuit requirements
- Machinery and Equipment: Multiple circuit connections in industrial machinery operating in elevated temperature environments
- Solar and Alternative Energy: Junction boxes and connection points in medium-scale renewable energy installations
- Signalbehandling: Industrial instrumentation requiring isolated medium-current circuits with high thermal stability
Riktlinjer för professionell installation
For optimal performance, safety, and compliance with electrical codes, follow these professional installation guidelines:
- Se till att monteringsytan är ren, plan och värmebeständig
- Utilize the integrated 12mm mounting holes for secure and standardized attachment
- Strip wires to the appropriate length (typically 7-9mm)
- For stranded conductors, pre-twist or use ferrules for optimal connection
- Lossa plintskruvarna helt innan du för in ledarna
- För in kabeln helt och hållet i terminalöppningen
- Tighten M4 screws to a torque of 1.0-1.5 N·m
- Verifiera en säker anslutning genom att utföra ett försiktigt dragtest på varje ledare
- Vid användning av flera kretsar, säkerställ korrekt separation mellan olika elektriska potentialer
- Märk varje krets tydligt för framtida underhåll och felsökning
The CTB3315 Advantage: Multi-Circuit Excellence with Enhanced Capacity
When selecting terminal blocks for medium-current multi-circuit applications, the CTB3315 Ceramic Terminal Block offers the perfect balance between connection flexibility and current capacity. Its innovative 3-in-3-out configuration with 15A rating provides exceptional versatility for creating complex medium-current circuit arrangements while maintaining the exceptional heat resistance and electrical insulation properties that make ceramic terminal blocks the professional’s choice for critical installations.
